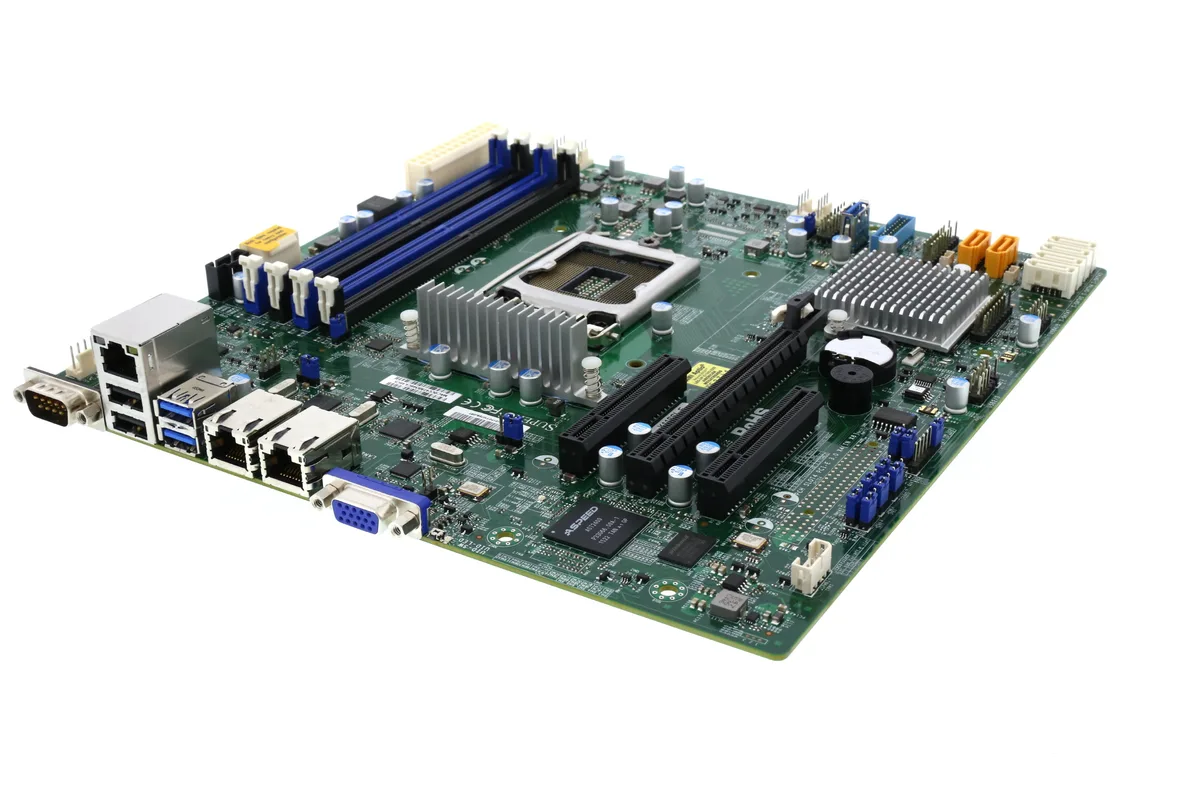

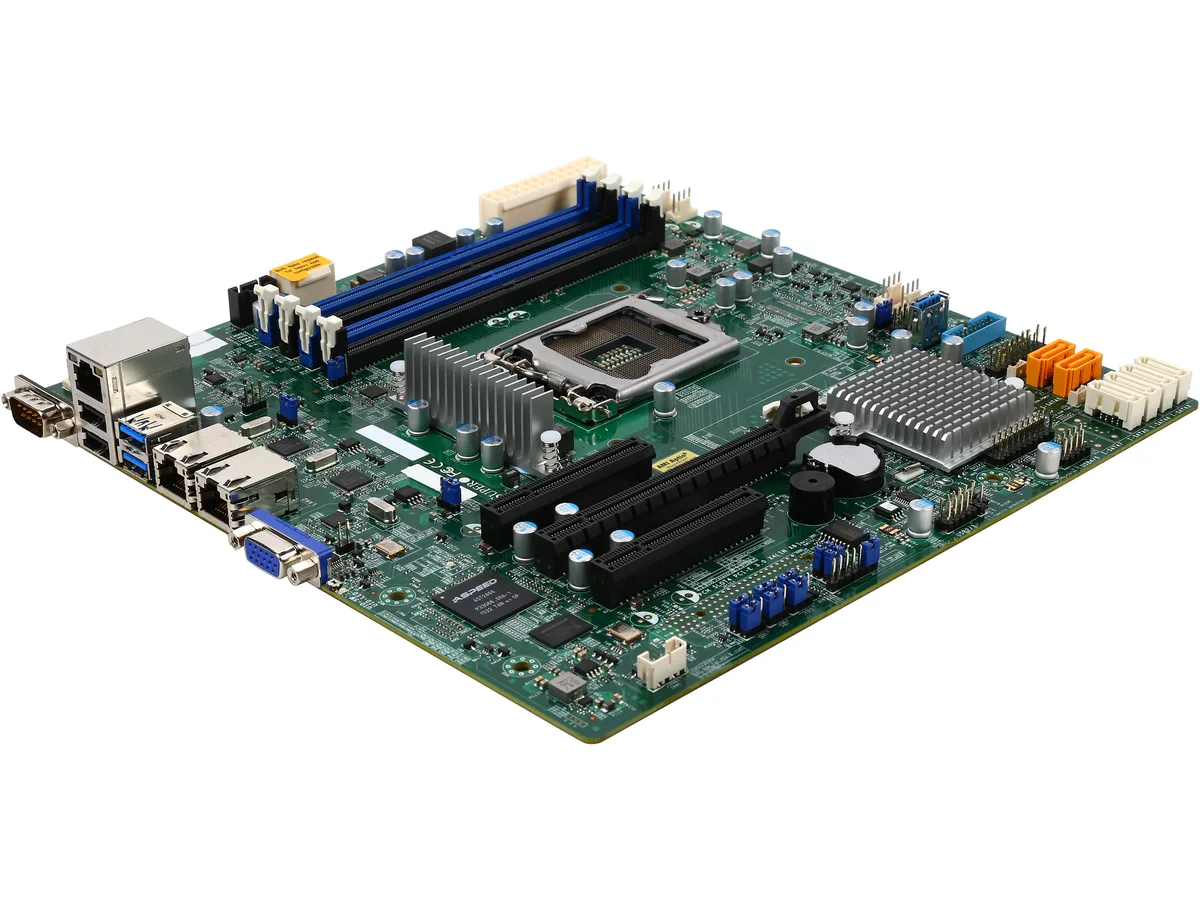

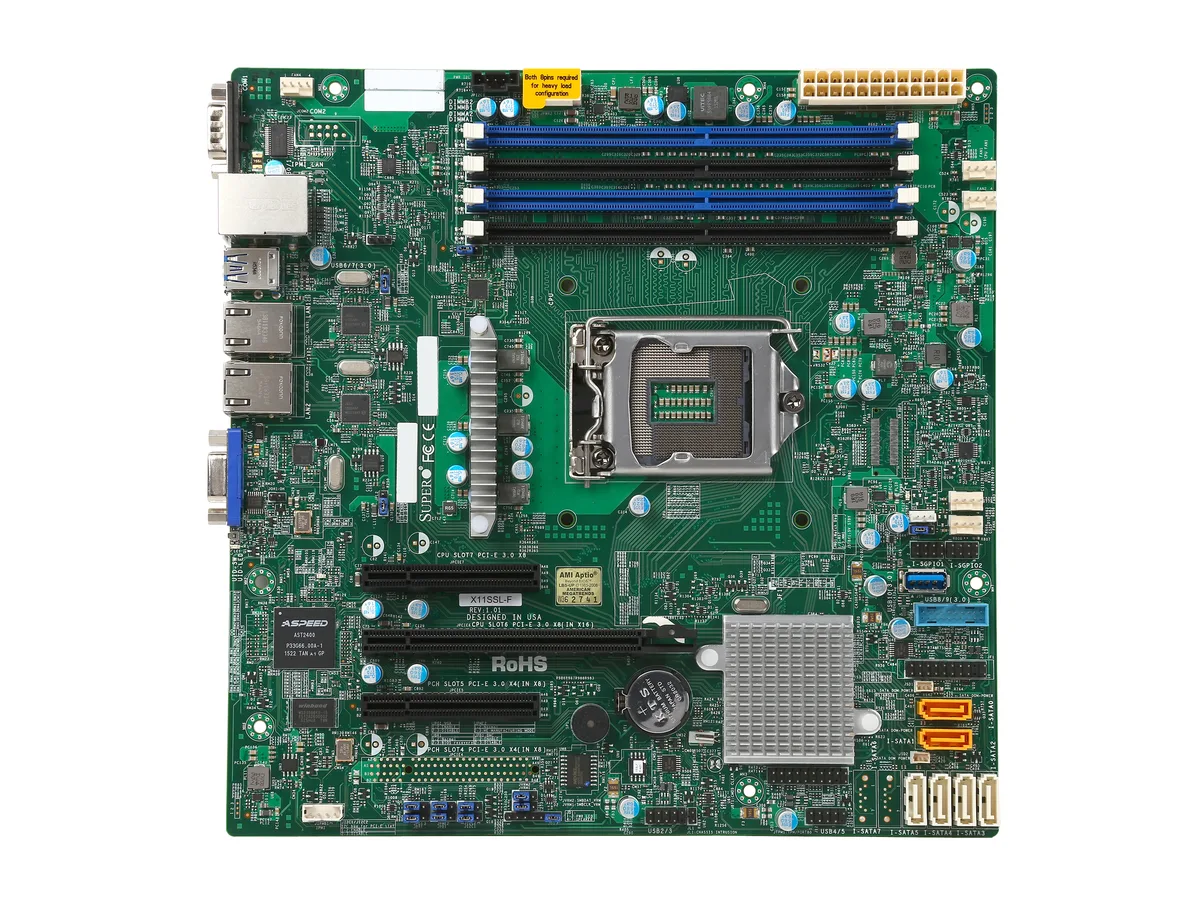

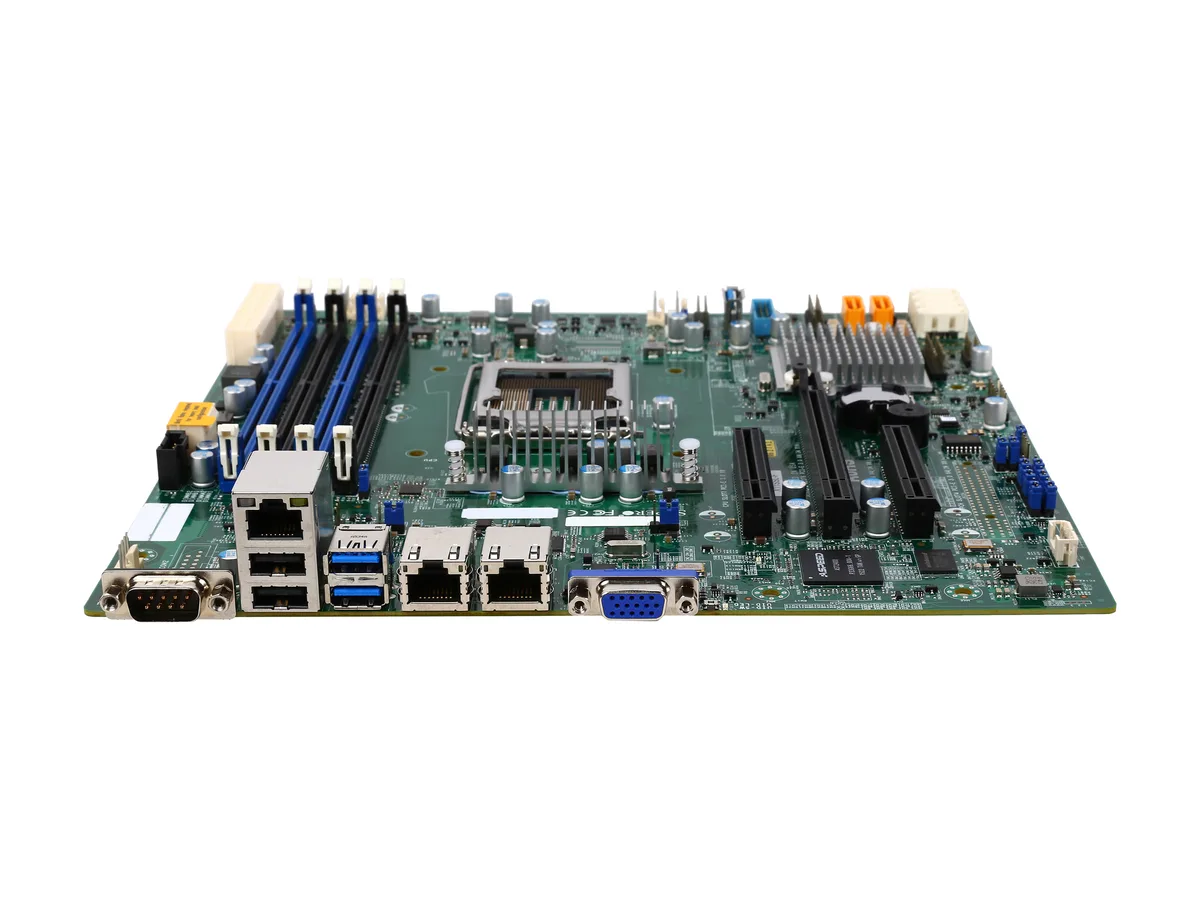

Green microATX server board with four DDR4 slots, dual LAN ports, six SATA connectors and a dedicated IPMI port

Supermicro

Supermicro MBD-X11SSL-F-O microATX server motherboard LGA 1151 64GB DDR4

SKU CH-CVN9-53CME MPN MBD-X11SSL-F-O

microATX server board with LGA 1151 socket, dual Intel GbE LAN, six SATA 6 Gbps ports with RAID, and four DDR4 ECC slots up to 64 GB

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports: Intel 7th/6th Generation Core i3 series Intel Xeon
  • North BridgeIntel C232
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 StandardDDR4 2400 / 2133 / 1866 / 1600 MHz ECC SDRAM 72-bit, 288-pin
  • Maximum Memory Supported64GB
  • Supports Xeon E3-1200 v5/v6 and 6th/7th Gen Core i3 on LGA 1151
  • Intel C232 chipset provides 6 SATA 6.0Gb/s ports with RAID 0/1/5/10
  • Four DDR4 slots accept up to 64GB ECC UDIMM at 2400 MHz
  • Dual Intel I210-AT Gigabit LAN ports for redundant network connectivity
  • microATX 9.6" form factor with PCI-E 3.0 x8, x8 and x4 expansion slots

Socket LGA 1151 Server Board

The Supermicro MBD-X11SSL-F-O is a microATX server motherboard built around the Intel C232 chipset and a single LGA 1151 socket. It accepts Intel Xeon E3-1200 v5/v6, 6th/7th generation Core i3, Pentium and Celeron processors with a TDP up to 80W. Four DDR4 slots support up to 64GB of unbuffered ECC UDIMM memory at speeds up to 2400MHz.

Builders Needing IPMI And Dual GbE

This board suits integrators who require out-of-band management via the integrated IPMI 2.0 with dedicated LAN and dual Intel I210-AT Gigabit Ethernet ports. Six SATA 6Gb/s ports with RAID 0, 1, 5, 10 provide direct-attached storage connectivity. Builders who need registered or load-reduced DIMMs, more than four memory slots, additional PCIe x16 lanes or onboard 10GbE should look at other platforms.

64GB Unbuffered ECC DDR4 Limit

The maximum supported memory is 64GB across four 288-pin slots using unbuffered ECC DDR4 UDIMMs only. Registered, load-reduced or non-ECC modules are not supported by the C232 chipset. This capacity ceiling is the primary specification that determines whether the board fits a given workload.

Points forts

  • Supports Xeon E3-1200 v5/v6 and 6th/7th Gen Core i3 on LGA 1151
  • Intel C232 chipset provides 6 SATA 6.0Gb/s ports with RAID 0/1/5/10
  • Four DDR4 slots accept up to 64GB ECC UDIMM at 2400 MHz
  • Dual Intel I210-AT Gigabit LAN ports for redundant network connectivity
  • microATX 9.6" form factor with PCI-E 3.0 x8, x8 and x4 expansion slots

Caractéristiques

BrandSUPERMICRO
ModelMBD-X11SSL-F-O
CPU Socket TypeLGA 1151
CPU TypeSupports:
Intel 7th/6th Generation Core i3 series
Intel Xeon processor E3-1200 v6/v5
Intel Celeron
Intel Pentium
North BridgeIntel C232
Number of DDR4 Slots4 x 288-pin
DDR4 StandardDDR4 2400 / 2133 / 1866 / 1600 MHz ECC SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
Maximum Memory Supported64GB
ECC SupportedYes
PCI Express x81 x PCI-E 3.0 x8 (in x16) slot
1 x PCI-E 3.0 x8 slot
PCI Express x41 x PCI-E 3.0 x4 (in x8) slot
SATA6 x SATA 6.0Gb/s
SATA RAID0/1/5/10
Onboard Video ChipsetAspeed AST2400 BMC
LAN ChipsetIntel I210-AT
Second LAN ChipsetIntel I210-AT
Second LAN Speed10/100/1000Mbps
Third LAN Speed10/100/1000Mbps
Max LAN Speed2 x 1Gbps
COM1
Video Ports1 x VGA
USB 1.1/2.02 x USB 2.0
USB 3.02 x USB 3.0
FeaturesSingle socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v6 / v5, Intel 7th / 6th Gen. Core i3 series, Intel Celeron and Intel Pentium
Intel C232 chipset
Up to 64GB Unbuffered ECC UDIMM DDR4 2400 MHz; 4 x DIMM slots
Expansion slots:1 x PCI-E 3.0 x8 (in x16), 1 x PCI-E 3.0 x8, 1 x PCI-E 3.0 x4 (in x8)
Dual GbE LAN with Intel i210-AT
6 x SATA3 (6 Gbps) via C232; RAID 0, 1, 5, 10
I/O: 1 x VGA, 1 x COM, TPM header
2 x SuperDOM with built-in power
5 x USB 3.0 (2 x rear, 2 x via header, 1 x Type A), 6 x USB 2.0 (2 x rear, 4 x via header)
Integrated IPMI 2.0 and KVM with Dedicated
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Poids d’expédition0.89 kg
Dimensions du colis282 × 272 × 56 mm

Questions sur cet article

How much power does the board draw when paired with an 80 W Xeon E3-1200 v5 running continuously?

The socket is rated for CPUs up to 80 W TDP, so sustained load will stay within that envelope; actual draw depends on the specific processor and workload.

Which DDR4 UDIMM modules must I already have to reach the 64 GB limit?

Four 16 GB 288-pin ECC UDIMMs at 1.2 V, rated for 2400, 2133, 1866 or 1600 MHz, will fill the four slots and hit the 64 GB maximum.

Will my existing SATA 6 Gb/s drives work with the six onboard ports and RAID 0, 1, 5, 10?

Yes — the C232 chipset provides six SATA 6.0 Gb/s ports that support RAID 0, 1, 5 and 10, so current SATA SSDs or HDDs connect directly.
