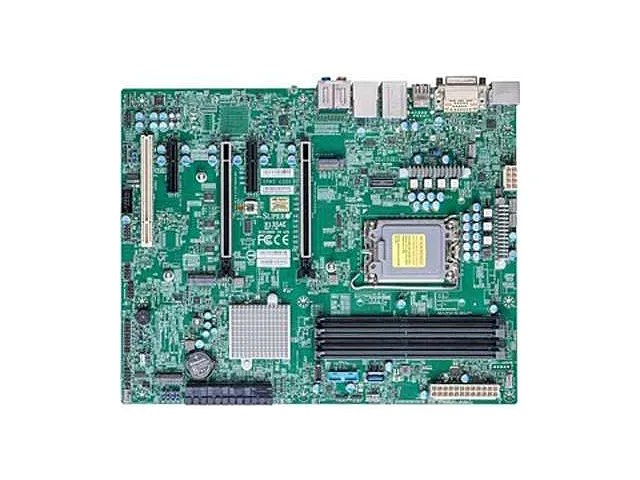

Green ATX server motherboard with silver LGA 1700 socket, four black DDR5 slots, multiple PCIe slots and rear I/O shield

Supermicro

Supermicro MBD-X13SAE-O ATX server motherboard LGA 1700 DDR5 4400 128GB

SKU CH-W264-X80R7 MPN MBD-X13SAE-O

ATX server board for LGA 1700 CPUs with four DDR5 4400 slots up to 128 GB, dual PCIe 5.0 x16, three M.2 4.0 x4 and eight SATA ports

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 12th Generation Intel Core i9 / Core i7 / Core i5 /
  • Number of Processor Support1
  • North BridgeIntel W680
  • Memory Slots4 x DDR5 288-pin
  • Memory StandardDDR5 4400
  • Supports 12th/13th/14th Gen Intel Core i9/i7/i5/i3 CPUs up to 150W TDP
  • Four DDR5-4400 slots accept up to 192GB unbuffered ECC or non-ECC UDIMM
  • Two PCIe 5.0 x16 slots run at x16 or x8/x8 for GPU and add-in cards
  • Three M.2 2280 M-key slots with PCIe 4.0 x4 support RAID 0, 1, 5
  • Eight SATA 6.0Gb/s ports plus dual Intel LAN (i225V and I219LM for AMT/vPro)

Socket LGA 1700 server board

The Supermicro MBD-X13SAE-O is an ATX server motherboard built around the Intel W680 chipset for single-socket LGA 1700 processors up to 150W TDP. It targets system integrators and IT teams assembling rack or tower servers that need workstation-class reliability with standard desktop dimensions.

Four DDR5 slots and triple M.2

Four 288-pin DDR5 slots support memory speeds of 4400 MT/s and a maximum capacity of 128GB using unbuffered ECC or non-ECC UDIMMs. Three M.2 2280 M-key slots wired for PCIe 4.0 x4 each provide high-speed storage with RAID 0, 1 and 5 support, while eight SATA 6.0Gb/s ports handle additional drives.

PCIe 5.0 graphics and dual 20Gbps USB

Two PCIe 5.0 x16 slots operate at 16/NA or 8/8 lane splits for GPU or accelerator cards, complemented by two PCIe 3.0 x4 slots for add-in controllers. Rear I/O includes one USB 3.2 Gen2x2 Type-C port, three USB 3.2 Gen2 Type-A ports, one USB 3.2 Gen1 vertical port, two USB 2.0 ports, plus DVI-D, DisplayPort 1.4a and HDMI 2.1 video outputs.

Points forts

  • Supports 12th/13th/14th Gen Intel Core i9/i7/i5/i3 CPUs up to 150W TDP
  • Four DDR5-4400 slots accept up to 192GB unbuffered ECC or non-ECC UDIMM
  • Two PCIe 5.0 x16 slots run at x16 or x8/x8 for GPU and add-in cards
  • Three M.2 2280 M-key slots with PCIe 4.0 x4 support RAID 0, 1, 5
  • Eight SATA 6.0Gb/s ports plus dual Intel LAN (i225V and I219LM for AMT/vPro)

Caractéristiques

BrandSUPERMICRO
ModelMBD-X13SAE-O
CPU Socket TypeLGA 1700
CPU TypeSupports 12th Generation Intel Core i9 / Core i7 / Core i5 / Core i3 Processor
Number of Processor Support1
North BridgeIntel W680
Memory Slots4 x DDR5 288-pin
Memory StandardDDR5 4400
Maximum Memory Supported128GB
PCI Express 5.0 x162 PCI-E 5.0 x16 slots (16/NA or 8/8)
PCI Express x42 PCI-E 3.0 x4
SATA8 x SATA 6.0Gb/s
M.2M.2 Interface: 3 PCI-E 4.0 x4, RAID 0, 1, 5
Form Factor: 2280
Key: M-Key
Back I/O Ports4 USB 2 port(s) (2 via header; 2 rear)
3 USB 3.2 Gen1 port(s) (2 via header; 1 Vertical)
3 USB 3.2 Gen2 port(s) (3 rear type A)
2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)
1 DVI - D port(s)
1 DP 1.4a port(s)
1 HDMI 2.1 port(s)
1 COM Port(s) (1 header)
1 TPM Header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Poids d’expédition1.20 kg
Dimensions du colis335 × 259 × 61 mm

Questions sur cet article

What bandwidth does the PCIe 5.0 x16 interface provide and how is it split between the two slots?

The board has two PCIe 5.0 x16 slots that run at 16/NA or 8/8, so a single card gets the full 16 lanes or two cards share 8 lanes each.

What clearance and mounting pattern does the ATX form factor with 12.0 by 9.6 inch dimensions require?

It fits a standard ATX case with 12.0 inch width and 9.6 inch length, using the usual nine ATX screw holes and I/O shield cutout.

How is the DDR5 4400 memory installed in the four 288-pin slots and what mistake should be avoided?

Populate the slots in the order the manual specifies for 1, 2 or 4 modules; the common error is skipping the primary slot and leaving the controller unpopulated.
