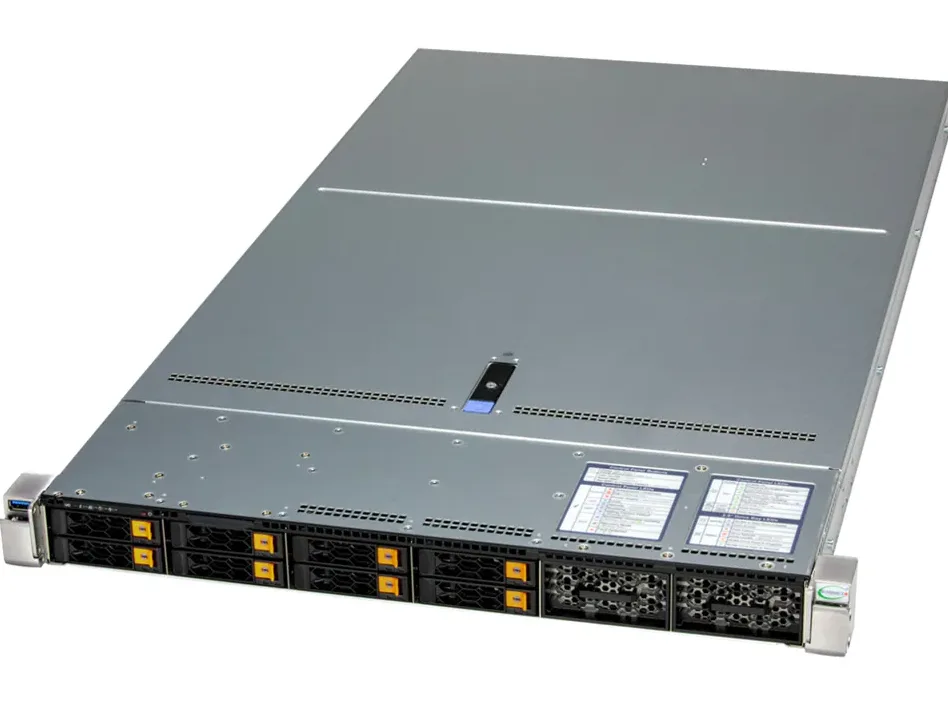

Supermicro SYS-112HA-TN 1U rack server 12 DDR5 slots 8 NVMe/SAS/SATA bays
1U rack server with 12 DDR5 slots and 8 hot-swap 2.5" NVMe/SAS/SATA bays for Intel Xeon 6900 series CPUs
- TypeRack
- Rack Height1U
- LEDsHDD activity LAN1 activity Power status System information
- SecurityHardware Trusted Platform Module (TPM) 2.0 Silicon Root of T
- CPU TypeIntel Xeon 6900 series processors with P-cores
- CPU SocketSocket BR (LGA-7529)
- Single Intel Xeon 6900 series processor scales to 128 cores and 256 threads
- 12 DDR5 slots support up to 3 TB ECC RDIMM at 6400 MT/s
- 8 hot-swap 2.5-inch bays accept NVMe, SAS and SATA drives
- Two PCIe 5.0 x16 plus one OCP 3.0 AIOM slot enable flexible expansion
- TPM 2.0 and Silicon Root of Trust meet NIST 800-193 security requirements
1U rack server for Xeon 6900 series
The Supermicro SYS-112HA-TN is a 1U rack server built for Intel Xeon 6900 series processors with P-cores in a Socket BR (LGA-7529) platform. It supports a single CPU up to 500W TDP with up to 128 cores and 256 threads. Twelve DDR5 slots provide up to 3TB of ECC RDIMM memory at 6400MT/s or 1.5TB of MRDIMM at 8800MT/s. Eight hot-swap 2.5-inch bays accept NVMe, SAS and SATA drives with RAID 0, 1, 5 and 10 support.
Ideal for dense scale-out cloud workloads
This server suits deployments that need high core counts, large memory capacity and fast NVMe storage in a 1U form factor. The dual PCIe 5.0 x16 slots and an OCP 3.0 compatible AIOM slot enable double-width add-on cards and flexible networking. Buyers who require multiple processors, 3.5-inch drive bays or pre-installed drives should consider other platforms.
Tool-less modular design eases service
The chassis uses a modular, tool-less layout so components can be swapped quickly during maintenance. A dedicated 1GbE RJ45 BMC management port provides out-of-band control. Onboard TPM 2.0 and Silicon Root of Trust compliant with NIST 800-193 deliver hardware-level security including signed firmware, secure boot and automatic firmware recovery. No drives, memory or CPU are included.
Points forts
- Single Intel Xeon 6900 series processor scales to 128 cores and 256 threads
- 12 DDR5 slots support up to 3 TB ECC RDIMM at 6400 MT/s
- 8 hot-swap 2.5-inch bays accept NVMe, SAS and SATA drives
- Two PCIe 5.0 x16 plus one OCP 3.0 AIOM slot enable flexible expansion
- TPM 2.0 and Silicon Root of Trust meet NIST 800-193 security requirements
Caractéristiques
| Brand | SUPERMICRO |
|---|---|
| Series | SuperServer |
| Model | SYS-112HA-TN |
| Type | Rack |
| Rack Height | 1U |
| LEDs | HDD activity LAN1 activity Power status System information |
| Security | Hardware Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) - NIST 800-193 Compliant Features Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| CPU Type | Intel Xeon 6900 series processors with P-cores |
| CPU Socket | Socket BR (LGA-7529) |
| CPU Features | Up to 128C/256T; Up to 504MB Cache Supports up to 500W TDP CPUs (Air Cooled) |
| # of Processors Installed | 0 |
| MAX Processors | 1 |
| Memory Type | DDR5 |
| Max Memory Capacity | 3TB |
| Memory Features | Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 1.5TB 8800MT/s ECC DDR5 MRDIMM |
| Number of Memory Slots | 12 |
| Hard Drive (Installed) | No Hard Drive |
| SSD (Installed) | No |
| Raid Level | RAID 0/1/5/10 |
| LAN Ports | 1 x RJ45 1 GbE Dedicated BMC LAN port |
| Expansion Slots | Default 1 PCIe 5.0 x16 FHHL slot 1 PCIe 5.0 x16 FHFL slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x8 FHFL slot |
| Expansion Bays | Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 12 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays 4 front hot-swap 2.5" SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| Other ports | 2 x USB 3.0 (rear) 1 x USB 3.0 (front) 1 x VGA |
| Operating System | No |
| Temperature | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Humidity | Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Dimensions | 1.7" x 17.2" x 30.66" |
| Weight | 19.2 lbs. |
| Poids d’expédition | 34.02 kg |
| Dimensions du colis | 1100 × 672 × 253 mm |
Questions sur cet article
Which Intel Xeon 6900 series processor socket must I supply for the Socket BR (LGA-7529) on this server?
You need a single Intel Xeon 6900 series processor with P-cores that fits the Socket BR (LGA-7529) and stays within the 500W TDP air-cooled limit.
Will my existing 2.5-inch SAS or SATA drives work in the 8 NVMe/SAS/SATA hot-swap bays alongside new NVMe drives?
Yes, the eight 2.5-inch bays accept NVMe, SAS and SATA drives simultaneously, so older SAS or SATA drives can remain installed while you add NVMe units.
How can I confirm the DDR5 memory is running at 6400 MT/s or 8800 MT/s after populating the 12 DIMM slots?
Check the system BIOS or BMC interface; it reports the detected memory speed per DIMM, showing 6400 MT/s for RDIMM or 8800 MT/s for MRDIMM configurations.
