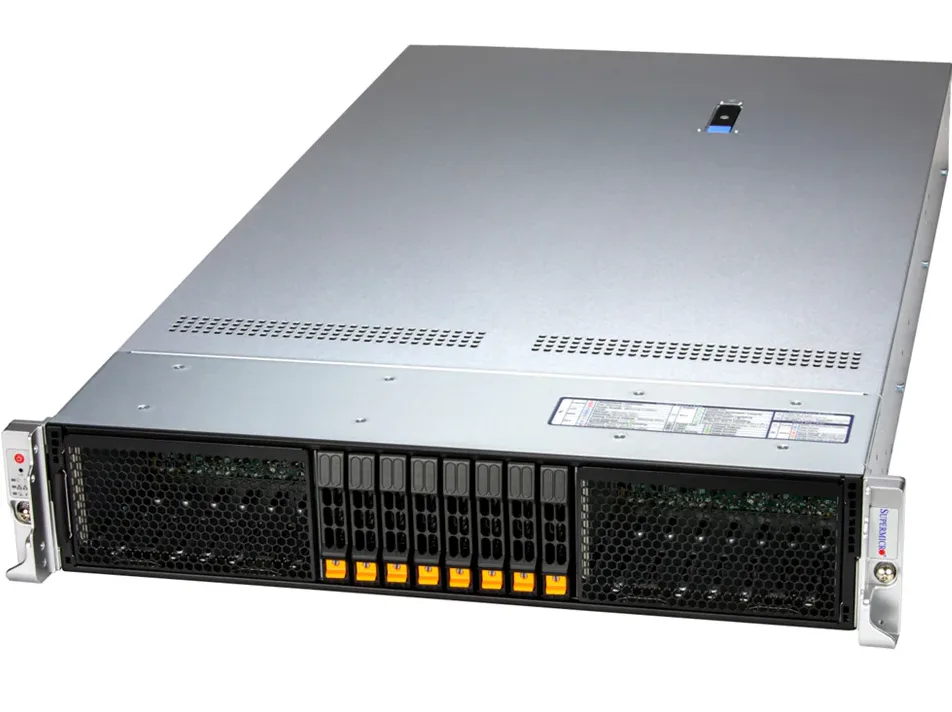

Supermicro SYS-212HA-TN 2U rack server 12 DDR5 slots 8×2.5" NVMe/SAS/SATA 3 PCIe 5.0 1 AIOM
A 2U rack server with 12 DDR5 slots, eight 2.5-inch NVMe/SAS/SATA bays, three PCIe 5.0 slots and one AIOM slot for flexible networking
- TypeRack
- Rack Height2U
- LEDsHDD activity LAN1 activity Power status System information
- SecurityHardware Trusted Platform Module (TPM) 2.0 Silicon Root of T
- CPU TypeIntel Xeon 6900 series processors with P-cores
- CPU SocketSocket BR (LGA-7529)
- Single Xeon 6900 series CPU with up to 128 cores and 256 threads
- 12 DDR5 slots supporting 3 TB at 8800 MT/s MRDIMM or 6400 MT/s RDIMM
- 8 hot-swap 2.5" bays for NVMe, SAS or SATA drives
- Up to three PCIe 5.0 slots plus one AIOM 3.0 slot for networking
- TPM 2.0 and Silicon Root of Trust compliant with NIST 800-193
2U Rack Server for Cloud Scale-Out
The Supermicro SYS-212HA-TN is a 2U single-socket server built for scale-out cloud workloads. It supports one Intel Xeon 6900 series processor with up to 128 cores and 256 threads. Twelve DDR5 slots deliver up to 3TB of memory at 8800 MT/s MRDIMM or 6400 MT/s RDIMM speeds. Eight hot-swap 2.5-inch bays accept NVMe, SAS or SATA drives with RAID 0/1/5/10 support.
Upgrade from Older Single-Socket Platforms
This system replaces earlier single-processor rack servers that max out at lower core counts, slower memory speeds or PCIe 4.0 storage. The jump is worth it when workloads demand 500W TDP CPU headroom, 504MB cache capacity or PCIe 5.0 bandwidth for NVMe drives. It also adds Silicon Root of Trust compliant with NIST 800-193 and cryptographically signed firmware for supply-chain security.
PCIe 5.0 and OCP 3.0 Constraints
Three PCIe 5.0 slots plus one PCIe 5.0 AIOM slot provide high-throughput expansion for accelerators, networking or storage controllers. The AIOM slot follows the OCP NIC 3.0 form factor for modular networking. Network connectivity beyond the dedicated 1 GbE BMC management port depends entirely on the card installed in the AIOM slot. Double-width add-in cards are supported within the 2U chassis limits.
Points forts
- Single Xeon 6900 series CPU with up to 128 cores and 256 threads
- 12 DDR5 slots supporting 3 TB at 8800 MT/s MRDIMM or 6400 MT/s RDIMM
- 8 hot-swap 2.5" bays for NVMe, SAS or SATA drives
- Up to three PCIe 5.0 slots plus one AIOM 3.0 slot for networking
- TPM 2.0 and Silicon Root of Trust compliant with NIST 800-193
Caractéristiques
| Brand | SUPERMICRO |
|---|---|
| Series | SuperServer |
| Model | SYS-212HA-TN |
| Type | Rack |
| Rack Height | 2U |
| LEDs | HDD activity LAN1 activity Power status System information |
| Security | Hardware Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) - NIST 800-193 Compliant Features Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| CPU Type | Intel Xeon 6900 series processors with P-cores |
| CPU Socket | Socket BR (LGA-7529) |
| CPU Features | Up to 128C/256T; Up to 504MB Cache Supports up to 500W TDP CPUs (Air Cooled) |
| # of Processors Installed | 0 |
| MAX Processors | 1 |
| Memory Type | DDR5 |
| Max Memory Capacity | 3TB |
| Memory Features | Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM |
| Number of Memory Slots | 12 |
| Hard Drive (Installed) | No Hard Drive |
| SSD (Installed) | No |
| Raid Level | RAID 0/1/5/10 |
| LAN Ports | 1 x RJ45 1 GbE Dedicated BMC LAN port |
| Expansion Slots | Option A 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 FH/10.5"L double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option B 1 PCIe 5.0 x16 FHFL double-width slot 2 PCIe 5.0 x8 FH/10.5"L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Expansion Bays | Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| Other ports | 2 x USB 3.0 (rear) 1 x VGA |
| Operating System | No |
| Temperature | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Humidity | Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Dimensions | 3.5" x 17.2" x 31.74" |
| Weight | 45 lbs. |
| Poids d’expédition | 34.02 kg |
| Dimensions du colis | 1100 × 672 × 253 mm |
Questions sur cet article
What rack height and depth clearance does the 2U SYS-212HA-TN need?
The chassis occupies 2U of rack height and accepts double-width add-on cards, so allow full-depth clearance for 12-inch or longer PCIe 5.0 cards.
Which CPU socket and cooler clearance apply when installing an Intel Xeon 6900 series processor?
Use the LGA-7529 Socket BR and ensure the air cooler is rated for up to 500W TDP; the tool-less rail kit secures the motherboard tray before CPU installation.
What drive and memory replacements should be planned for this server?
The 8 hot-swap 2.5-inch bays support NVMe, SAS and SATA drives, and the 12 DDR5 slots take ECC RDIMM or MRDIMM modules up to 3TB total capacity.
