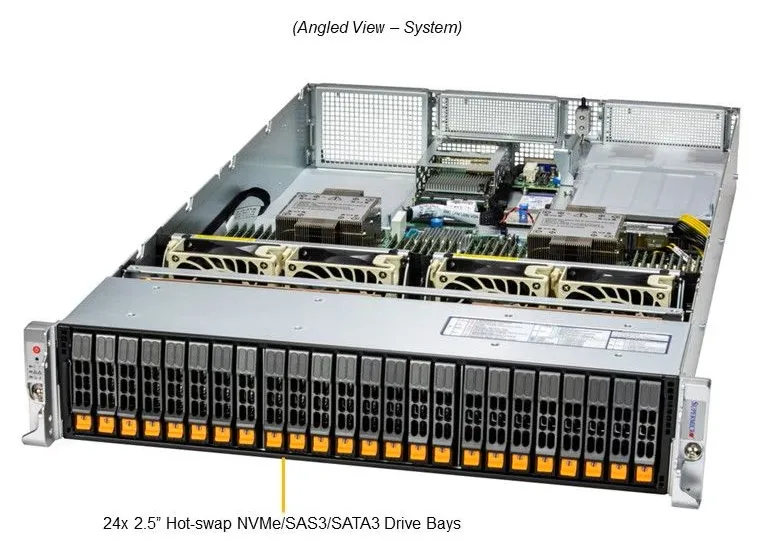

Silver 2U rack server front with 24 drive bays

Supermicro

Supermicro SYS-221H-TN24R-G1 rack server dual Xeon 6548Y+ 32C 2.5GHz 256GB DDR5 3.8TB+480GB NVMe

SKU CH-7ERC-0B64V MPN SYS-221H-TN24R-G1

2U rack server with dual 32-core Xeon 6548Y+ CPUs, 256GB DDR5-5600, 3.8TB E1.S NVMe plus 480GB M.2 NVMe storage, and dual 25GbE SFP28 networking

  • WorkloadGeneral Purpose Server
  • TypeRack
  • Rack Height2U
  • LEDsHDD activity LAN1 activity Power System information
  • Hot-swap Fans4x 8cm heavy duty fans with optimal fan speed control
  • CPU TypeIntel Xeon
  • Dual Xeon 6548Y+ processors provide 32 cores each for parallel workloads
  • 256GB DDR5-5600 memory supports large datasets with ECC reliability
  • 8TB E1.S NVMe SSD plus 480GB M.2 NVMe SSD give fast tiered storage
  • 24 front hot-swap E1.S bays allow dense NVMe expansion without downtime
  • Dual 25GbE SFP28 networking enables high-throughput connectivity
  • 2x 2000W Titanium power supplies deliver efficient redundant power

Dual-socket Xeon server with E1.S bays

The Supermicro SYS-221H-TN24R-G1 is a 2U rack server built around two Intel Xeon 6548Y+ processors. Each CPU provides 32 cores at 2.5 GHz with 60 MB of cache. The system ships with 256 GB of DDR5-5600 memory across 32 slots and supports up to 8 TB total. Storage includes one 3.8 TB E1.S NVMe SSD and one 480 GB M.2 NVMe SSD.

Suits dense compute and fast local storage

This server fits workloads that need high core counts and front-access NVMe density in a 2U form factor. The 24 E1.S hot-swap bays allow large all-flash arrays without occupying PCIe slots. Buyers who need GPU acceleration, additional PCIe expansion beyond the provided networking, or 3.5-inch drive support should look at a different platform.

24 front E1.S NVMe hot-swap bays

The chassis provides 24 front-access E1.S drive bays wired for NVMe, plus two internal M.2 slots that accept NVMe or SATA modules. This bay count and form factor determine how much high-speed flash can be installed directly in the server. Networking is handled by a single dual-port 25 GbE SFP28 controller and power comes from two 2000 W titanium-level supplies.

Points forts

  • Dual Xeon 6548Y+ processors provide 32 cores each for parallel workloads
  • 256GB DDR5-5600 memory supports large datasets with ECC reliability
  • 8TB E1.S NVMe SSD plus 480GB M.2 NVMe SSD give fast tiered storage
  • 24 front hot-swap E1.S bays allow dense NVMe expansion without downtime
  • Dual 25GbE SFP28 networking enables high-throughput connectivity
  • 2x 2000W Titanium power supplies deliver efficient redundant power

Caractéristiques

BrandSUPERMICRO
SeriesGold Series
ModelSYS-221H-TN24R-G1
WorkloadGeneral Purpose Server
TypeRack
Rack Height2U
LEDsHDD activity
LAN1 activity
Power
System information
Hot-swap Fans4x 8cm heavy duty fans with optimal fan speed control
CPU TypeIntel Xeon
CPU Speed6548Y+ (2.50 GHz)
Number of CPU Cores32-Core Processor
Cache Memory60 MB
# of Processors Installed2
MAX Processors2
Installed Memory Size256GB
Memory TypeDDR5 5600
Max Memory Capacity8TB
Memory FeaturesMax Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
Number of Memory Slots32
SSD (Installed)1 x 3.8TB E1.S NVMe SSD
1 x 480GB M.2 NVMe SSD
Ethernet Controller1 Dual 25GbE SFP28
Expansion Bays24 front hot-swap E1.S NVMe drive bays
2 M.2 NVMe/SATA slots (M-key 2280/22110)
Power Characteristics2 x 2000W Titanium Level
TemperatureOperating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
HumidityOperating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
Dimensions3.5" x 17.2" x 29.9"
Weight40 lbs.
Poids d’expédition29.94 kg
Dimensions du colis1030 × 605 × 264 mm
