Black 4U rack server chassis with front drive bays and rear power supplies

Supermicro

Supermicro SYS-421GE-NBRT-LCC-G1 rack server 2×Xeon 8570 2.3TB DDR5 8×3.8TB NVMe 2×1.92TB M.2 8×B200

SKU CH-ZG1J-NT9BD MPN SYS-421GE-NBRT-LCC-G1

4U rack server with dual 56-core Xeon 8570 processors, 2.3TB DDR5-4800 memory, eight B200 GPUs, 8×3.8TB U.3 NVMe and 2×1.92TB M.2 NVMe storage, 8×400G NDR/ETH OSFP networking plus BlueField-3 DPU.

  • WorkloadGeneral Purpose Server
  • TypeRack
  • Rack Height4U
  • LEDsNetwork activity LEDs System information (overheat/UID) UID
  • Hot-swap Fans5 Fan 60mm Fan(s)
  • CPU TypeIntel Xeon Platinum
  • Dual Xeon 8570 processors provide 56 cores each at 2.1 GHz for parallel workloads
  • NVIDIA HGX B200 baseboard installs 8 GPUs with 180 GB video memory for AI acceleration
  • 3 TB DDR5-4800 memory installed across 24 slots supports large datasets
  • 8 U.3 NVMe SSDs at 3.8 TB each plus 2 M.2 NVMe SSDs at 1.92 TB deliver high-capacity storage
  • Four 6600 W titanium redundant power supplies in 2+2 configuration maintain uptime

4U dual-Xeon HGX B200 server

This 4U rack system ships with two Intel Xeon 8570 processors, 2.3 TB of DDR5-4800 memory and an NVIDIA HGX B200 8-GPU baseboard. It targets organisations that need dense GPU compute for large-scale AI training or high-performance analytics.

Suits AI clusters needing eight B200 GPUs in one

Teams that require more than eight GPUs per node, or workloads that run on CPU-only infrastructure, should evaluate alternative configurations. Buyers without 400 Gb/s OSFP networking or 6.6 kW power feeds will also need different hardware.

Deciding spec: eight NVIDIA B200 GPUs on HGX

The installed HGX B200 baseboard provides eight GPUs with 180 GB of video memory and is the single component that determines whether this server matches the target workload. If the application does not need eight B200 GPUs, a different platform will be more appropriate.

Points forts

  • Dual Xeon 8570 processors provide 56 cores each at 2.1 GHz for parallel workloads
  • NVIDIA HGX B200 baseboard installs 8 GPUs with 180 GB video memory for AI acceleration
  • 3 TB DDR5-4800 memory installed across 24 slots supports large datasets
  • 8 U.3 NVMe SSDs at 3.8 TB each plus 2 M.2 NVMe SSDs at 1.92 TB deliver high-capacity storage
  • Four 6600 W titanium redundant power supplies in 2+2 configuration maintain uptime

Caractéristiques

BrandSUPERMICRO
SeriesSuperServer
ModelSYS-422GA-NBRT-LCC-G1
WorkloadGeneral Purpose Server
TypeRack
Rack Height4U
LEDsNetwork activity LEDs
System information (overheat/UID)
UID
Hot-swap Fans5 Fan 60mm Fan(s)
CPU TypeIntel Xeon Platinum
CPU Speed8570 (2.10 GHz)
Number of CPU Cores56-Core Processor
Cache Memory300 MB
# of Processors Installed2
MAX Processors2
Installed Memory Size2.3TB
Memory TypeDDR5 4800
Max Memory Capacity6TB
Memory FeaturesMax Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM

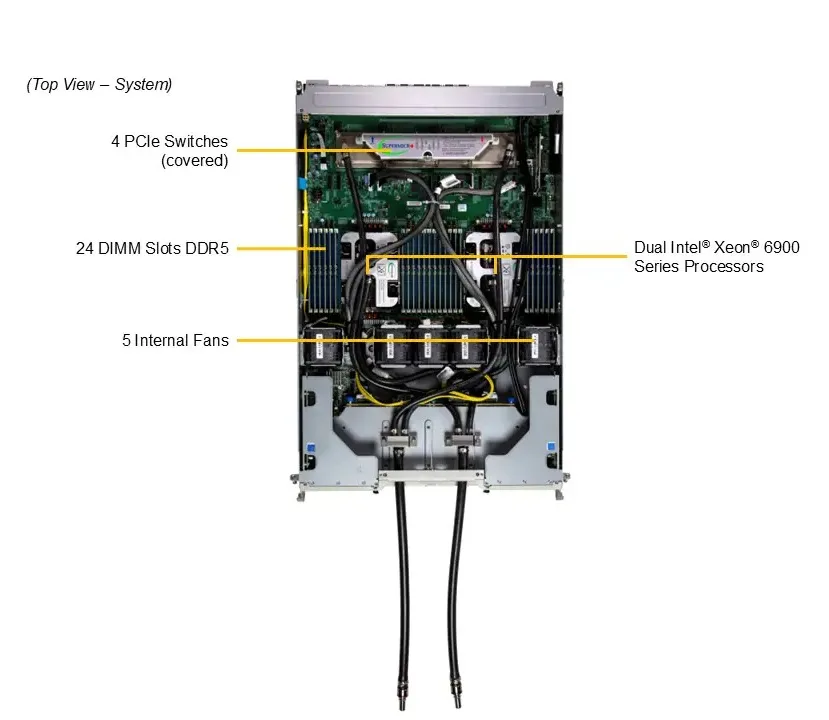

Number of Memory Slots24
SSD (Installed)8 x 3.8TB U.3 NVMe SSD
2 x 1.92TB M.2 NVMe SSD
Servers_Graphic Installed1
GPU TypeNVIDIA HGX GPU Baseboard 8 B200
Video Memory180GB
Ethernet Controller8 x Single 400G NDR/ETH OSFP
1 x NVIDIA BlueField-3 DPU 200Gb/s

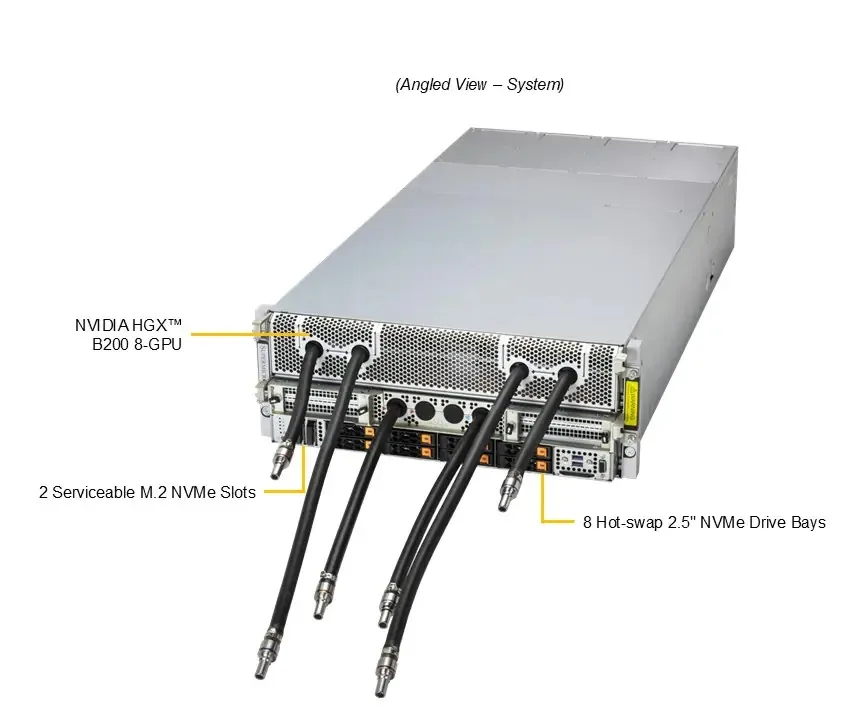

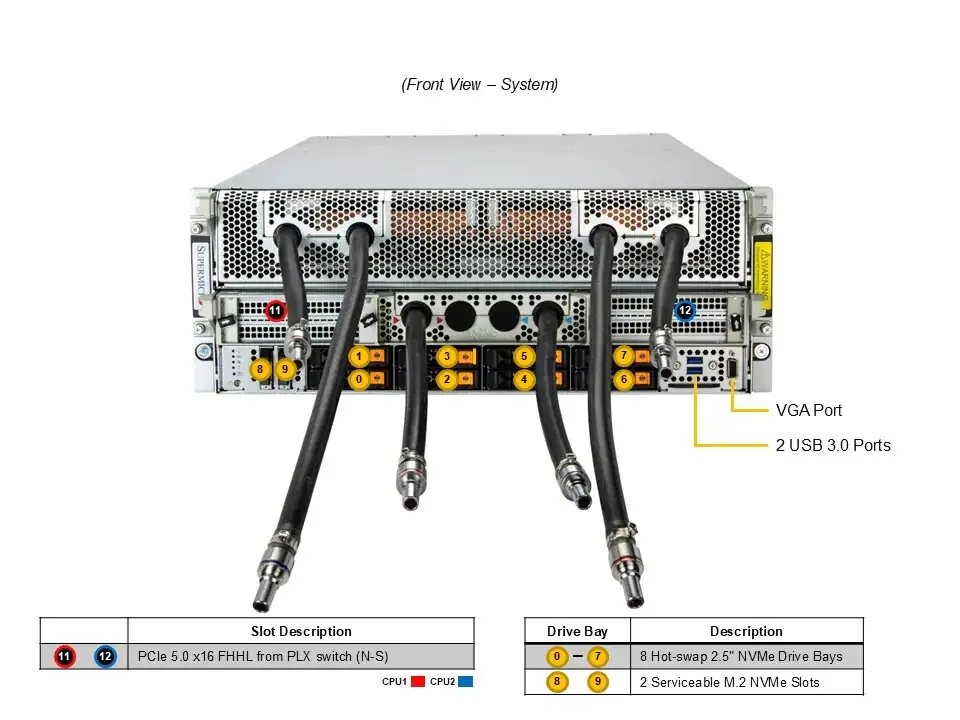

Expansion Bays8 front hot-swap 2.5" NVMe drive bays
2 M.2 NVMe slots (M-key)

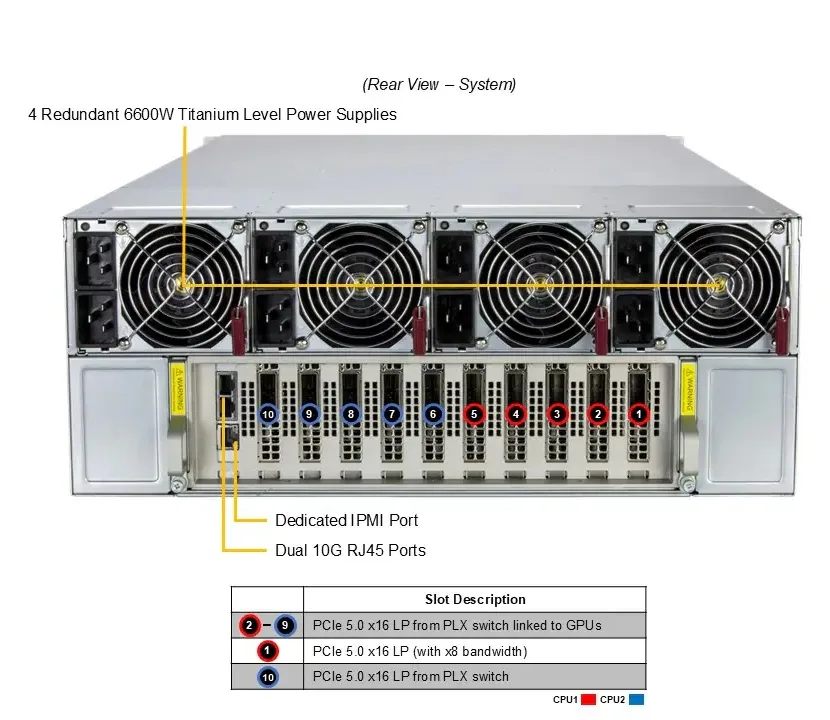

Power Characteristics4x 6600W Redundant (2 + 2) Titanium Level (96%) power supplies
TemperatureOperating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
HumidityOperating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimensions6.85" x 17.6" x 35.25"
Weight203 lbs.
Poids d’expédition107.05 kg
Dimensions du colis1280 × 729 × 410 mm

Questions sur cet article

When do the eight B200 GPUs need replacement?

The eight NVIDIA B200 GPUs are soldered to the HGX baseboard and are not field-replaceable; plan on a full baseboard swap when GPU compute capacity no longer meets workload demands

Which component hits its limit first during sustained AI training?

The dual Xeon 8570 processors at 2.1 GHz with 56 cores each will saturate before the 2.3 TB DDR5-4800 memory or the 3.8 TB U.3 NVMe drives under continuous heavy model training

How loud and hot does the 4U chassis get with all eight B200 GPUs running 24/7?

Five hot-swap 60 mm fans and four 6600 W titanium PSUs in 2+2 redundancy move high airflow; expect elevated noise and heat output that requires data-centre cooling infrastructure
