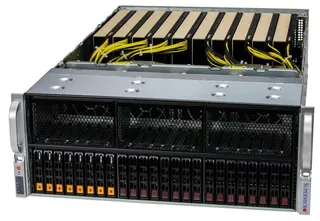

Silver 4U rack server chassis with front drive bays and status LEDs

Supermicro

Supermicro SYS-421GE-TNRT-02-G1 4U rack server 2×Xeon 8562Y+ 1TB DDR5 8×L40S

SKU CH-8Y0B-F5PC4 MPN SYS-421GE-TNRT-02-G1

4U rack server with dual Xeon 8562Y+ CPUs, eight NVIDIA L40S GPUs, 1TB DDR5-5600 memory, and 2 x 1.92TB U.2 plus 1 x 960GB M.2 NVMe storage

  • WorkloadGeneral Purpose Server
  • TypeRack
  • Rack Height4U
  • LEDsHard drive activity LED Network activity LEDs Power status L
  • Hot-swap Fans8 heavy duty fans with optimal fan speed control
  • CPU TypeIntel Xeon
  • Dual Xeon 8562Y+ with 32 cores per CPU for heavy compute
  • Eight NVIDIA L40S GPUs accelerate AI training and rendering
  • 1TB DDR5-5600 ECC memory with capacity up to 8TB
  • 2× 1.92TB U.2 NVMe plus 960GB M.2 NVMe for fast storage
  • Three dual 100GbE QSFP56 ports and four 2700W Titanium power supplies

Dual Xeon 8562Y+ AI server

This 4U rack system pairs two 32-core Xeon 8562Y+ processors at 2.80 GHz with 1 TB of DDR5-5600 memory. It targets organisations running large-scale AI training, inference or high-performance computing workloads that need dense GPU acceleration in a single chassis.

Upgrade from smaller GPU clusters

The server installs eight NVIDIA L40S PCIe cards alongside dual 100 GbE QSFP56 networking and 2 x 1.92 TB U.2 plus 1 x 960 GB M.2 NVMe storage. The jump makes sense when a workload saturates fewer GPUs or when memory capacity limits model size on existing nodes.

Rack integration and service notes

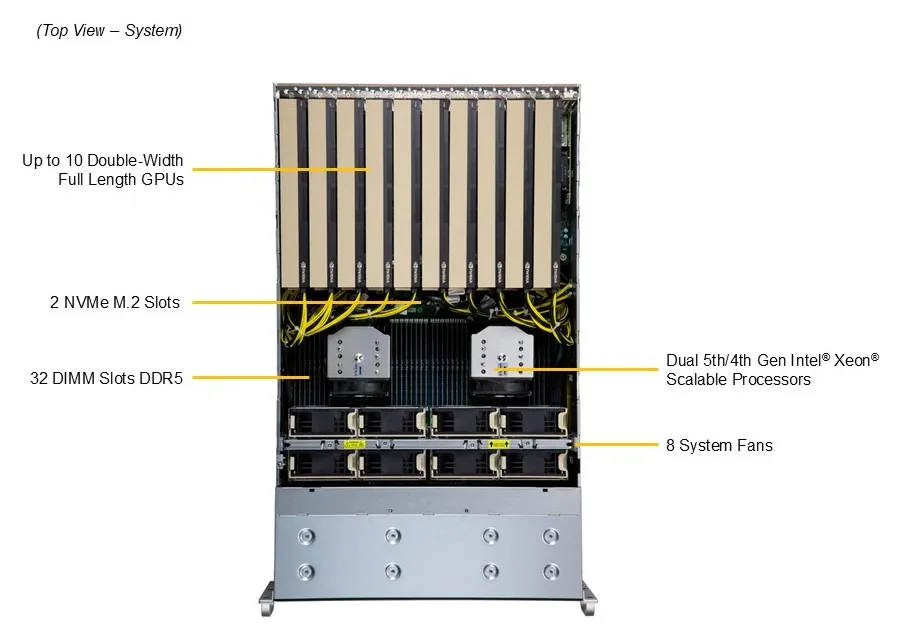

Four 2700 W Titanium power supplies and eight hot-swap fans support redundant cooling and power. Front-access 2.5-inch NVMe and SATA bays plus two M.2 slots allow drive changes without removing the chassis, though the 4U height and GPU weight demand a sturdy rack and careful cable routing.

Points forts

  • Dual Xeon 8562Y+ with 32 cores per CPU for heavy compute
  • Eight NVIDIA L40S GPUs accelerate AI training and rendering
  • 1TB DDR5-5600 ECC memory with capacity up to 8TB
  • 2× 1.92TB U.2 NVMe plus 960GB M.2 NVMe for fast storage
  • Three dual 100GbE QSFP56 ports and four 2700W Titanium power supplies

Caractéristiques

BrandSUPERMICRO
ModelSYS-421GE-TNRT-02-G1
WorkloadGeneral Purpose Server
TypeRack
Rack Height4U
LEDsHard drive activity LED
Network activity LEDs
Power status LED
System Overheat & Power Fail LED
Hot-swap Fans8 heavy duty fans with optimal fan speed control
CPU TypeIntel Xeon
CPU Speed8562Y+ (2.80 GHz)
Number of CPU Cores32-Core Processor
Cache Memory60 MB
# of Processors Installed2
MAX Processors2
Installed Memory Size1TB
Memory TypeDDR5 5600
Max Memory Capacity8TB
Memory FeaturesMax Memory (1DPC): Up to 4TB 5600MT/s ECC RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Number of Memory Slots24
SSD (Installed)2 x 1.92TB U.2 NVMe SSD
1 x 960GB M.2 NVMe SSD
Servers_Graphic Installed1
GPU Type8 NVIDIA L40S PCIe
Ethernet Controller3 x Dual 100GbE QSFP56

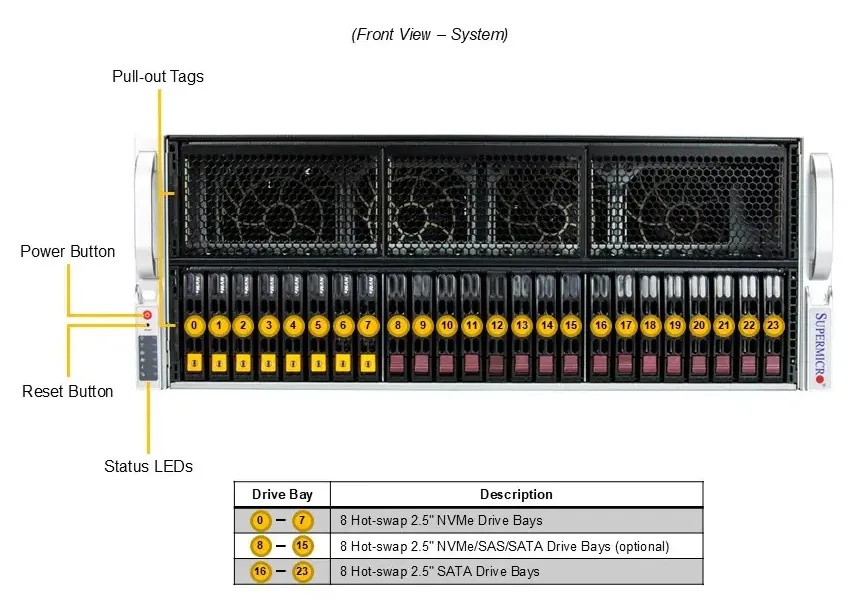

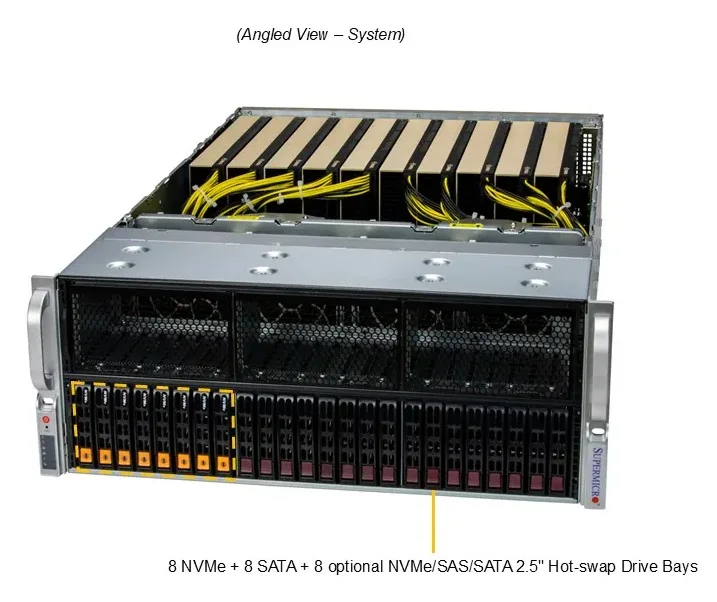

Expansion Bays8 front hot-swap 2.5" NVMe drive bays
8 front hot-swap 2.5" SATA drive bays
2 M.2 NVMe slots (M-key)

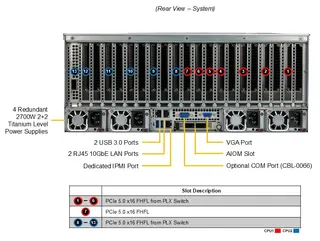

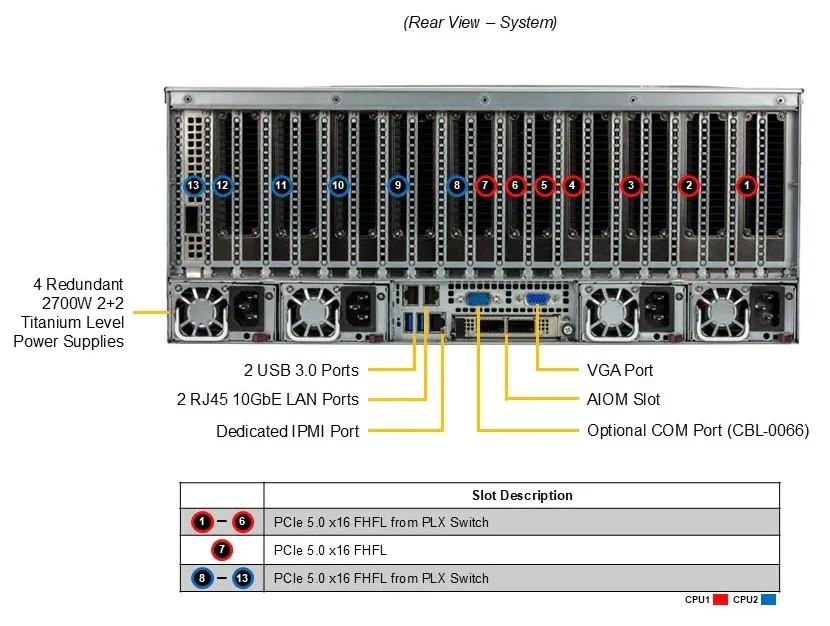

Power Characteristics4 x 2700W Titanium Level
TemperatureOperating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
HumidityOperating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimensions7" x 17.2" x 29"
Weight65.5 lbs.
Poids d’expédition63.50 kg
Dimensions du colis1280 × 729 × 410 mm

Questions sur cet article

What rack height and front drive-bay clearance does this 4U server need?

The chassis occupies 4U and provides 8 front hot-swap 2.5" NVMe bays plus 8 front hot-swap 2.5" SATA bays, so the rack must accommodate that bay depth.

How are the eight NVIDIA L40S GPUs installed, and which step is often missed?

The GPUs mount in the PCIe expansion slots; the step often missed is connecting each card's auxiliary power cables from the 2700W Titanium supplies before closing the chassis.

Which fan modules will need replacement over time, and how many are there?

Eight hot-swap heavy-duty fan modules provide cooling; any module can be replaced individually while the system runs.
