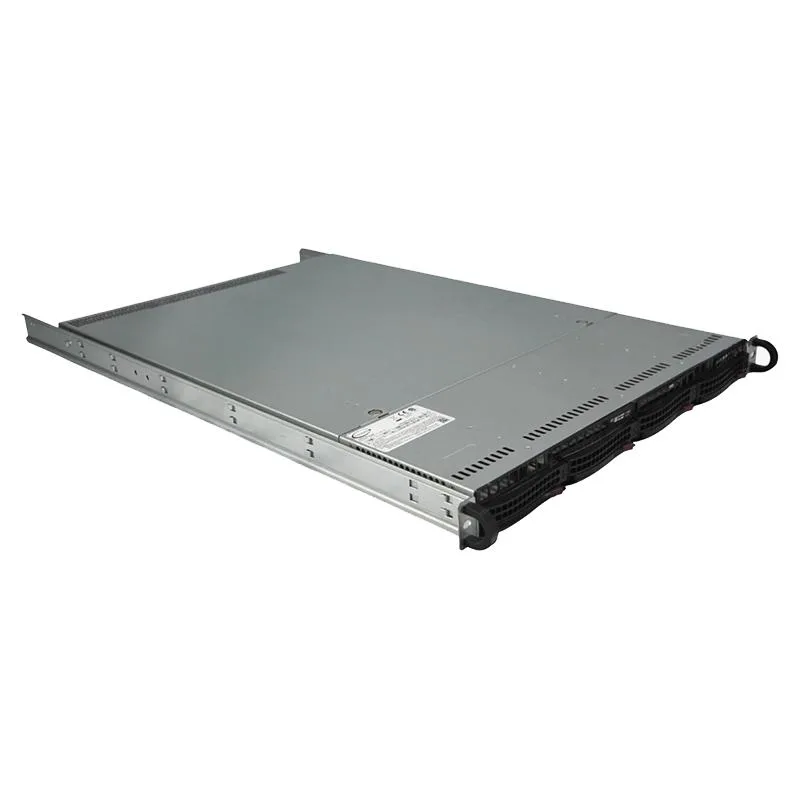

Supermicro 1U rack server, silver front, four 3.5-inch drive trays, redundant power supplies

Supermicro

Supermicro SYS-5019C-WR 1U rack server E-2174G 64GB 4-bay 2×500W

SKU CH-TQBK-WWQ2T

1U rackmount server with Xeon E-2174G, 64GB DDR4, MegaRAID 9361-8i, four 3.5″ hot-swap bays and redundant 500W Platinum power

  • Type0
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • AI FeaturesNo
  • CPU TypeIntel Xeon
  • CPU Speed0
  • Intel Xeon E-2174G 4-core processor at 3.8 GHz with 4.7 GHz turbo for responsive compute
  • 64 GB DDR4-2666 ECC memory across four DIMM slots for reliable data integrity
  • LSI MegaRAID 9361-8i controller with 1 GB cache and battery backup for hardware RAID 0,1,5,10
  • Four hot-swap 3.5-inch SAS/SATA drive bays plus dual M.2 slots for flexible storage
  • Dual 500 W 80 Plus Platinum redundant power supplies with IPMI 2.0 remote management

1U Rack Server for Enterprise Workloads

The Supermicro SYS-5019C-WR is a 1U rackmount server built for data-centre and enterprise deployment. It ships with a single Intel Xeon E-2174G processor running at 3.8 GHz with 4.7 GHz turbo across four cores. The system includes 64 GB of DDR4 ECC memory and a MegaRAID 9361-8i controller with 1 GB cache. Dual 500 W redundant power supplies provide 80 Plus Platinum efficiency.

Hot-Swap Bays and Expansion Limits

Four front-access 3.5-inch trays accept SATA or SAS drives without downtime. The board also offers dual M.2 sockets, one supporting SATA or PCIe 3.0 x4 and the other PCIe 3.0 x4 only, for fast NVMe media. Expansion is limited to one PCIe 3.0 x16 slot or two x8 plus one x4 in an x8 mechanical slot. Buyers who need more storage bays or additional full-height cards should consider a 2U or larger chassis.

Single-Processor LGA 1151 Platform

This server supports only one CPU in the LGA 1151 socket, compatible with Xeon E-2100 or E-2200 series and 8th or 9th generation Core, Pentium and Celeron processors. Memory tops out at 128 GB across four DIMM slots at 2666 MT/s. The configuration is fixed at one processor; dual-socket capability is not available.

Points forts

  • Intel Xeon E-2174G 4-core processor at 3.8 GHz with 4.7 GHz turbo for responsive compute
  • 64 GB DDR4-2666 ECC memory across four DIMM slots for reliable data integrity
  • LSI MegaRAID 9361-8i controller with 1 GB cache and battery backup for hardware RAID 0,1,5,10
  • Four hot-swap 3.5-inch SAS/SATA drive bays plus dual M.2 slots for flexible storage
  • Dual 500 W 80 Plus Platinum redundant power supplies with IPMI 2.0 remote management

Caractéristiques

BrandSUPERMICRO
SeriesCSE-815TQC-R504WB2
Model0
Part Number3.80 GHz
Type0
Rack Height1U
Redundant Hot-swap PowerYes
AI FeaturesNo
CPU TypeIntel Xeon
CPU Speed0
CPU SocketLGA 1151
Number of CPU Cores4-Core Processor
# of Processors InstalledE-2174G
MAX Processors0
Chipset0
Installed Memory Size64GB
Memory Type0
Max Memory Capacity0
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)0
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Intel 210i-AT Dual Gigabit RJ45 Network Adapter
LAN Ports0
Expansion Slots0
Management PortRJ 45
Operating SystemNo
Features0

Questions sur cet article

Which memory capacity should I choose if I need the installed amount?

The server ships with 64 GB of DDR4-2666 ECC memory installed across four DIMM slots.

What does the 4.7 GHz turbo frequency mean for real workloads?

The Xeon E-2174G can boost a single core to 4.7 GHz for short bursts, raising single-thread throughput before thermal limits pull clocks back to the 3.8 GHz base.

How does the SAS 12 Gb/s controller limit drive performance?

The MegaRAID 9361-8i caps each SAS or SATA drive at 12 Gb/s, so NVMe media on the M.2 slots will run at PCIe 3.0 x4 speeds instead.
