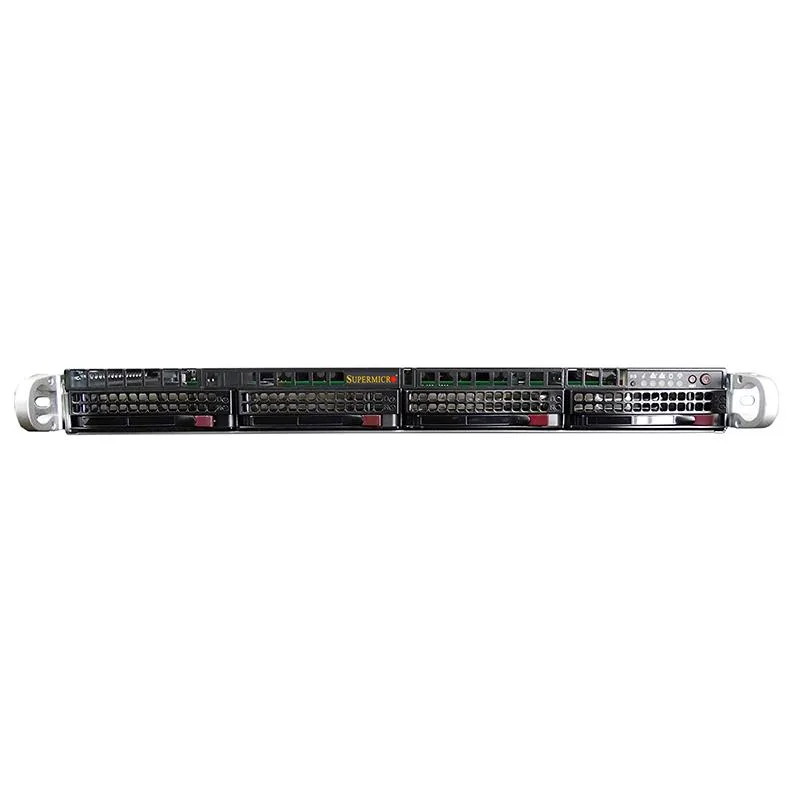

Silver 1U rack server front with four 3.5-inch drive bays

Supermicro

Supermicro SYS-6018U-TR4T+ 1U rack server 2× Xeon E5-2680 v4 2.4GHz 14-core 512GB DDR4 4×3.5" bays 9361-8i

SKU CH-BVF5-JNZS2

A 1U rack server with dual Xeon E5-2680 v4 2.4 GHz 14-core CPUs, 512 GB DDR4 ECC, MegaRAID 9361-8i, and four 3.5" hot-swap bays

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.40 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores14-Core Processor
  • Dual 14-core Xeon E5-2680 v4 at 2.4GHz with 3.3GHz turbo for parallel workloads
  • 512GB DDR4 2400MHz registered ECC memory across 16 DIMM slots for data integrity
  • MegaRAID 9361-8i with 1GB cache and battery backup enables RAID 0/1/5/6/10/50/60
  • Quad 10GBase-T Intel X540 ports plus dedicated IPMI 2.0 LAN for remote KVM
  • Redundant 750W platinum hot-swap power supplies in 1U chassis with four 3.5" hot-plug bays

Dual-socket 1U server for virtualization

The Supermicro SYS-6018U-TR4T+ packs two Xeon E5-2680 v4 14-core processors and 512GB of DDR4 ECC memory into a single rack unit. A MegaRAID 9361-8i controller manages the four hot-plug 3.5-inch SATA/SAS bays. Quad 10GBase-T ports and dedicated IPMI 2.0 give ample network and remote-management bandwidth.

Suited for dense compute clusters

Teams needing more than four drive bays, higher single-thread frequency or GPU compute should evaluate larger chassis options. The 1U height limits PCIe expansion, so workloads requiring additional add-in cards will not fit. Buyers without rack infrastructure or 10GbE switching gain less from the integrated networking.

Four 3.5-inch hot-plug bays with SAS 12Gb/s RAID

The 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50 and 60 across the four front-accessible trays. No drives are included, so capacity and redundancy are chosen at deployment. This bay count and controller combination determines whether the system meets the storage density and performance profile of the target workload.

Points forts

  • Dual 14-core Xeon E5-2680 v4 at 2.4GHz with 3.3GHz turbo for parallel workloads
  • 512GB DDR4 2400MHz registered ECC memory across 16 DIMM slots for data integrity
  • MegaRAID 9361-8i with 1GB cache and battery backup enables RAID 0/1/5/6/10/50/60
  • Quad 10GBase-T Intel X540 ports plus dedicated IPMI 2.0 LAN for remote KVM
  • Redundant 750W platinum hot-swap power supplies in 1U chassis with four 3.5" hot-plug bays

Caractéristiques

BrandSUPERMICRO
SeriesCSE-819U + X10DRU-i+
ModelSYS-6018U-TR4T+
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.40 GHz
CPU SocketLGA 2011-3
Number of CPU Cores14-Core Processor
# of Processors InstalledE5-2680 V4
Installed Memory Size512GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSupermicro AOC-UR-i4XT - Intel X540 - 4x RJ45 10GBase-T Ports
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions sur cet article

How much heat do the dual Xeon E5-2680 v4 CPUs and 512GB DDR4 generate under sustained load?

The system uses two 750 Watt Platinum power supplies and redundant hot-swap cooling to manage heat from the 2.4GHz 14-core processors and 512GB DDR4 memory.

What drives and cables must I supply for the four 3.5" hot-plug bays and MegaRAID 9361-8i controller?

You must provide 3.5" SATA or SAS drives and compatible cables; the server includes four drive trays but no drives are installed.

Will the X540 quad 10GBase-T ports and IPMI 2.0 work with my existing Cat5e patch panel and KVM switch?

The 10GBase-T RJ45 ports and dedicated IPMI RJ45 port both use standard copper Ethernet cabling compatible with typical Cat5e or better infrastructure.
