Silver 1U rack server front with four 3.5 inch drive trays

Supermicro

Supermicro SYS-6019U-TN4R4T 1U rack server 2× Xeon Gold 6130 128GB DDR4 4× 3.5" bays

SKU CH-6167-7F5RW

1U rack server with dual 16-core Xeon Gold 6130 CPUs, 128GB DDR4 ECC, four hot-swap 3.5″ SATA/SAS bays, MegaRAID 9361-8i controller, four 10GBase-T ports, IPMI 2.0.

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores16-Core Processor
  • Dual Xeon Gold 6130 16-core processors at 2.1 GHz turbo to 3.7 GHz for demanding workloads
  • 128 GB DDR4-2666 ECC registered memory ensures data integrity under heavy load
  • MegaRAID 9361-8i controller supports RAID 0/1/5/6/10/50/60 with 1 GB cached battery backup
  • Four 10GBase-T ports via Intel X540 provide high-throughput network connectivity
  • IPMI 2.0 with dedicated RJ45 enables remote KVM and virtual media management

Dense 1U compute node

The Supermicro SYS-6019U-TN4R4T packs dual Xeon Gold 6130 processors, each with 16 cores at 2.1 GHz, into a single rack unit. It ships with 128 GB of DDR4-2666 ECC registered memory installed across eight slots. The platform targets virtualization clusters and high-performance workloads that demand high core density.

Hot-swap bays and redundant power

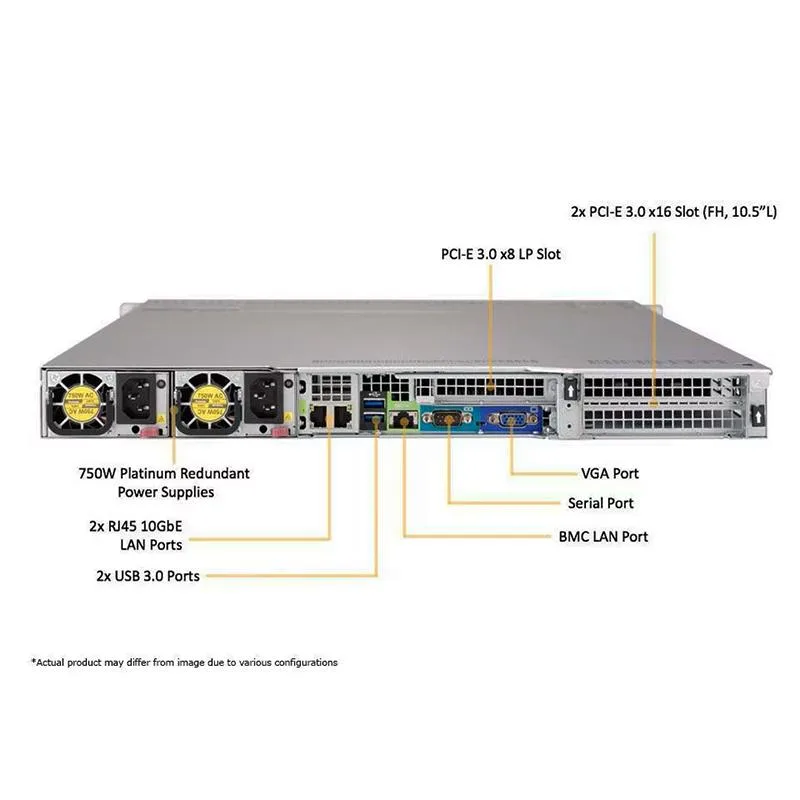

Four front-access 3.5" trays accept SATA or SAS drives and connect to the onboard MegaRAID 9361-8i controller, which supports RAID 0, 1, 5, 6, 10, 50 and 60 with 1 GB cached battery backup. Two 750 W platinum hot-swap power supplies deliver N+1 redundancy. A dedicated RJ45 port provides IPMI 2.0 remote management with KVM-over-LAN.

10 GbE networking built in

The included AOC-UR-i4XT add-on card exposes four 10GBase-T ports via the Intel X540 controller, giving line-rate copper connectivity without extra licensing. Buyers who need fibre uplinks or more than four 10 GbE links will require additional mezzanine cards.

Points forts

  • Dual Xeon Gold 6130 16-core processors at 2.1 GHz turbo to 3.7 GHz for demanding workloads
  • 128 GB DDR4-2666 ECC registered memory ensures data integrity under heavy load
  • MegaRAID 9361-8i controller supports RAID 0/1/5/6/10/50/60 with 1 GB cached battery backup
  • Four 10GBase-T ports via Intel X540 provide high-throughput network connectivity
  • IPMI 2.0 with dedicated RJ45 enables remote KVM and virtual media management

Caractéristiques

BrandSUPERMICRO
SeriesCSE-819UTS-R751P-T-X11DPU
ModelSYS-6019U-TN4R4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores16-Core Processor
# of Processors InstalledGold 6130
Installed Memory Size128GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via AOC-UR-i4XT (Intel X540 10GBase-T)
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions sur cet article

What RAID levels does the LSI MegaRAID 9361-8i controller support in this server?

The MegaRAID 9361-8i supports RAID 0, 1, 5, 6, 10, 50, and 60. It provides eight internal SAS 12Gb/s ports with 1GB cache and a battery backup unit.

What physical components are required to mount this 1U chassis in a standard rack?

The server uses a 1U form factor but front bezel and rack mount rails are not included. You must supply compatible rails and a bezel separately for installation.

How is the IPMI 2.0 management interface connected and accessed on this system?

A dedicated RJ45 IPMI LAN port provides out-of-band management. It supports IPMI 2.0 with virtual media over LAN and KVM-over-LAN for remote console access.
