Silver 1U rack server front with four 3.5 inch drive trays and status LEDs

Supermicro

Supermicro SYS-6019U-TN4R4T 1U rack server 2x Xeon Gold 5118 2.3GHz 12C 32GB DDR4 4x 3.5" 4x 10G 750W

SKU CH-RHBF-3K60Y

1U rack server with dual 12-core Xeon Gold 5118 CPUs, 32GB DDR4 ECC memory, MegaRAID 9361-8i controller, four 3.5-inch hot-swap bays, four 10GBase-T ports.

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.30 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores12-Core Processor
  • Dual Xeon Gold 5118 CPUs deliver 24 cores at 2.3 GHz base
  • 32 GB DDR4 ECC memory provides reliable capacity for virtualization workloads
  • MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50, 60
  • Four 10GBase-T ports enable high-speed network connectivity and redundancy
  • Redundant 750 W platinum power supplies ensure continuous operation

Dual Xeon Gold 5118 1U server

The Supermicro SYS-6019U-TN4R4T is a 1U rack server equipped with two Intel Xeon Gold 5118 processors running at 2.30 GHz with 12 cores each. It ships with 32GB of DDR4 2400MHz registered ECC memory installed across four modules. The system targets virtualization hosts, software-defined storage nodes and high-performance computing clusters that need dense compute in a single rack unit.

Upgrade from single-socket or older Xeon

Moving from a single-socket platform doubles the core count to 24 and adds a second memory controller, which helps memory-bound workloads such as virtualisation and database caching. The jump is worth it when licensing is per socket and the application scales across NUMA nodes, or when the 3.2 GHz turbo frequency shortens batch windows compared with previous 2.3 GHz parts.

Dense build with four 3.5" bays and 10G networking

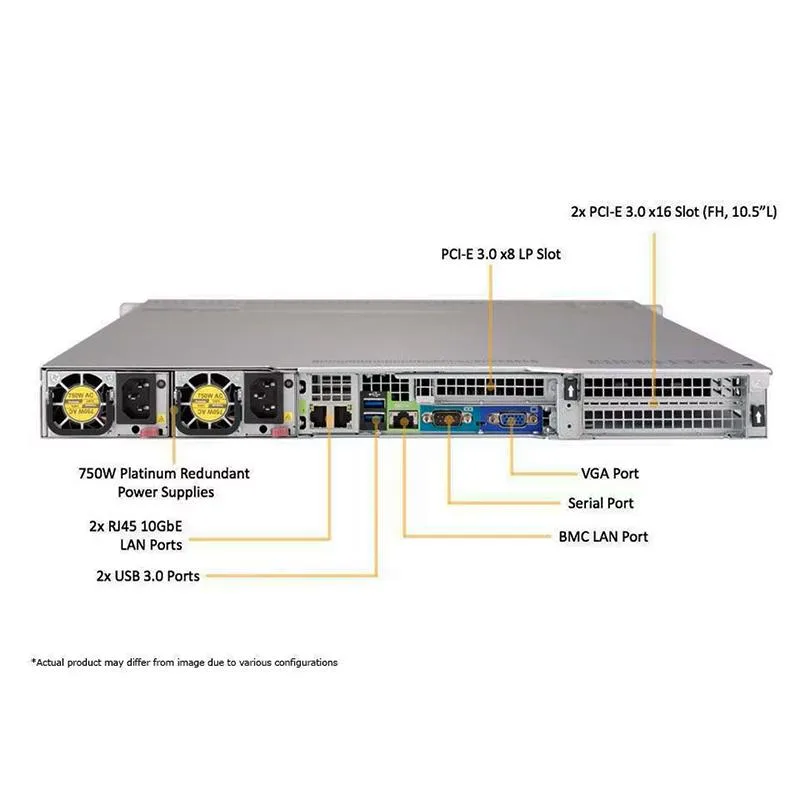

Four hot-swap 3.5" SATA/SAS trays connect to an LSI MegaRAID 9361-8i controller supporting RAID 0/1/5/6/10/50/60 with 1GB cache and battery backup. AOC-UR-i4XT adds four 10GBase-T ports via Intel X540 controllers. Dual 750W platinum power supplies provide redundancy. IPMI 2.0 with dedicated RJ45 enables remote KVM and virtual media. No front bezel or rack rails are included.

Points forts

  • Dual Xeon Gold 5118 CPUs deliver 24 cores at 2.3 GHz base
  • 32 GB DDR4 ECC memory provides reliable capacity for virtualization workloads
  • MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50, 60
  • Four 10GBase-T ports enable high-speed network connectivity and redundancy
  • Redundant 750 W platinum power supplies ensure continuous operation

Caractéristiques

BrandSUPERMICRO
SeriesCSE-819UTS-R751P-T-X11DPU
ModelSYS-6019U-TN4R4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.30 GHz
CPU SocketLGA 3647
Number of CPU Cores12-Core Processor
# of Processors InstalledGold 5118
Installed Memory Size32GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via AOC-UR-i4XT (Intel X540 10GBase-T)
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions sur cet article

What rack depth and rail kit does the 1U chassis require for mounting?

The 1U chassis fits a standard 19-inch rack; front bezel and rack-mount rails are not included, so you must supply compatible rails for your cabinet depth.

How are the dual Xeon Gold 5118 processors and DDR4 memory installed, and what step is often missed?

Both CPUs drop into LGA 3647 sockets and the 32 GB (4×8 GB) DDR4 2400 MHz registered ECC DIMMs populate the motherboard slots; a common miss is forgetting to enable the RAID battery on the 9361-8i controller before array creation.

Which components will need replacement first under continuous operation?

The two hot-swap 750 W platinum power supplies and the four 3.5-inch drive trays are the primary field-replaceable units; the RAID controller cache battery will also require periodic replacement.
