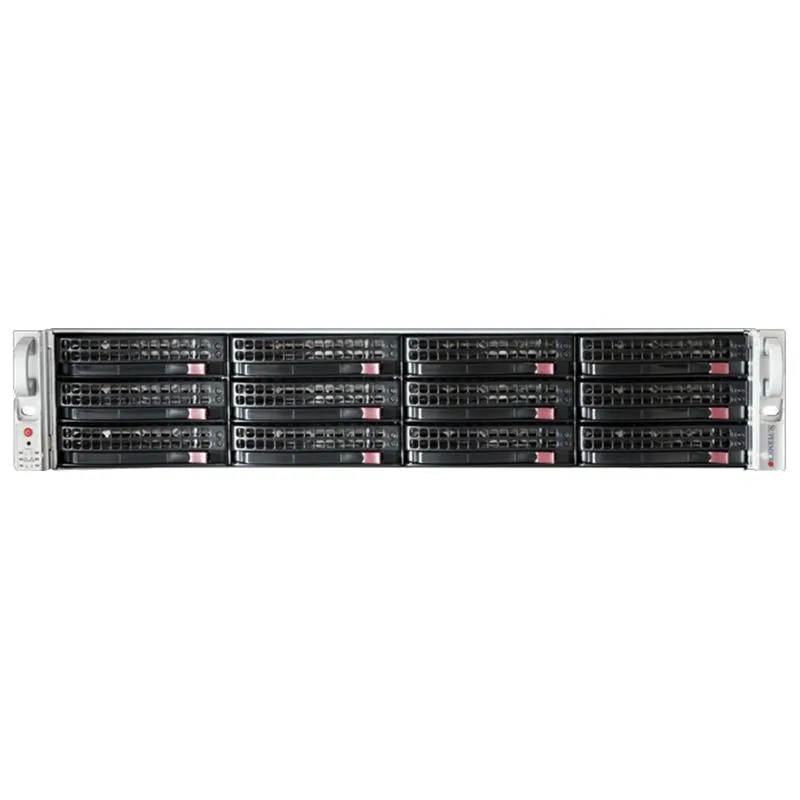

Silver 2U rack server with twelve front drive trays

Supermicro

Supermicro SYS-6028U-TR4T+ 2U rack server 2x Xeon E5-2650 v4 2.2GHz 12-core 16GB DDR4 12x 3.5" trays

SKU CH-Q4YQ-7EYF6

A 2U rack server with dual 12-core Xeon processors at 2.2 GHz, 16 GB DDR4 ECC memory, a MegaRAID 9361-8i controller, twelve 3.5-inch hot-swap bays.

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.20 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores12-Core Processor
  • Dual Xeon E5-2650 v4 processors deliver 24 cores at 2.2 GHz with 2.9 GHz turbo
  • 16 GB DDR4 2400 MHz registered ECC memory supports error-corrected performance
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 across 12 hot-swap 3.5-inch bays
  • Quad 10GBase-T ports via Intel X540 provide high-speed network connectivity
  • IPMI 2.0 with dedicated LAN gives remote KVM and virtual media access

Supermicro 2U dual-Xeon server

The Supermicro SYS-6028U-TR4T+ is a 2U rackmount server fitted with two Intel Xeon E5-2650 v4 processors, each running at 2.2 GHz with 12 cores. It ships with 16 GB of DDR4 ECC registered memory in a 24-slot chassis that supports up to 1.5 TB. Twelve hot-swap 3.5-inch drive bays accept SATA or SAS drives behind an LSI MegaRAID 9361-8i controller with 1 GB cache and battery backup.

Suits virtualisation and database clusters

This system targets workloads that benefit from dual-socket compute density, quad 10GBase-T networking and redundant 1000 W titanium power supplies. IPMI 2.0 with KVM-over-LAN gives full remote control. Buyers who need more than eight internal RAID ports or who require front bezel and rack rails included should look at other configurations.

Eight-port 12 Gb/s RAID controller

The installed MegaRAID 9361-8i provides eight internal SAS 12 Gb/s lanes with RAID 0, 1, 5, 6, 10, 50 and 60 support. Because only eight ports are available, the twelve drive bays cannot all be attached to the hardware RAID engine simultaneously. Expander or additional controller purchases are required to use every bay under hardware RAID.

Points forts

  • Dual Xeon E5-2650 v4 processors deliver 24 cores at 2.2 GHz with 2.9 GHz turbo
  • 16 GB DDR4 2400 MHz registered ECC memory supports error-corrected performance
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 across 12 hot-swap 3.5-inch bays
  • Quad 10GBase-T ports via Intel X540 provide high-speed network connectivity
  • IPMI 2.0 with dedicated LAN gives remote KVM and virtual media access

Caractéristiques

BrandSUPERMICRO
SeriesCSE-829UAC-R1K02-T
ModelSYS-6028U-TR4T+
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.20 GHz
CPU SocketLGA 2011-3
Number of CPU Cores12-Core Processor
# of Processors InstalledE5-2650 V4
Installed Memory Size16GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSuperMicro AOC-2UR-6-i4XT - Intel X540 - 4x RJ45 10GBase-T Ports
Management PortRJ 45
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions sur cet article

How many 10GBase-T ports does the Intel X540 controller provide for network traffic?

The onboard Intel X540 controller supplies four RJ45 10GBase-T ports, giving up to 10 Gb/s per port over standard twisted-pair cabling.

What RAID levels can the MegaRAID 9361-8i controller handle with the installed drives?

The controller supports RAID 0, 1, 5, 6, 10, 50 and 60 across the twelve 3.5-inch SATA or SAS bays.

How much rack height does the chassis occupy and are rails included?

The unit is a 2U form factor; front bezel and rack-mount rails are not included in the package.
