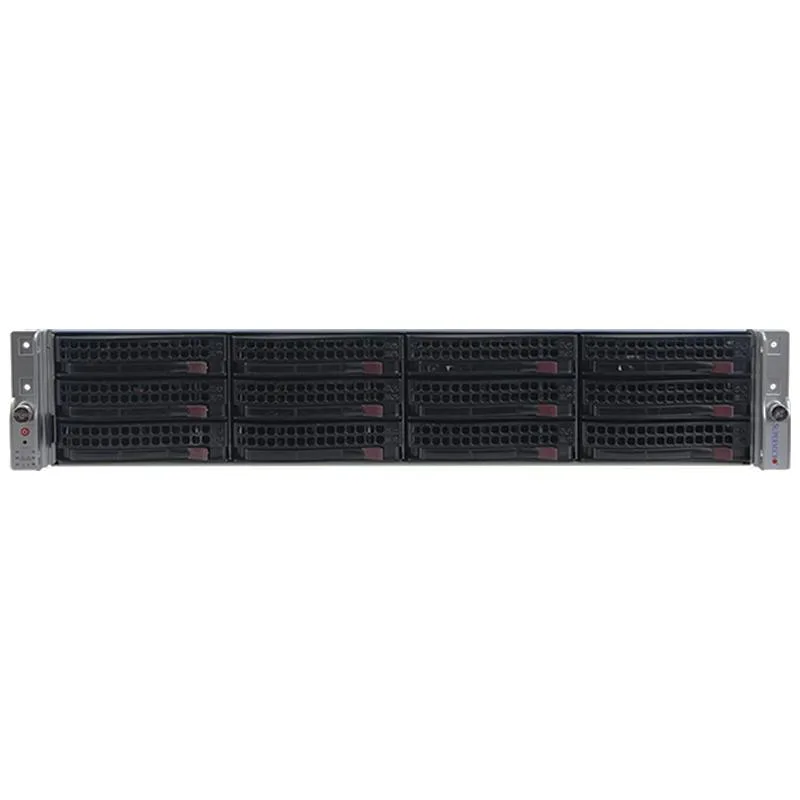

Silver 2U rack server front with twelve 3.5 inch drive trays and bezel removed

Supermicro

Supermicro SYS-6029U-E1CR4T 2U rack server 2x Xeon Gold 5118 2.3GHz 12-core 16GB DDR4 12x 3.5" bays

SKU CH-FV0T-4K6YZ

2U rack server with dual Xeon Gold 5118 12-core CPUs, 16GB DDR4, MegaRAID 9361-8i controller, twelve 3.5-inch hot-swap bays, four 10GBase-T ports and redundant 1000W power supplies

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.30 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores12-Core Processor
  • Dual Xeon Gold 5118 processors deliver 24 cores at 2.3 GHz for heavy workloads
  • 16 GB DDR4 ECC memory supports error-corrected performance across 24 DIMM slots
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 across 12 hot-swap 3.5" bays
  • Four 10GBase-T ports via Intel X710 provide high-speed network connectivity
  • Dual 1000 W Titanium power supplies with IPMI 2.0 ensure redundant power and remote management

Dual Xeon Gold 5118 2U server

The Supermicro SYS-6029U-E1CR4T is a 2U rackmount system populated with two Intel Xeon Gold 5118 processors running at 2.3 GHz with 12 cores each. It ships with 16 GB of DDR4 2400 MHz registered ECC memory across 24 available DIMM slots. Twelve front-accessible 3.5-inch hot-swap bays accept SATA or SAS drives for high-capacity storage arrays. A dedicated IPMI 2.0 port provides out-of-band management with KVM-over-LAN.

Sustained load with redundant power

Dual 1000-watt Titanium-efficiency power supplies operate in redundant hot-swap mode to maintain uptime during continuous enterprise workloads. The MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50 and 60 with 1 GB cached battery-backed write acceleration. Four 10GBase-T ports driven by the Intel X710 controller deliver consistent throughput for virtualization and hyper-converged storage traffic. The LGA 3647 sockets support processors up to 205 W TDP for demanding compute tasks.

Twelve-bay chassis with expansion headroom

The CSE-829U2E1C4-R1K02-T-X11DPU chassis provides twelve 3.5-inch drive trays without installed drives, leaving capacity decisions to the integrator. Six PCIe 3.0 expansion slots include two full-height x16, four full-height x8 and one low-profile x8, plus an internal x8 slot for add-in controllers. Front bezel and rack rails are not included, so mounting hardware must be sourced separately. Matrox G200 graphics with 8 MB video memory handles basic console output only.

Points forts

  • Dual Xeon Gold 5118 processors deliver 24 cores at 2.3 GHz for heavy workloads
  • 16 GB DDR4 ECC memory supports error-corrected performance across 24 DIMM slots
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 across 12 hot-swap 3.5" bays
  • Four 10GBase-T ports via Intel X710 provide high-speed network connectivity
  • Dual 1000 W Titanium power supplies with IPMI 2.0 ensure redundant power and remote management

Caractéristiques

BrandSUPERMICRO
SeriesCSE-829U2E1C4-R1K02-T-X11DPU
ModelSYS-6029U-E1CR4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.30 GHz
CPU SocketLGA 3647
Number of CPU Cores12-Core Processor
# of Processors InstalledGold 5118
Installed Memory Size16GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via Intel X710 (AOC-2UR66-i4XTF)
Management PortRJ 45
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions sur cet article

How loud and hot does the dual Xeon Gold 5118 configuration run under sustained load with the two 1000 W Titanium supplies?

The server uses redundant 1000 W Titanium-efficiency power supplies and 12 hot-swap drive bays; fan speed ramps with CPU and drive temperatures to maintain thermal limits.

Which drives and caddies must I supply to populate the 12 front bays?

The chassis accepts 3.5" SATA or SAS drives in the included Supermicro trays; no drives are installed from the factory.

Will my existing PCIe 3.0 x8 RAID cards and 10 GbE NICs fit the expansion slots?

The system provides two full-height PCIe 3.0 x16 slots, four full-height x8 slots, one low-profile x8 slot and one internal x8 slot.
