Square black 90mm CPU cooler with 4-pin cable

SXDOOL

SXDOOL CA9525FP65 9025 12V 90mm CPU cooler

SKU CH-JSVF-X29AR

A 90 mm hydraulic-bearing fan delivering 35 CFM at 2200 RPM with 30.5 dBA noise and 4-pin speed control for CPU cooling

  • Quiet operation at 30.5 dBA thanks to hydraulic bearing
  • 35 CFM airflow from 2200 RPM fan speed
  • Fits standard 8 cm mounts with 71.5 mm hole pitch
  • 4-pin PWM connector enables automatic speed control
  • Compact 95 x 95 x 25 mm frame suits tight builds

90 mm 12 V CPU cooler for compact builds

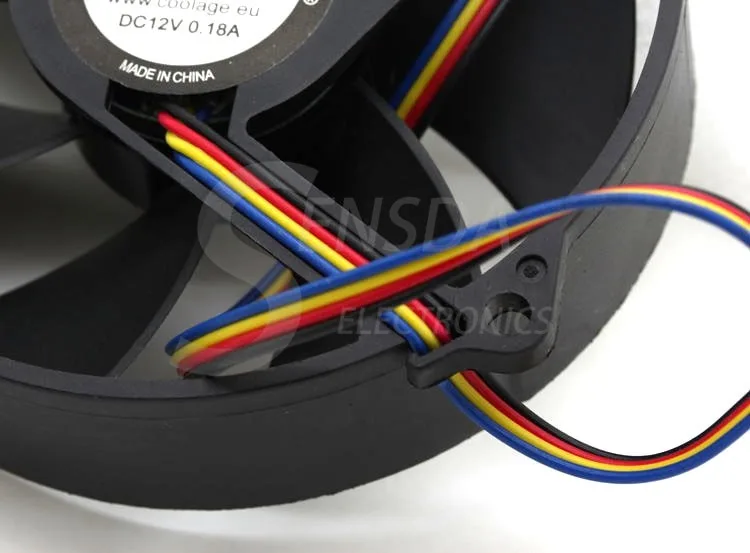

The SXDOOL CA9525FP65 is a 95 × 95 × 25 mm fan rated at 12 V and 0.18 A. It spins at 2200 RPM and delivers 35 CFM of airflow at 30.5 dBA using a hydraulic bearing. The unit is designed for CPU cooling in standard computer cases.

Check 8 cm mounting pitch and 4-pin header

Verify that your motherboard or chassis offers the standard 8 cm hole pattern with a 71.5 mm pitch and diagonally adjacent 100 mm spacing. Ensure a 4-pin PWM header is available for the speed-control function. The supplied cable is 18 cm long, so confirm it reaches the header without strain.

Hydraulic bearing and PWM lower noise and wear

The hydraulic bearing reduces friction compared with sleeve designs, extending service life at 2200 RPM. PWM support lets the motherboard adjust fan speed to thermal load, cutting acoustic output below the 30.5 dBA maximum when full airflow is not required. No additional mounting hardware or software is included.

Points forts

  • Quiet operation at 30.5 dBA thanks to hydraulic bearing
  • 35 CFM airflow from 2200 RPM fan speed
  • Fits standard 8 cm mounts with 71.5 mm hole pitch
  • 4-pin PWM connector enables automatic speed control
  • Compact 95 x 95 x 25 mm frame suits tight builds

Caractéristiques

Aucune caractéristique publiée pour cet article pour l’instant.

Questions sur cet article

What comes in the box with the CA9525FP65 and is any extra mounting hardware needed?

The package includes the 90mm fan with a 4-pin connector and 18cm cable; the unit mounts on the standard 8cm hole pitch of 71.5mm, so no separate bracket is required.

How do I decide between the available versions of the CA9525FP65?

Only the single model CA9525FP65 is listed, with fixed specifications of 2200RPM, 35CFM airflow and 30.5dBA noise, so there are no alternative versions to choose from.

What does the 2200RPM rating mean for actual CPU cooling performance?

At 2200RPM the fan delivers 35CFM airflow at 30.5dBA using a hydraulic bearing, providing active air movement across a CPU heatsink within a 12V 0.18A power envelope.
