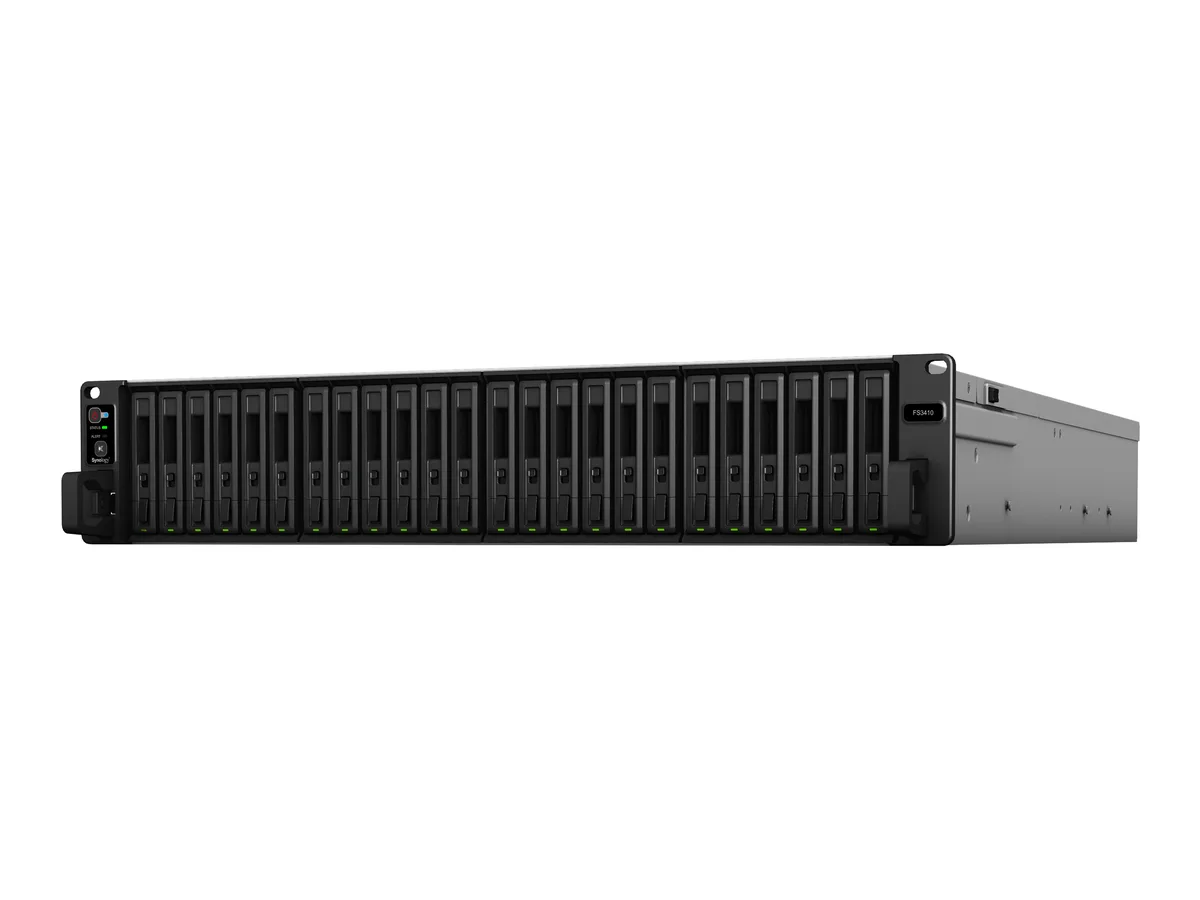

Silver 24-bay rackmount NAS unit with front drive trays

Synology Inc.

Synology Inc. FS3410 24-bay rackmount NAS Xeon D-1541 16GB DDR4

SKU CH-KKHN-T68DC MPN FS3410

24-bay rackmount NAS with Intel Xeon D-1541 8-core processor, 16GB DDR4 ECC memory, two 10GbE and five 1GbE ports, plus dual PCIe 3.0 x8 slots for expansion

  • Port RJ-451 x 1GbE RJ-45 (out-of-band management and data transfer) 4
  • Port USB2 x USB 3.2 Gen 1
  • HDD Interface24 x SATA (24 x Bay)
  • PCIe2 x Gen3 x8 slots (x8 link)
  • Form Factor24-bay
  • ProcessorIntel Xeon D-1541 8-core (16-thread) 2.1 GHz, max boost cloc

Form Factor 24-bay

Installed Memory 16GB DDR4

Model FS3410

  • 24 drive bays scale storage for large teams
  • Intel Xeon D-1541 8-core processor handles heavy workloads
  • 16GB DDR4 ECC memory protects data integrity
  • 2 x 10GbE plus 5 x 1GbE ports deliver fast network throughput
  • Expandable to 128GB RAM and two PCIe Gen3 x8 cards for future growth

24-bay all-flash NAS for enterprise workloads

The Synology FS3410 is a 24-bay rackmount NAS built around an Intel Xeon D-1541 8-core processor running at 2.1 GHz with a 2.7 GHz boost. It ships with 16 GB of DDR4 ECC RDIMM memory expandable to 128 GB across four DIMM slots. The diskless chassis accepts 2.5-inch SATA SSDs and targets organisations that need ultra-high performance for many simultaneous users.

Dual 10GbE and PCIe Gen3 x8 slots expand I/O

Two 10GbE RJ-45 ports and four 1GbE RJ-45 ports provide high-throughput networking out of the box, while a dedicated 1GbE port handles out-of-band management. Two PCIe 3.0 x8 slots (x8 link) allow the addition of NICs or accelerator cards. Two USB 3.2 Gen 1 ports support external backup or peripheral attachment.

Rackmount chassis with redundant power range

The 3.46-inch high, 18.98-inch wide, 28.50-inch deep unit weighs 33.07 lbs and operates from 100-240 VAC at 50/60 Hz. It supports Synology RAID F1, Basic, JBOD, RAID 0, 1, 5, 6 and 10 for flexible data protection. Certified compatibility with VMware vSphere, Microsoft Hyper-V, Citrix XenServer and OpenStack with Kubernetes CSI driver simplifies virtualised deployments.

Points forts

  • 24 drive bays scale storage for large teams
  • Intel Xeon D-1541 8-core processor handles heavy workloads
  • 16GB DDR4 ECC memory protects data integrity
  • 2 x 10GbE plus 5 x 1GbE ports deliver fast network throughput
  • Expandable to 128GB RAM and two PCIe Gen3 x8 cards for future growth

Caractéristiques

BrandSynology
ModelFlashStation FS3410
Port RJ-451 x 1GbE RJ-45 (out-of-band management and data transfer)
4 x 1GbE RJ-45 (data transfer)
2 x 10GbE RJ-45
Port USB2 x USB 3.2 Gen 1
HDD Interface24 x SATA (24 x Bay)
PCIe2 x Gen3 x8 slots (x8 link)
Form Factor24-bay
ProcessorIntel Xeon D-1541 8-core (16-thread) 2.1 GHz, max boost clock up to 2.7 GHz
Installed Memory16GB DDR4 ECC RDIMM (expandable up to 128GB)
Memory Slot4 x DIMM
Included HDD CapacityDiskless System
Drive Compatibility2.5" SATA SSD
RAIDSynology RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
Power100-240 VAC 50/60Hz
FeaturesPowerful Performance
Over 356,500/129,400 iSCSI 4K random read/write IOPS to handle intensive I/O operations efficiently
Flexible Virtualization
Certified support for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack with Kubernetes CSI driver
Comprehensive Connectivity
Built-in Gigabit and 10GbE ports for fast connectivity out of the box, with 25/40GbE upgrade available through network interface cards
Uptime Protection
Hardware and software solutions for high availability and shorter recovery time objectives
UsageUltra high prerformance for large number of users
Temperature0°C - 35 °C
Humidity5-95% R.H
Dimensions3.46" x 18.98" x 28.50"
Weight33.07 lbs.
Package Contents1 x FS3410 main unit
1 x Quick Installation Guide
1 x Accessory pack
2 x AC power cord
Poids d’expédition20.02 kg
Dimensions du colis920 × 686 × 244 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What maintenance will the four DDR4 DIMM slots require when expanding memory beyond the installed 16GB?

The 16GB DDR4 ECC RDIMM can be expanded up to 128GB across the four DIMM slots; plan for compatible DDR4 ECC RDIMM modules when adding capacity.

Which component hits its limit first during sustained heavy I/O on this 24-bay unit?

The 2.1 GHz Xeon D-1541 with 2.7 GHz max boost and 16GB DDR4 ECC RDIMM deliver over 356,500/129,400 iSCSI 4K random read/write IOPS, so CPU and memory headroom define the sustained ceiling.

How much heat and noise should I expect when the FS3410 runs all day at 35°C ambient?

Operating range is 0°C to 35°C at 5-95% humidity; the 33.07 lb rackmount chassis with dual 10GbE and four 1GbE ports is built for continuous duty in standard server rooms.
