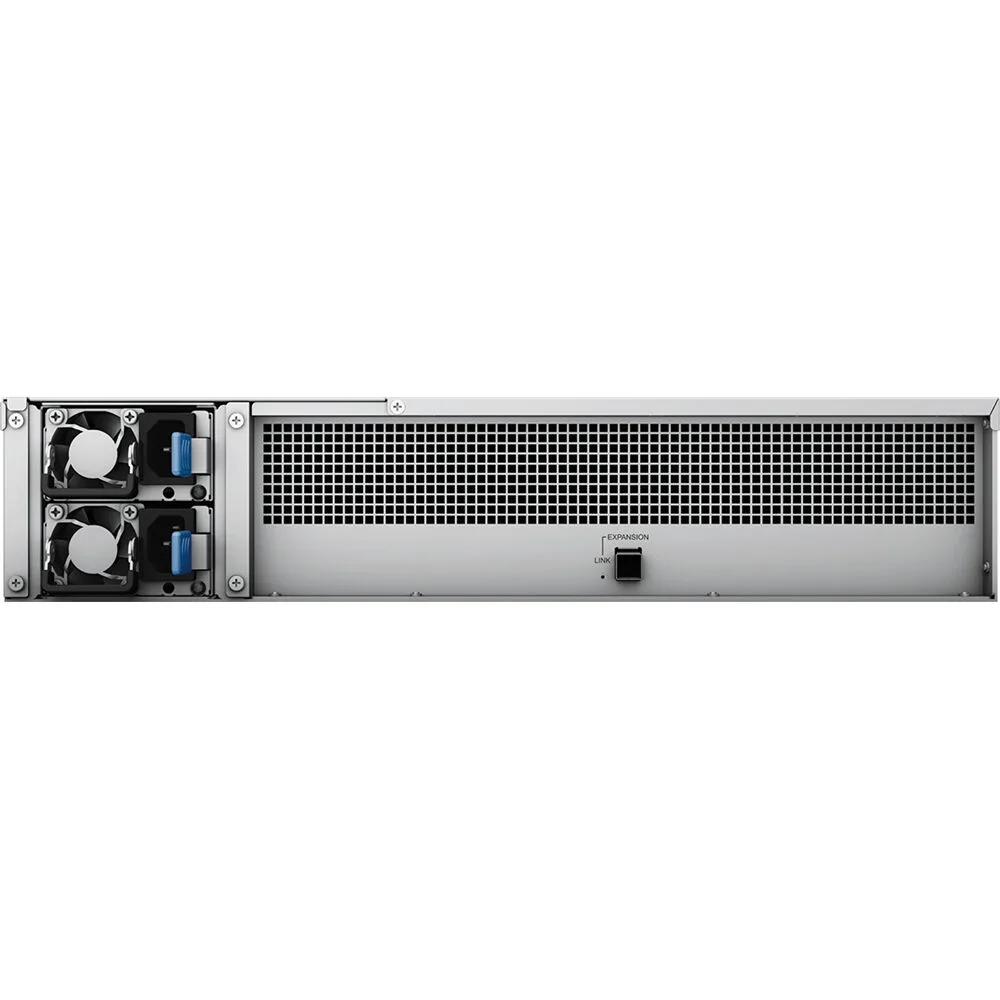

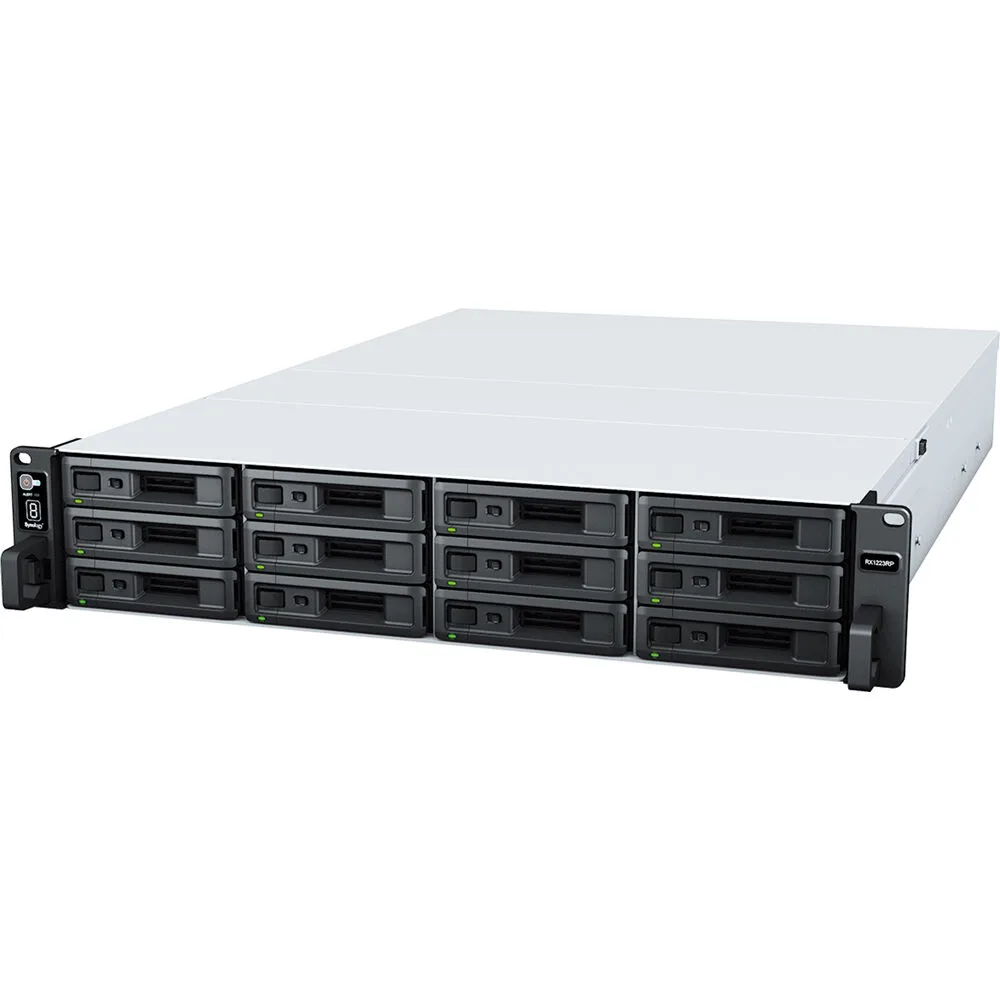

Silver 2U rackmount chassis with twelve front drive bays and redundant power supplies at the rear

Synology Inc.

Synology Inc. RX1223RP 12-Bay Rackmount NAS

SKU CH-GVWY-2JTTV MPN RX1223RP

Adds up to 12 SATA drives to compatible Synology NAS with redundant power for continuous operation

  • Drive Compatibility• 12 x 3.5 or 2.5" SATA HDD/SDD (drives not included) • Syno
  • PowerAC input power voltage : 100 V to 240 V AC
  • Temperature• Operating Temperature: 0°C to 35°C (32°F to 95°F) • Storag
  • Humidity• Operating Relative humidity: 8% to 80% RH Storage environm
  • Dimensions32.68" x 22.83" x 8.27"
  • Weight38.45 lbs

Option RX1223RP

  • Add up to 12 SATA drives for massive capacity expansion
  • Redundant power supply eliminates single points of failure
  • Expand compatible systems to 96 bays total
  • Hot-swappable trays and fans simplify maintenance
  • Gain 1.7 PB raw storage with eight units

12-Bay Rackmount Expansion Unit

The Synology RX1223RP is a 2U rackmount storage expansion unit that adds up to twelve 3.5-inch or 2.5-inch SATA drive bays to a compatible Synology NAS. It ships diskless and connects via a Mini-SAS HD cable included in the box. Redundant power supplies protect against single points of failure. The unit operates from 100 V to 240 V AC and fits standard rack depths.

Ideal for Capacity Growth Without Downtime

This unit suits administrators who need to expand raw storage on a supported Synology rackmount server without interrupting services. It supports adding up to eight expansion units for a total of ninety-six additional bays. Buyers who require a standalone NAS with its own operating system should look at a primary server instead. Environments that need drive interfaces other than SATA are not served by this chassis.

SATA Drive Compatibility Is the Deciding Factor

The RX1223RP accepts only 3.5-inch or 2.5-inch SATA HDDs and SSDs, and Synology guarantees full functionality only with drives on its validated compatibility list. Drives are not included. Confirm that your existing NAS model supports RX-series expansion and that your chosen drives appear on the list before purchasing.

Points forts

  • Add up to 12 SATA drives for massive capacity expansion
  • Redundant power supply eliminates single points of failure
  • Expand compatible systems to 96 bays total
  • Hot-swappable trays and fans simplify maintenance
  • Gain 1.7 PB raw storage with eight units

Caractéristiques

BrandSynology
ModelRX1223RP
Drive Compatibility• 12 x 3.5 or 2.5" SATA HDD/SDD (drives not included)
• Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list.
The use of non-validated components may limit certain functionality and result in data loss and system instability
PowerAC input power voltage : 100 V to 240 V AC
Temperature• Operating Temperature: 0°C to 35°C (32°F to 95°F)
• Storage Temperature: -20°C to 60°C (-5°F to 140°F)
Humidity• Operating Relative humidity: 8% to 80% RH Storage environment
• Storage Relative humidity: 5% to 95% RH
Dimensions32.68" x 22.83" x 8.27"
Weight38.45 lbs
Package Contents• 1 x RX1223RP main unit
• 2 x AC power cord
• 1 x Mini-SAS HD Expansion cable
• 1 x Accessory pack
• 1 x Quick Installation Guide
Poids d’expédition17.44 kg
Dimensions du colis848 × 618 × 229 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How can I confirm the RX1223RP is operating correctly after connecting it to my Synology NAS?

The unit will appear in DSM Storage Manager once the Mini-SAS HD cable links it to a compatible Synology server, and all 12 drive bays show healthy status with no degraded volumes.

What ships with the RX1223RP and what must I purchase separately?

The box contains the main unit, two AC power cords, one Mini-SAS HD expansion cable, an accessory pack and a quick installation guide; 3.5" or 2.5" SATA drives are not included and must be bought separately.

Which RX1223RP configuration should I choose for maximum raw capacity?

Only one hardware version exists — a 12-bay 2U rackmount unit — so capacity depends on the SATA drives you install; eight units can scale a compatible system to 1.7 petabytes raw.
