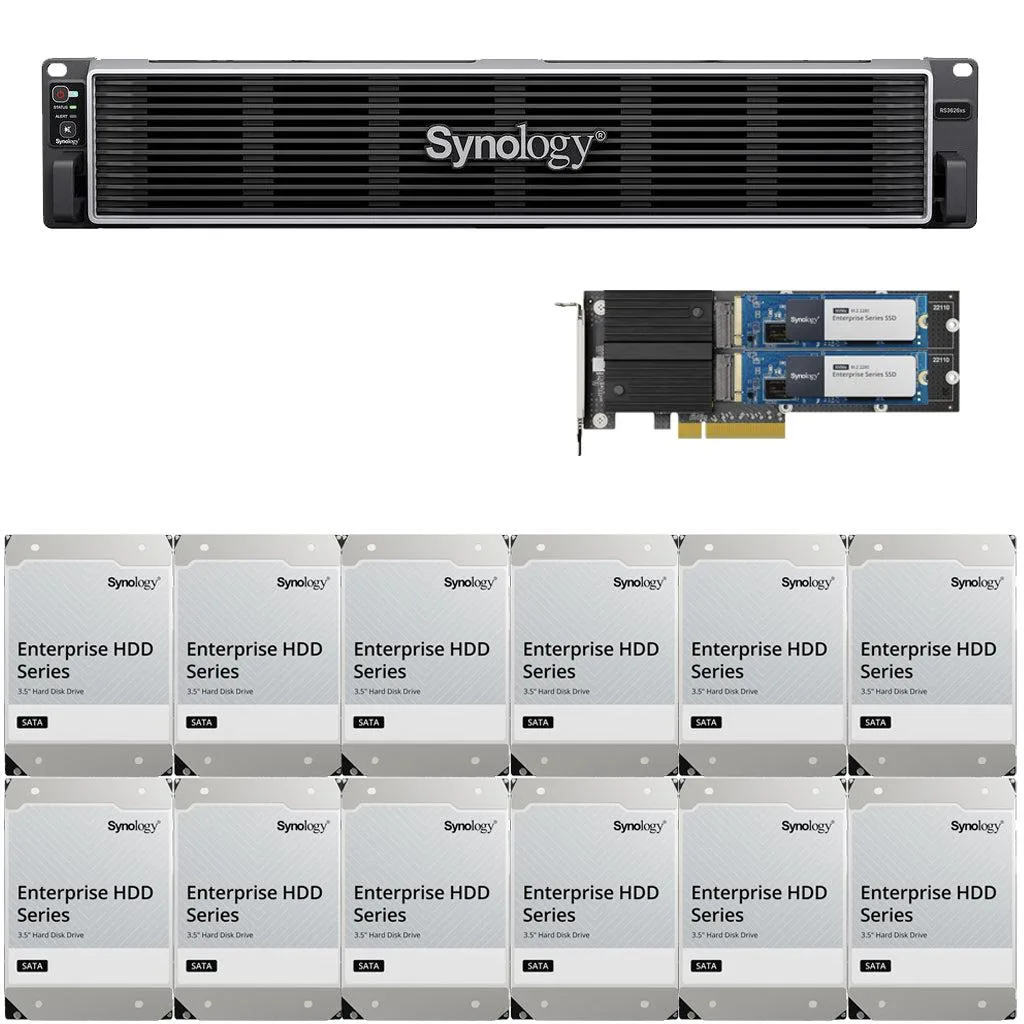

Silver 2U rackmount chassis with twelve front drive bays and dual power supplies

Synology Inc.

Synology RS3626xs rackmount NAS 12-bay Xeon 8GB 3.2TB cache 288TB

SKU CH-DXW2-1XETG

A 12-bay rackmount NAS with Xeon processor, 8GB DDR4, 3.2TB cache and 288TB of SATA drives, fully assembled and tested

  • Port RJ-452 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port
  • Port USB2 x USB 3.2 Gen 1 Ports
  • Form Factor12-Bay
  • ProcessorIntel Xeon
  • Installed Memory8GB
  • Included HDD Capacity288TB (12 x 24TB)
  • Delivers high-speed file access with two integrated 10GbE ports
  • Handles demanding workloads using a 6-core Intel Xeon D-1726 processor
  • Provides massive 288TB capacity from twelve 24TB enterprise drives
  • Accelerates frequent data with 3.2TB Synology Enterprise SSD cache
  • Expands memory to 48GB DDR4 ECC for virtualization and databases

Enterprise rackmount NAS for business workloads

The Synology RS3626xs is a 12-bay 2U rackmount NAS built for centralized file storage, virtualization and multi-site collaboration. It ships fully assembled with twelve 24 TB enterprise drives delivering 288 TB raw capacity plus 3.2 TB of SSD cache. A 6-core Intel Xeon D-1726 processor and 8 GB DDR4 ECC memory provide the compute headroom for demanding business applications.

Redundant power and flexible expansion

Dual redundant power supplies protect service availability from a single power-supply failure. Two 10 GbE RJ-45 ports support Link Aggregation for higher throughput and network failover. Two PCIe Gen 4 x8 slots accept additional network adapters or cache hardware as requirements change. Front-access drive bays support 3.5-inch SATA HDDs and 2.5-inch SATA SSDs for straightforward maintenance.

Managed thermals within standard operating range

The chassis operates from 0 °C to 35 °C with humidity between 8 % and 80 % RH. Redundant fans and airflow design keep drive and processor temperatures stable under sustained loads. Power input accepts 100-240 VAC at 50/60 Hz for worldwide deployment without extra configuration.

Points forts

  • Delivers high-speed file access with two integrated 10GbE ports
  • Handles demanding workloads using a 6-core Intel Xeon D-1726 processor
  • Provides massive 288TB capacity from twelve 24TB enterprise drives
  • Accelerates frequent data with 3.2TB Synology Enterprise SSD cache
  • Expands memory to 48GB DDR4 ECC for virtualization and databases

Caractéristiques

BrandSynology
ModelRS3626xs
Port RJ-452 x RJ-45 10GbE LAN Port
1 x Out-of-Band Management LAN Port
Port USB2 x USB 3.2 Gen 1 Ports
Form Factor12-Bay
ProcessorIntel Xeon
Installed Memory8GB
Included HDD Capacity288TB (12 x 24TB)
ManagementWeb-Based, DHCP Client
LEDsPower, HDD (Hard Disk Drive), LAN (10/100)
Power100-240 VAC 50/60Hz
Temperature0°C to 35°C (32°F to 95°F)
Humidity8% to 80% RH
Dimensions88 mm × 482 mm × 724 mm
Weight14.5 kg
Package ContentsMain Unit × 1
Accessory Pack × 1
C13 to C14 power cord × 2
Front Cover × 1
All Configuration Items

Questions sur cet article

What throughput do the dual 10GbE RJ-45 ports cap at in practice?

Synology reports sequential speeds exceeding 6,300 MB/s read and 3,700 MB/s write under its test conditions.

What drive sizes and bay count does the 2U chassis accept?

Twelve 3.5-inch SATA HDDs or 2.5-inch SATA SSDs fit in the 12-bay enclosure measuring 88 mm × 482 mm × 724 mm.

How is the unit installed in a rack, and what step is often missed?

Mount the 14.5 kg 2U chassis with the included accessory pack and front cover, then connect both C13 to C14 power cords for redundant supply operation.
