Synology Inc.
Synology RS3626xs Xeon D-1726 12-Bay rackmount NAS 48GB 144TB
A 12-bay rackmount NAS with Xeon D-1726, 48GB DDR4 and 144TB of SATA enterprise drives, pre-assembled and tested
- Port RJ-452 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port
- Port USB2 x USB 3.2 Gen 1 Ports
- Form Factor12-Bay
- ProcessorIntel Xeon
- Installed Memory48GB
- Included HDD Capacity144TB (12 x 12TB)
- 6-core Xeon D-1726 handles demanding workloads
- 48GB DDR4 ECC memory supports virtualization and databases
- 144TB raw capacity with twelve 12TB enterprise drives
- Dual 10GbE RJ-45 ports enable link aggregation and failover
- Two PCIe 4.0 x8 slots allow 25GbE or Fibre Channel expansion
Enterprise rackmount NAS for virtualization

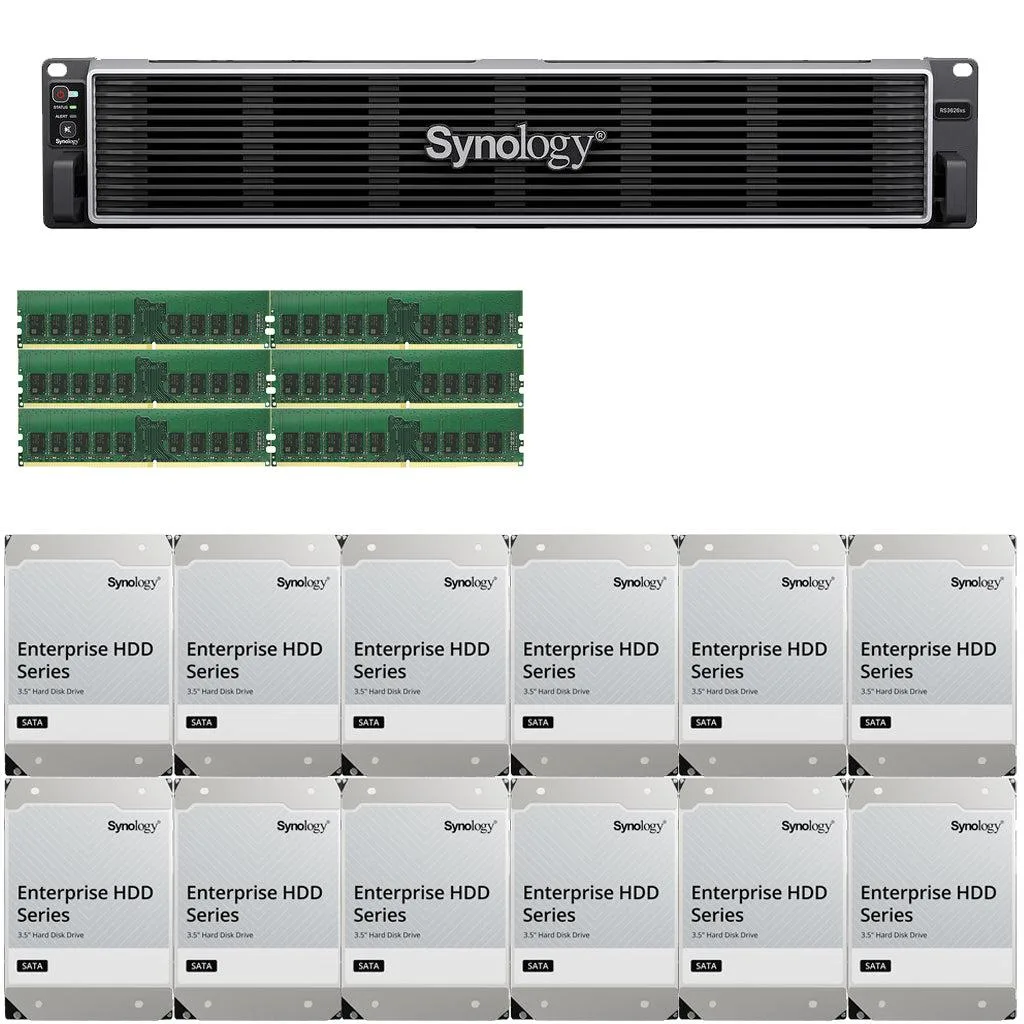

The Synology RS3626xs is a 12-bay 2U rackmount NAS built around a Xeon D-1726 processor with 48 GB of DDR4 ECC memory. It ships fully assembled and tested with twelve 12 TB Synology Enterprise SATA drives providing 144 TB of raw capacity. Dual 10 GbE RJ-45 ports and an out-of-band management port handle high-throughput and administrative traffic.
Suited for IT teams consolidating file services
Organisations that need redundant power supplies, ECC memory and PCIe Gen 4 expansion for additional network cards or SSD caching will fit this platform. Buyers who require more than twelve drive bays or a different drive interface should evaluate alternative platforms. Environments outside the 0 °C to 35 °C operating range are not supported.
Twelve-bay capacity defines the storage ceiling
The chassis accepts exactly twelve 3.5-inch or 2.5-inch SATA devices and cannot be expanded internally beyond that count. Raw capacity is therefore limited to the installed 144 TB or any combination of twelve SATA drives the buyer chooses.
Points forts
- 6-core Xeon D-1726 handles demanding workloads
- 48GB DDR4 ECC memory supports virtualization and databases
- 144TB raw capacity with twelve 12TB enterprise drives
- Dual 10GbE RJ-45 ports enable link aggregation and failover
- Two PCIe 4.0 x8 slots allow 25GbE or Fibre Channel expansion
Caractéristiques
| Brand | Synology |
|---|---|
| Model | RS3626xs |
| Port RJ-45 | 2 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port |
| Port USB | 2 x USB 3.2 Gen 1 Ports |
| Form Factor | 12-Bay |
| Processor | Intel Xeon |
| Installed Memory | 48GB |
| Included HDD Capacity | 144TB (12 x 12TB) |
| Management | Web-Based, DHCP Client |
| LEDs | Power, HDD (Hard Disk Drive), LAN (10/100) |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C to 35°C (32°F to 95°F) |
| Humidity | 8% to 80% RH |
| Dimensions | 88 mm × 482 mm × 724 mm |
| Weight | 14.5 kg |
| Package Contents | Main Unit × 1 Accessory Pack × 1 C13 to C14 power cord × 2 Front Cover × 1 All Configuration Items |
Questions sur cet article
What speed do the two 10GbE RJ-45 ports cap at in practice?
The two integrated 10GbE RJ-45 ports support Link Aggregation for increased bandwidth, load balancing, and network failover. Sequential performance exceeds 6,300 MB/s read and 3,700 MB/s write under test conditions.
What drive sizes and form factors fit the 12 bays?
Twelve 3.5-inch SATA HDDs or 2.5-inch SATA SSDs are supported. The unit ships with twelve 12TB Synology Enterprise NAS drives installed for 144TB total capacity.
How is the unit installed in a rack, and what step is often missed?
Mount the 2U chassis using the included accessory pack. Connect both C13 to C14 power cords to separate circuits to activate the redundant power supplies, a step often missed.
