Synology Inc.
Synology RS3626xs Xeon D-1726 12-Bay Rackmount NAS 8GB 288TB
A 12-bay rackmount NAS with Xeon D-1726 processor, 8GB DDR4 ECC memory, dual 10GbE ports, and 288TB of pre-installed enterprise drives, fully assembled and tested
- Port RJ-452 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port
- Port USB2 x USB 3.2 Gen 1 Ports
- Form Factor12-Bay
- ProcessorIntel Xeon
- Installed Memory8GB
- Included HDD Capacity288TB (12 x 24TB)
- 6-core Xeon D-1726 handles demanding business workloads
- 12-bay chassis supports up to 288TB raw capacity
- Dual 10GbE RJ-45 ports enable link aggregation and failover
- 8GB DDR4 ECC memory expandable to 48GB
- Two PCIe Gen 4 x8 slots allow future network or cache upgrades
12-Bay Rackmount NAS with 288TB Storage

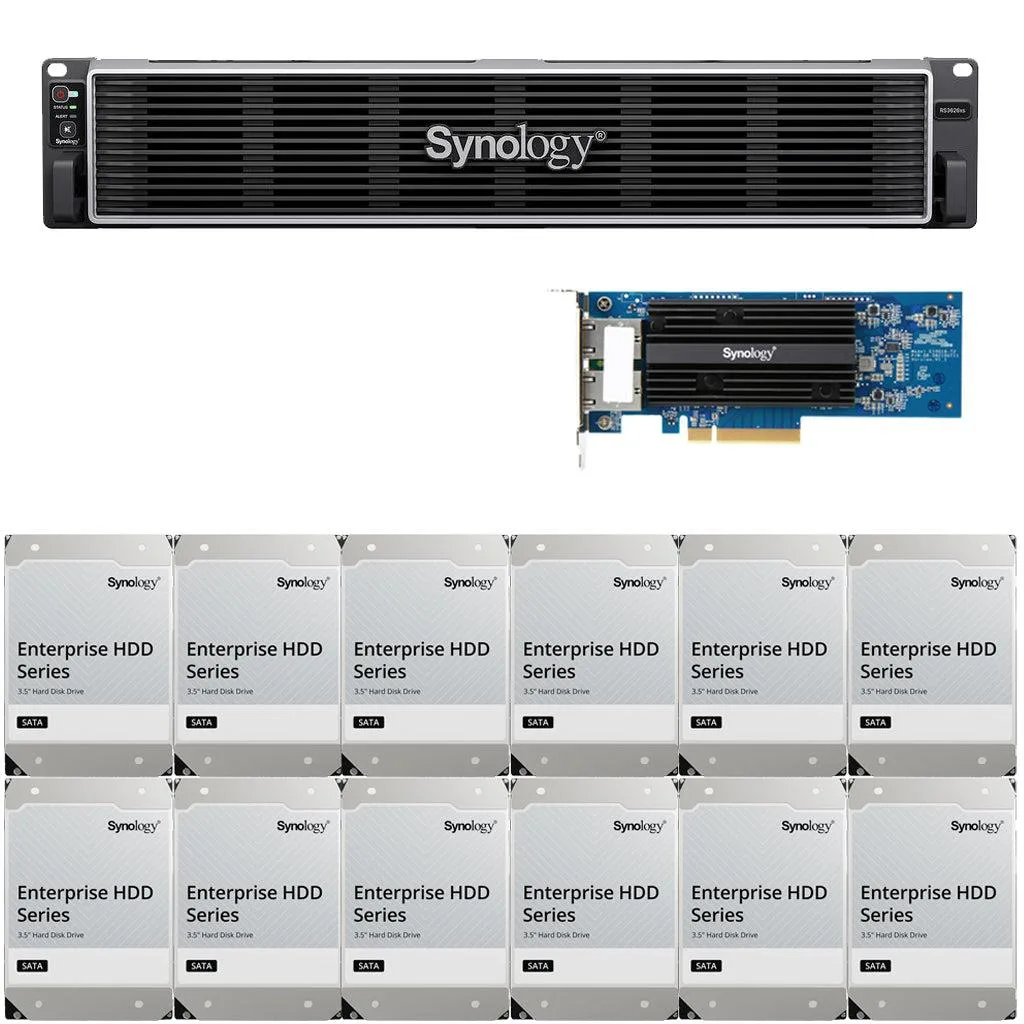

The Synology RS3626xs is a 2U rackmount network-attached storage server preloaded with twelve 24TB enterprise hard drives totalling 288TB. A 6-core Intel Xeon D-1726 processor and 8GB of DDR4 ECC memory provide a platform for centralized file storage, virtualization, and multi-site collaboration. Redundant power supplies protect service availability from a single power-supply failure. Buyers who need more than twelve drive bays or a higher base memory configuration will need a different platform.
Installation and Common Issues
The unit arrives fully assembled and tested with all drives installed, so physical setup is limited to rack mounting, connecting the two C13 to C14 power cords, and linking the two integrated 10GbE RJ-45 ports or the out-of-band management port. Management is performed through a web-based interface with DHCP client support. Builders should verify rack depth clearance for the 724mm chassis and confirm that the operating environment stays within 0°C to 35°C and 8% to 80% relative humidity.
10GbE and Expansion Limits
Two onboard 10GBASE-T ports support Link Aggregation for increased bandwidth and network failover, with Synology reporting sequential performance exceeding 6300 MB/s read and 3700 MB/s write under its test conditions. Two PCIe Gen 4 x8 slots allow adding compatible 10GbE or 25GbE adapters, Fibre Channel connectivity, or SSD caching hardware. Memory can be expanded to 48GB. The twelve 3.5-inch SATA bays accept HDDs or 2.5-inch SATA SSDs only.
Points forts
- 6-core Xeon D-1726 handles demanding business workloads
- 12-bay chassis supports up to 288TB raw capacity
- Dual 10GbE RJ-45 ports enable link aggregation and failover
- 8GB DDR4 ECC memory expandable to 48GB
- Two PCIe Gen 4 x8 slots allow future network or cache upgrades
Caractéristiques
| Brand | Synology |
|---|---|
| Model | RS3626xs |
| Port RJ-45 | 2 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port 2 x 10GbE 10GBASE-T |
| Port USB | 2 x USB 3.2 Gen 1 Ports |
| Form Factor | 12-Bay |
| Processor | Intel Xeon |
| Installed Memory | 8GB |
| Included HDD Capacity | 288TB (12 x 24TB) |
| Management | Web-Based, DHCP Client |
| LEDs | Power, HDD (Hard Disk Drive), LAN (10/100) |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C to 35°C (32°F to 95°F) |
| Humidity | 8% to 80% RH |
| Dimensions | 88 mm × 482 mm × 724 mm |
| Weight | 14.5 kg |
| Package Contents | Main Unit × 1 Accessory Pack × 1 C13 to C14 power cord × 2 Front Cover × 1 All Configuration Items |
Questions sur cet article
How do I verify the RS3626xs is running correctly after racking it up?
Check the front-panel LEDs: Power should stay solid green, each of the 12 drive bays should show green activity, and both 10GbE LAN indicators should light when cables are connected. DSM will report CPU, memory and volume health on the dashboard.
What ships inside the box and what must I source myself?
The package contains the main 2U unit, accessory pack, two C13-to-C14 power cords and a front cover. Twelve 24 TB Synology Enterprise drives, 8 GB DDR4 ECC RAM and a 2-port 10GbE adapter are already installed. No extra drives or rails are included.
Should I choose the 8 GB or 48 GB memory configuration for virtualization workloads?
The unit ships with 8 GB DDR4 ECC and supports expansion to 48 GB using compatible Synology modules. Start with 8 GB for file services; add memory later if you plan to run multiple VMs or containers simultaneously.
