Synology Inc.
Synology RX1217sas 12 Bay SAS Expansion Rackmount NAS
12-bay SAS expansion unit adds raw capacity to compatible FlashStation and RackStation systems with redundant power and online volume growth
- HDD Interface12 x 3.5 / 2.5" SAS / SATA HDD / SSD (drives not included)
- Port Others1 x SAS IN 1 x SAS OUT
- PowerAC input power voltage: 100V to 240V AC Power frequency: 50
- FeaturesPlug-n-use design for seamless storage space upgrade Online
- TemperatureOperating temperature: 5 degree C to 35 degree C (40 degree
- Humidity5-95% R.H
- Add 12 drive bays for massive capacity growth
- Mix 3.5" and 2.5" SAS or SATA drives as needed
- Redundant power supplies keep the array running during a failure
- Expand volumes on the fly without downtime
- Lock into a rack quickly with the RKS1317 kit
12-Bay SAS/SATA Expansion Unit

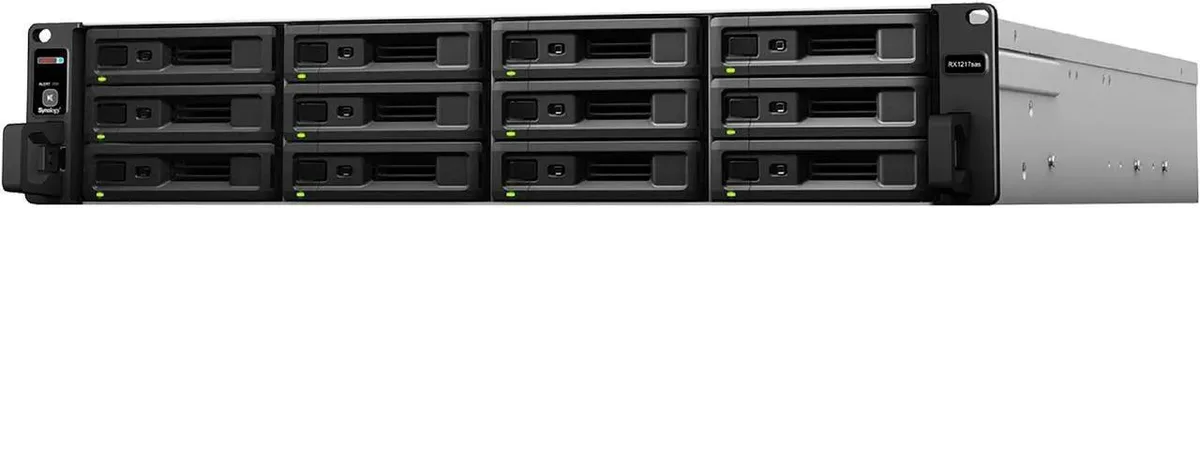

The Synology RX1217sas is a 2U rackmount enclosure that adds twelve 3.5-inch or 2.5-inch drive bays to a compatible FlashStation or RackStation. It connects through a single Mini-SAS HD cable and ships without drives, letting you populate it with SAS or SATA HDDs and SSDs as capacity needs grow.
Suits Administrators Expanding Existing Synology
This unit is built for IT teams that already run a supported FS3017, FS2017 or RS18017xs+ and need more raw storage without adding another head unit. It is not for buyers who want a standalone NAS with its own operating system, network ports or direct file-serving capability, nor for environments that cannot supply a SAS host connection.
Verify Host Compatibility and Rack Space
Before ordering, confirm that your Synology model appears on the supported list and has an available SAS port for the included expansion cable. Ensure the rack can accommodate a 2U chassis measuring 3.46 inches high by 16.95 inches wide by 27.24 inches deep and that the site meets the 5 to 35 degree Celsius operating temperature range with 5 to 95 percent relative humidity.
Points forts
- Add 12 drive bays for massive capacity growth
- Mix 3.5" and 2.5" SAS or SATA drives as needed
- Redundant power supplies keep the array running during a failure
- Expand volumes on the fly without downtime
- Lock into a rack quickly with the RKS1317 kit
Caractéristiques
| Brand | Synology |
|---|---|
| Model | RX1217sas |
| HDD Interface | 12 x 3.5 / 2.5" SAS / SATA HDD / SSD (drives not included) |
| Port Others | 1 x SAS IN 1 x SAS OUT |
| Power | AC input power voltage: 100V to 240V AC Power frequency: 50 to 60Hz, single phase |
| Features | Plug-n-use design for seamless storage space upgrade Online volume expansion on the fly Redundant power supplies ensure service uptime Fast rack fixing lock support with Synology RKS1317 Backed with Synology's 5-year limited warranty & Synology Replacement Service (SRS) Managed by Synology DiskStation Manager (DSM) |
| Temperature | Operating temperature: 5 degree C to 35 degree C (40 degree F - 95 degree F) Storage temperature: -20 degree C to 60 degree C (-5 degree F to 140 degree F) |
| Humidity | 5-95% R.H |
| Dimensions | 3.46" x 16.95" x 27.24" 3.46" x 18.98" x 28.50" (with server ears) |
| Weight | 39.68 lbs. |
| Package Contents | 1 x RX1217sas main unit 1 x Quick Installation Guide 1 x Accessory pack 1 x Expansion cable (Mini-SAS HD) 2 x AC power cord |
Questions sur cet article
Which Synology rackmount model do I need so the RX1217sas can attach via its SAS IN port?
The expansion unit connects to the FS3017, FS2017 or RS18017xs+ through the included Mini-SAS HD cable, adding twelve drive bays to those systems.
Can I keep my existing 3.5 inch SATA drives when I add this SAS expansion shelf?
Yes, each of the twelve bays accepts both 3.5 inch and 2.5 inch SAS or SATA drives, so current SATA disks work without change.
How do I confirm the redundant power supplies are active after racking the unit?
Both power modules show a steady green LED when they are receiving 100-240 V AC and operating normally; the Synology DSM interface also reports each supply status.
