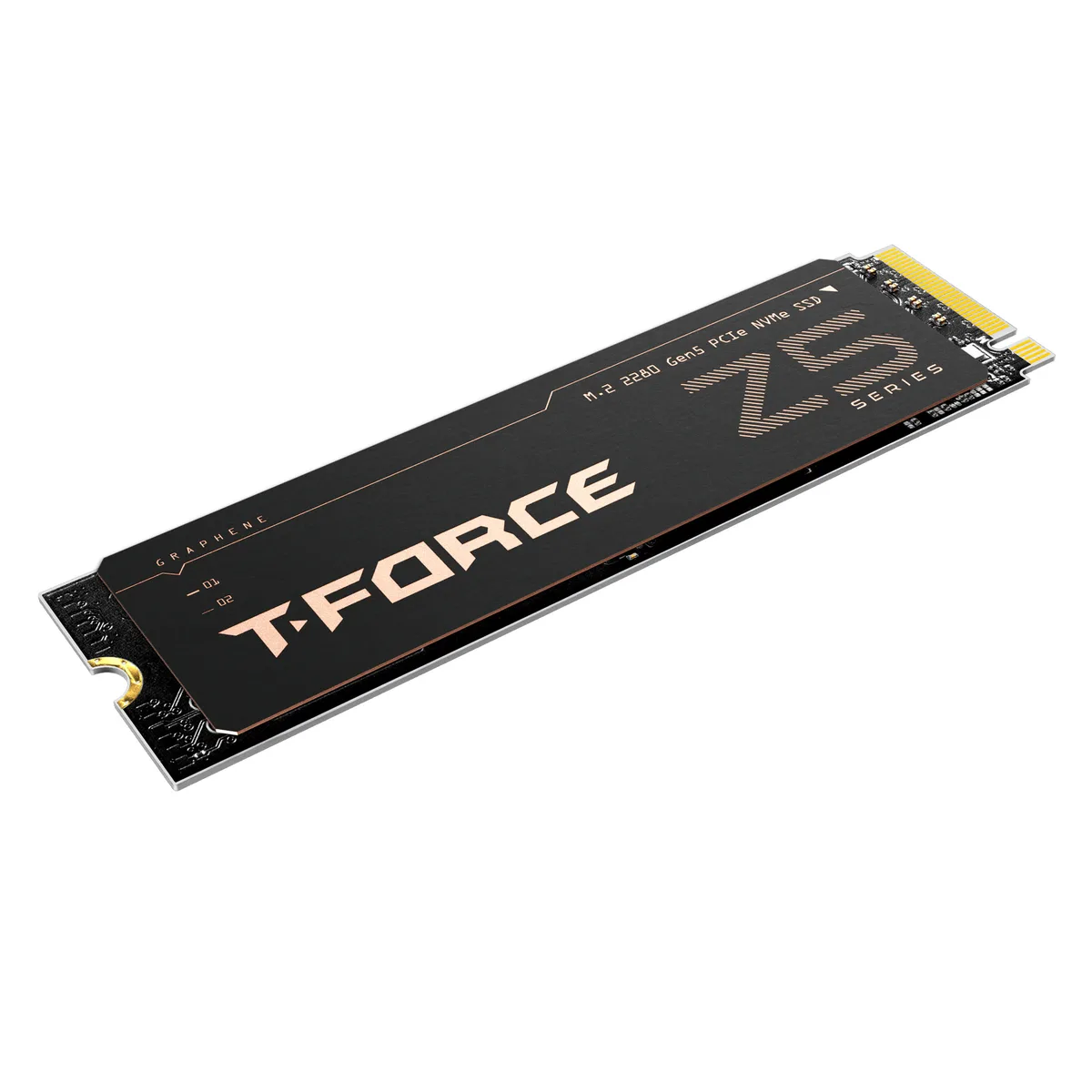

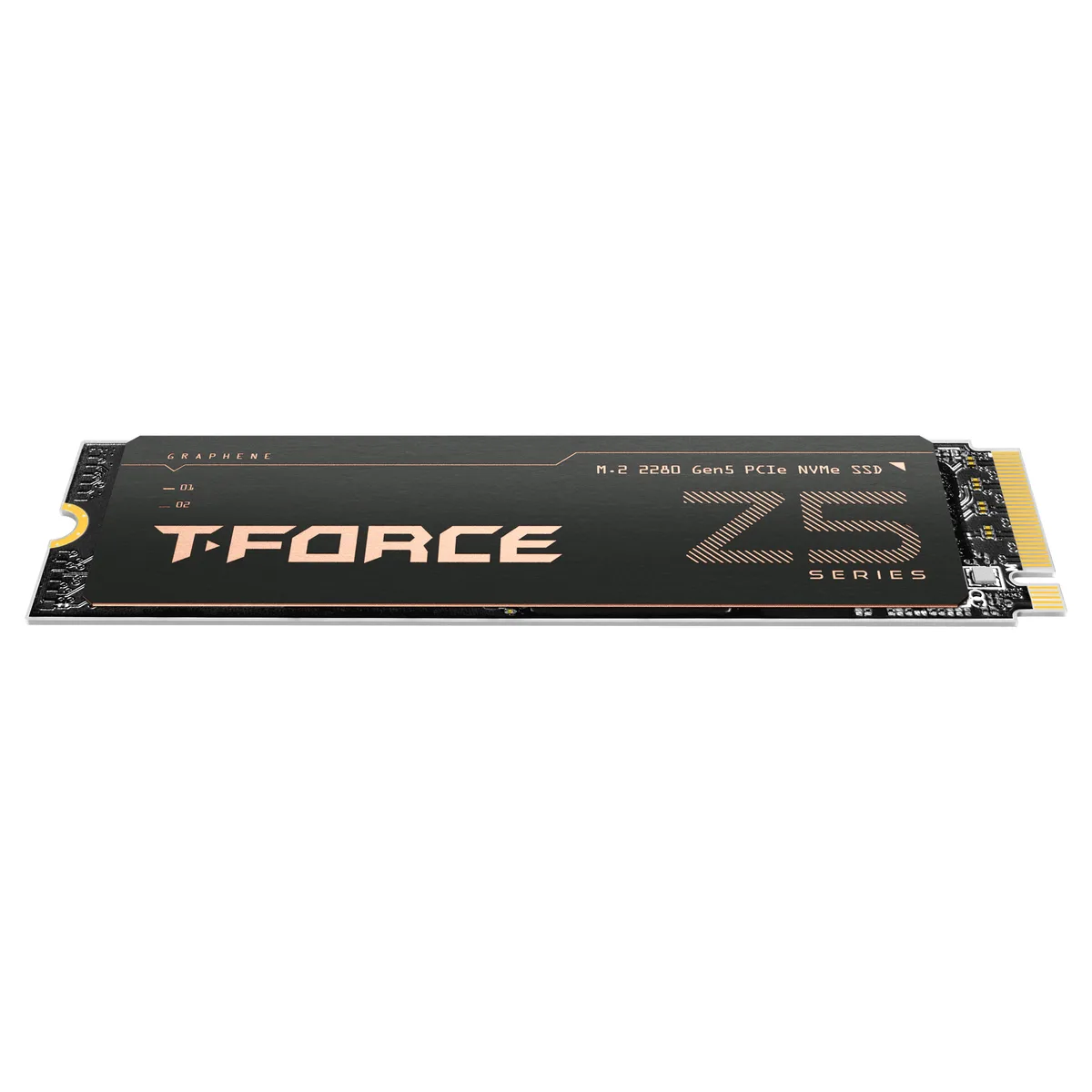

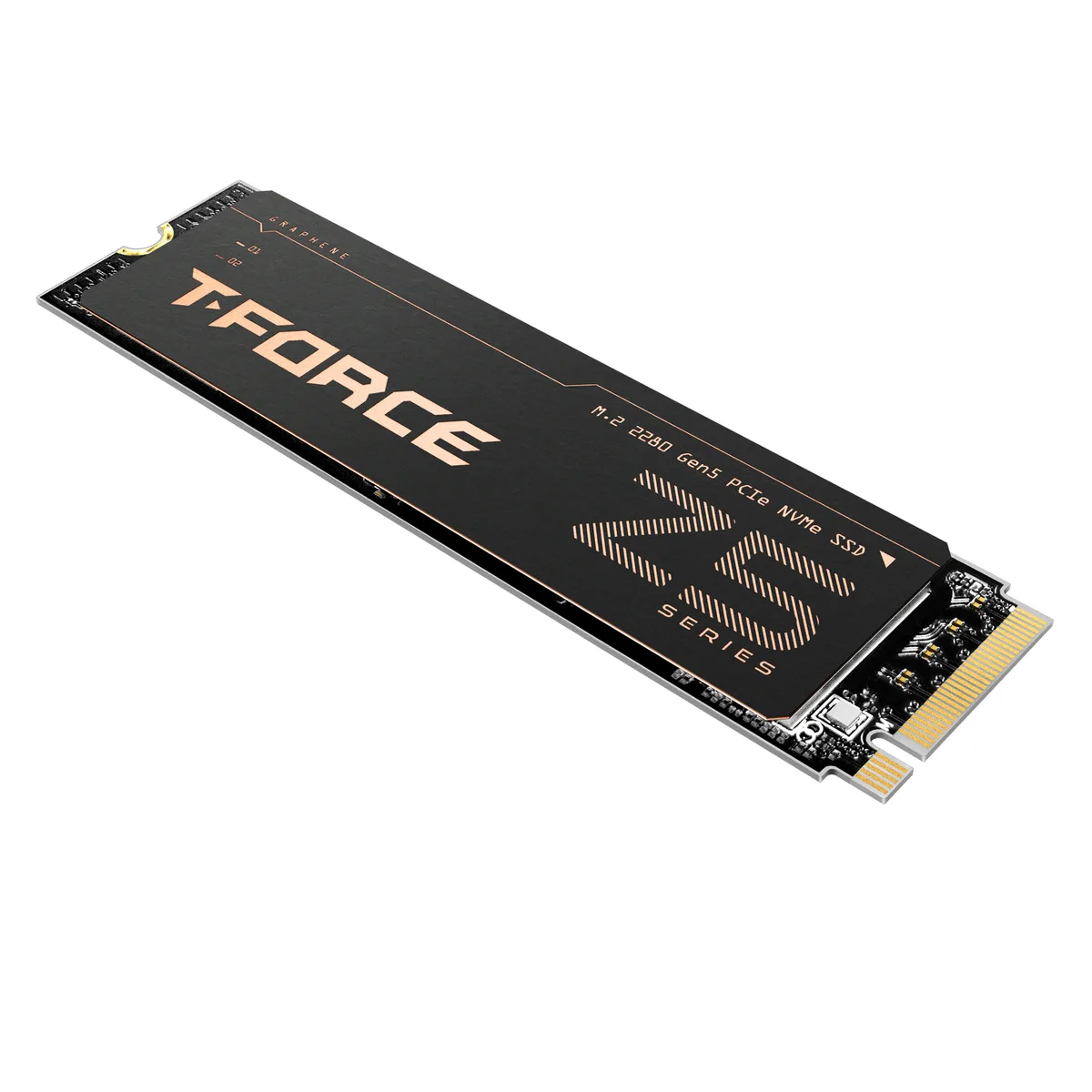

Thin M.2 2280 SSD with black graphene heatsink label

Team Group

Team Group CARDEA Z540 1TB M.2 2280 PCIe Gen5x4 NVMe 2.0 internal SSD TM8FF1001T0C129

SKU CH-W5HM-CMS4P MPN TM8FF1001T0C129

PCIe Gen5 NVMe 2.0 SSD with 1TB 3D NAND and 1GB DRAM cache reaching 11700 MBps read and 9500 MBps write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory Components3D NAND
  • InterfacePCIe Gen5x4 with NVMe
  • Sequential reads up to 11700 MBps accelerate game loads
  • Sequential writes up to 9500 MBps speed up large file saves
  • Patented graphene heatsink keeps temperatures low under load
  • 600 TBW rating supports heavy daily workloads
  • 1GB DRAM cache smooths random access performance

Product identity

The Team Group CARDEA Z540 is a 1TB M.2 2280 internal SSD built for consumer systems that support PCIe Gen5x4 and NVMe 2.0. It uses 3D NAND and a 1GB DRAM cache to deliver sequential reads up to 11700 MBps and writes up to 9500 MBps. The drive is rated for 600TB written and 1,700,000 hours MTBF.

Graphene heatsink benefit

A patented graphene heatsink is integrated onto the drive to dissipate heat without adding bulk. This allows the controller and NAND to sustain high throughput during extended workloads while keeping the module within the 0°C to 70°C operating range. No extra cooling hardware is required from the user.

Platform checklist

Verify that your motherboard has an M.2 slot wired for PCIe Gen5x4 and that the BIOS supports NVMe 2.0 boot drives. The module measures 22.00mm wide by 80.00mm long by 3.70mm high and weighs 13.00g, so confirm clearance around the slot. Supported operating systems include Windows 11, 10, 8.1, 8, 7, Vista, macOS 10.4 or later, and Linux kernel 2.6.33 or later.

Points forts

  • Sequential reads up to 11700 MBps accelerate game loads
  • Sequential writes up to 9500 MBps speed up large file saves
  • Patented graphene heatsink keeps temperatures low under load
  • 600 TBW rating supports heavy daily workloads
  • 1GB DRAM cache smooths random access performance

Caractéristiques

BrandTeam Group
SeriesCARDEA Z540
ModelTM8FF1001T0C129
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory Components3D NAND
InterfacePCIe Gen5x4 with NVMe
ProtocolNVMe 2.0
Cache1GB DRAM
Max Sequential ReadUp to 11700 MBps
Max Sequential WriteUp to 9500 MBps
Terabytes Written (TBW)600TB
MTBF1,700,000 hours
FeaturesOperating System:
Compatible with Intel and AMD platforms and has one of the foll owing operating systems:
Windows 11 / 10 / 8.1 / 8 / 7 / Vista
MAC OS 10.4 or later
Linux 2.6.33 or later
Operating Temperature0°C ~ +70°C
Operating HumidityRH 90% under 40 celsius degree (operational)
Max Shock Resistance1500G/0.5ms
Max Vibration Resistance80Hz~2000Hz/20G
Height3.70mm
Width22.00mm
Depth80.00mm
Weight13.00g
Poids d’expédition0.05 kg
Dimensions du colis223 × 194 × 22 mm

Questions sur cet article

How long before the 1TB 3D NAND reaches its 600TB write limit?

The drive is rated for 600TBW; at 1TB per day that equals roughly 600 days before the warranty endurance ceiling is reached.

What stops the PCIe Gen5x4 NVMe 2.0 controller from holding its 11700 MBps read speed during long sessions?

The graphene heatsink and intelligent thermal conditioning keep the controller within its 0°C to 70°C operating range so throttling only begins if that ceiling is exceeded.

How hot and loud does the TM8FF1001T0C129 get when it runs all day?

The patented graphene heatsink is silent and maintains the drive inside the 0°C to 70°C spec; no fan means zero acoustic output.
