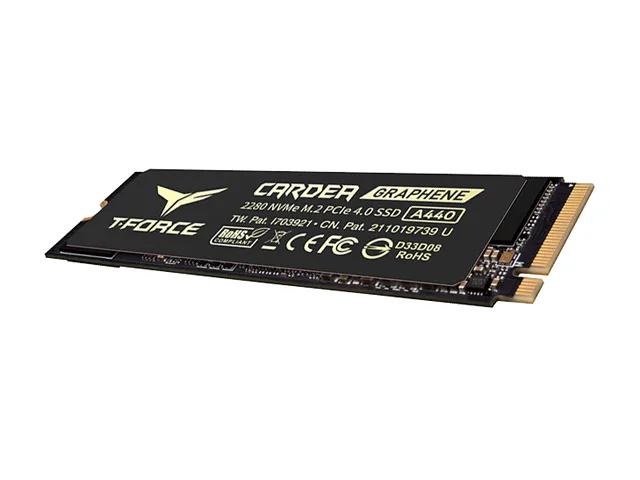

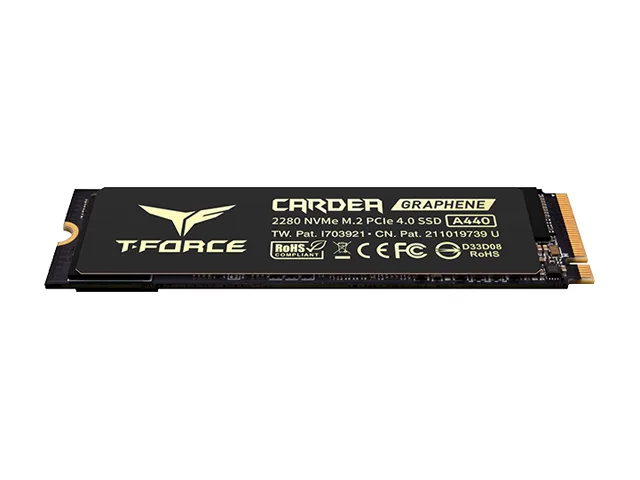

Rectangular M.2 2280 SSD with silver aluminum heatsink and thin graphene layer visible

Team Group

Team Group T-FORCE CARDEA A440 2TB M.2 2280 PCIe Gen 4.0 x4 internal SSD TM8FPZ002T0C327

SKU CH-JGFN-K5QR0 MPN TM8FPZ002T0C327

A 2TB M.2 2280 PCIe Gen 4.0 x4 NVMe 1.4 SSD with 2GB DRAM cache, up to 7000 MB/s read and 6900 MB/s write, plus dual patented aluminium and graphene heatsinks for flexible cooling

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • InterfacePCIe Gen 4.0 x4 NVMe 1.4
  • ProtocolNVMe 1.4

Options 2TB

  • Lightning-fast loads with up to 7000 MBps sequential read
  • Sustained writes up to 6900 MBps for large file transfers
  • Responsive multitasking via 650000 IOPS random read
  • Dual patented heatsinks cut temperatures up to 15 percent
  • 1400 TBW endurance backed by 3000000 hour MTBF

Capacity and Compatibility

The Team Group T-FORCE CARDEA A440 is a 2TB internal SSD built for consumer workloads. It fits the M.2 2280 slot and connects through a PCIe Gen 4.0 x4 interface using the NVMe 1.4 protocol. The drive is also validated for PlayStation 5 expansion storage.

Thermal Design and Installation

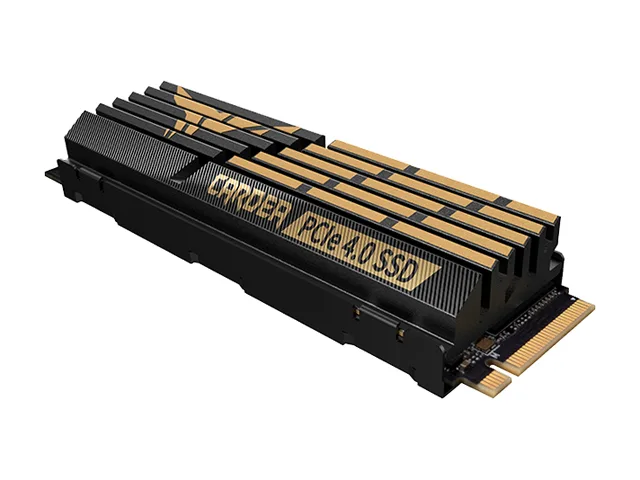

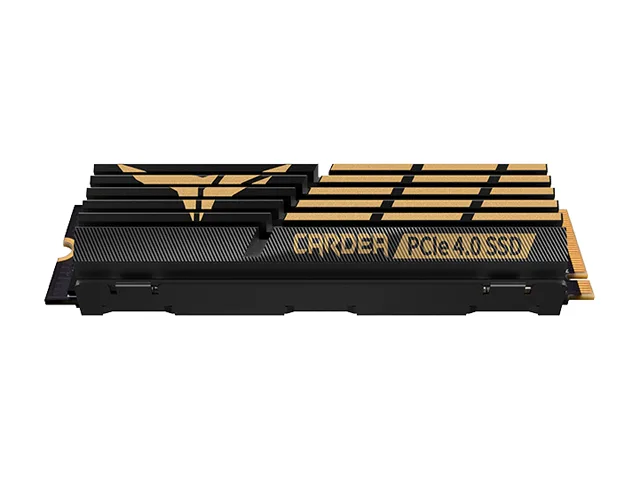

Two patented heat sinks ship in the box: a high-strength aluminium unit with a thermal diversion structure and an ultra-thin graphene sheet. The aluminium sink can lower temperatures by up to 15 percent while the graphene option delivers up to 9 percent reduction. Either sink mounts without clearance interference in tight chassis.

Endurance Rating

The drive is rated for 1400TB written and a 3000000 hour MTBF. Operating temperature spans 0°C to 70°C with storage tolerance from -40°C to 85°C. This endurance figure is the primary metric for deciding if the SSD matches your write-intensive workload.

Points forts

  • Lightning-fast loads with up to 7000 MBps sequential read
  • Sustained writes up to 6900 MBps for large file transfers
  • Responsive multitasking via 650000 IOPS random read
  • Dual patented heatsinks cut temperatures up to 15 percent
  • 1400 TBW endurance backed by 3000000 hour MTBF

Caractéristiques

BrandTeam Group
SeriesT-FORCE CARDEA A440
ModelTM8FPZ002T0C327
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
InterfacePCIe Gen 4.0 x4 NVMe 1.4
ProtocolNVMe 1.4
Cache2GB DRAM
Max Sequential ReadUp to 7000 MBps
Max Sequential WriteUp to 6900 MBps
4KB Random ReadUp to 650,000 IOPS
4KB Random WriteUp to 700,000 IOPS
Terabytes Written (TBW)1400TB
MTBF3,000,000 hours
HeatSinkAluminum and graphene heat sink
FeaturesEnjoy the lightning speed of the PCIe Gen4 x4
Featuring two patented heat sinks
Effective cooling - flexible installation
Supports the latest NVMe 1.4 standard
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Operating HumidityRH 90% under 40°C
Max Shock Resistance1,500G/0.5ms
Max Vibration Resistance80Hz~2,000Hz/20G
Height12.90mm (with Aluminum heat sink)
3.70mm (with Graphene heat sink)
Width22.00mm (with Aluminum heat sink)
23.40mm (with Graphene heat sink)
Depth80.00mm
Weight13.00g (with Graphene heat sink)
46.00g (with Aluminum heat sink)
Poids d’expédition0.05 kg
Dimensions du colis127 × 90 × 17 mm

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the drive fit in a PlayStation 5 expansion slot?

The 2280 form factor and Gen 4.0 x4 interface meet the PS5 requirements, and the thin graphene heat sink keeps the height within the console limit.

Will it work in a motherboard that only has PCIe 3.0 M.2 slots?

The drive is backward compatible with PCIe 3.0 ports and will operate at the slot's maximum speed.

How much sustained write workload can the 2TB model handle?

The endurance rating is 1400 TBW, which covers heavy daily writes for the drive's lifetime.
