Thermaltake
Thermaltake AX500 TG Full Tower PC Case CA-11D-00F1WN-00
Full-tower chassis supporting E-ATX and SSI-EEB boards, dual 420 mm radiators, up to fourteen 120 mm fans, 460 mm GPU clearance and hidden-connector motherboard cutouts
- TypeTower Computer Cases
- Side Panel1 x Side Tempered Glass Panel
- Pre-installed FansFront - 3 x 140mm / Rear - 1 x 140mm
- Dimensions26.8"x 12.6"x 8"
- Supports E-ATX and SSI-EEB server boards for versatile builds
- Four 140mm fans pre-installed for strong airflow out of the box
- Dual 420mm radiator mounts on top and front for heavy cooling
- GPU brace with two adjustable supports handles cards up to 460mm
- Hidden-connector motherboard cutouts keep cables tidy for cleaner builds
Full Tower Chassis for Workstation or Gaming

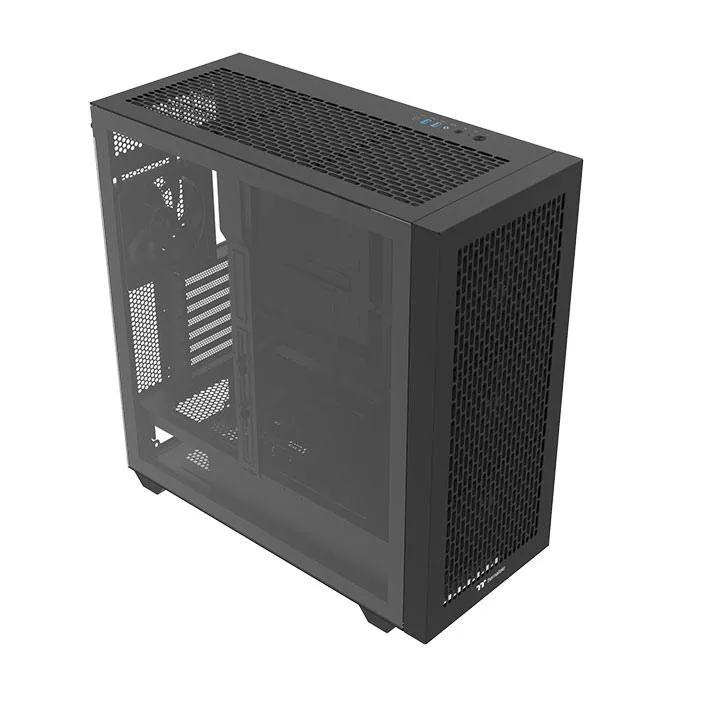

The AX500 TG is a full tower chassis that supports E-ATX and SSI-EEB motherboards along with standard ATX, micro-ATX and mini-ITX boards. Four 140mm fans are pre-installed at the front and rear to deliver strong airflow out of the box. A tempered glass side panel shows the internal layout.
Builders Needing Hidden-Connector Support
The motherboard tray includes cutouts for hidden-connector ATX and micro-ATX boards from ASUS BTF, MSI PROJECT ZERO and GIGABYTE PROJECT STEALTH series. Eight PCIe expansion slots accommodate graphics cards up to 460mm long and an adjustable GPU brace is included. Builders who require more than eight expansion slots or cannot fit a 550mm deep case should consider other options.
Dual 420mm Radiator Support with 82mm Top Clearance
The chassis fits two 420mm radiators simultaneously in the top and front positions for high-capacity liquid cooling. The top mounting area allows a combined fan and radiator thickness of 82mm. CPU air coolers up to 185mm tall are also supported.
Points forts
- Supports E-ATX and SSI-EEB server boards for versatile builds
- Four 140mm fans pre-installed for strong airflow out of the box
- Dual 420mm radiator mounts on top and front for heavy cooling
- GPU brace with two adjustable supports handles cards up to 460mm
- Hidden-connector motherboard cutouts keep cables tidy for cleaner builds
Caractéristiques
| Brand | Thermaltake |
|---|---|
| Type | Tower Computer Cases |
| Side Panel | 1 x Side Tempered Glass Panel |
| Pre-installed Fans | Front - 3 x 140mm / Rear - 1 x 140mm |
| Dimensions | 26.8"x 12.6"x 8" |
| Poids d’expédition | 15.15 kg |
| Dimensions du colis | 673 × 635 × 356 mm |
Questions sur cet article
How loud and hot does the AX500 TG run with its four pre-installed 140 mm fans spinning all day?
The case ships with three 140 mm fans at the front and one 140 mm fan at the rear, all CT models. Fan noise and thermal output depend on the motherboard fan curves you set; the chassis itself adds no active cooling beyond those four fans.
Which motherboard form factors and hidden-connector models are natively supported without extra brackets?
The tray fits E-ATX, SSI-EEB and SSI-CEB boards plus standard ATX, micro-ATX and mini-ITX. Cut-outs are already present for ASUS BTF, MSI PROJECT ZERO and GIGABYTE PROJECT STEALTH hidden-connector motherboards.
Will a 460 mm graphics card and a 185 mm CPU cooler fit together with an older ATX power supply up to 200 mm long?
Yes. The chassis allows 460 mm GPU length, 185 mm CPU cooler height and 200 mm PSU depth simultaneously; a GPU brace with two adjustable supports is included to prevent sag on heavy cards.
