White 120mm case fan with four concentric RGB rings, 54 addressable LEDs, nine blades and rubber anti-vibration corners

Thermaltake

Thermaltake CL-F100-PL12SW-C Riing Quad 12 RGB 120mm case fan

SKU CH-XGN4-HDNKG MPN CL-F100-PL12SW-C

A 120 mm PWM case fan with four LED rings totalling 54 addressable LEDs, hydraulic bearing, 500–1500 RPM and 40.9 CFM airflow

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan, Radiator Fan
  • CompatibilityCase / Radiator
  • Fan Thickness25mm
  • Bearing TypeHydraulic Bearing

LED RGB

  • RGB
  • ARGB

Les versions barrées existent, mais ne sont pas disponibles ici.

Model Riing Quad

  • Riing Trio
  • Riing Quad

Les versions barrées existent, mais ne sont pas disponibles ici.

Option Single Pack w/o Controller

  • 3 Packs
  • Single Pack w/o Controller
  • Four light rings with 54 addressable LEDs create vibrant illumination
  • PWM control from 500 to 1500 RPM balances airflow and noise
  • Hydraulic bearing reduces friction for quiet 25 dBA operation
  • Anti-vibration rubber pads minimise case resonance during high loads
  • NeonMaker software plus motherboard RGB sync enables full lighting customisation

Single 120 mm RGB case and radiator fan

The Thermaltake Riing Quad 12 RGB is a single white 120 mm fan designed for case or radiator mounting. It suits builders who want addressable lighting and PWM speed control in a compact form factor. The fan uses a hydraulic bearing and nine blades to move air through chassis or water-cooling radiators. It connects via a USB 2.0 nine-pin header for power and lighting control.

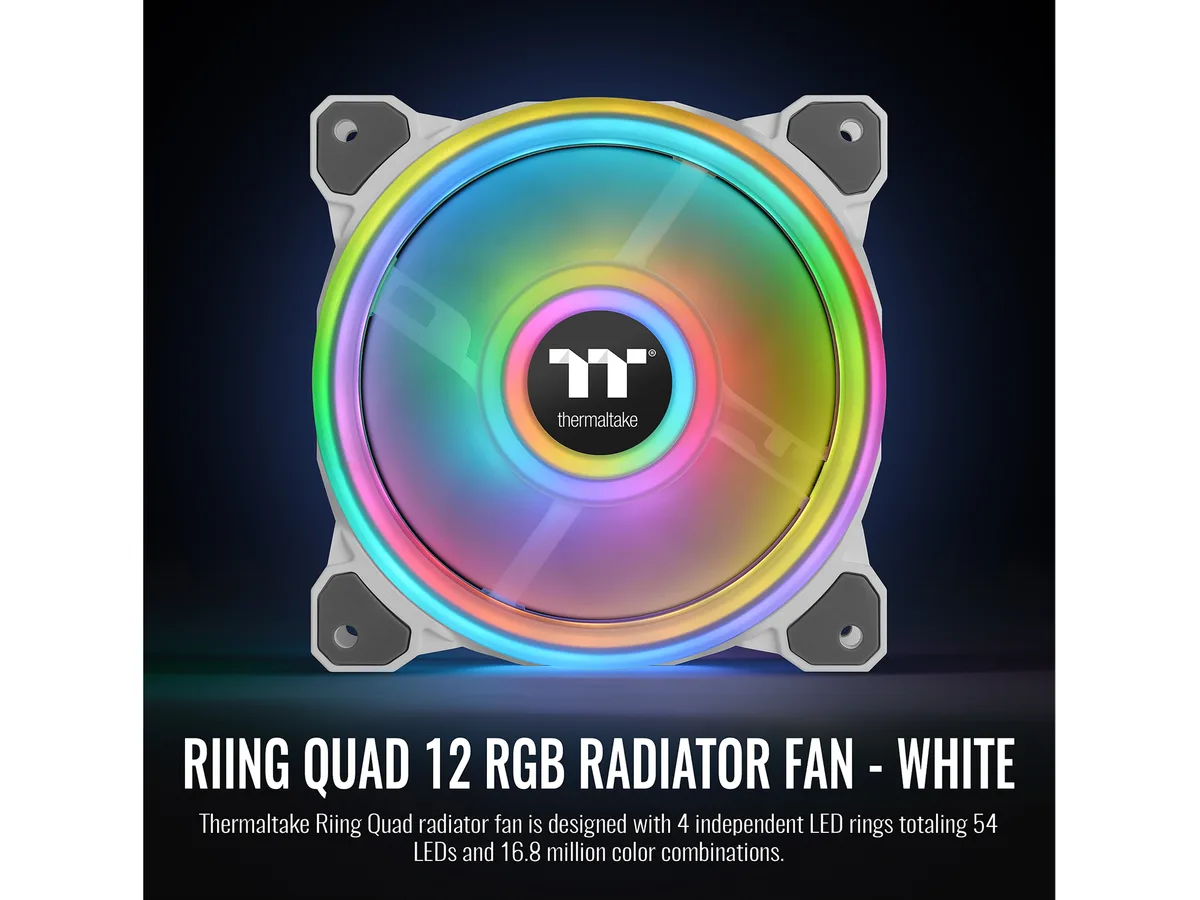

Four light rings with 54 addressable LEDs

Four concentric rings carry 54 LEDs in total, split as 18, 18, 9 and 9 LEDs per ring. The 16.8 million colour palette is managed through NeonMaker software or motherboard RGB sync. No controller or cables are included in the single pack, so a compatible motherboard header or separate controller is required. Buyers without a spare USB 2.0 nine-pin header cannot power the lighting.

PWM range 500 to 1500 RPM at 40.9 CFM and 25 dBA

Speed scales between 500 and 1500 RPM, delivering 40.9 CFM airflow at a maximum noise level of 25 dBA. The hydraulic bearing and anti-vibration pads keep acoustics low across the curve. This airflow ceiling suits moderate radiator loads but will not satisfy high-restriction loops or dense fin stacks that demand higher static pressure.

Points forts

  • Four light rings with 54 addressable LEDs create vibrant illumination
  • PWM control from 500 to 1500 RPM balances airflow and noise
  • Hydraulic bearing reduces friction for quiet 25 dBA operation
  • Anti-vibration rubber pads minimise case resonance during high loads
  • NeonMaker software plus motherboard RGB sync enables full lighting customisation

Caractéristiques

BrandThermaltake
SeriesRiing Quad 12 RGB Radiator Fan TT Premium Edition Single Fan Pack - White
ModelCL-F100-PL12SW-C
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan, Radiator Fan
CompatibilityCase / Radiator
Fan Thickness25mm
Bearing TypeHydraulic Bearing
RPMPWM 500 - 1500 R.P.M
Air Flow40.9 CFM
Noise Level25 dBA
Power ConnectorUSB 2.0 Connectors (9 Pin)
ColorWhite
LEDRGB

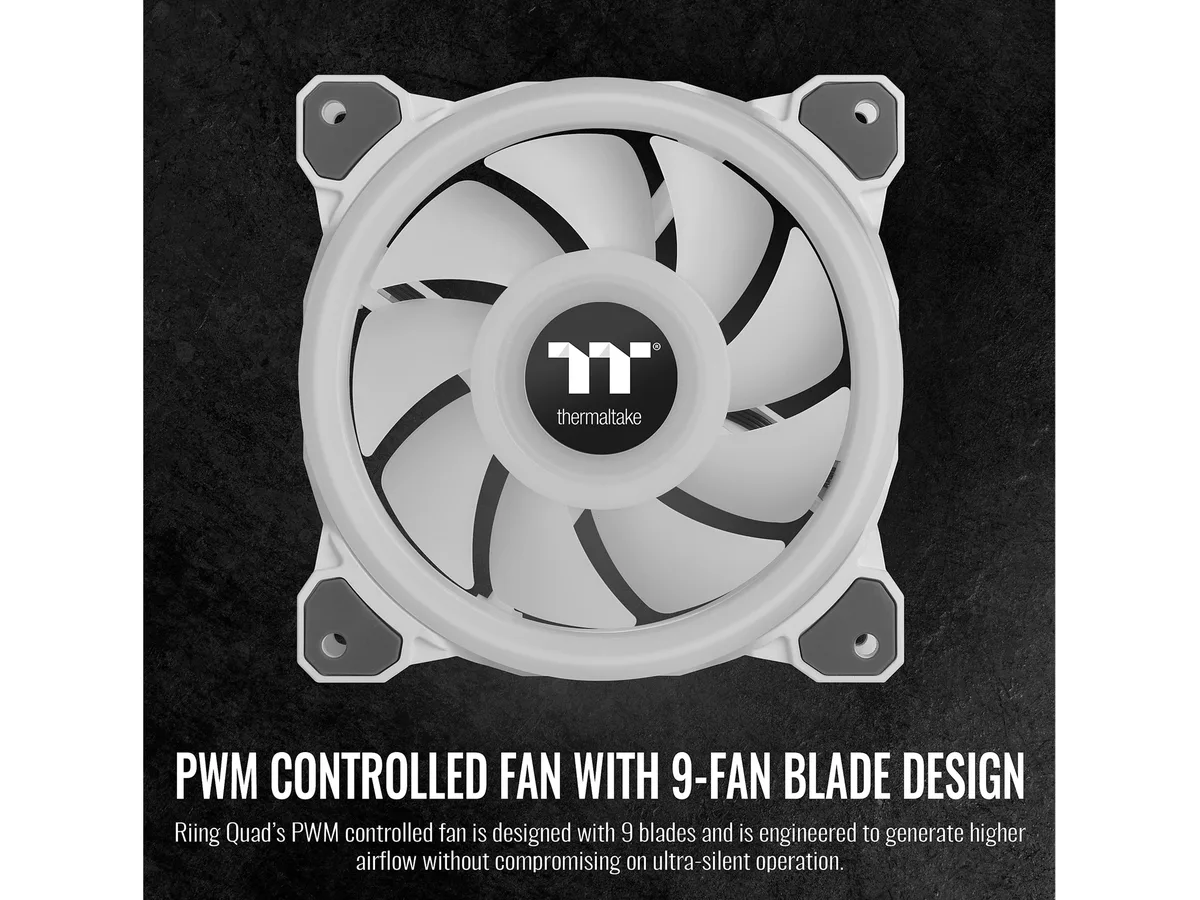

FeaturesPWM Controlled Fan with 9 Fan Blade Design
Low-Noise Hydraulic Bearing
Anti-Vibration Mounting System
NeonMaker & TT RGB Plus Support
Sync with Motherboard RGB Software
Dimensions120 x 120 x 25 mm
Poids d’expédition0.29 kg
Dimensions du colis199 × 145 × 29 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Should I choose the single fan pack or a multi-fan kit for my build?

The single pack contains one 120mm fan with 54 addressable LEDs across four rings; order multiple single packs or a multi-fan kit if you need more than one fan.

What does 40.9 CFM mean for actual cooling inside my case?

At full speed the fan moves 40.9 CFM of air through a radiator or case mesh, providing moderate static pressure for CPU coolers while staying at 25 dBA.

How does the USB 2.0 9-pin connector limit RGB control options?

The 9-pin USB 2.0 header links the fan to NeonMaker or TT RGB Plus software for per-LED effects and motherboard RGB sync, but requires an available internal USB header.
