White 360 mm radiator with three 120 mm fans, square LCD on pump block, white tubing

Thermaltake

Thermaltake MAGFloe 360 Ultra liquid cooler CL-W433-PL12SW-A

SKU CH-YP1W-777XQ MPN CL-W433-PL12SW-A

Cools CPUs with a 360 mm radiator, three 120 mm fans and a 3.95" square LCD on the pump block

  • Block MaterialCopper
  • Pump SpeedMotor Speed : PWM 1500~3300 RPM
  • Radiator SizeDimension : 396 x 120 x 27 mm
  • Radiator MaterialAluminum
  • Fan Size3 Fan Slots (120 mm)
  • Fan Dim.120 x 120 x 25 mm
  • 95" square LCD shows live system data or custom images
  • Copper cold plate and 360mm aluminum radiator move heat away from the CPU
  • Three 120mm SWAFAN EX fans run at 500~2000 RPM with magnetic daisy-chain wiring
  • Swappable standard or reverse blades give 57.11 CFM or 56.26 CFM per fan
  • Pump motor spins at 1500~3300 RPM for consistent coolant flow

Intel & AMD socket compatibility

This all-in-one liquid cooler supports a wide range of Intel sockets from LGA 1150 to LGA 1851 and AMD sockets from AM2 to AM5. The copper cold plate transfers heat from the CPU into the coolant loop. A 360 mm aluminium radiator with three 120 mm fan slots provides the thermal capacity for high-wattage processors. The white finish and ARGB lighting suit bright-themed builds.

Clearance and mounting check

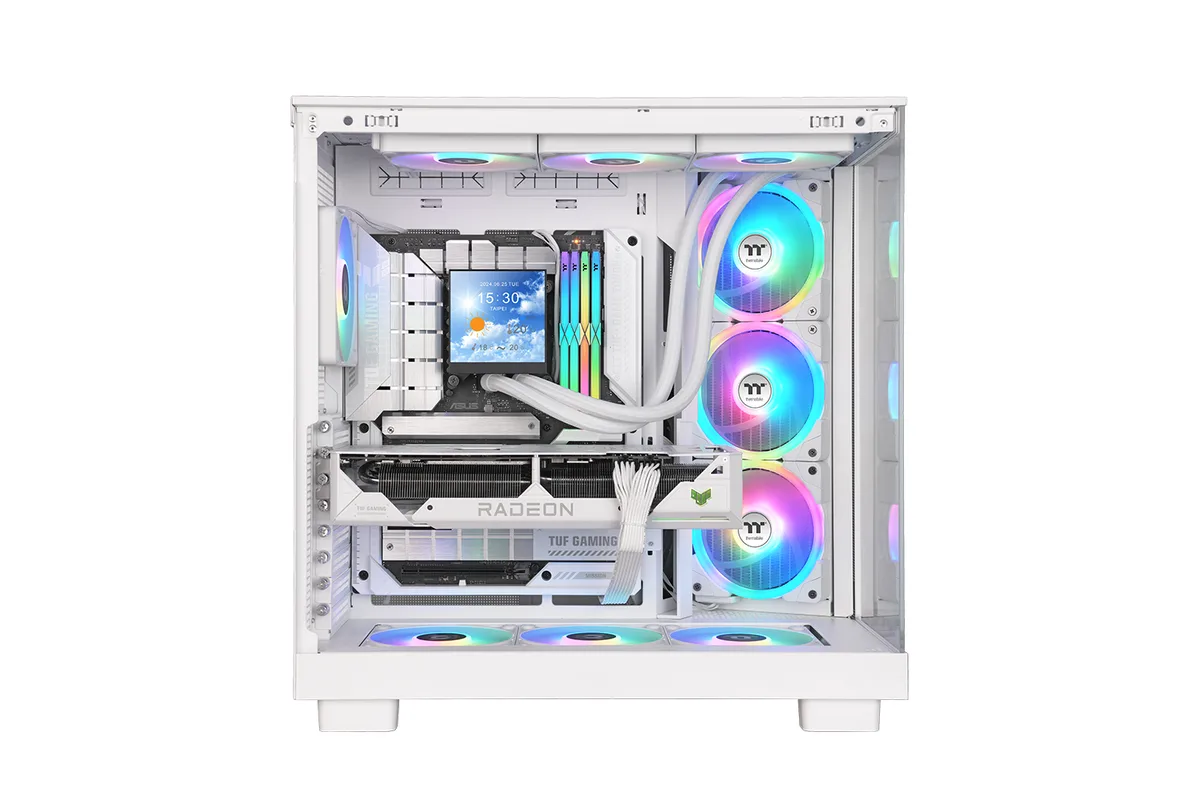

Verify that your case can accommodate a 396 mm long radiator and the 460 mm tube run between block and radiator. The pump block adds height above the socket, so confirm motherboard heatsink and RAM clearance around the mounting zone. The kit includes brackets for every listed Intel and AMD platform, but the physical space inside the chassis remains the limiting factor.

Magnetic fans and LCD block

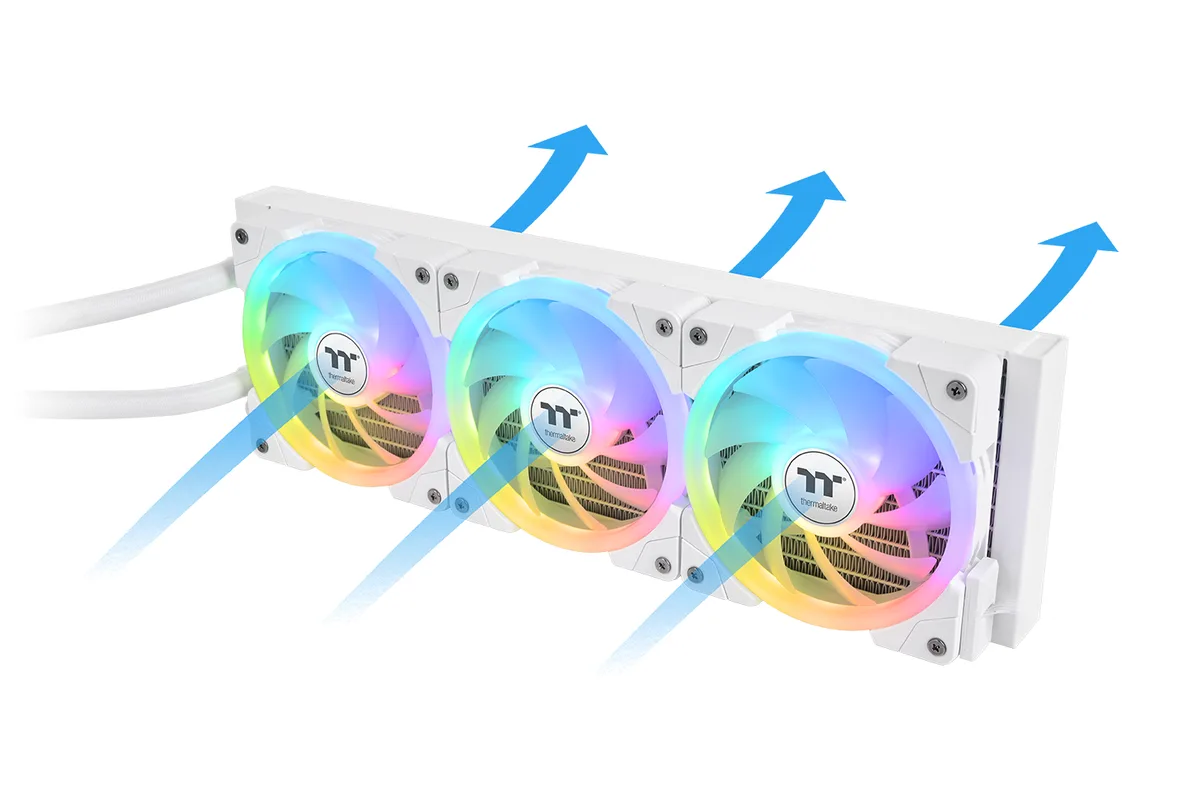

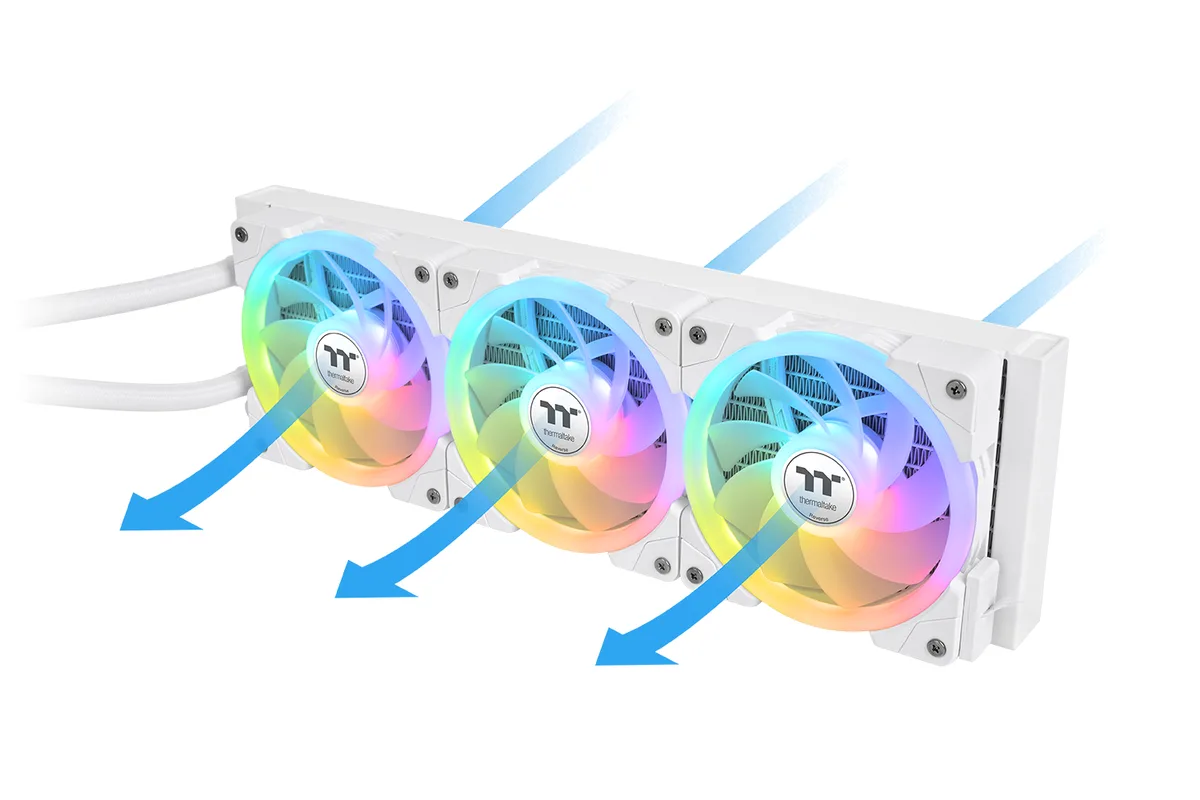

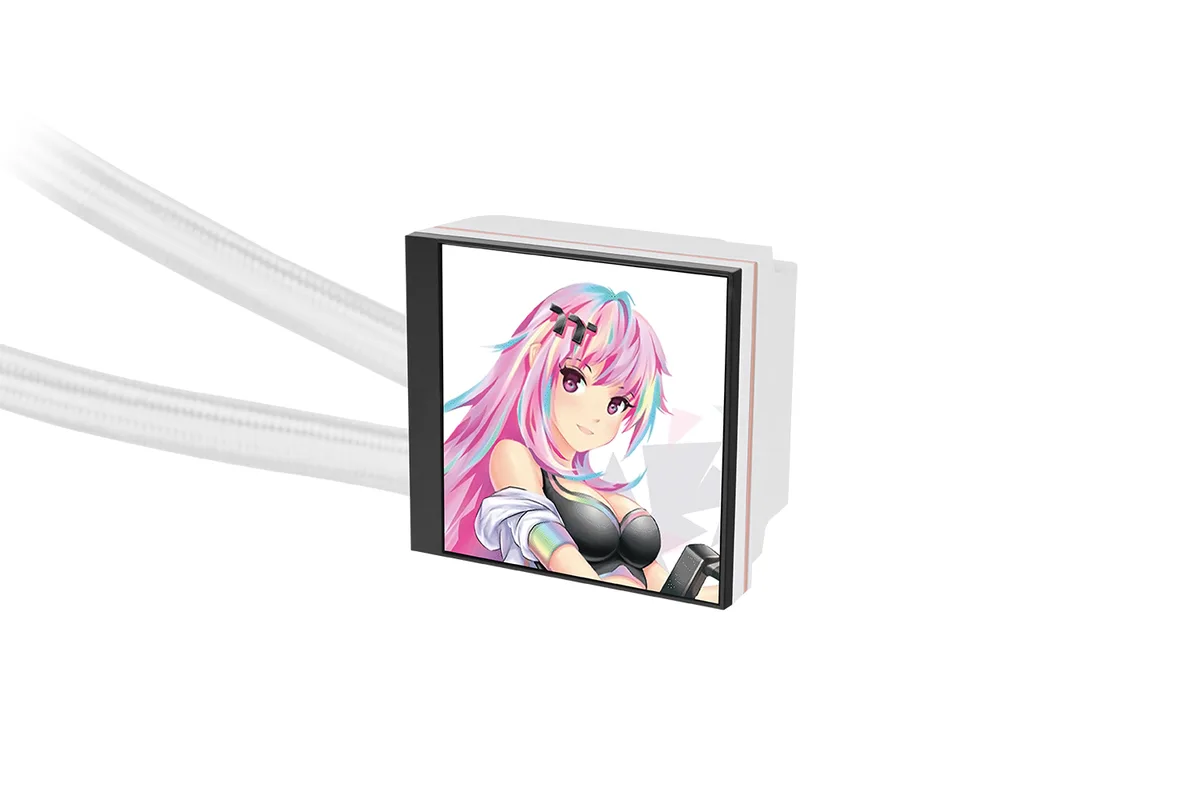

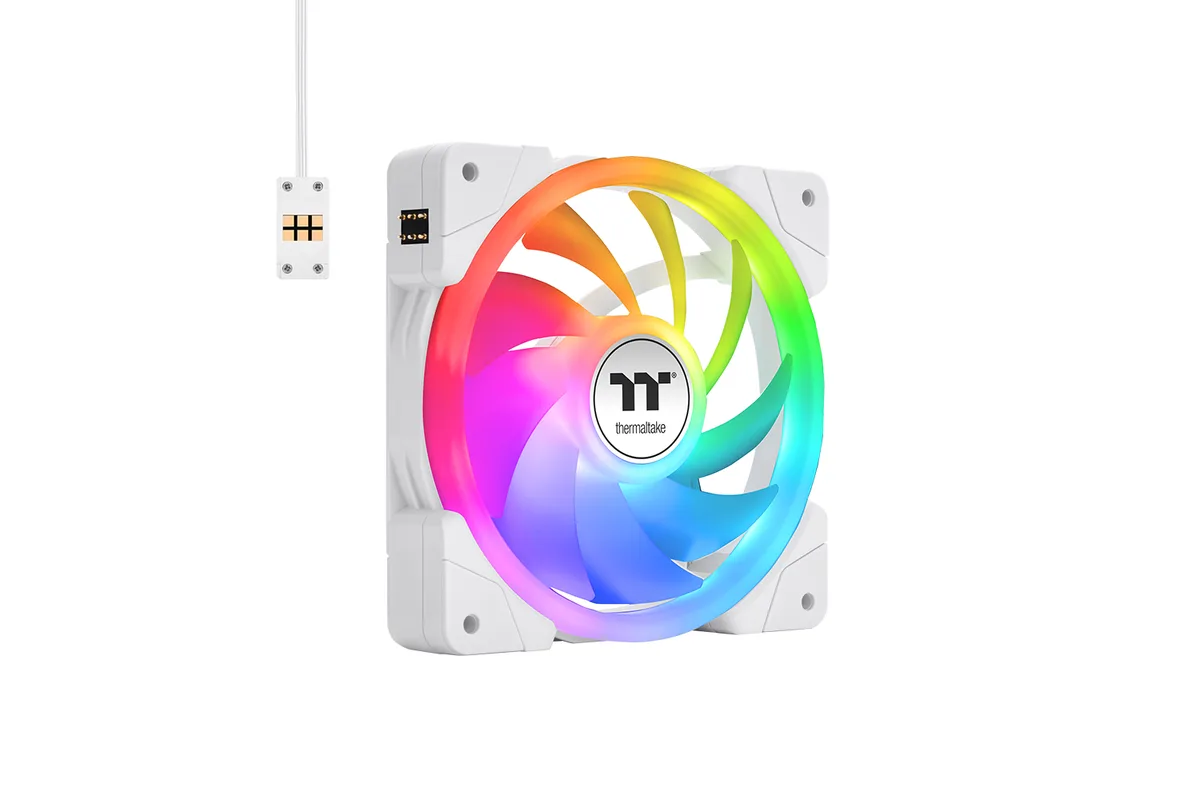

The three supplied fans use MagForce 2.0 magnetic pins that snap together and daisy-chain power cables, reducing wiring clutter and improving contact reliability. Each fan spins at 500–2000 RPM and can be fitted with standard or reverse blades for push or pull airflow. A 3.95 inch square LCD on the pump head displays custom images or live sensor data through ARGB software control.

Points forts

  • 95" square LCD shows live system data or custom images
  • Copper cold plate and 360mm aluminum radiator move heat away from the CPU
  • Three 120mm SWAFAN EX fans run at 500~2000 RPM with magnetic daisy-chain wiring
  • Swappable standard or reverse blades give 57.11 CFM or 56.26 CFM per fan
  • Pump motor spins at 1500~3300 RPM for consistent coolant flow

Caractéristiques

BrandThermaltake
ModelCL-W433-PL12SW-A
Block MaterialCopper
Pump SpeedMotor Speed : PWM 1500~3300 RPM
Radiator SizeDimension : 396 x 120 x 27 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25 mm
Fan RPMPWM 500~2000 R.P.M
Fan Air FlowStandard Fan Blade : 57.11 CFM (one fan)
Reverse Fan Blade : 56.26 CFM (one fan)
Fan NoiseStandard Fan Blade : 30.6 dB-A (one fan)
Reverse Fan Blade : 32.5 dB-A (one fan)
ColorWhite
LED ColorARGB
Tube Dim.Length : 460mm
Tube MaterialRubber
Poids d’expédition2.72 kg
Dimensions du colis457 × 203 × 140 mm

Questions sur cet article

What comes in the box and do I need to buy mounting hardware separately for Intel LGA 1700 or AMD AM5?

The cooler includes the 360 mm radiator, three 120 mm SWAFAN EX fans with both standard and reverse blades, pump block with 3.95 inch LCD, 460 mm rubber tubes, and mounting brackets for Intel LGA 1851, 1700, 1200, 1156, 1155, 1151, 1150, 2066, 2011-3, 2011 and AMD AM5, AM4, AM3+, AM3, AM2+, AM2, FM2, FM1. No extra brackets are required.

Should I use the standard or reverse fan blades for a 396 mm radiator in a push configuration?

Standard blades deliver 57.11 CFM and 2.39 mm static pressure at 30.6 dB-A per fan; reverse blades give 56.26 CFM and 2.02 mm static pressure at 32.5 dB-A. For push mounting on the 396 x 120 x 27 mm radiator, standard blades provide higher airflow and pressure with lower noise.

What does the 3300 RPM pump speed mean for coolant flow in a typical loop?

The pump motor runs at PWM 1500 to 3300 RPM, driving coolant through the 460 mm rubber tubes and 396 mm aluminum radiator. Higher pump RPM increases flow rate, helping the copper block transfer heat from the CPU to the three 120 mm fans more quickly under load.
