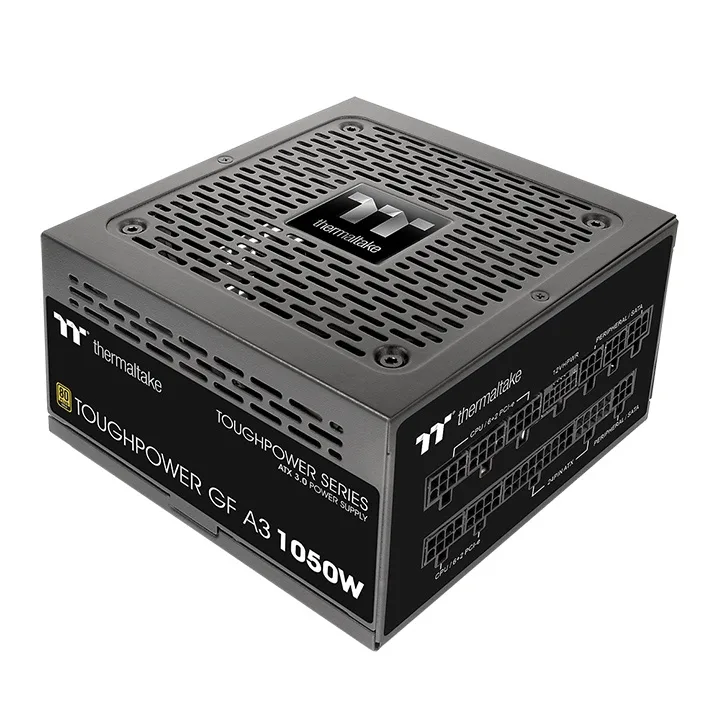

Black rectangular ATX power supply unit with fully modular cable sockets and a 120 mm fan grille

Thermaltake

Thermaltake PS-TPD-1050FNFAGU-L power supply

SKU CH-YTDQ-ACY9V MPN PS-TPD-1050FNFAGU-L

Delivers 1050 W continuous power with ATX 3.0 compliance, a native 12VHPWR connector rated for 600 W, full modular cabling, and 80 PLUS Gold efficiency

  • ColorBlack
  • TypeATX / ATX 3.0 Compatible
  • Maximum Power1050 W
  • Fans1 x 120 mm Fluid Dynamic Bearing Fan
  • Main Connector24Pin
  • +12V RailsSingle

Options 1050W

  • ATX 3.0 compliant for stable next-gen GPU power delivery
  • 600 W 12VHPWR cable included for PCIe 5.0 graphics cards
  • 1050 W continuous output at 45 °C operating temperature
  • Japanese 105 °C main capacitors ensure long-term reliability
  • Smart Zero Fan stops at low load for silent operation

ATX 3.0 Power Supply for Next-Gen Builds

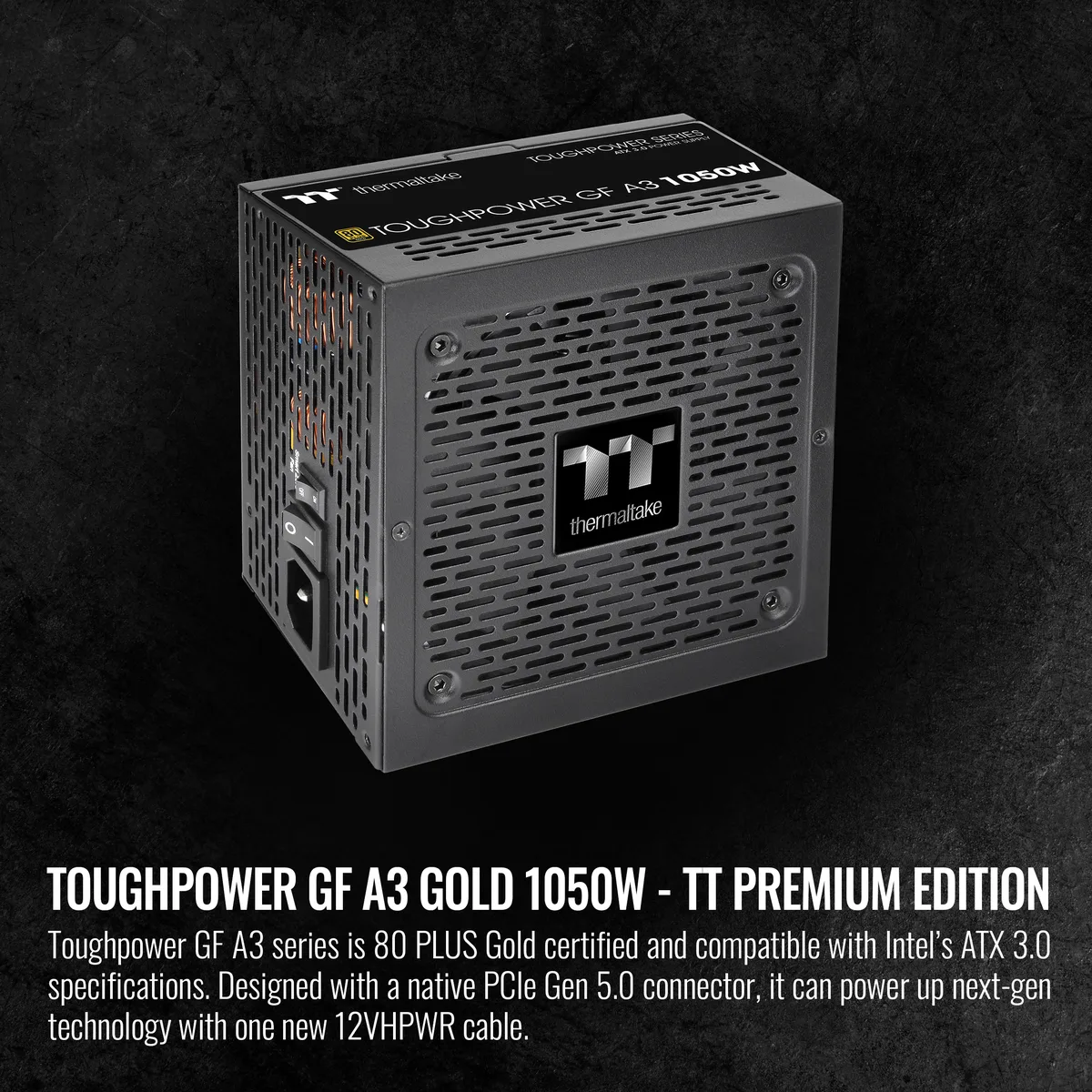

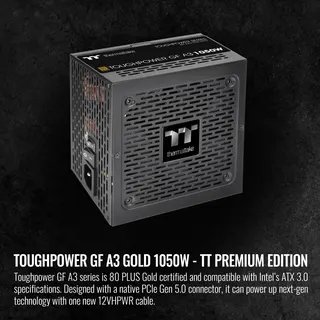

The Thermaltake Toughpower GF A3 is a 1050W ATX 3.0 compatible power supply built for high-performance PCs. It delivers continuous output at 45°C using Japanese 105°C main capacitors. The unit holds 80 PLUS Gold certification and includes full protection circuitry.

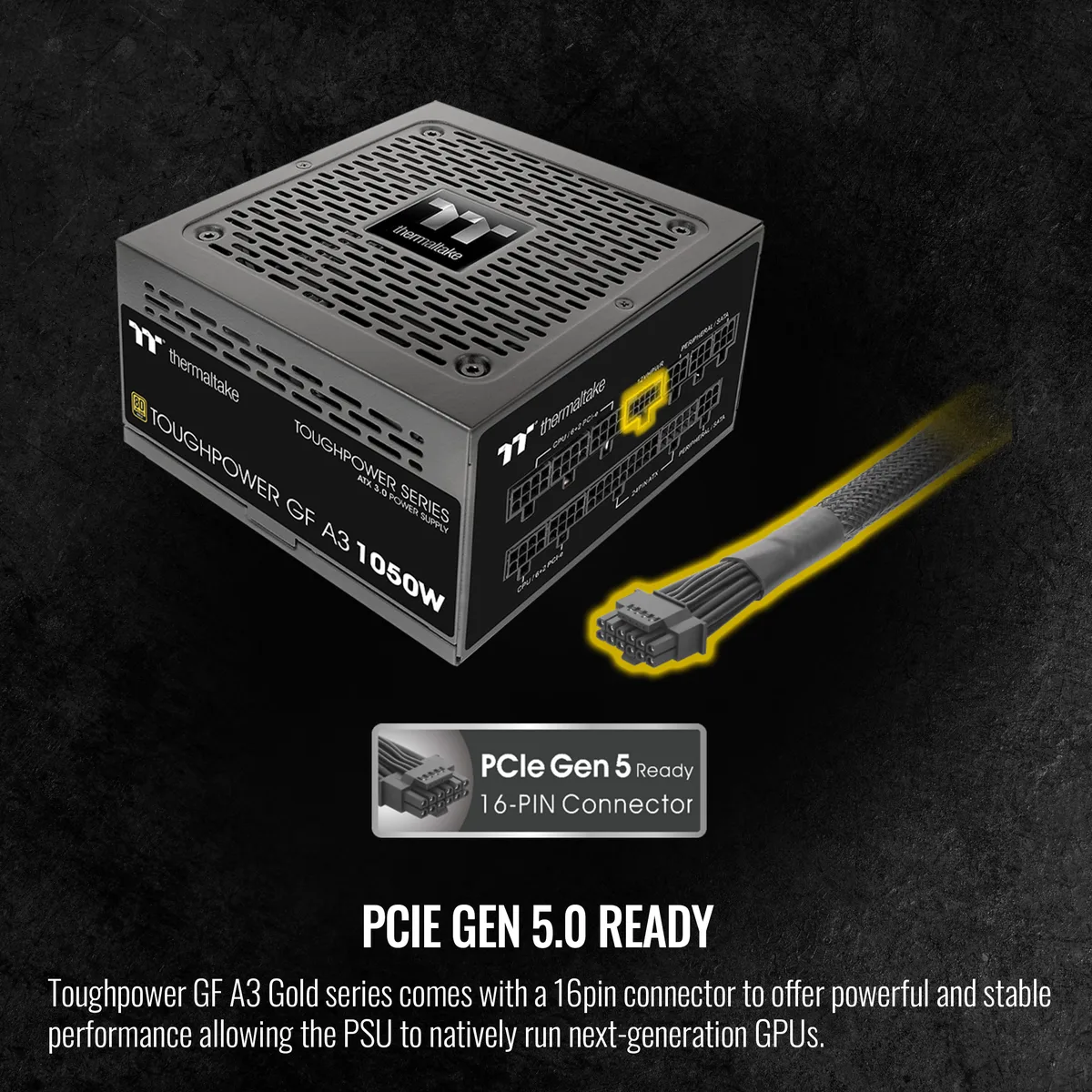

Upgrade Path with PCIe 5.0 12VHPWR

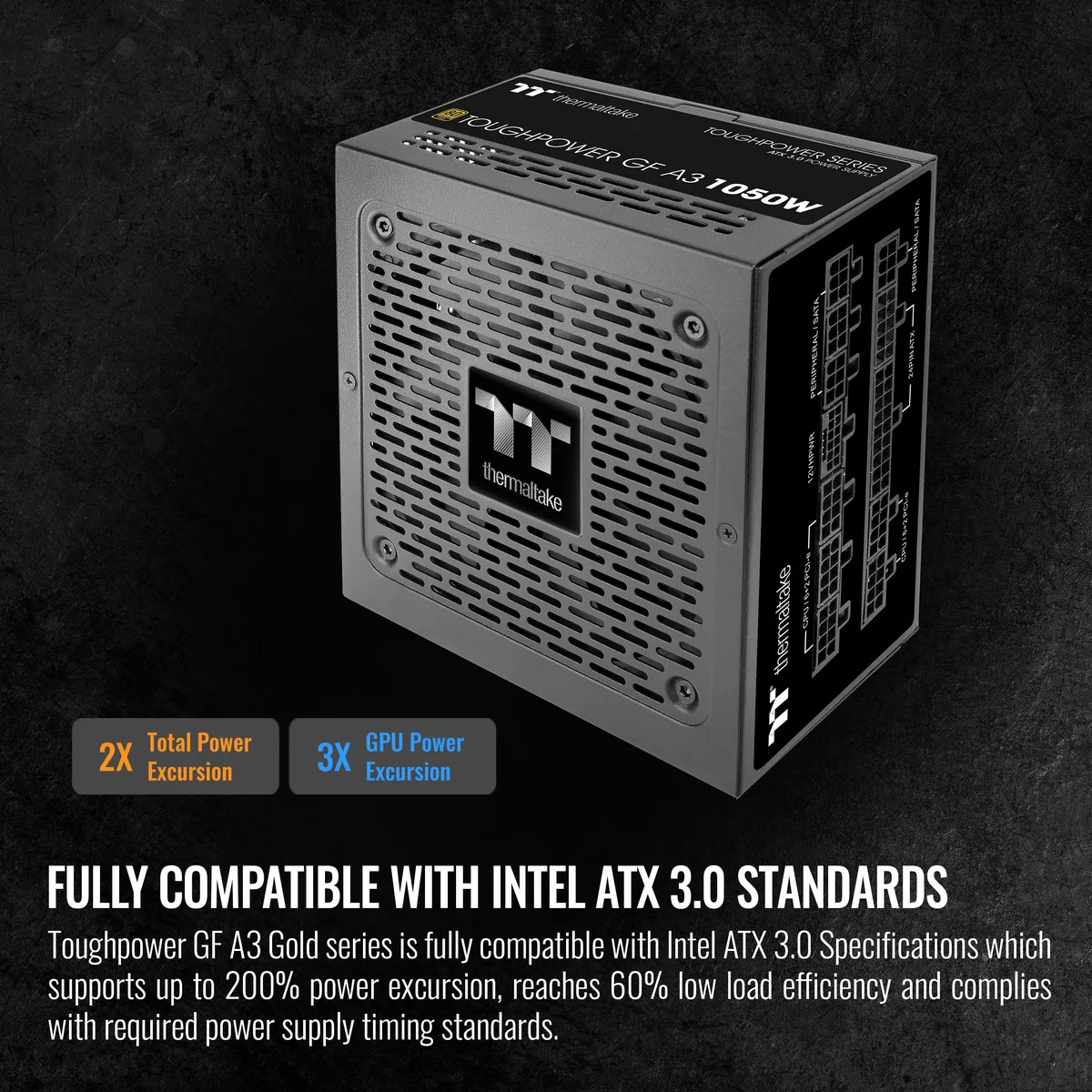

This unit replaces older PSUs that lack a native 12VHPWR connector rated for 600W. The jump is worth it when installing a PCIe Gen 5.0 graphics card requiring up to 200% power excursion support. It meets Intel ATX 3.0 timing and 60% low-load efficiency standards.

Fully Modular Design with Flat Cables

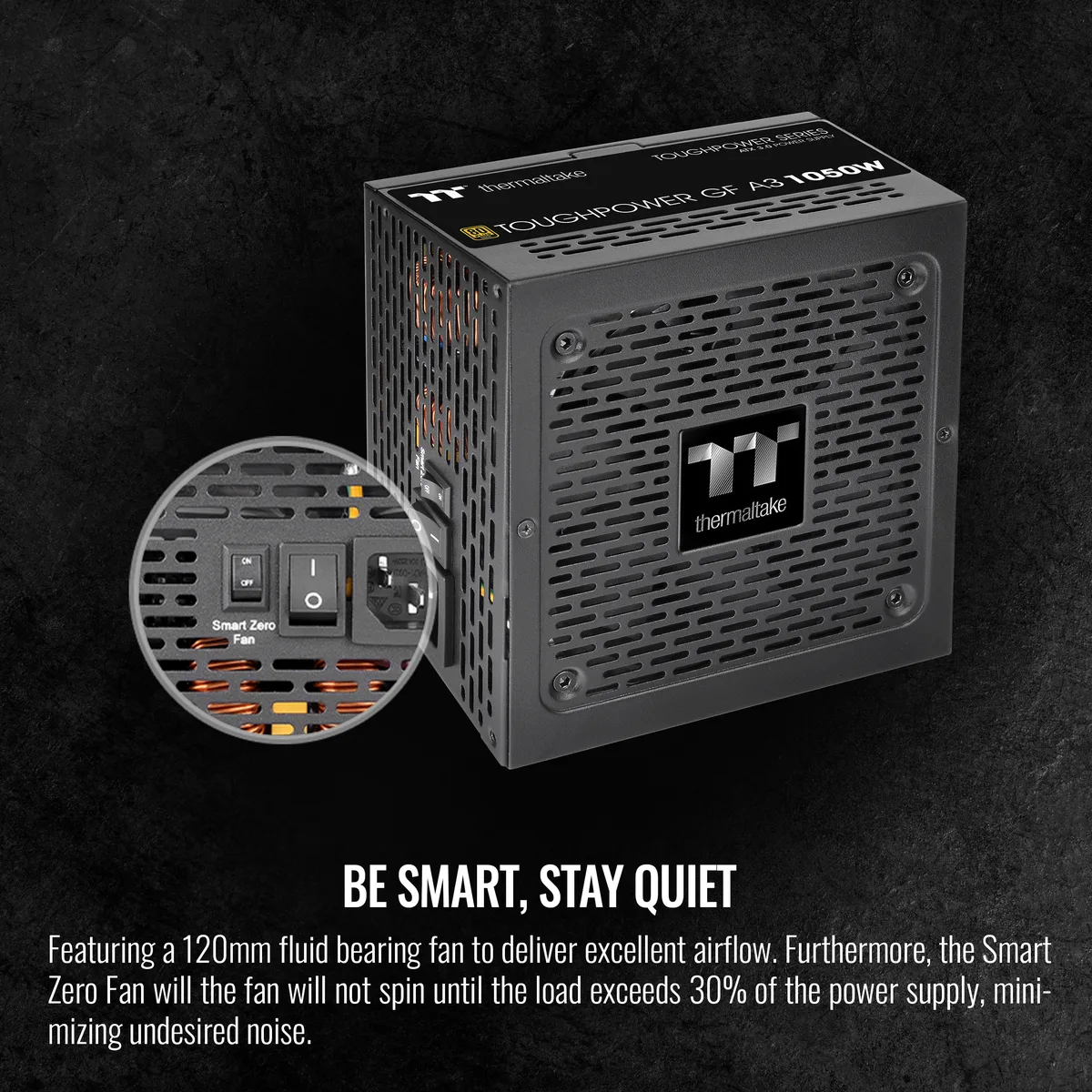

A single 120mm fluid dynamic bearing fan runs semi-passive via Smart Zero Fan control. Full modularity with black low-profile flat cables simplifies routing; 12 SATA connectors and five 6+2-pin PCIe plugs cover storage and multi-GPU needs. The 150mm depth fits standard ATX cases.

Points forts

  • ATX 3.0 compliant for stable next-gen GPU power delivery
  • 600 W 12VHPWR cable included for PCIe 5.0 graphics cards
  • 1050 W continuous output at 45 °C operating temperature
  • Japanese 105 °C main capacitors ensure long-term reliability
  • Smart Zero Fan stops at low load for silent operation

Caractéristiques

BrandThermaltake
SeriesToughpower GF A3 Series
ModelPS-TPD-1050FNFAGU-L
ColorBlack
TypeATX / ATX 3.0 Compatible
Maximum Power1050 W
Fans1 x 120 mm Fluid Dynamic Bearing Fan
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector5 x 6+2-Pin
12VHPWR Support Wattage: 600W
SATA Power Connector12
Haswell SupportYes
Max PSU Length150 mm
ModularFull Modular
Hold-up Time> 17msec
Energy-Efficient80 PLUS GOLD Certified
ProtectionOVP / UVP / OCP / OPP / OTP / SCP
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current16A-8A
Output+3.3V@20A; +5V@20A; [email protected] ; [email protected] ; +5VSB@3A
MTBF>100,000 Hours
ApprovalsFCC/ICES/CB/cTUVus
Connectors1 x Main Power Connector (24pin)
2 x ATX 12V / EPS 12V (8pin/4+4pin)
1 x PCIe 12VHPWR 600W (12+4pin)
5 x PCI-E (6+2pin)
12 x SATA (5pin)
4 x Peripheral (4pin)
1 x Floppy
FeaturesPCIe Gen 5 ready, designed with native PCIe 12+4pin modular interface.
Compatible with Intel ATX 3.0 specification, providing sufficient and stable power delivery
PCIe Gen.5 600W 12VHPWR cable included
1050W continuous output at 45°C/113°F operating environment
High quality Japanese 105°C/221°F main capacitors
Fully modular with black low-profile flat cables
Smart Zero Fan: auto-regulated fan speed based on power consumption for a quiet and efficient operation
High amperage single +12V rail design
Ultra-quiet 120mm fluid dynamic bearing fan
Dimensions5.9"(W) x 3.4"(H) x 5.5"(D) in.
Weight7.3 lbs
Poids d’expédition3.31 kg
Dimensions du colis320 × 221 × 135 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How much case depth do I need for the 150 mm PSU length?

The unit is 150 mm long, so the case must provide at least that much clear depth behind the mounting bracket plus room for the modular cables to bend without strain.

Which cables must be connected before the first boot?

Attach the 24‑pin main connector, the 12VHPWR cable for a PCIe 5.0 graphics card, and any 6+2‑pin PCIe or SATA cables your components require; the fully modular design means unused cables stay in the box.

When should I clean or replace the 120 mm fluid dynamic bearing fan?

Blow dust out of the fan intake every few months; the bearing is rated for long life at 45 °C ambient, so replacement is only needed if noise or vibration appears.
