Thermaltake

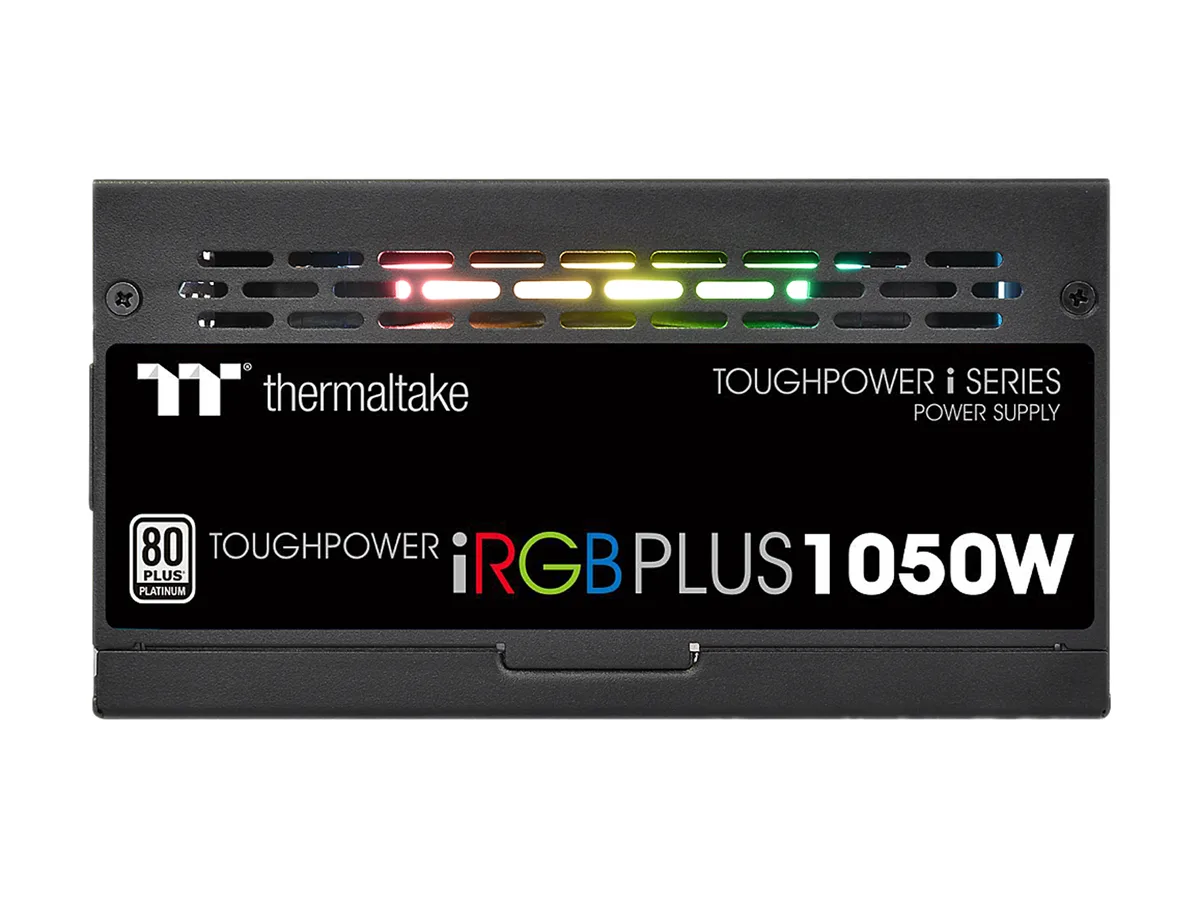

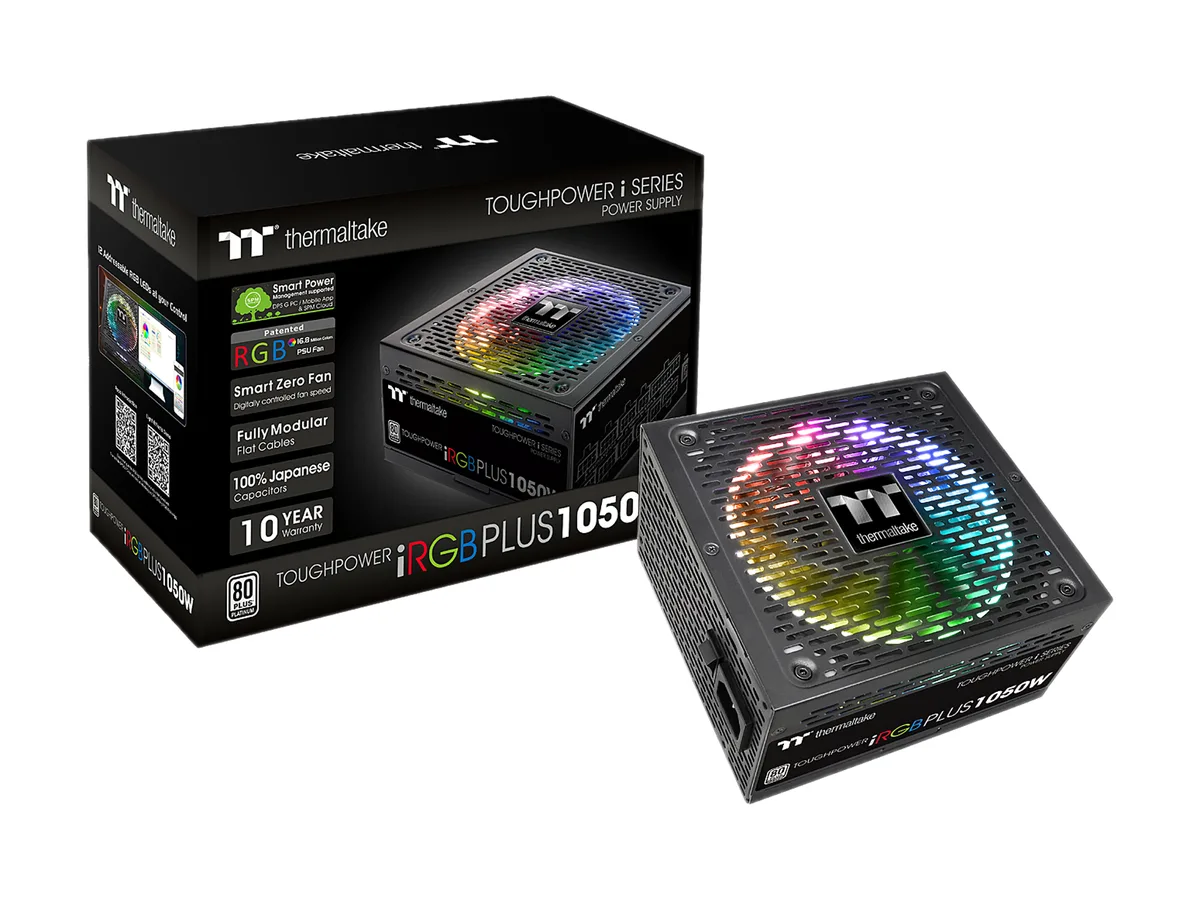

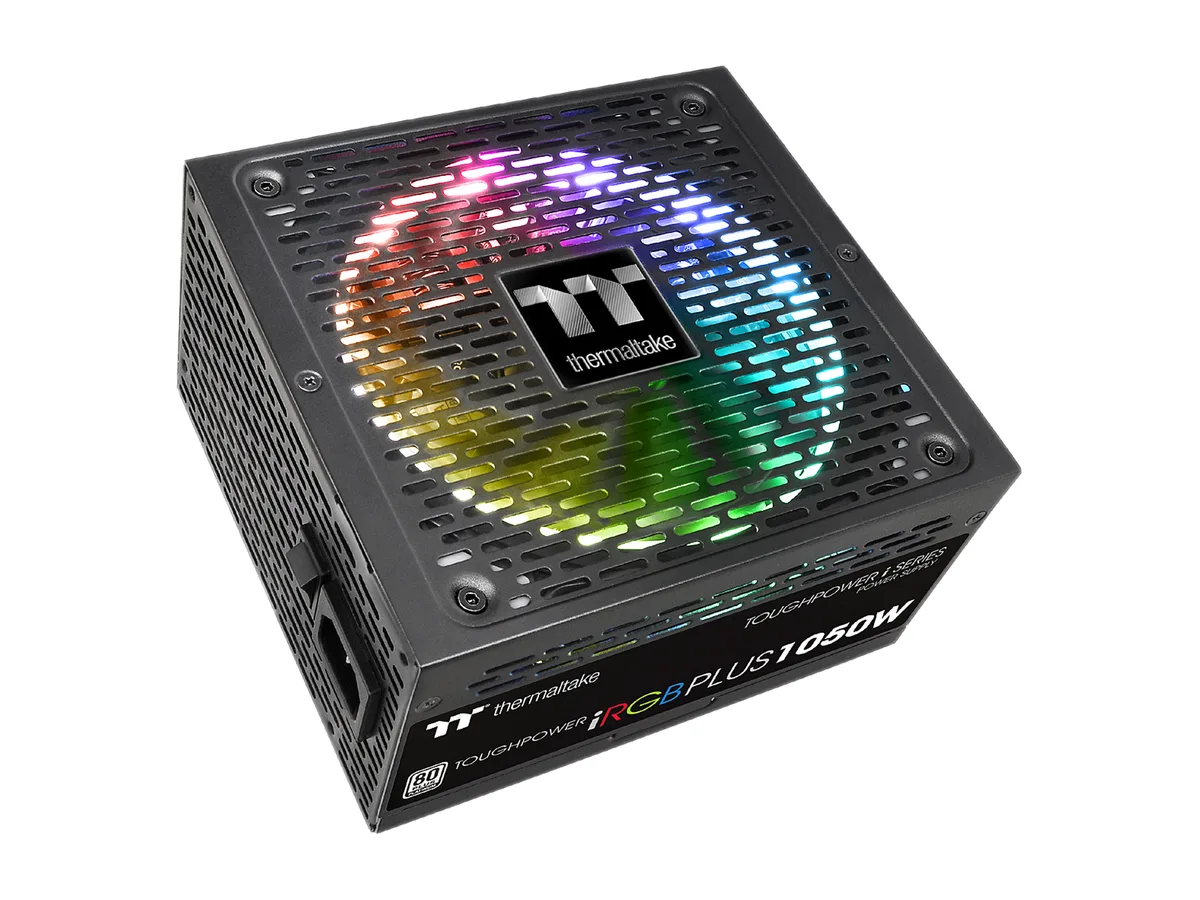

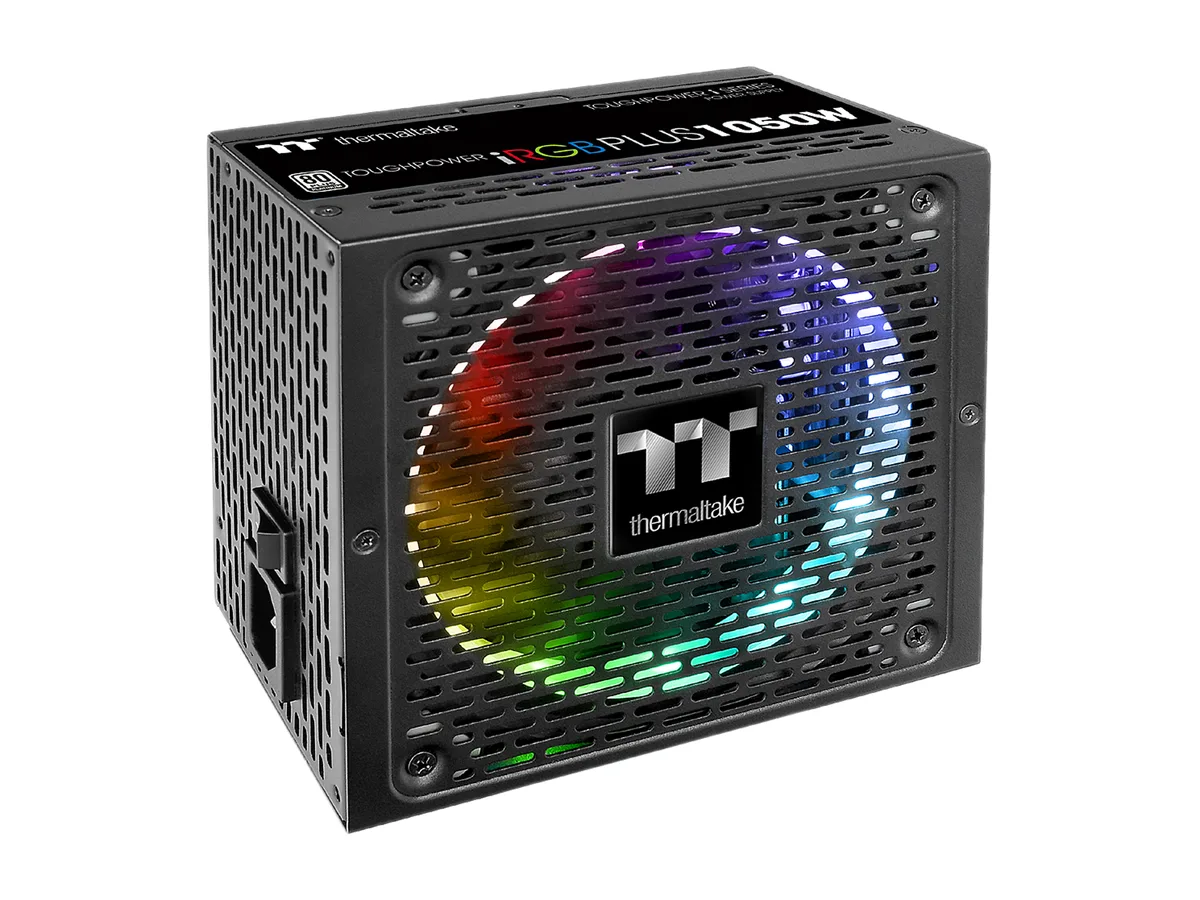

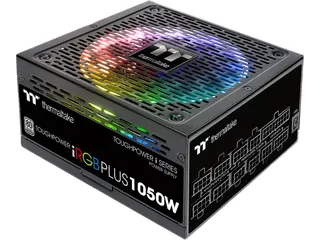

Thermaltake PS-TPI-1050F2FDPU-1 1050W power supply
Delivers 1050 W through a fully modular design with 80 PLUS Platinum 92% efficiency, a 140 mm RGB fan, 12 SATA connectors and 8 PCIe 6+2-pin plugs in a 160 mm chassis
- TypeIntel ATX 12V 2.4 & SSI EPS 12V 2.92
- Maximum Power1050 W
- Fans140mm Riing Plus RGB LED Fan
- Fan LEDRGB
- PFCActive
- Main Connector24Pin
Options ATX 80+ Platinum (1050W)
- ATX 80+ Platinum (850W)
- ATX 80+ Platinum (1050W)
- 80 PLUS Platinum certification delivers 92% efficiency
- Fully modular cabling keeps builds tidy
- Single +12V rail supplies 1050 W continuous power

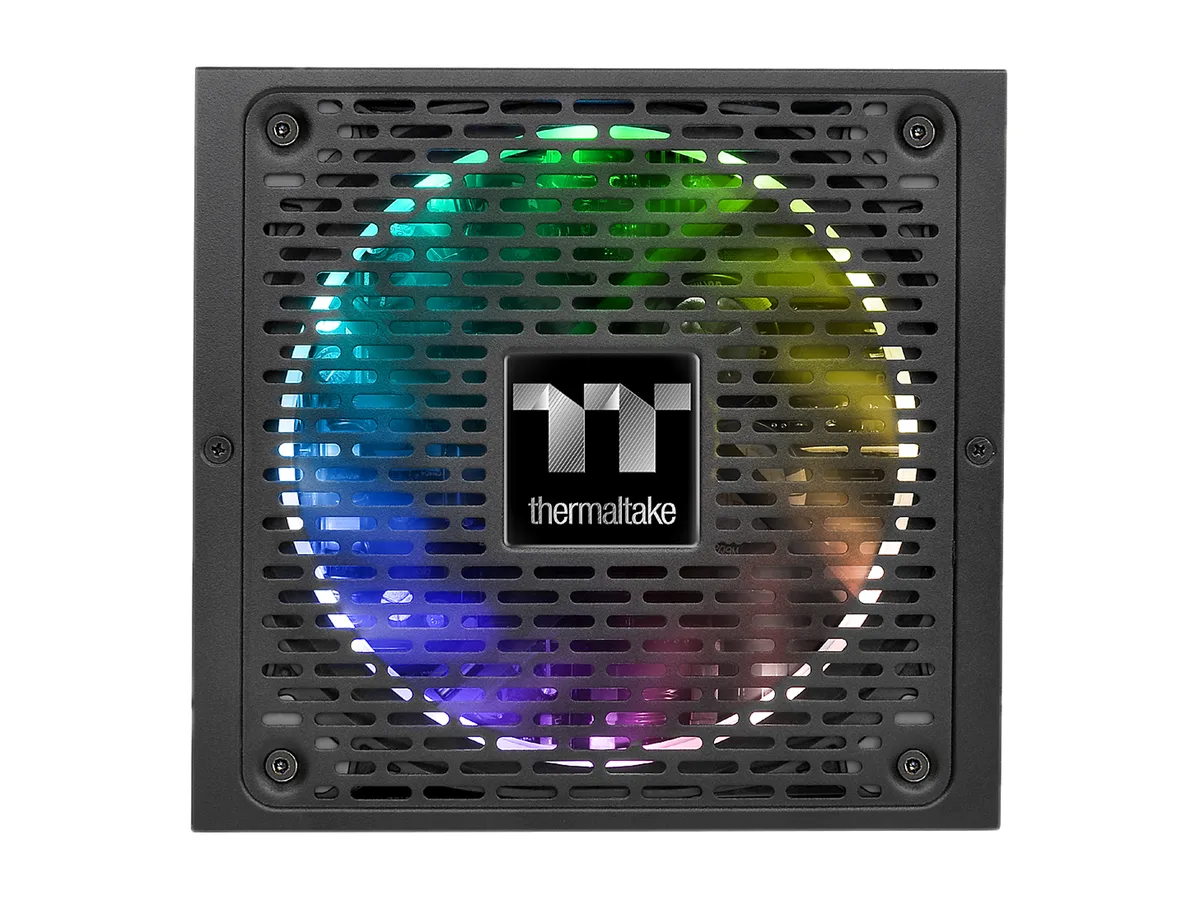

- 140 mm Riing Plus RGB fan offers 16.8 million colour modes
- 12 SATA connectors support multiple drives
1050W digital modular PSU
The Thermaltake Toughpower iRGB Plus delivers 1050 W of continuous power through a fully modular design. It meets Intel ATX 12V 2.4 and SSI EPS 12V 2.92 specifications with a single +12V rail. 80 PLUS Platinum certification confirms 92 % typical efficiency at 100-240 V input.
For RGB-focused high-wattage builds
This unit suits builders who want addressable 16.8 million colour lighting on a 140 mm fan and need eight 6+2-pin PCIe connectors for multi-GPU SLI or CrossFire configurations. Twelve SATA power connectors support large drive arrays. Buyers who do not need RGB illumination or digital monitoring software should consider simpler Platinum units.
Single +12V rail at 1050W
The entire 1050 W capacity is available on one +12V rail, removing the need to balance loads across multiple rails. This topology simplifies wiring for high-current graphics cards and CPU configurations that draw heavily from the 12 V line.
Points forts
- 80 PLUS Platinum certification delivers 92% efficiency
- Fully modular cabling keeps builds tidy
- Single +12V rail supplies 1050 W continuous power
- 140 mm Riing Plus RGB fan offers 16.8 million colour modes
- 12 SATA connectors support multiple drives
Caractéristiques
| Brand | Thermaltake |
|---|---|
| Series | Toughpower iRGB PLUS Platinum |
| Model | PS-TPI-1050F2FDPU-1 |
| Type | Intel ATX 12V 2.4 & SSI EPS 12V 2.92 |
| Maximum Power | 1050 W |
| Fans | 140mm Riing Plus RGB LED Fan |
| Fan LED | RGB |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 8 x 6+2-Pin |
| SATA Power Connector | 12 |
| SLI | SLI Ready |
| Haswell Support | Yes |
| CrossFire | CrossFire Ready |
| Max PSU Length | 160 mm |
| Modular | Full Modular |
| Efficiency | 92% |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 13A |
| Output | +3.3V@22A, +5V@22A, [email protected] , [email protected] , [email protected] |
| MTBF | 120,000 Hours |
| Approvals | CE / cTUVus / TUV / FCC / CCC / EAC / S-Mark |
| Connectors | 1 x 24-pin ATX 1 x 4+4pin EPS 1 x 8pin EPS 8 x 6+2pin PCI-E 12 x SATA 4 x Peripheral 1 x Floppy 1 x USB |
| Features | Compliance with Intel ATX 12V 2.4 & SSI EPS 12V 2.92 standards Smart DPS App 3.0 Software enables real time monitoring of efficiency, wattage, voltage Zero RPM Smart Fan enabled by Smart DPS App 3.0 Software for total control 80 PLUS Platinum Certified - 92% efficiency under typical load Full Modular design with low-profile flat black cables including connectors 100% 105 degree C / 221 degree F Japanese Brand Capacitors. Single +12V rail Design Digital 32-bit MCU controller ensures proper conversion of all signals into digital format. USB Header to PSU cable allows connectivity to Sm |
| Dimensions | 6.29" x 5.90" x 3.38" |
| Weight | 8.5 |
| Poids d’expédition | 3.87 kg |
| Dimensions du colis | 323 × 234 × 160 mm |
Autres versions de ce modèle
1 de plus dans cette gamme
Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.
Questions sur cet article
Will this 1050 W unit fit in a case that only accepts power supplies up to 160 mm long?
Yes, the maximum length is 160 mm, so it matches that limit exactly.
How many graphics cards can I power with the available PCIe connectors?
Eight 6+2-pin connectors are included, enough for up to four dual-connector cards.
What efficiency level does the 80 PLUS Platinum rating guarantee at typical load?
The unit is rated for 92 % efficiency under the 80 PLUS Platinum test conditions.
