Rectangular ATX power supply, matte black finish, 120 mm fan visible on rear grille, fixed cables exiting side

Thermaltake

Thermaltake Smart Series 700W power supply PS-SPD-0700NPCWUS-W

SKU CH-GPF3-14QA6 MPN PS-SPD-0700NPCWUS-W

Delivers 700 W continuous power via a single +12 V rail with 80 PLUS efficiency up to 87 % and a 120 mm fan

  • TypeIntel ATX 12V 2.3
  • Maximum Power700 W
  • Fans1 x 120mm Fan (1800 RPM +/- 10%)
  • PFCActive
  • Main Connector24Pin
  • +12V RailsSingle

Options ATX 80+ (700W)

  • 700 W continuous power for demanding builds
  • 80 PLUS certified efficiency up to 87 % at typical loads
  • Single +12 V rail rated at 54 A for stable GPU delivery
  • 120 mm fan at 1800 RPM for quiet thermal control
  • SLI and CrossFire ready with two 6+2-pin PCIe connectors

Smart Series 700W ATX power supply

This 700 W unit follows the Intel ATX 12V 2.3 standard and carries 80 PLUS certification. It targets mainstream builds that need continuous power for SLI or CrossFire graphics configurations. A single +12 V rail rated at 54 A delivers stable current to demanding components. Non-modular cabling keeps the cost low while covering typical drive and GPU needs.

Thermals noise and power draw

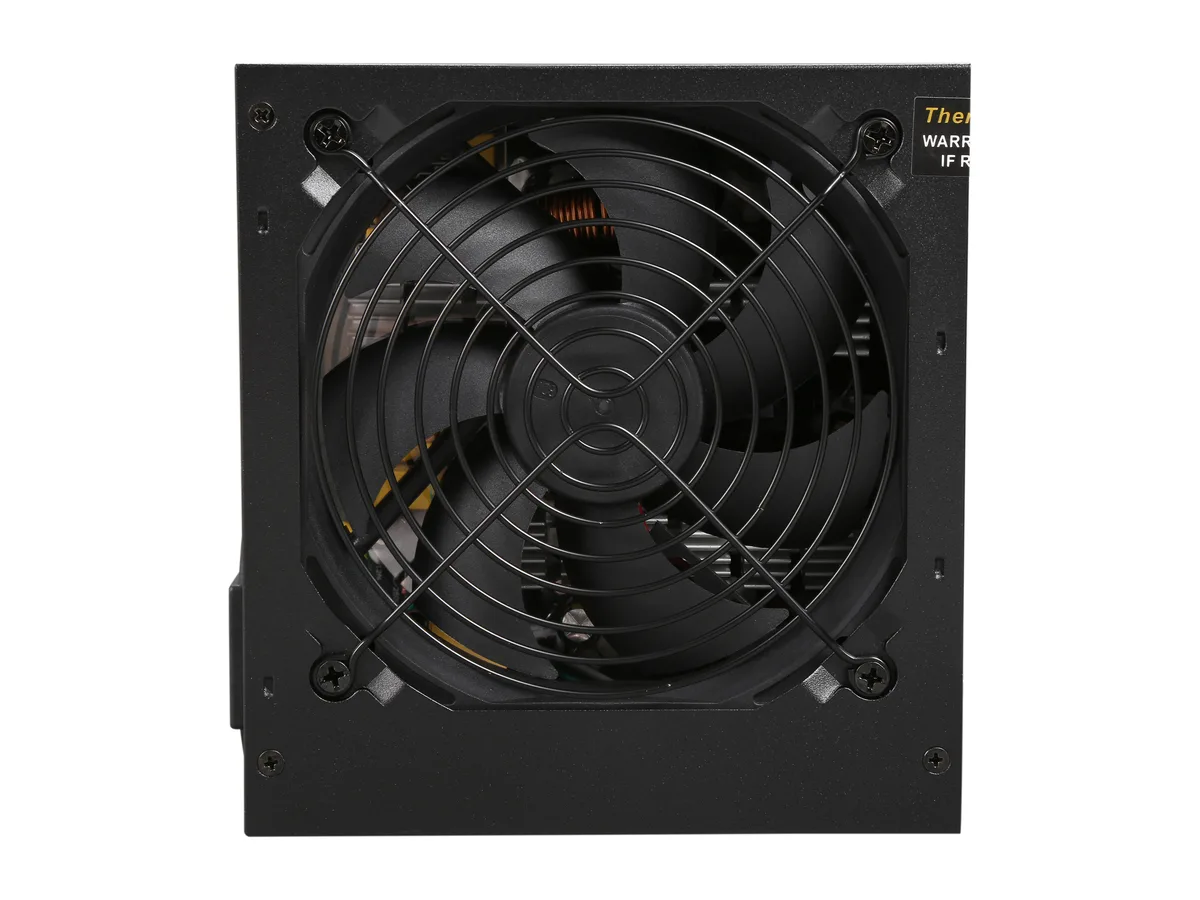

A 120 mm fan spins at 1800 RPM with a ten percent tolerance to move air through the chassis. The supplier states the fan provides excellent airflow at an exceptionally low noise level during normal operation. Efficiency ranges from 80 to 87 percent between 20 and 100 percent load, peaking at 86 percent. Active PFC corrects the power factor across a 100 to 240 V input range.

Behaviour under sustained load

The single +12 V rail design enables non-stop usage with stable performance under continuous loading. Hold-up time is rated at a minimum of 16 ms at 60 percent load, and the power-good signal arrives within 100 to 500 ms. High-quality components are selected to prevent capacitor explosion and leakage during extended runs. The 140 mm depth fits standard ATX cases without clearance issues.

Points forts

  • 700 W continuous power for demanding builds
  • 80 PLUS certified efficiency up to 87 % at typical loads
  • Single +12 V rail rated at 54 A for stable GPU delivery
  • 120 mm fan at 1800 RPM for quiet thermal control
  • SLI and CrossFire ready with two 6+2-pin PCIe connectors

Caractéristiques

BrandThermaltake
SeriesSMART Series
ModelPS-SPD-0700NPCWUS-W
TypeIntel ATX 12V 2.3
Maximum Power700 W
Fans1 x 120mm Fan (1800 RPM +/- 10%)
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector6
SLIReady
Haswell SupportReady
CrossFireReady
Max PSU Length140 mm
ModularNon-Modular
Power Good Signal100-500ms
Hold-up Time16msec (minimum) within 60% load
Efficiency80 - 87% efficiency @ 20 - 100% load
Energy-Efficient80 PLUS Certified
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current12 A (Max.)
Output+3.3V@24A, +5V@17A, +12V@54A, [email protected] , [email protected]
MTBF>100,000 Hours
ApprovalsCE, CB, TUV, UL, FCC

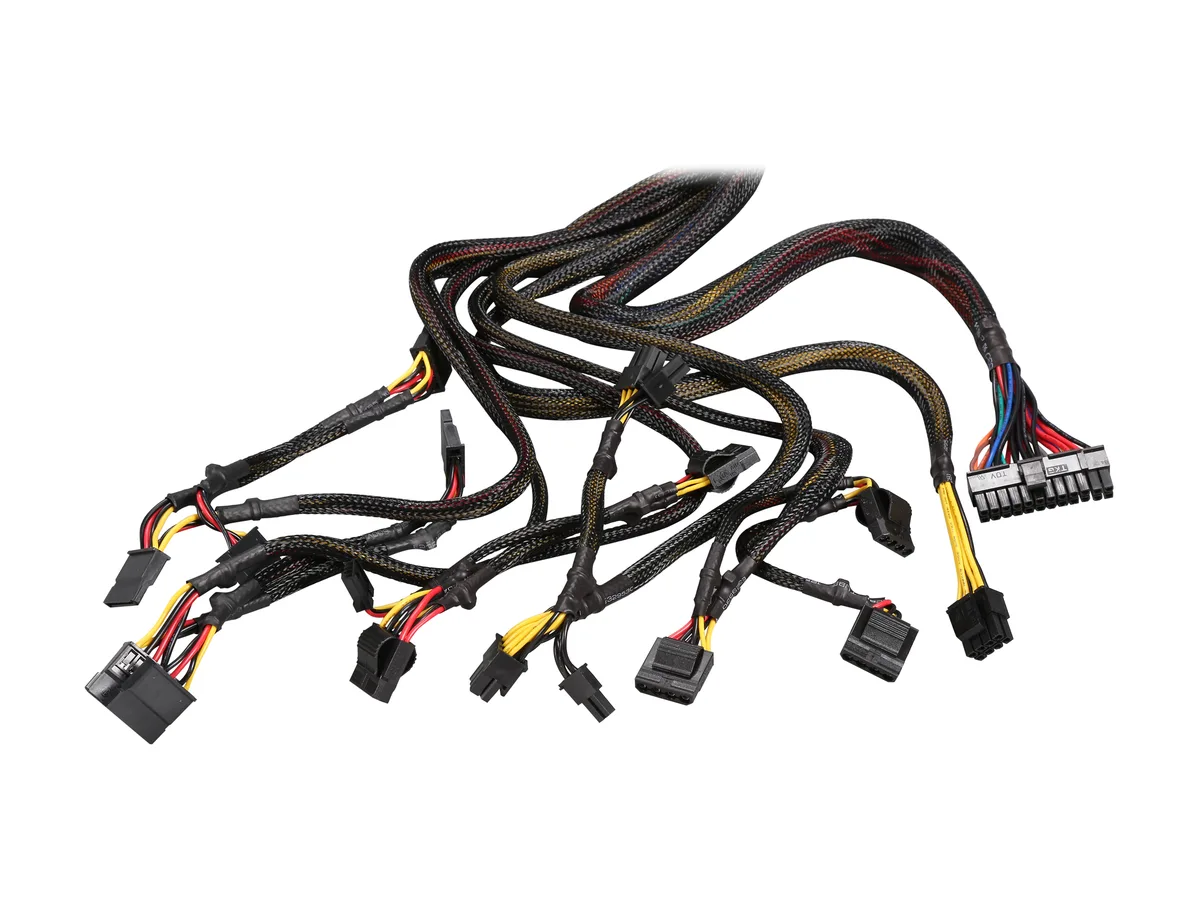

Connectors1 x 20+4-pin ATX
1 x 4+4-pin EPS
2 x 6+2 PCI-E
6 x SATA
5 x Peripheral
1 x Floppy
FeaturesCompliance with Intel ATX12V 2.31 & EPS12V 2.92 standards
80 PLUS Certified - 80% efficiency under typical load
Single +12V rail Design
Supports Intel C6 Status for improved efficiency
Ultra-quiet 120mm fan with intelligent temperature control
Hardlined cables for straight forward installation
Dimensions3.39" x 5.91" x 5.51"
Weight4.65 lbs.
Poids d’expédition1.93 kg
Dimensions du colis236 × 185 × 102 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install this non-modular 700 W PSU and which step do builders often miss?

Mount the 140 mm deep unit in the case, connect the fixed 24-pin, two 6+2-pin PCIe and six SATA cables, then plug the IEC cord into a 100-240 V outlet; the step often missed is verifying the single +12 V rail delivers 54 A for the GPU.

What maintenance or replacement will this power supply need later?

The 120 mm fan runs at 1800 RPM ±10 %; expect to clean dust from its intake every 6-12 months and replace the fan if bearing noise appears, while the 80 PLUS certified efficiency of 80-87 % at 20-100 % load remains stable.

What limit appears first when this PSU runs at sustained load?

The single +12 V rail is capped at 54 A; continuous draw beyond that triggers protection before the 80-87 % efficiency range or the 16 ms hold-up time at 60 % load become factors.
