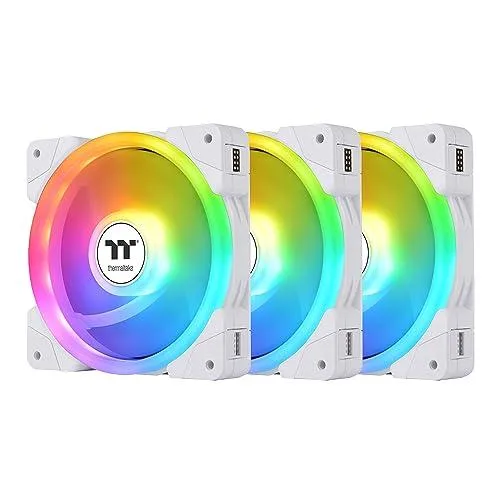

Three white 140mm ARGB case fans with interchangeable blades and magnetic frame design

Thermaltake

Thermaltake SWAFAN EX14 140mm ARGB case fan 3-pack CL-F170-PL14SW-A

SKU CH-PDX5-GD4SE MPN CL-F170-PL14SW-A

Three 140 mm ARGB fans with reversible blades, hydraulic bearings and PWM speeds from 500 to 2000 RPM

  • Fan Counts3 Fans
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size140mm
  • Fan Thickness25mm
  • Bearing TypeHydraulic
  • Three fans deliver 81.6 CFM each at full speed
  • PWM control spans 500 to 2000 RPM for quiet or maximum airflow
  • Hydraulic bearing rated for long service life at 34.5 dB-A

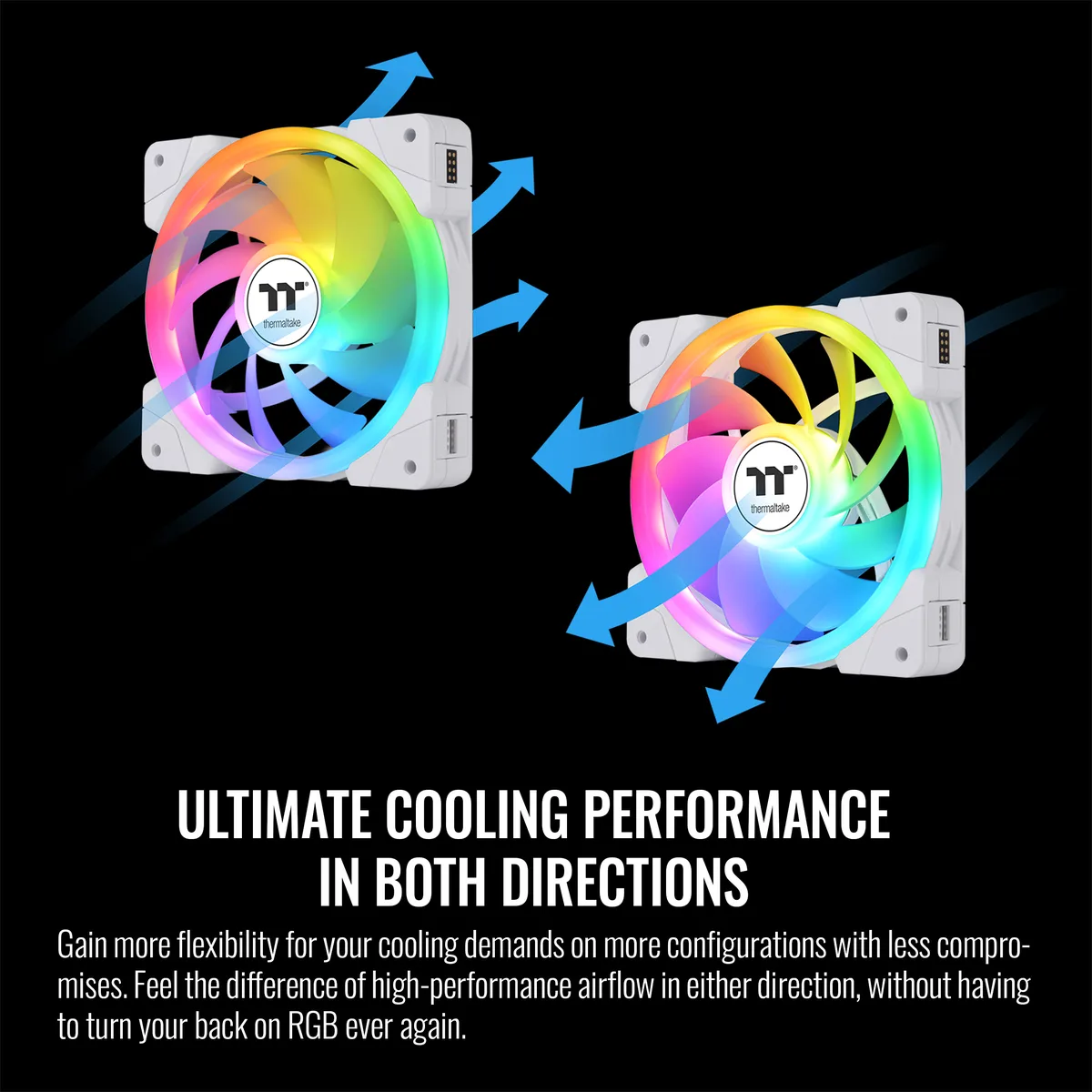

  • Reversible blades included for push or pull configurations without extra parts
  • 5 V ARGB lighting syncs with motherboard software via 3-pin header

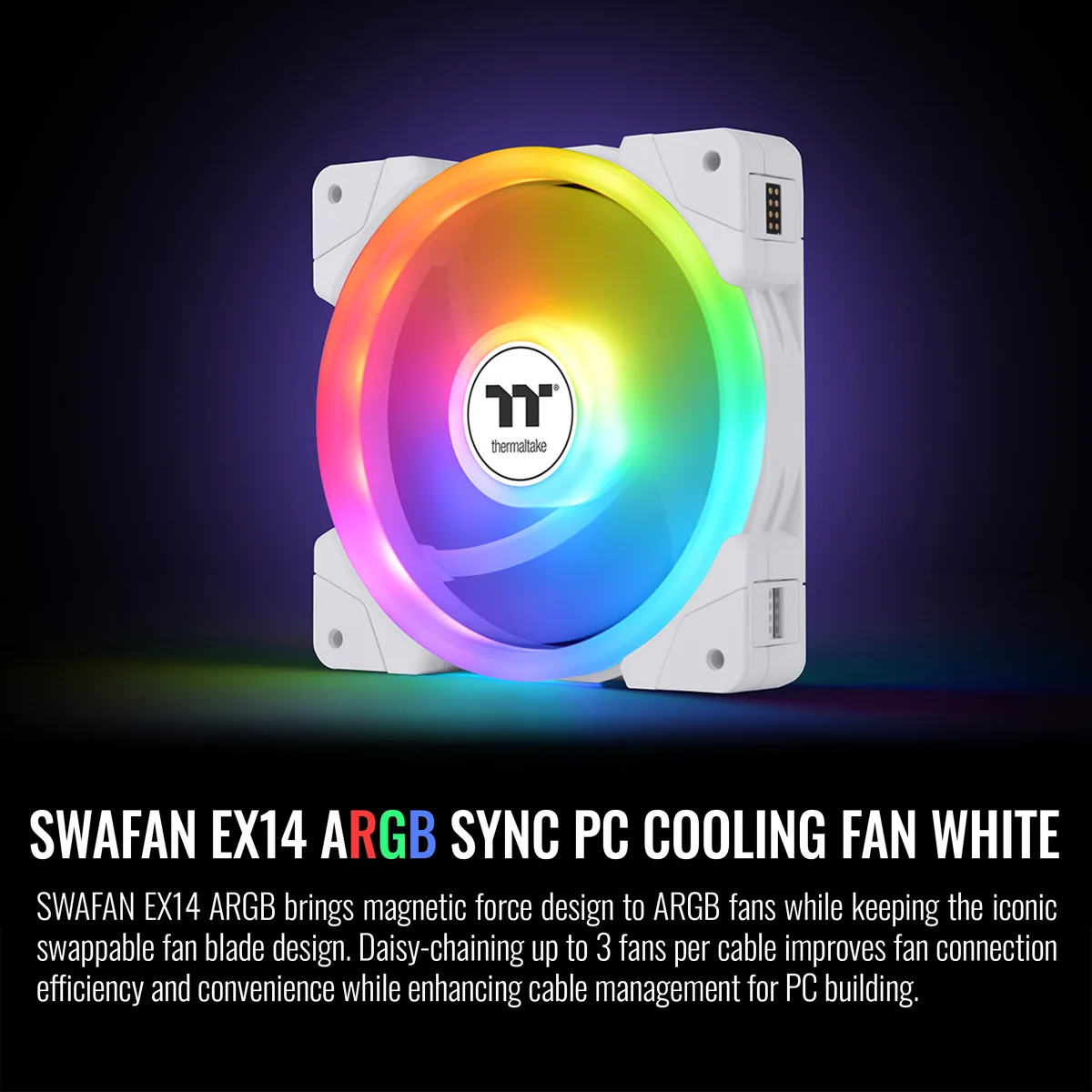

Three 140mm ARGB fans for white-themed builds

This pack contains three 140mm case fans finished in white with addressable RGB lighting. Each unit uses a hydraulic bearing and runs between 500 and 2000 RPM under PWM control. They are aimed at builders who want coordinated lighting and reversible airflow in a single kit.

Magnetic blades swap in seconds.

Standard blades come pre-installed and three reverse blades are supplied for push-pull or exhaust setups. The magnetic mounting lets you change orientation without tools. Because no fan controller is bundled, you must connect every unit to a 4-pin PWM header and a 5V 3-pin ARGB header on the motherboard.

Check for 5V ARGB headers and 140mm mounting points

Your board needs a 5V 3-pin ARGB connector and enough 4-pin PWM headers for three fans, or a powered hub. Verify that your case accepts 140mm fans at the intended locations and that 25mm thickness clears nearby components. The kit includes only frames, blades and cables.

Points forts

  • Three fans deliver 81.6 CFM each at full speed
  • PWM control spans 500 to 2000 RPM for quiet or maximum airflow
  • Hydraulic bearing rated for long service life at 34.5 dB-A
  • Reversible blades included for push or pull configurations without extra parts
  • 5 V ARGB lighting syncs with motherboard software via 3-pin header

Caractéristiques

BrandThermaltake
ModelSWAFAN EX14
Part NumberCL-F170-PL14SW-A
Fan Counts3 Fans
Fan ControllerNo Controller
TypeCase Fan
Fan Size140mm
Fan Thickness25mm
Bearing TypeHydraulic
RPMPWM 500 ~ 2000 R.P.M
Air FlowStandard Fan Blade: 81.6 CFM (one fan)
Reverse Fan Blade: 79.3 CFM (one fan)
Noise LevelStandard Fan Blade: 34.5 dB-A (one fan)
Reverse Fan Blade: 38.8 dB-A (one fan)
Power Connector2510-4 PIN PWM, 5V ARGB header-3PIN
ColorWhite
LEDARGB
Dimensions140 x 140 x 25 mm
Package Contents3 x Fan Frames
3 x Standard Fan Blade (Pre-installed)
3 x Reverse Fan Blade
3 x Cable
Poids d’expédition1.32 kg
Dimensions du colis203 × 170 × 150 mm

Questions sur cet article

How do I confirm the three SWAFAN EX14 fans are spinning correctly after installation?

Connect the 2510-4 PIN PWM cables to the motherboard and use BIOS or fan-control software to verify each fan runs between 500 and 2000 RPM; listen for noise around 34.5 dB-A with standard blades or 38.8 dB-A with reverse blades.

What comes in the box and what must I supply myself for the CL-F170-PL14SW-A 3-pack?

The package includes three fan frames, three standard blades pre-installed, three reverse blades and three cables; you must provide a motherboard with a 2510-4 PIN PWM header and a 5V ARGB 3-pin header for lighting control.

Should I choose the standard or reverse blades for my SWAFAN EX14 setup?

Standard blades deliver 81.6 CFM at 34.5 dB-A per fan, while reverse blades give 79.3 CFM at 38.8 dB-A; use standard blades for intake and reverse blades for exhaust to balance airflow direction.
