TOPOWER

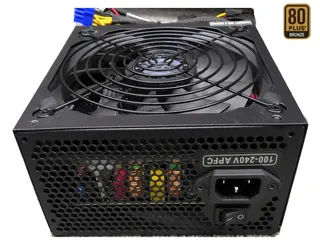

TOPOWER TOP-600DB 600W ATX/EPS 80 PLUS Bronze power supply
600 W ATX/EPS unit with 80 PLUS Bronze efficiency, active PFC, a 14 cm fan and eight SATA connectors
- TypeATX 12V / EPS 12V
- Maximum Power600 W
- Fans1
- PFCActive
- Main Connector20+4 Pin
- PCI-Express Connector1 x 6 Pin, 2 x 6+2 Pin
- Delivers up to 600 W for demanding builds
- 80 PLUS Bronze certification reduces wasted energy
- Active PFC corrects power factor across 100-240 V input
- 14 cm fan moves air through 160 mm depth chassis

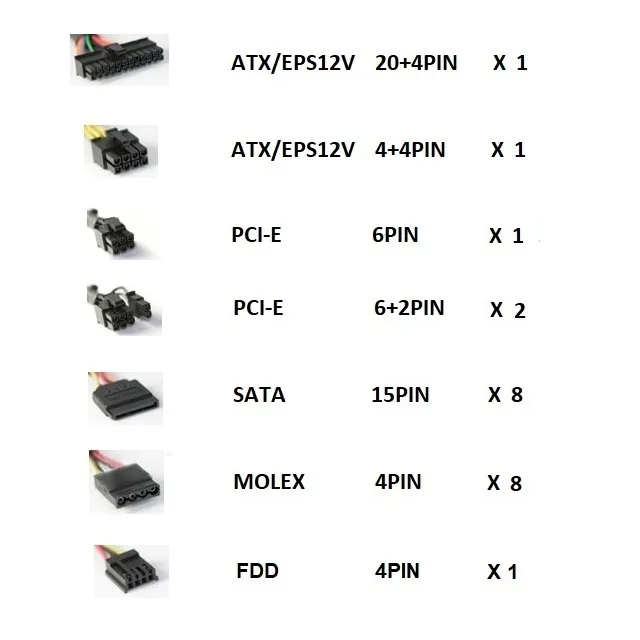

- Provides 20+4 pin, 1×6 pin, 2×6+2 pin and 8 SATA connectors
600 W ATX/EPS bronze unit
This TOPOWER TOP-600DB delivers 600 W of continuous power through an ATX 12V / EPS 12V design with Active PFC and 80 PLUS Bronze certification. A single fan handles cooling while the fixed cable set includes a 20+4 pin main connector, one 6 pin and two 6+2 pin PCIe plugs, plus eight SATA power leads. The chassis measures 150 x 155 x 86 mm and fits a maximum length of 160 mm.
Entry builds and single-GPU upgrades
It suits builders assembling a standard desktop or replacing an older supply in a system that needs one or two auxiliary graphics connectors. Over-voltage and overload protection are included. It is not for configurations that demand fully modular cabling, more than two PCIe power plugs, or higher efficiency ratings such as Gold or Platinum.
600 W maximum output
The 600 W rating is the single figure that determines whether this unit can support the intended components. If the total system draw under load exceeds this value, a higher-capacity supply must be chosen.
Points forts
- Delivers up to 600 W for demanding builds
- 80 PLUS Bronze certification reduces wasted energy
- Active PFC corrects power factor across 100-240 V input
- 14 cm fan moves air through 160 mm depth chassis
- Provides 20+4 pin, 1×6 pin, 2×6+2 pin and 8 SATA connectors
Caractéristiques
| Brand | TOPOWER |
|---|---|
| Series | BRONZE |
| Model | TOP-600DB |
| Type | ATX 12V / EPS 12V |
| Maximum Power | 600 W |
| Fans | 1 |
| PFC | Active |
| Main Connector | 20+4 Pin |
| PCI-Express Connector | 1 x 6 Pin, 2 x 6+2 Pin |
| SATA Power Connector | 8 |
| SLI | Ready |
| Haswell Support | Ready |
| CrossFire | Ready |
| Max PSU Length | 160 mm |
| Modular | No |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Power Rating | 600W |
| Dimensions | 150 x 160 x 86 MM |
| 12V Power Connector | 1 x 4+4 Pin ATX/EPS 12V |
| Floppy Connector | 1 |
| Peripheral Connector | 8 |
| Fans Total Quantity | 1 |
| Top Fans Size | 140mm |
| Poids d’expédition | 2.27 kg |
| Dimensions du colis | 254 × 203 × 102 mm |
Questions sur cet article
How much continuous power can the 600 W unit deliver before protection circuits engage?
The unit is rated for 600 W maximum output; overload protection will activate if that limit is exceeded.
What noise and heat should I expect from the 14 cm fan during all-day operation?
A single 14 cm fan provides cooling; noise level varies with load and case airflow.
Which motherboard and graphics-card connectors must my build already have to use this supply?
It requires a 20+4 pin main connector, one 6-pin and two 6+2-pin PCIe connectors, plus eight SATA power connectors.
