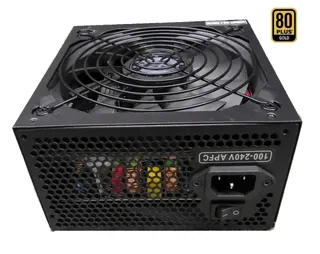

Rectangular black metal PSU with 14 cm fan and modular cable sockets

TOPOWER

TOPOWER TOP-800G 800W 80 PLUS GOLD Full Modular Power Supply

SKU CH-E9WH-6CD27 MPN TOP-800G

An 800 W ATX power supply with 80 PLUS Gold efficiency, full modular cables and a 14 cm fan

  • TypeATX 12V / EPS 12V
  • Maximum Power800 W
  • Fans1
  • PFCActive
  • Main Connector20+4 Pin
  • +12V RailsSingle
  • Delivers 800 W for high-end builds
  • 80 PLUS Gold certified for lower running costs
  • Full modular cables keep the case tidy
  • Single +12 V rail simplifies GPU power
  • 14 cm fan and 160 mm depth fit most cases

800 W Full-Modular PSU

The TOPOWER TOP-800G delivers 800 W of continuous power through a single +12 V rail. It targets system builders who need reliable output for multi-GPU configurations and high-end components. The 80 PLUS Gold certification confirms high efficiency across typical loads. Full modular cabling lets you connect only the leads your build requires.

Build Quality and Connectivity

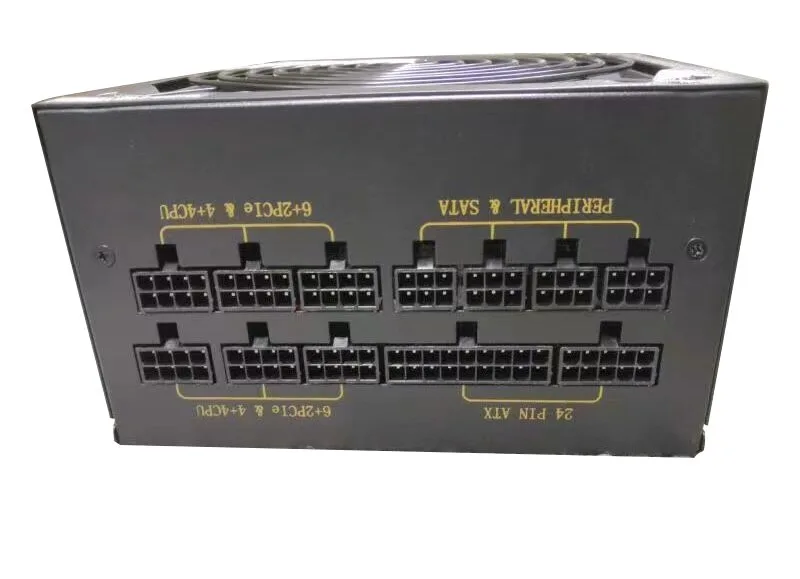

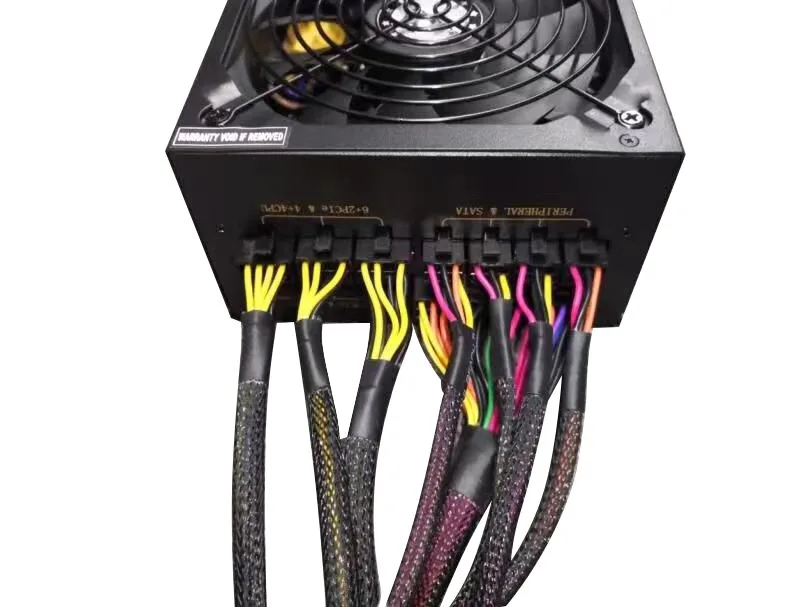

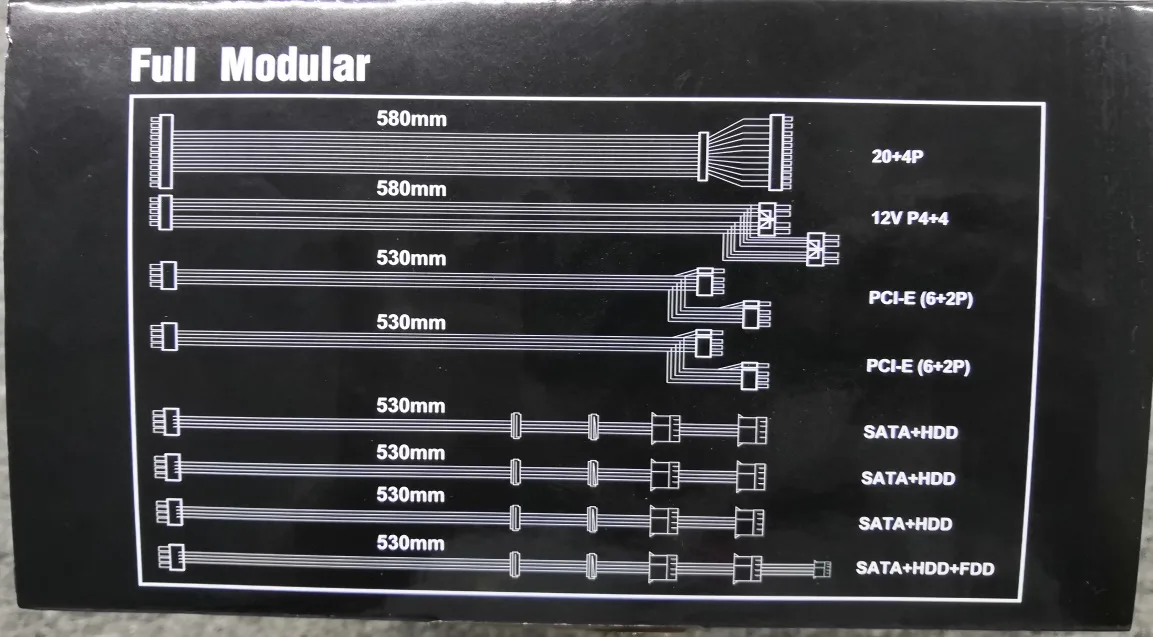

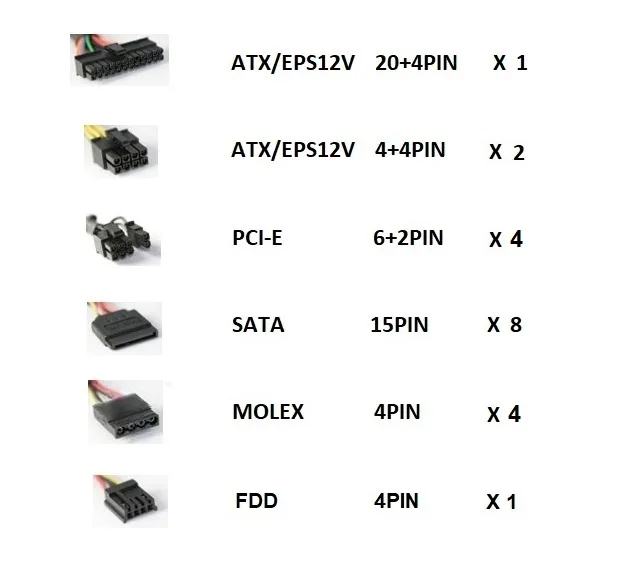

A 14 cm fan handles cooling inside a 150 x 160 x 86 mm chassis. Active PFC and protections against over-voltage and overload safeguard connected hardware. The unit supplies four 6+2 pin PCIe connectors, eight SATA power connectors and a 20+4 pin main connector. Full modularity keeps the cable count low and simplifies routing in standard ATX cases.

Upgrade Path and Fit

This supply replaces lower-wattage or non-modular units that cannot support SLI or CrossFire multi-GPU setups. The jump is worthwhile when your graphics cards demand four PCIe power leads or when cable clutter hinders airflow. Input voltage spans 100 to 240 V for global compatibility. Builders needing more than 800 W or a smaller form factor should look elsewhere.

Points forts

  • Delivers 800 W for high-end builds
  • 80 PLUS Gold certified for lower running costs
  • Full modular cables keep the case tidy
  • Single +12 V rail simplifies GPU power
  • 14 cm fan and 160 mm depth fit most cases

Caractéristiques

BrandTOPOWER
Series80 Plus
ModelTOP-800G
TypeATX 12V / EPS 12V
Maximum Power800 W
Fans1
PFCActive
Main Connector20+4 Pin
+12V RailsSingle
PCI-Express Connector4 x 6+2 Pin
SATA Power Connector8
SLIReady
Haswell SupportReady
CrossFireReady
Max PSU Length160 mm
ModularYes
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Power Rating800W
Frequency Range47 - 63 Hz
12V Power Connector1 x 4+4 Pin ATX/EPS 12V, 1 x 8 Pin EPS 12V
Floppy Connector1
Peripheral Connector4
Fans Total Quantity1
Top Fans Size140mm
Poids d’expédition2.72 kg
Dimensions du colis254 × 203 × 102 mm

Questions sur cet article

Does the ATX12V/EPS12V v2.3 design limit the +12 V rail to 800 W?

The single +12 V rail delivers the full 800 W so the v2.3 standard does not cap the output below the unit rating.

Will the 160 mm depth fit a case with a 150 mm PSU clearance?

No, the unit is 160 mm deep so it needs at least that much clearance from the rear panel.

How do I connect the 6+2 pin cables without forcing the extra two pins?

Slide the 6+2 block together until it clicks, then insert the combined 8 pin plug; do not push the 2 pin tail in separately.
