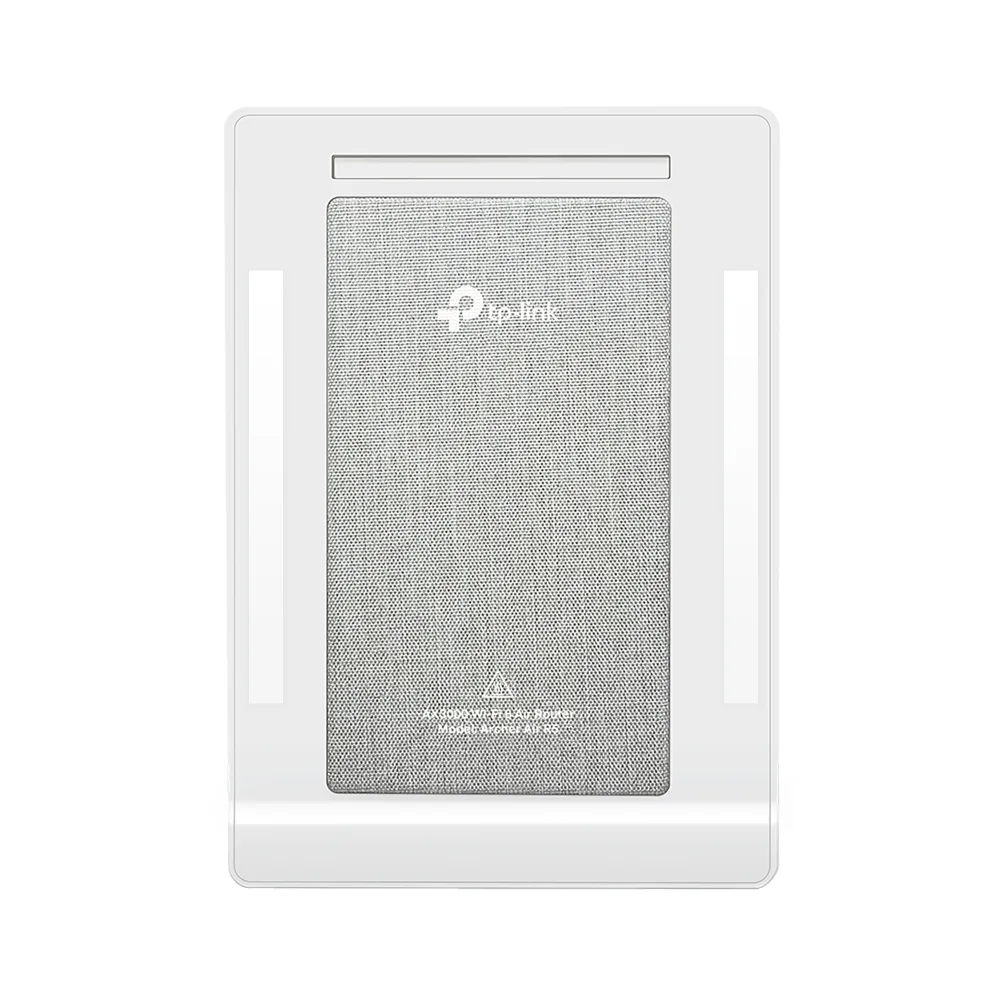

TP-Link Archer Air R5 AX3000 Wi-Fi 6 wireless router

Ultra-thin wall-mounted Wi-Fi 6 router

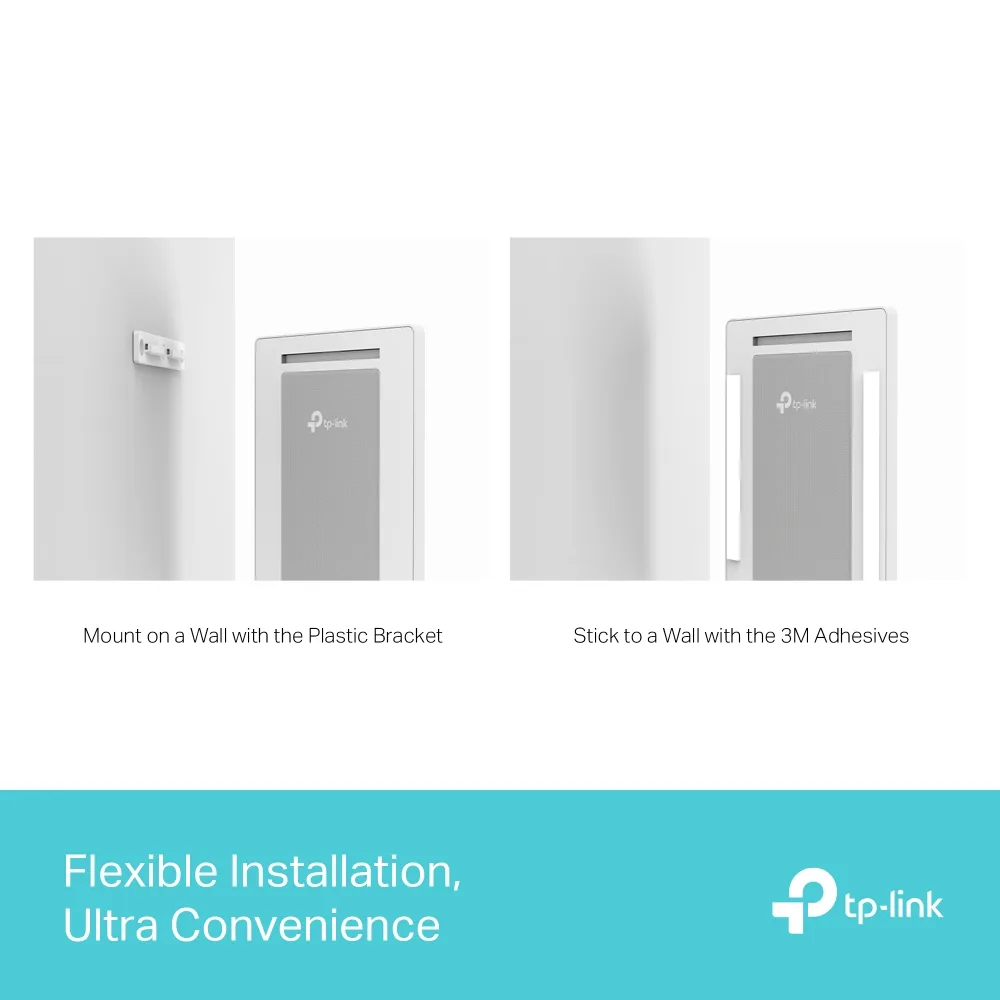

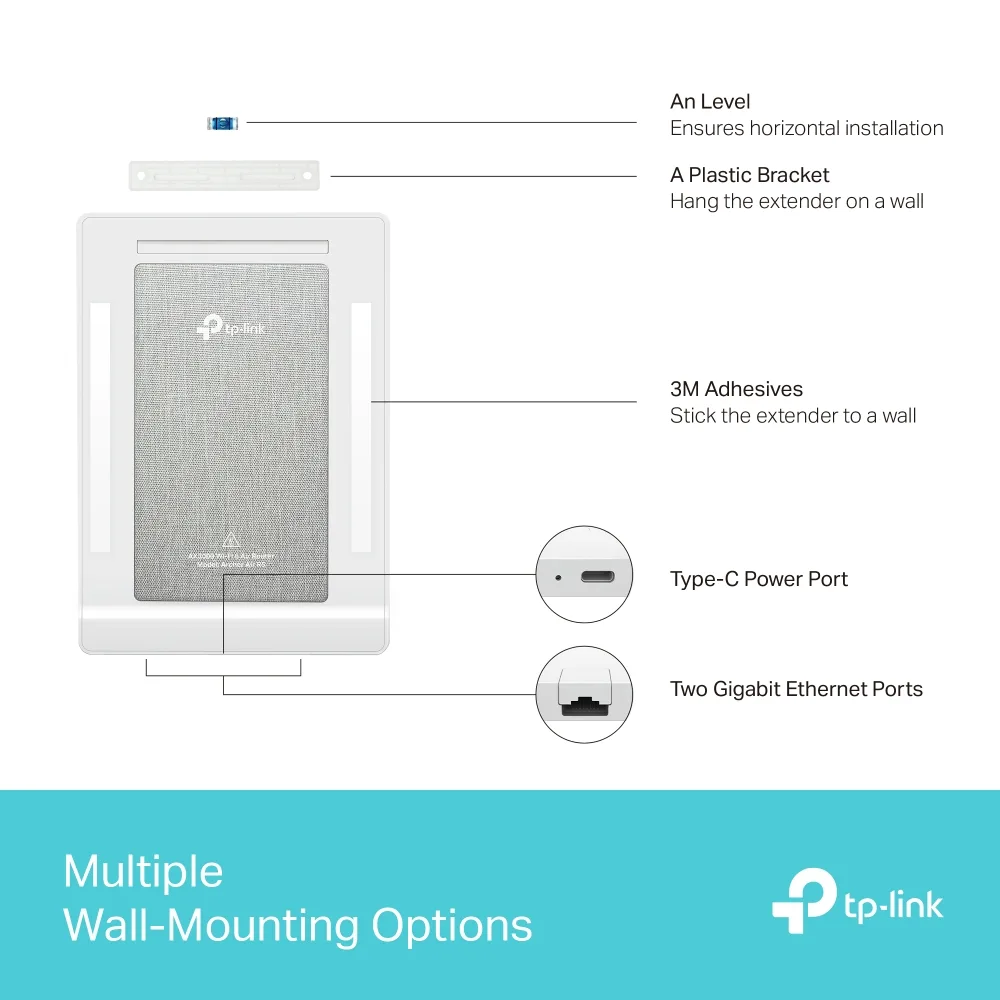

The Archer Air R5 is a dual-band Wi-Fi 6 router designed for homes that want fast wireless without a bulky box on a shelf. Its profile is thinner than a standard wall outlet, so it mounts flush using the included 3M adhesive pads or a plastic bracket. EasyMesh compatibility lets it join other EasyMesh units for whole-home coverage. It suits families and remote workers who need reliable streaming, gaming and video calls across multiple rooms.

Gigabit ports and regulatory power limits

The router provides one gigabit WAN port and one gigabit LAN port, capping wired throughput at 1 Gbps regardless of the wireless standard. Transmitted power follows CE limits of 20 dBm at 2.4 GHz, 23 dBm at 5.15–5.35 GHz and 30 dBm at 5.47–5.725 GHz, while FCC limits allow 30 dBm across both 2.4 GHz and 5.15–5.825 GHz bands. These regulatory ceilings define the maximum legal signal strength in each region.

AX3000 dual-band capacity and headroom

The AX3000 rating splits bandwidth across the 2.4 GHz and 5 GHz radios, delivering combined throughput that handles 4K streaming, online gaming and video conferencing simultaneously for a typical household. Heavy multi-gigabit internet plans or dense apartment blocks with many overlapping networks may push the dual-stream design to its limits. Buyers who need more wired ports, higher spatial-stream counts or multi-gig WAN should consider other models.
