Green circuit board with silver RJ45 port and metal bracket

TP-Link

TP-Link TX401 10Gbps PCIe 3.0 x4 network card

SKU CH-J6SE-AVCJT MPN TX401

A 10 Gbps PCIe 3.0 x4 adapter with an RJ45 port, low-profile bracket and included 1.5 m CAT6A cable

  • StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE802
  • Speed10Gbps
  • Connectors1 x RJ45
  • InterfacePCI-Express 3.0 x4
  • LEDs10 Gbps Link/Act, 5 / 2.5 / 1 Gbps and 100 Mbps Link/Act
  • DriversResource CD

Option TX401

Les versions barrées existent, mais ne sont pas disponibles ici.

  • 10 Gbps network speed for bandwidth-intensive tasks
  • Backwards compatible with 5 Gbps, 2.5 Gbps, 1 Gbps and 100 Mbps networks
  • PCIe 3.0 x4 interface provides high-throughput connectivity
  • Includes 1.5 m CAT6A cable rated for 10 Gbps performance
  • Low-profile and full-height brackets fit different case sizes

10 Gbps PCIe 3.0 x4 Network Adapter

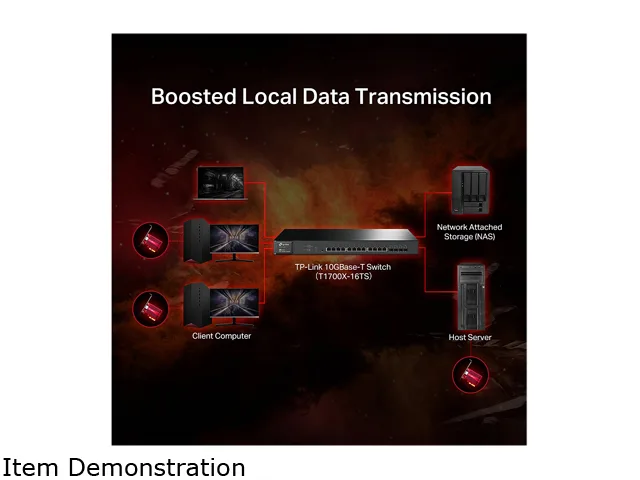

The TP-Link TX401 adds a single 10 Gigabit Ethernet port to a desktop PC through a PCIe 3.0 x4 slot. It targets users who need faster wired throughput for large file transfers, NAS access or multi-gigabit internet plans. The card includes both standard and low-profile brackets plus a 1.5 m CAT6A cable.

PCIe 3.0 x4 Interface Determines Compatibility

The adapter requires an open PCIe 3.0 x4 slot (or larger) on the motherboard. Bandwidth scales down automatically to 5 Gbps, 2.5 Gbps, 1 Gbps or 100 Mbps when connected to slower switches or cables. Without a compatible slot the card cannot be installed.

Straightforward Install With Two Bracket Options

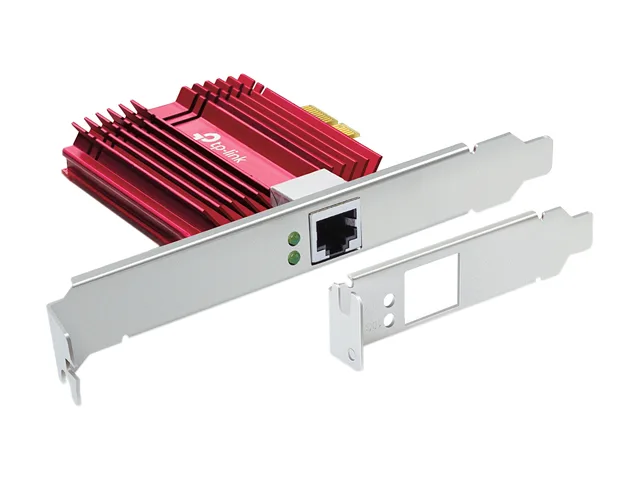

Both full-height and low-profile brackets are supplied so the card fits standard towers and small form-factor cases. Driver media is provided on a resource CD for Windows 10, 8.1, 8, 7, Server 2019, 2016, 2012 R2 and Linux; systems without an optical drive will need to download drivers from the manufacturer site.

Points forts

  • 10 Gbps network speed for bandwidth-intensive tasks
  • Backwards compatible with 5 Gbps, 2.5 Gbps, 1 Gbps and 100 Mbps networks
  • PCIe 3.0 x4 interface provides high-throughput connectivity
  • Includes 1.5 m CAT6A cable rated for 10 Gbps performance
  • Low-profile and full-height brackets fit different case sizes

Caractéristiques

BrandTP-Link
ModelTX401
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE802.3an, IEEE802.3az, IEEE 802.3x
Speed10Gbps
Connectors1 x RJ45
InterfacePCI-Express 3.0 x4
LEDs10 Gbps Link/Act, 5 / 2.5 / 1 Gbps and 100 Mbps Link/Act
DriversResource CD
TemperatureOperating Temperature: 0°C~40°C (32°F ~104°F)
HumidityOperating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Windows VistaCertified for Windows Vista
Dimensions4.80" x 3.90" x 0.80"
Package Contents10 Gigabit PCIe Network Adapter (TX401)
Standard/Low-Profile Brackets
Quick Installation Guide
Resource CD
1.5 m CAT6A Ethernet Cable
Disclaimernot_applicable, 2 year manufacturer
Poids d’expédition0.30 kg
Dimensions du colis203 × 154 × 46 mm

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What real-world throughput can I expect from the 10 Gbps rating once the card is installed in my PC?

The card negotiates at 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps or 100 Mbps depending on the switch and cable; actual throughput will be limited by the slowest link in the chain.

What does the PCIe 3.0 x4 interface limit in practice?

A PCIe 3.0 x4 slot provides up to 32 Gbps of bus bandwidth, so the 10 Gbps Ethernet port will not be bottlenecked by the interface.

Will the 4.80" x 3.90" board fit in my slim case?

Both a full-height and a low-profile bracket are included, so the card can be mounted in standard or slim chassis.
