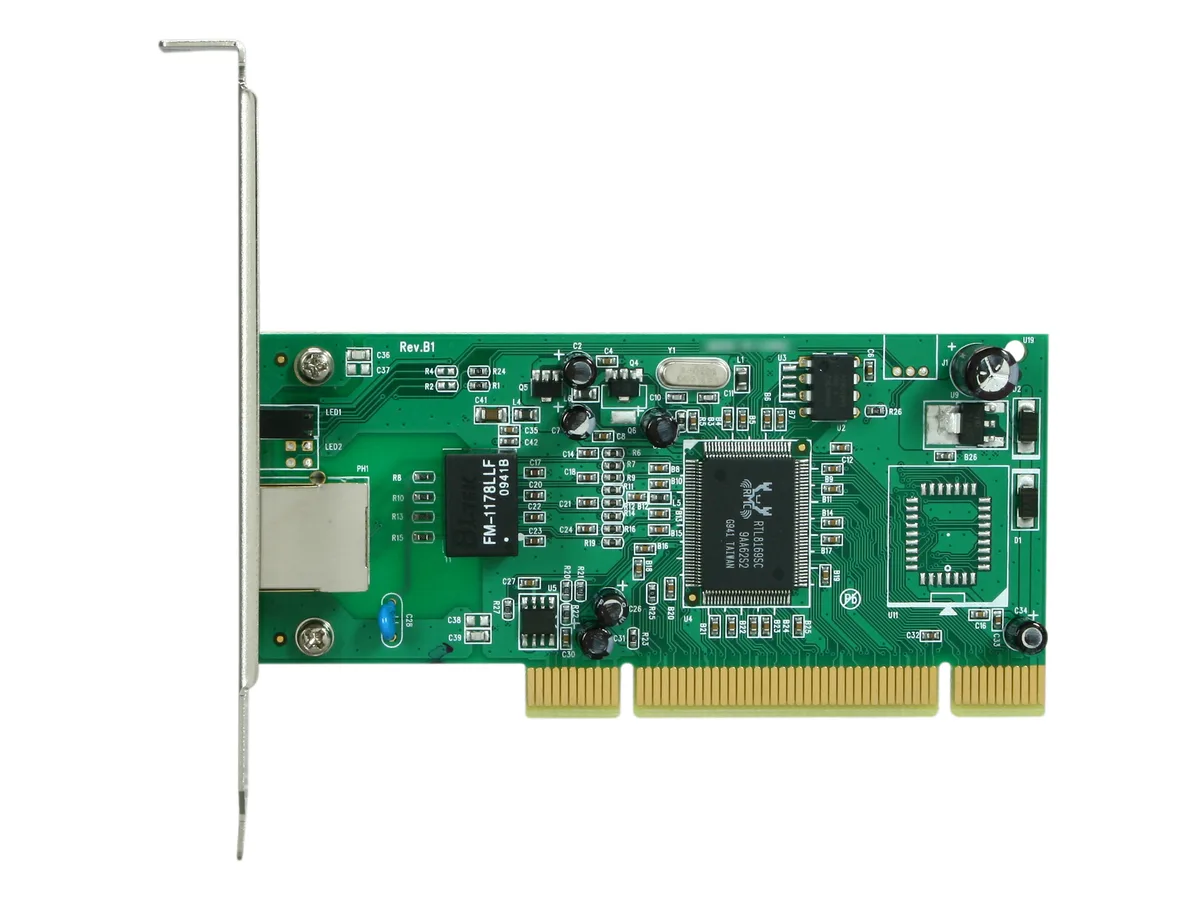

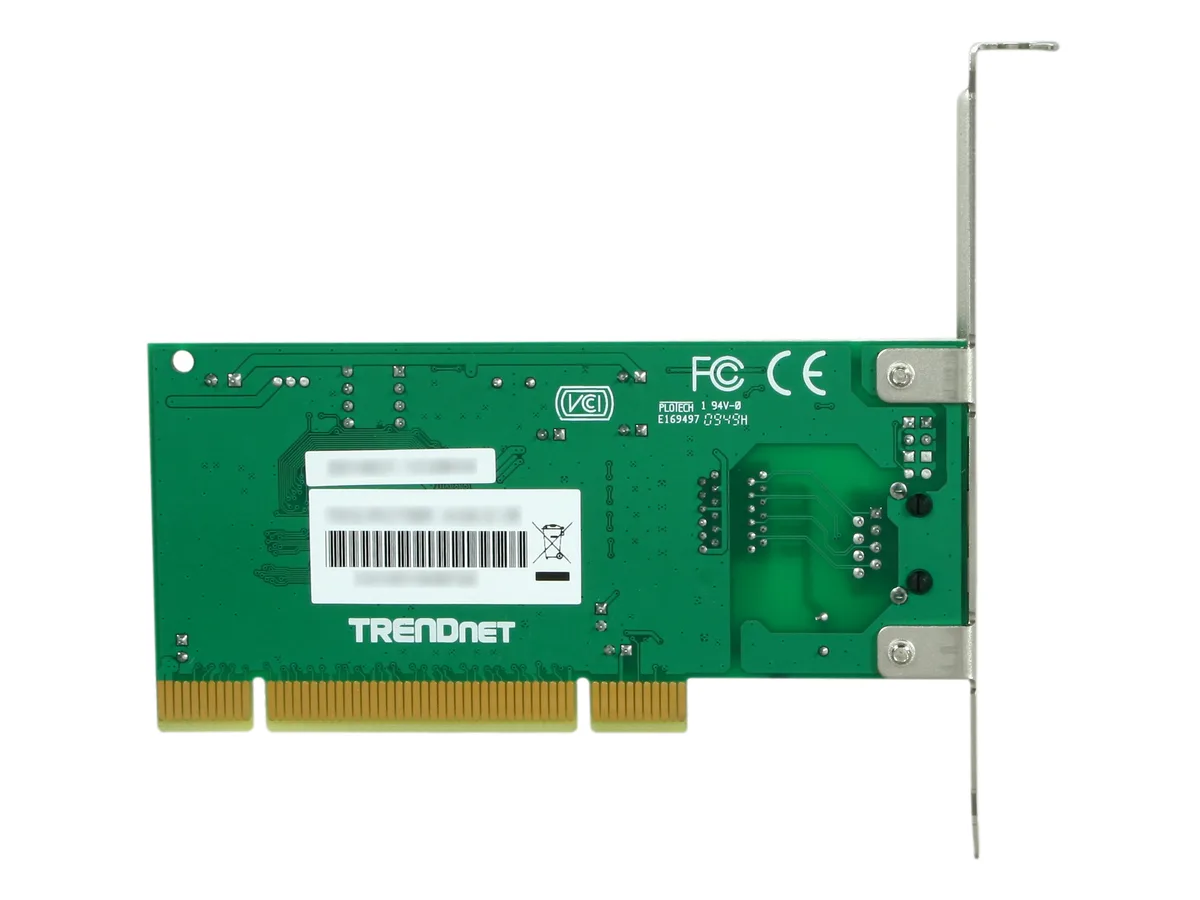

Green PCI network card with one RJ45 port and metal bracket

TRENDnet

TRENDnet TEG-PCITXR PCI Gigabit network card

SKU CH-68TS-03BX4

Adds a 10/100/1000 Mbps RJ45 port to a 32-bit PCI slot with Wake-on-LAN and 8K/64K FIFO buffers

  • StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, ANSI/IEEE 802.3 Auto-Neg
  • Speed10/100/1000Mbps
  • Connectors1 x RJ45
  • InterfacePCI
  • BUS32-Bit 33/66Mhz PCI Rev 2.1/2.2/2.3
  • LEDsLink, Activity
  • Gigabit speeds up to 1000 Mbps for fast wired networking
  • Auto-negotiation and auto MDI-X simplify cable connections
  • Built-in 8K/64K FIFO buffers reduce memory transfer overhead
  • Wake-on-LAN support enables remote power-up capability
  • PCI 32-bit 33/66 MHz interface fits legacy desktop slots

TRENDnet TEG-PCITXR PCI Gigabit Adapter

The TRENDnet TEG-PCITXR is a PCI Gigabit network adapter designed for desktop computers with a legacy 32-bit PCI slot. It provides a single RJ45 port supporting 10/100/1000Mbps speeds with auto-negotiation and Auto MDI-X capability. The card operates on the 32-Bit 33/66Mhz PCI bus conforming to Rev 2.1/2.2/2.3 specifications. Built-in FIFO buffers of 8K/64K reduce memory transfer overhead during data transmission.

Ideal for upgrading older systems

This adapter suits users adding wired Gigabit Ethernet to an older PC or server that only has available 32-bit PCI expansion slots. It supports legacy operating systems including Windows 98 through Windows 7, Linux Kernel 2.4.x/2.6.x, and Novell NetWare. Buyers with modern motherboards lacking PCI slots, or those requiring PCI Express connectivity, should look at a different interface card.

32-Bit PCI Bus Interface

The decisive specification is the 32-Bit PCI interface operating at 33/66Mhz. This determines physical compatibility with the host system expansion slot. Verify the motherboard has a standard 5V or universal 32-bit PCI slot before purchase. The card draws 3.7watts and includes Wake On LAN functionality for remote power management.

Points forts

  • Gigabit speeds up to 1000 Mbps for fast wired networking
  • Auto-negotiation and auto MDI-X simplify cable connections
  • Built-in 8K/64K FIFO buffers reduce memory transfer overhead
  • Wake-on-LAN support enables remote power-up capability
  • PCI 32-bit 33/66 MHz interface fits legacy desktop slots

Caractéristiques

BrandTRENDnet
ModelTEG-PCITXR
StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, ANSI/IEEE 802.3 Auto-Negotiation, PCMCIA 2.x
Speed10/100/1000Mbps
Connectors1 x RJ45
InterfacePCI
BUS32-Bit 33/66Mhz PCI Rev 2.1/2.2/2.3
LEDsLink, Activity
DriversWindows 7 (32/64-bit)/ Vista (32/64-bit) /XP (32/64-bit) /2000/NT4.0/ME /98.
Novel NetWare Server 5.x / 6.x.
Linux Kernel 2.4.x / 2.6.x.
Wake On LANYes
Temperature0°C ~ 40°C
Humidity10 % ~ 90 % (Non-condensing)
FeaturesProtocol: CSMA/CD
Power Consumption: 3.7watts
Certification: CE, FCC
Built-in FIFO (8K/64K) buffers reduce overhead of memory transfers.
Plug and Play
Dimensions4.7" x 2.3" x 0.6"
Weight0.35

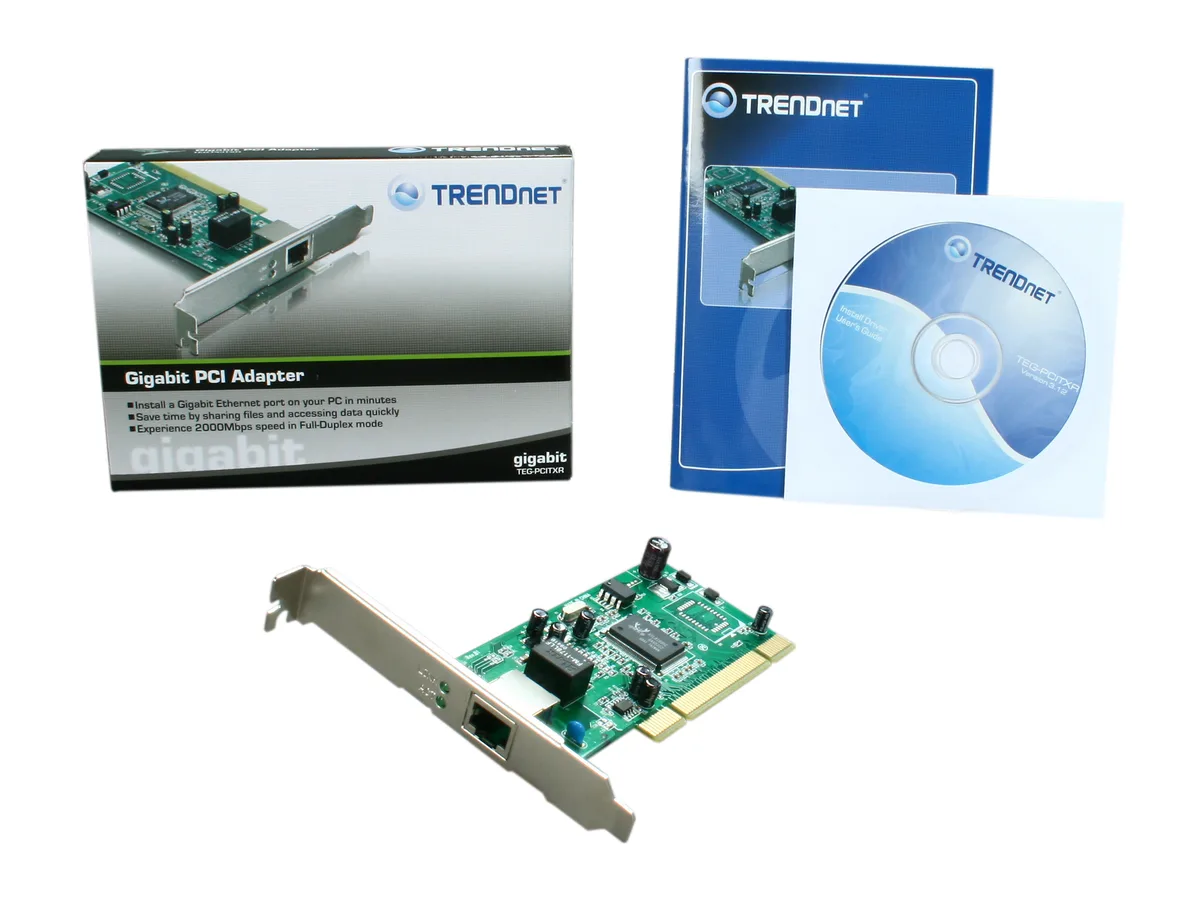

Package ContentsTEG-PCITXR
Multi-Language Quick Installation Guide
CD-ROM (Drivers)
Poids d’expédition0.16 kg
Dimensions du colis187 × 137 × 30 mm

Questions sur cet article

Does this card need a 32-bit PCI slot on the motherboard?

Yes, it plugs into a 32-bit PCI slot running at 33 or 66 MHz and complies with PCI Rev 2.1, 2.2 or 2.3.

Will it negotiate speed with my 100 Mbps switch?

It supports 10/100/1000 Mbps auto-negotiation, so it will drop to 100 Mbps when connected to a slower switch.

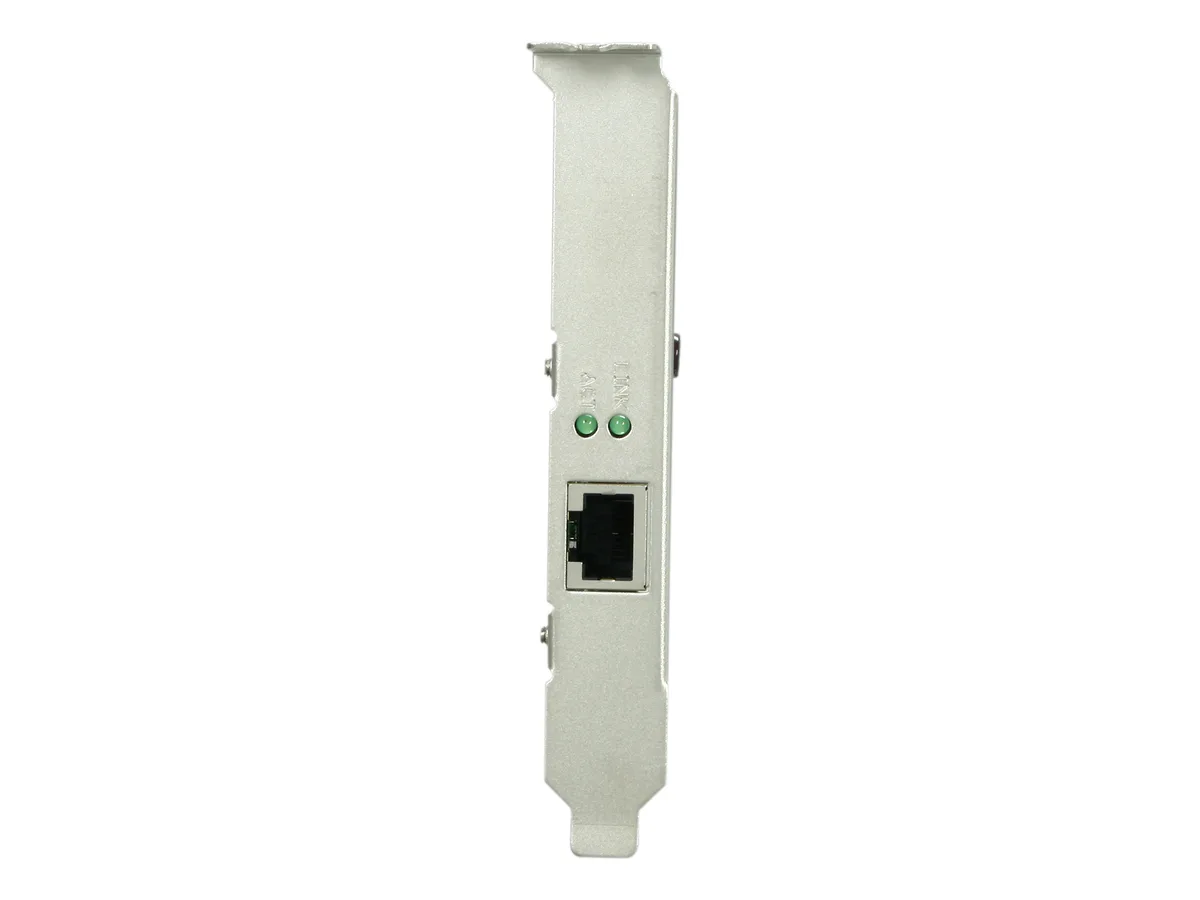

Which LED shows the link is up?

The Link LED lights solid when a network connection is detected.
