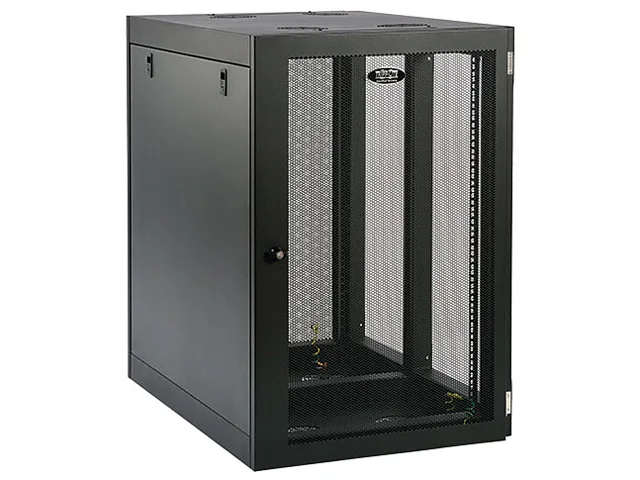

Black steel wall-mount rack cabinet, 18U, vented doors, side panel, 24.8in deep

Tripp Lite

Tripp Lite SRW18UHD 18U Side-Mount Wall-Mount Rack Enclosure Cabinet

SKU CH-RA0E-WP0JR MPN SRW18UHD

Wall-mount 19 in. rack cabinet holds 18U of server-depth gear up to 32.5 in. deep while extending only 24 in. from the wall

  • TypeSide-Mount Wall-Mount Rack Enclosure Cabinet
  • Rack Units18U
  • ColorBlack
  • Weight Capacity500 lbs.
  • SpecificationInstalled whole system maximum rack depth: 32.5" Installed w
  • FeaturesHeavy-Duty/High Weight Capacity side-mount construction 18U
  • Holds 18U of 19 in. rack gear up to 32.5 in. deep
  • Supports 500 lbs. load with heavy-duty side-mount design
  • Extends only 24.8 in. from the wall for space efficiency
  • Locking steel cabinet vented at sides, top and bottom for airflow
  • Includes 42 M6 cage nuts, screws and washers plus key set

Side-Mount 18U Enclosure

The Tripp Lite SRW18UHD is an 18U side-mount wall cabinet that holds 19-inch rack equipment up to 32.5 inches deep while extending less than 25 inches from the wall. It supports a maximum load of 500 lbs and meets EIA-310-E standards for server and network installations.

Included Mounting Hardware

The package provides 42 M6 cage nuts, 42 M6 screws, 42 M6 washers, 42 12-24 screws, a key set and an owner's manual so installers can secure gear to square-hole or threaded rails without sourcing extra fasteners.

Depth and Access Limits

Equipment depth is capped at 32.5 inches and the cabinet protrudes 24.8 inches from the wall, so deeper servers will not fit; side access is provided by vented doors and a removable panel but front-to-rear airflow paths are constrained by the side-mount orientation.

Points forts

  • Holds 18U of 19 in. rack gear up to 32.5 in. deep
  • Supports 500 lbs. load with heavy-duty side-mount design
  • Extends only 24.8 in. from the wall for space efficiency
  • Locking steel cabinet vented at sides, top and bottom for airflow
  • Includes 42 M6 cage nuts, screws and washers plus key set

Caractéristiques

BrandTripp Lite
ModelSRW18UHD
TypeSide-Mount Wall-Mount Rack Enclosure Cabinet
Rack Units18U
ColorBlack
Weight Capacity500 lbs.
SpecificationInstalled whole system maximum rack depth: 32.5"
Installed whole system minimum rack depth: 3"
EIA Mounting Rails: Square holes / 12-24 threaded holes
CERTIFICATIONS
Certifications: EIA-310-E
NOM (Mexico): Tested NOM (Mexico)
Approvals: RoHS
FeaturesHeavy-Duty/High Weight Capacity side-mount construction
18U of server depth equipment capacity
Fully vented doors and side panel
Adjustable front and rear rails
Dual-rail mounting designs supports equipment mounting via square holes or threaded holes
500lb weight capacity
Included AccessorySRW18UHD Wall-mount enclosure cabinet
(42) M6 cage nuts
(42) M6 equipment mounting screws
(42) M6 washers
(42) 12-24 equipment mounting screws
(1) Key set
Owner's Manual
Unit Dimension36.96" x 36.22" x 24.77"
Unit Weight119.9 lbs.
Shipping Dimension41.33" x 37.80" x 25.60"
Shipping Weight137.5 lbs.
Poids d’expédition68.04 kg
Dimensions du colis1082 × 972 × 668 mm

Questions sur cet article

What maintenance or replacement will the 42 M6 cage nuts and 42 equipment mounting screws need later?

The 42 M6 cage nuts and 42 M6 equipment mounting screws are included for initial installation; replacements are only needed if threads strip or hardware is lost during future equipment changes.

What limit shows up first when the 500 lb weight capacity is fully used on the 18U side-mount rails?

The 500 lb maximum load capacity is the structural limit; the side-mount design reduces leverage on the wall, so the cabinet frame reaches its rated capacity before the wall mounting does.

How much heat builds up when the fully vented doors and side panel run all day with 18U of servers at 32.5 in depth?

Fully vented doors, top, bottom and removable side panel provide passive airflow; heat dissipation depends on the installed equipment's own cooling and room ambient temperature.
