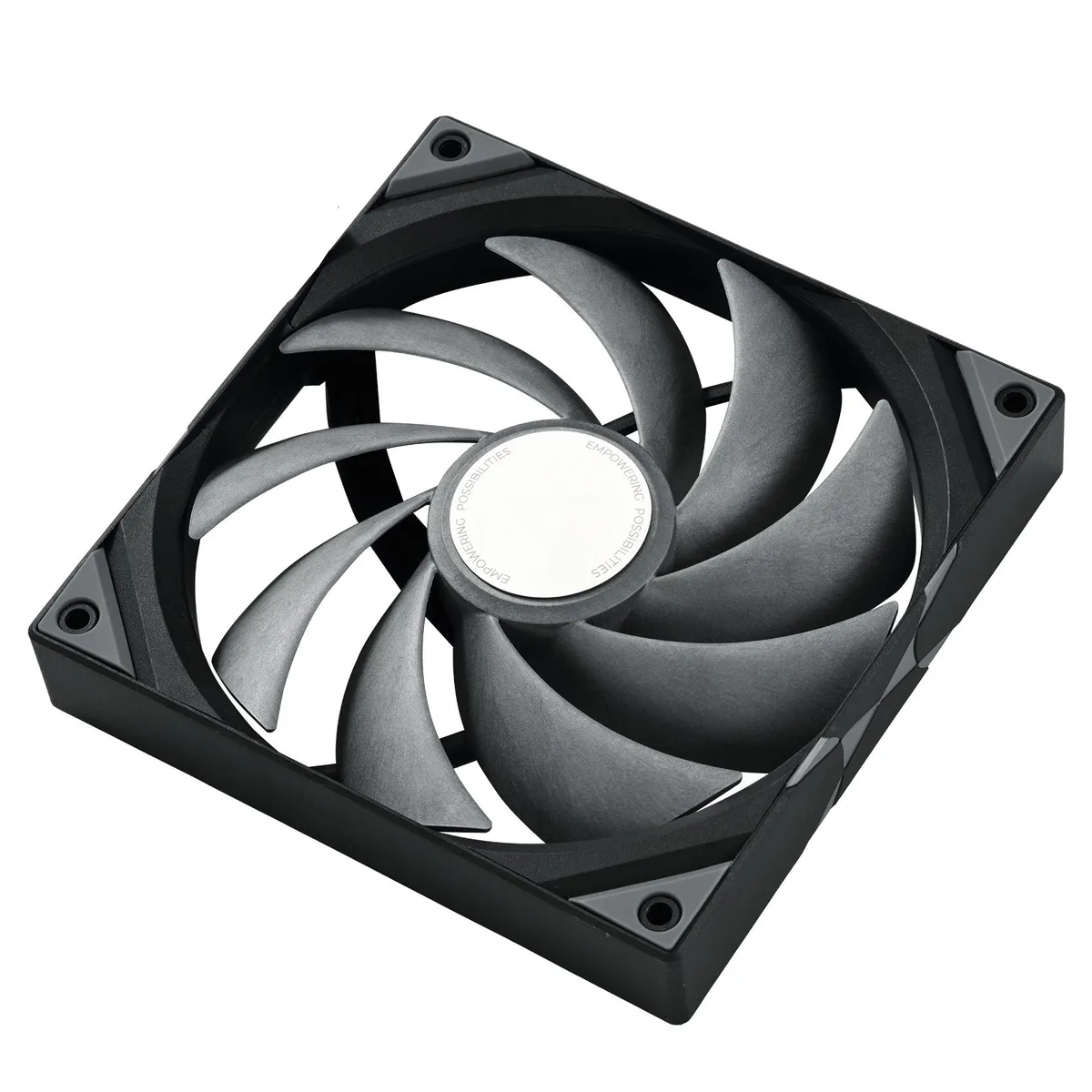

Black 140mm square case fan with LCP blades and vibration pads

TRYX

TRYX F-R140P-NN1M-G0K ROTA PRO 140 140mm case fan 1650RPM 100.3CFM

SKU CH-18DH-FJ338 MPN F-R140P-NN1M-G0K

A 140 mm case fan with fluid dynamic bearing, liquid crystal polymer blades and 4‑pin PWM control delivering up to 100.3 CFM at 1650 RPM while staying under 32 dBA

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size140mm
  • Fan Thickness25mm

Fan Size 140mm

Option 140mm

  • High airflow of 100.3CFM cools cases efficiently
  • 53mmAq static pressure suits radiators and coolers
  • Fluid Dynamic Bearing runs at 32dBA for quiet operation
  • LCP blades and PBT frame resist heat and wear
  • 500-1650RPM PWM range balances performance and silence

TRYX ROTA PRO 140mm PWM Case Fan

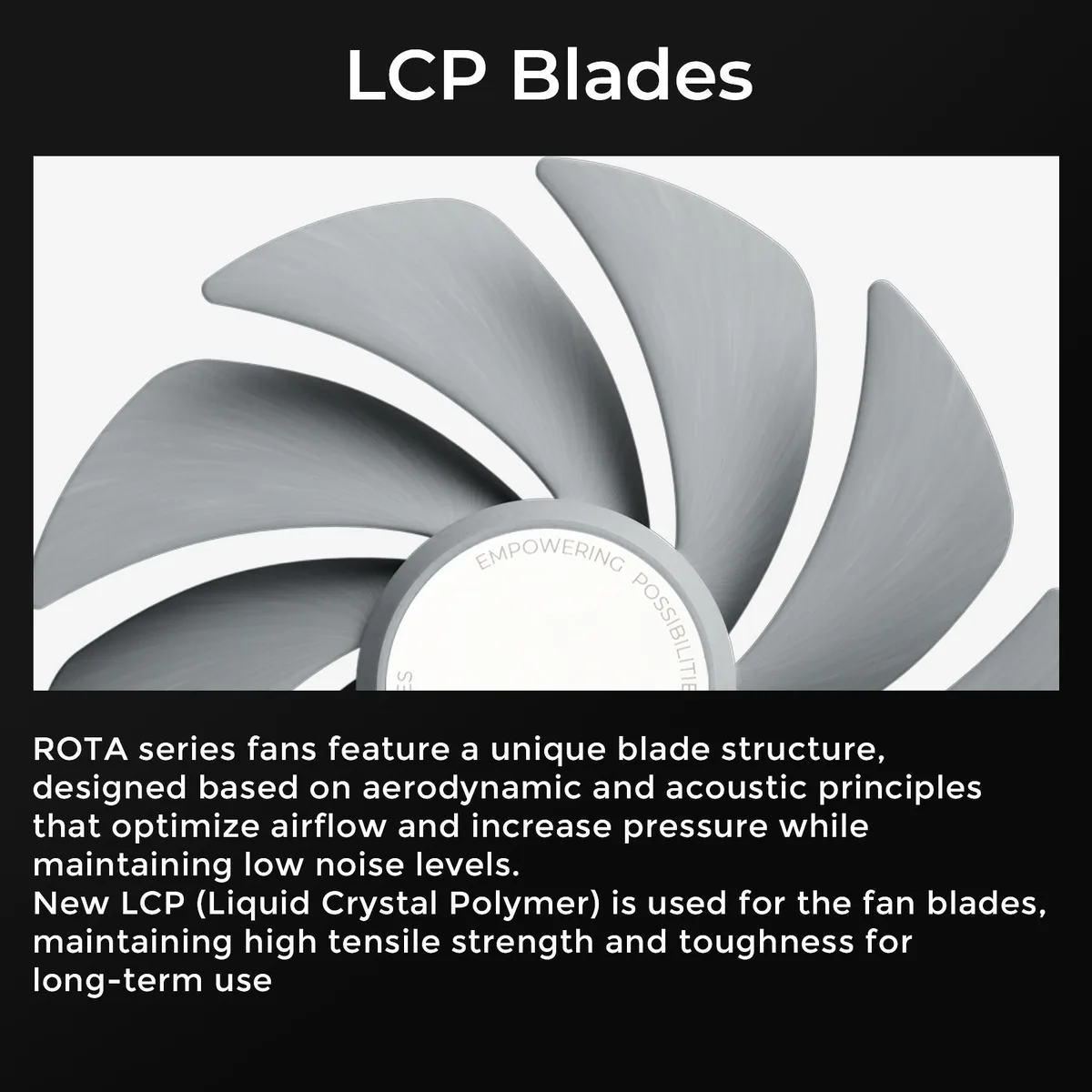

The TRYX ROTA PRO 140 is a 140mm case fan built for builders who want strong airflow with low noise. It uses a 4-pin PWM connector for automatic speed control between 500 and 1650RPM. The fan frame is made from industrial-grade PBT and the blades from Liquid Crystal Polymer for durability. It suits standard case mounts, CPU air coolers, and AIO radiators.

Upgrade from stock or sleeve-bearing fans

This fan replaces basic 140mm fans that use sleeve bearings or lower static pressure. The jump is worth it when you need 2.53mmAq pressure for restrictive radiators or dense heatsink fins. It delivers 100.3CFM maximum airflow while keeping noise at 32dBA under full load. Buyers who need higher static pressure than 2.53mmAq or speeds above 1650RPM should look elsewhere.

Simple four-screw install with vibration pads

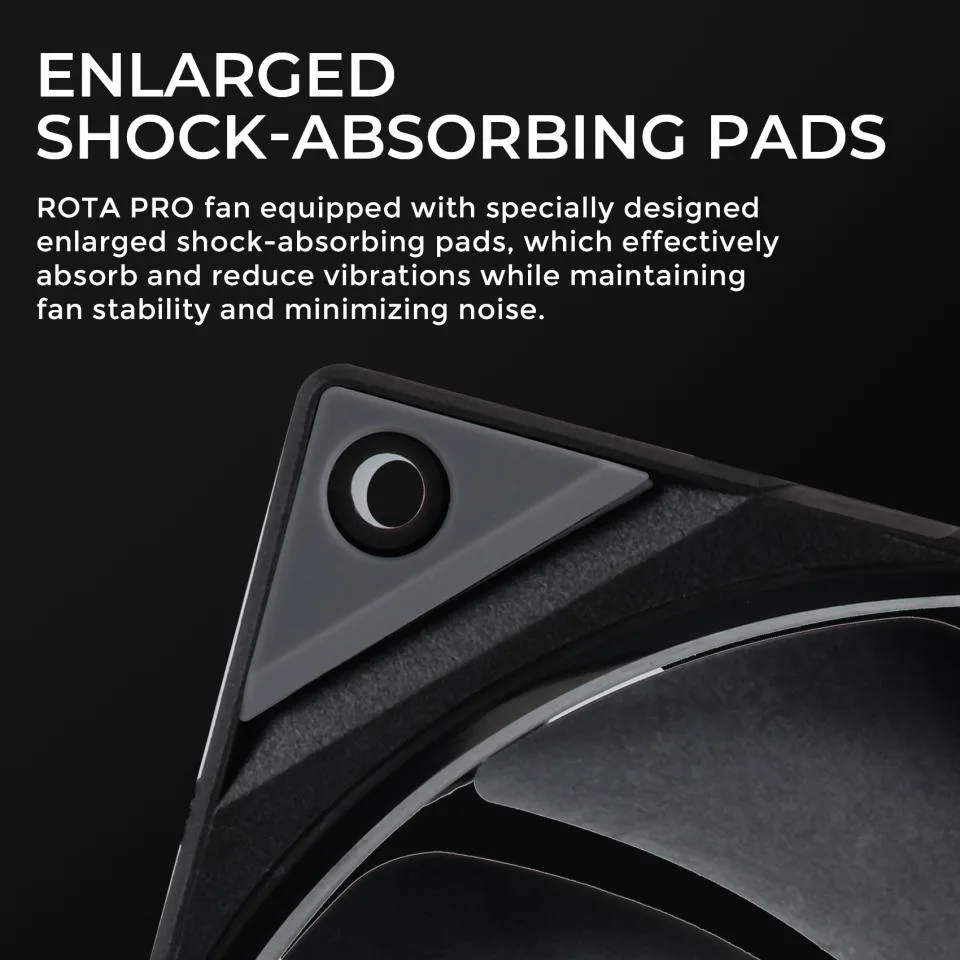

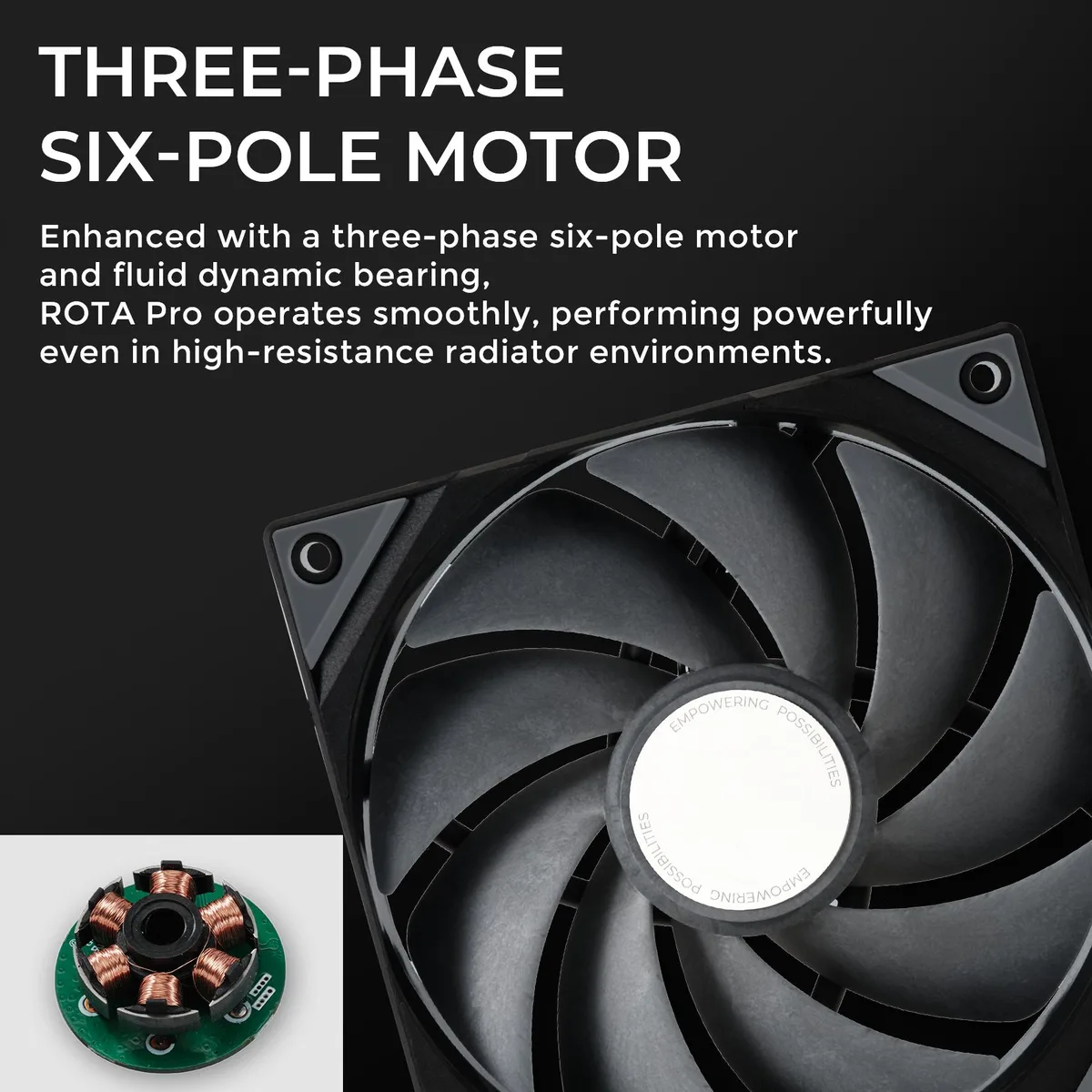

Installation uses standard 140mm mounting holes and includes four large noise-damping pads to absorb vibration. The fluid dynamic bearing and three-phase six-pole motor keep rotation stable. An extended cable is supplied for routing flexibility. The only common issue is ensuring the 25mm thickness clears nearby components in tight layouts.

Points forts

  • High airflow of 100.3CFM cools cases efficiently
  • 53mmAq static pressure suits radiators and coolers
  • Fluid Dynamic Bearing runs at 32dBA for quiet operation
  • LCP blades and PBT frame resist heat and wear
  • 500-1650RPM PWM range balances performance and silence

Caractéristiques

BrandTRYX
ModelROTA PRO 140
Part NumberF-R140P-NN1M-G0W
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size140mm
Fan Thickness25mm
Bearing TypeFluid Dynamic Bearing

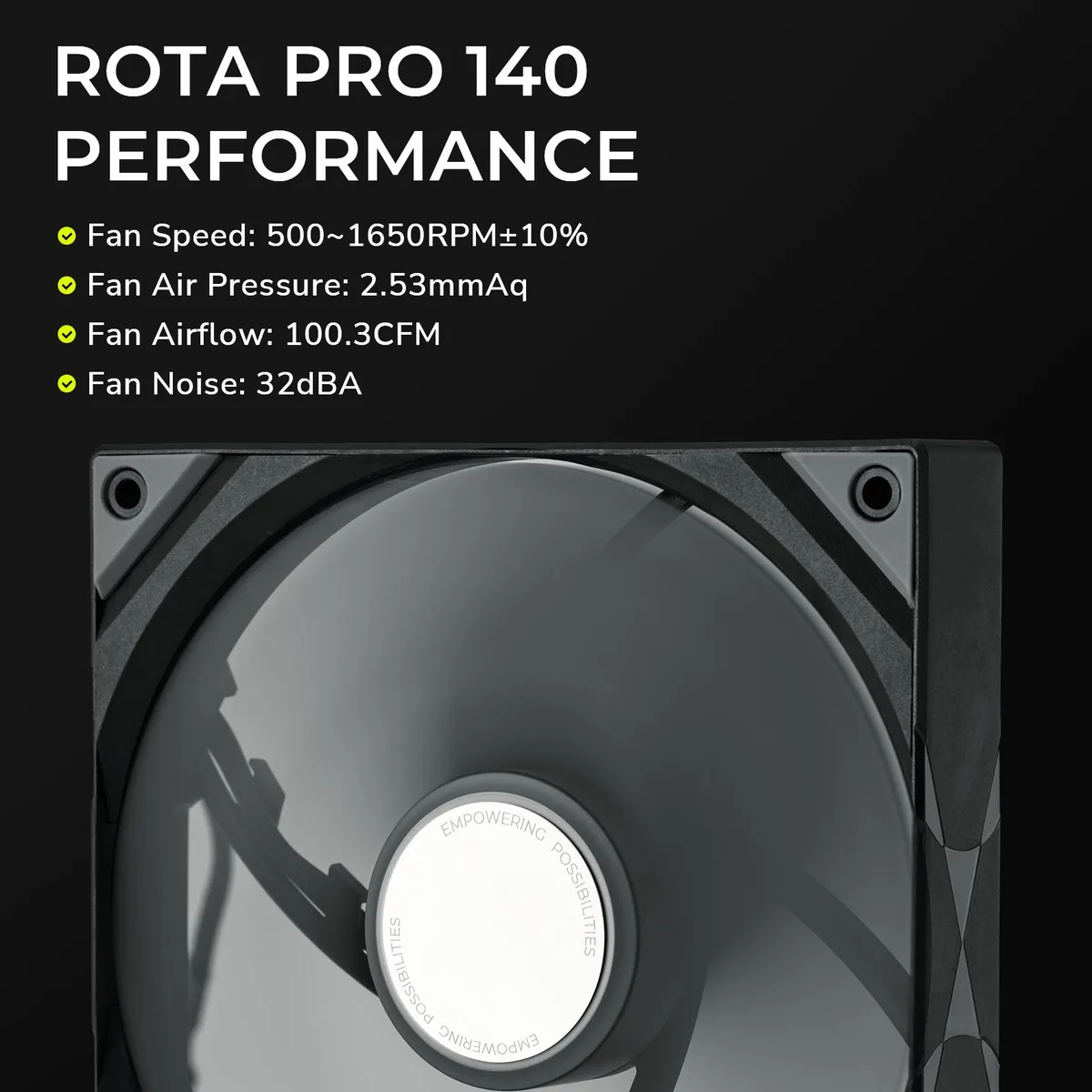

RPM500~1650RPM±10%
Air Flow100.3CFM
Air Pressure2.53mmAq
Noise Level32dBA
Power Connector4 Pin
ColorBlack
FeaturesLiquid Crystal Polymer

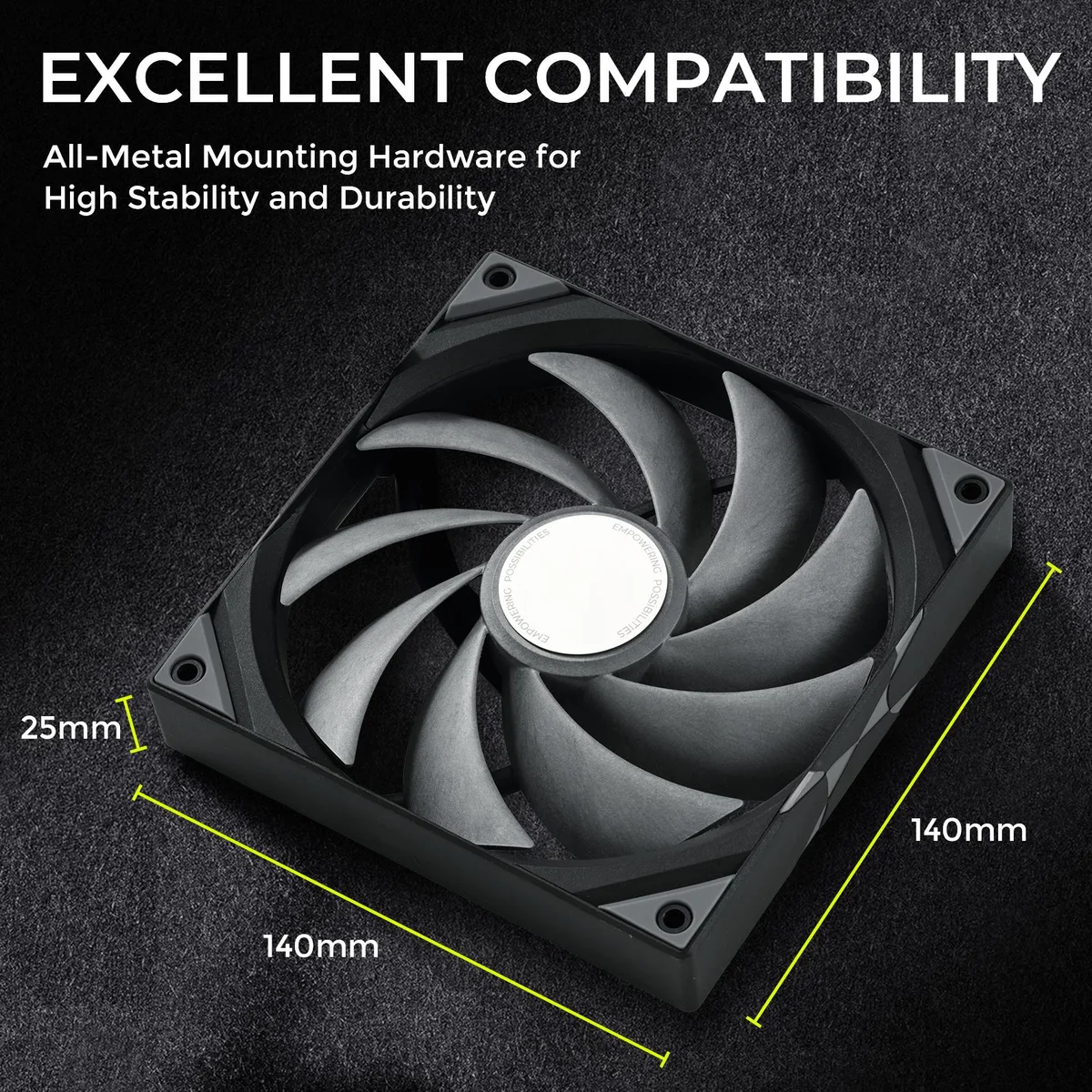

Dimensions140x140x25mm
Package ContentsROTA PRO Fan, Extended Cabel, Accessories
Poids d’expédition0.23 kg
Dimensions du colis152 × 152 × 38 mm

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the 140mm by 25mm frame fit standard 140mm case mounts and AIO radiators?

Yes, the fan measures 140x140x25mm and is listed as compatible with cases, AIO radiators and CPU air coolers in push or pull configurations.

How do I connect the 4-pin PWM plug and the extended cable without mis-wiring the fan?

Plug the 4-pin PWM connector directly into a motherboard fan header; the extended cable simply lengthens the reach and carries the same four wires, so orientation stays identical.

When should I expect to replace the Fluid Dynamic Bearing or clean the LCP blades?

The FDB is rated for long life with no lubrication needed; clean the LCP blades with compressed air whenever dust buildup reduces the 100.3CFM airflow or raises noise above 32dBA.
