Square white router with GPON and four LAN ports, three signal LEDs on front

Ubiquiti Networks

Ubiquiti Networks UF-WiFi6-US GPON wireless router

SKU CH-GHKW-X33MH MPN UF-WiFi6-US

GPON CPE with integrated WiFi 6, four GbE LAN ports and dual-band 2.4/5 GHz wireless up to 1.2 Gbps

  • Standards(1) SC/APC, ITU-G.984 GPON WAN port (4) GbE RJ45 LAN ports
  • WiFi GenerationWiFi 6
  • Wireless Standard802.11 b/g/n/ac/ax
  • SecurityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)
  • WPAWPA-PSK WPA-ENT WPA WPA2 WPA3 TKIP AES
  • WAN Ports(1) SC/APC, ITU-G.984 GPON WAN port
  • GPON WAN delivers fibre-speed internet to the premises
  • Four Gigabit LAN ports wire devices at full line rate
  • WiFi 6 with 2×2 MIMO reaches 1.2 Gbps on 5 GHz
  • USB-C and passive PoE give flexible power options
  • Compact 140.8 × 141.5 × 31.7 mm design fits tight spaces

GPON CPE with integrated WiFi 6

The Ubiquiti Networks UF-WiFi6-US is a GPON customer-premises device that combines an ITU-G.984 WAN port with a four-port Gigabit Ethernet switch and dual-band WiFi 6. It targets subscribers whose ISP delivers service over a compatible fibre OLT and who want wired and wireless distribution in one unit.

Upgrade from separate ONT and router

Replacing a standalone optical network terminal plus a separate router removes an extra power supply, reduces cabling and consolidates management. The jump is worth it when the provider authorises this CPE on their OLT and the subscriber needs both 2.4 GHz and 5 GHz WiFi 6 alongside four wired ports.

Check OLT compatibility and power options

This device works only with the provider’s Fiber OLT and cannot connect to third-party OLTs. Verify that the ISP provisions the UF-WiFi6-US on their network. Power can be supplied by the included 5 V DC USB-C adapter or by 24 V passive PoE on pins 4,5+ and 7,8- within a 10–30 V range.

Points forts

  • GPON WAN delivers fibre-speed internet to the premises
  • Four Gigabit LAN ports wire devices at full line rate
  • WiFi 6 with 2×2 MIMO reaches 1.2 Gbps on 5 GHz
  • USB-C and passive PoE give flexible power options
  • Compact 140.8 × 141.5 × 31.7 mm design fits tight spaces

Caractéristiques

BrandUbiquiti Networks
ModelUISP Fiber WiFi 6
Part NumberUF-WiFi6-US
Standards(1) SC/APC, ITU-G.984 GPON WAN port
(4) GbE RJ45 LAN ports
WiFi GenerationWiFi 6
Wireless Standard802.11 b/g/n/ac/ax
SecurityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)
WPAWPA-PSK
WPA-ENT
WPA
WPA2
WPA3
TKIP
AES
WAN Ports(1) SC/APC, ITU-G.984 GPON WAN port
LAN Ports(4) GbE RJ45 LAN ports

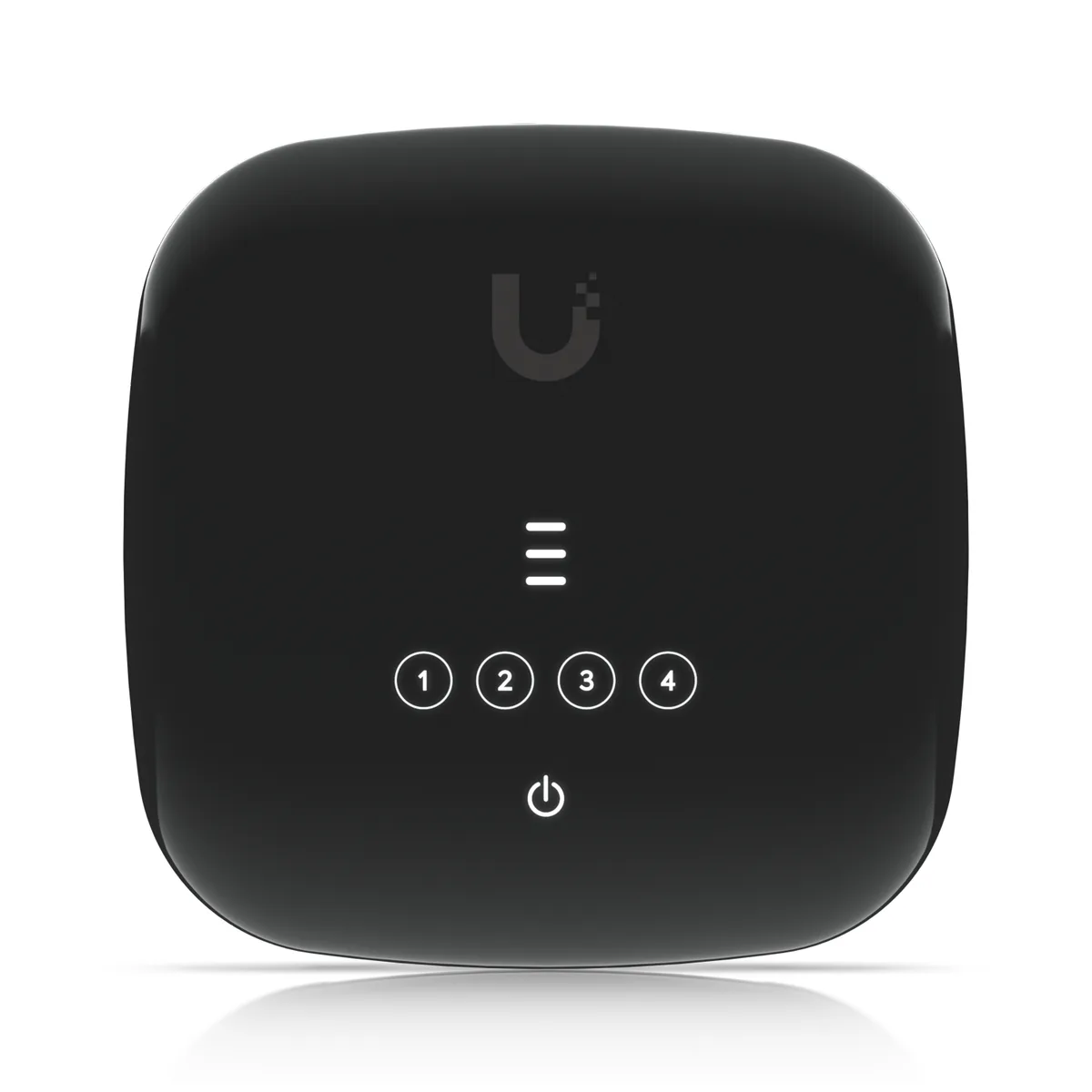

LEDsPON status (3) signal LEDs
All-OFF: bootup
1x orange: signal too low (< -28 db)
1x white: signal low (>= -28 db)
2x white: signal good (>= -25 db)
3x white: signal strong (>= -11 db)
1x orange + 2x white: signal too strong (>= -8 db)
3x orange: no signal
LEDs alternate between orange + white + orange and a signal strength indicator: No authority
Ethernet Steady white: link up
Blinking white: activity
OFF: link down
Power White: ON
Wireless Data Rates802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11ax (WiFi 6) 8.6 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)
Frequency Band2.4 GHz / 5 GHz
AntennaMax. WiFi TX power
2.4 GHz
5 GHz
20 dBm
20 dBm
MIMO
2.4 GHz
5 GHz
2 x 2
2 x 2
Max. WiFi radio rate
2.4 GHz
5 GHz
300 Mbps
1.2 Gbps
Antenna gain
2.4 GHz
5 GHz
1 dBi
3 dBi
Power SupplyPower method USB-C 5V DC, 3A
24V passive PoE, 0.5A
Power supply 5V DC, 3A power adapter, 1.5 m cord (included)
Passive PoE 2-pair (4, 5+; 7, 8-)
Supported voltage range 10–30V DC (passive PoE)
5V DC (adapter)
Max. power consumption 11W
Dimensions140.8 x 141.5 x 31.7 mm (5.5 x 5.6 x 1.3")
Weight415 g (14.6 oz)
Temperature-15 to 45° C (5 to 113° F)
Humidity10 to 90% noncondensing
Special FeaturesFiber
Operating wavelength
TX
RX
1310 nm
1490 nm
Line code Scrambled NRZ
Optical interface nominal bit rate
Downstream
Upstream
2488.32 Mbit/s
1244.16 Mbit/s
Physical reach 20 km
Poids d’expédition0.73 kg
Dimensions du colis216 × 178 × 64 mm

Questions sur cet article

What fibre connector and wavelength does the GPON port use?

The WAN port is an SC/APC connector operating at 1310 nm transmit and 1490 nm receive wavelengths.

How is the unit powered and which PoE pins carry voltage?

It accepts a 5 V DC 3 A USB-C adapter or 24 V passive PoE on pairs 4,5+ and 7,8-; the PoE input supports 10–30 V DC.

What do the three PON LEDs indicate about signal strength?

All off means boot-up; one orange shows signal below -28 dB, one white shows -28 dB or higher, two white shows -25 dB or higher, three white shows -11 dB or higher, one orange plus two white warns of excessive signal above -8 dB, and three orange means no signal detected.
