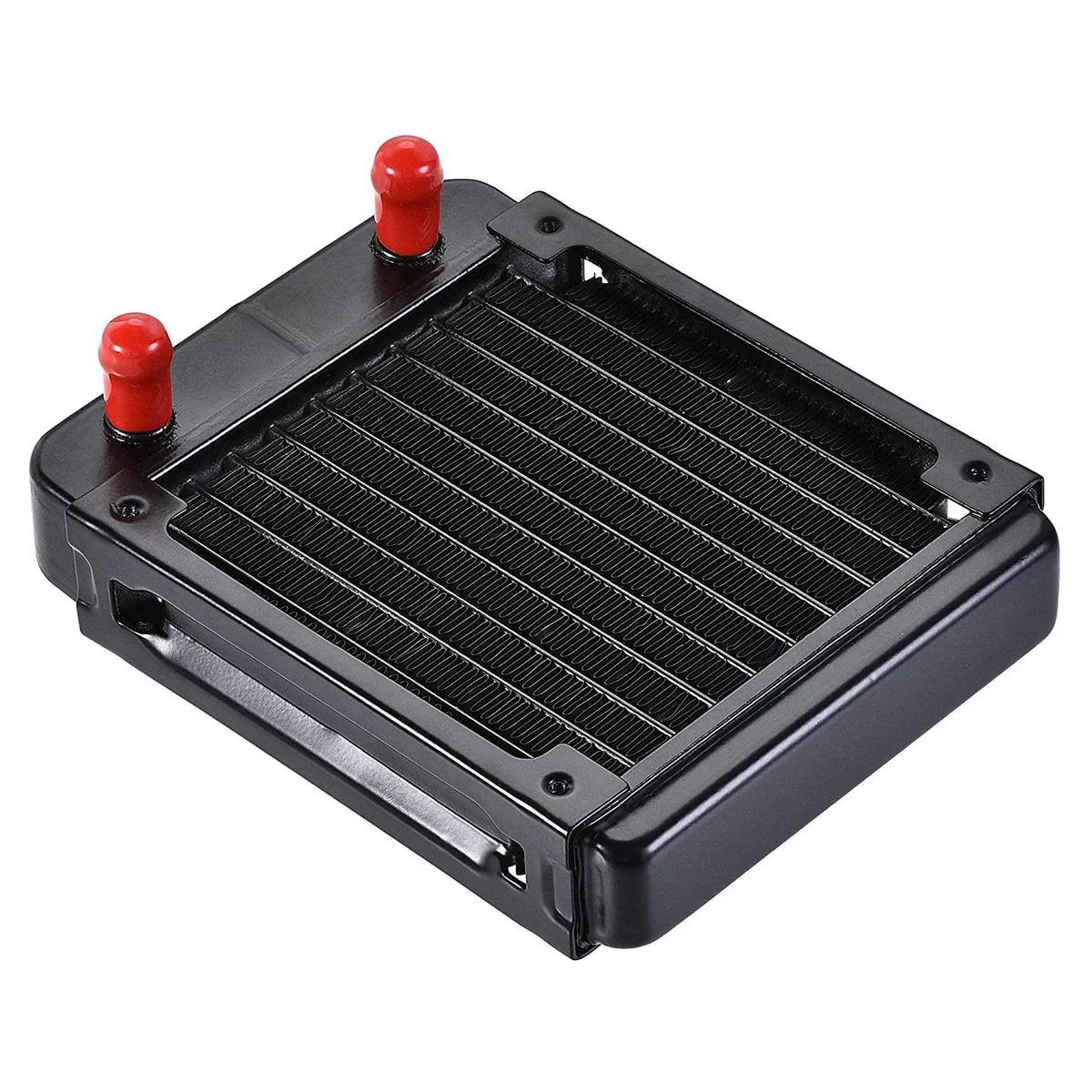

Rectangular aluminium radiator with ten parallel tubes and two offset nozzles

UXCell

UXCell Liquid Cooler Radiator 155×120×49 mm 10 Tubes

SKU CH-8FJR-YNM6M

Aluminium 10-tube radiator measuring 155×120×49 mm with 8 mm nozzles for CPU liquid-cooling loops

  • TypeLiquid Cooling System

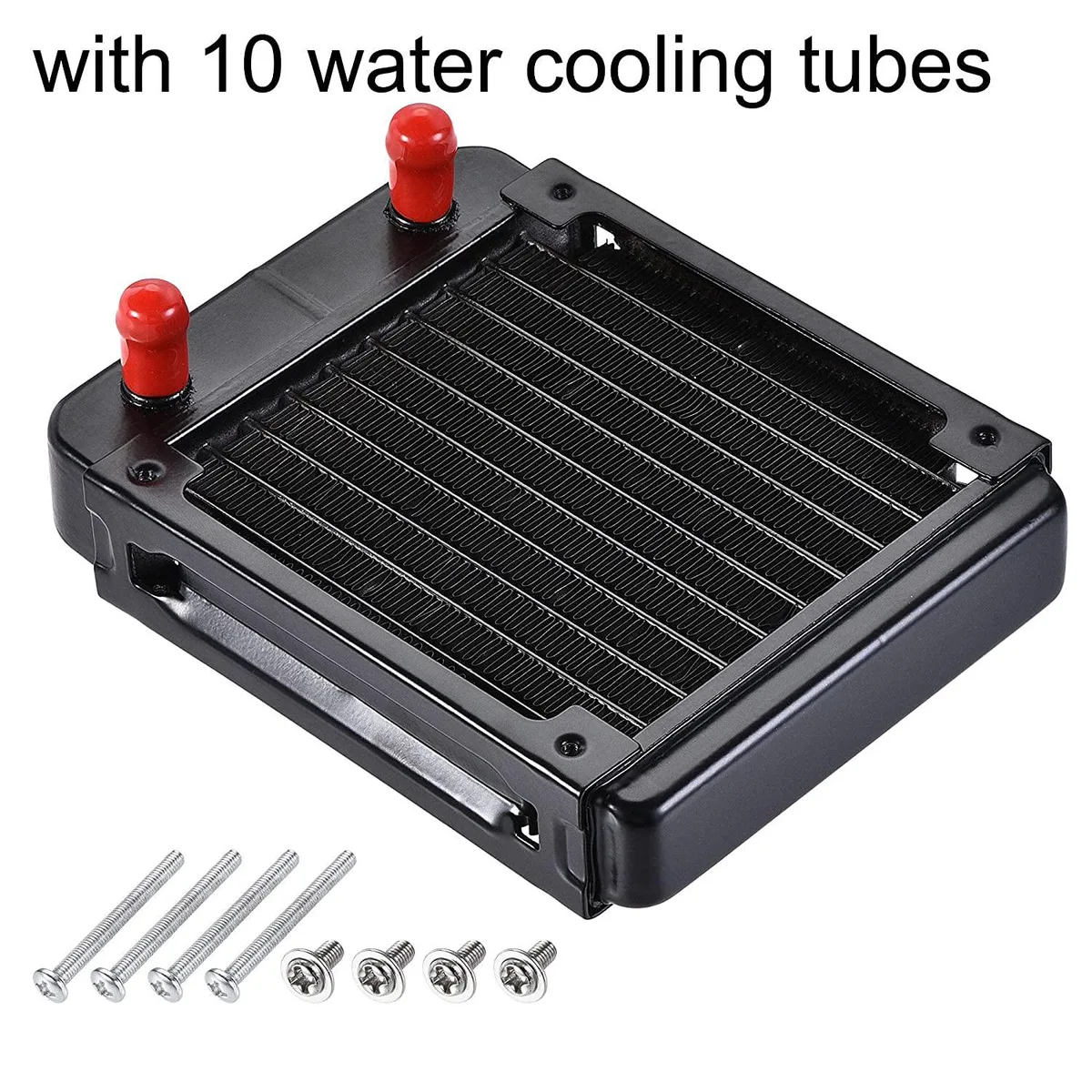

  • Efficient heat dissipation from 10 aluminium tubes
  • Compact 155×120×49 mm size fits tight builds
  • 32 mm core thickness increases cooling surface
  • 8–10 mm hose compatibility simplifies loop assembly
  • Reversible nozzles remove inlet/outlet guesswork

10-Tube Aluminium CPU Radiator

This 155×120×49 mm radiator uses ten aluminium tubes to dissipate heat from a liquid-cooled processor. The 32 mm thick core presents a large surface area for coolant flow. Nozzles accept 8–10 mm hose and require no designated inlet or outlet. It is built for custom CPU water-cooling loops in desktop computers.

Upgrade from stock air coolers

Builders moving from factory heatsinks gain quieter operation and lower thermal loads at equivalent fan speeds. The jump is worthwhile when case clearance accommodates the 49 mm overall thickness and a 120 mm fan mount. Systems already running a custom loop can add this radiator to increase total loop capacity without changing tubing diameter.

Suits custom-loop builders with 120 mm mounts

Enthusiasts assembling open-loop cooling for a single CPU will find the dimensions and hose compatibility straightforward. It does not suit builds limited to thinner radiators, those requiring copper construction, or loops needing multiple radiators in series for high-wattage overclocks.

Points forts

  • Efficient heat dissipation from 10 aluminium tubes
  • Compact 155×120×49 mm size fits tight builds
  • 32 mm core thickness increases cooling surface
  • 8–10 mm hose compatibility simplifies loop assembly
  • Reversible nozzles remove inlet/outlet guesswork

Caractéristiques

TypeLiquid Cooling System

Questions sur cet article

Will the 155 mm × 120 mm radiator with 32 mm body thickness fit my case mounting points?

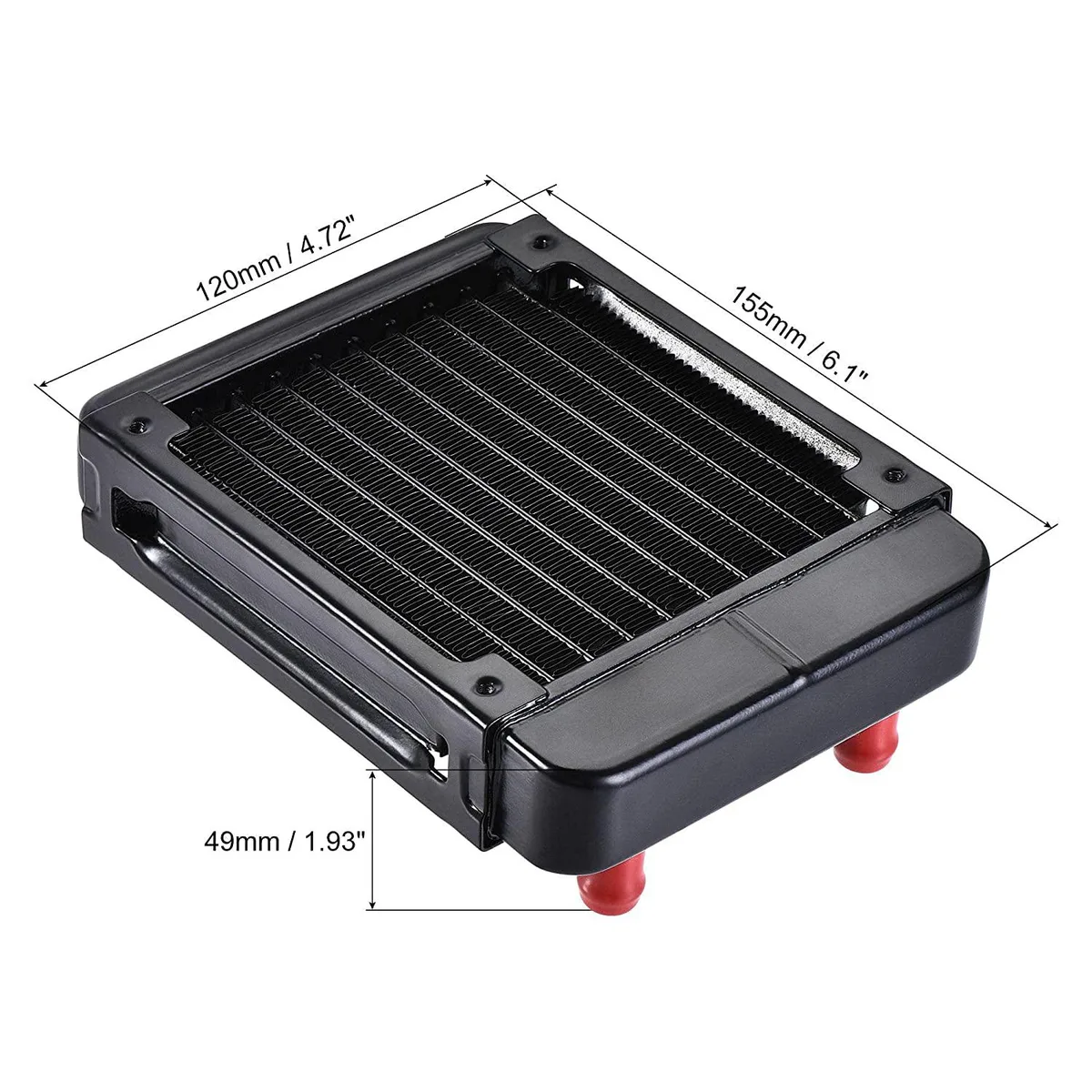

The radiator measures 155 mm long, 120 mm wide and 49 mm overall thickness including nozzles; the core itself is 32 mm thick, so verify your case supports a 120 mm fan mount with at least 49 mm clearance.

How do I connect the two 8–10 mm nozzles without mixing inlet and outlet?

The nozzles are isolated in the middle; either nozzle can serve as inlet or outlet, so push 8–10 mm ID tubing onto both barbs and secure with clamps — no specific orientation is required.

What upkeep do the 10 aluminium tubes need over time?

Use corrosion-inhibiting coolant, check the aluminium tubes and nozzle joints for leaks or white residue every few months, and flush the loop if flow drops or coolant discolours.
