Silver aluminium CNC router with 500W spindle and LED spotlight

VEVOR

VEVOR CNC Router CN C4040-SS1 500W 400x400mm USB

SKU CH-7P6Q-G8CA5

A 500 W spindle CNC router with a 400 x 400 x 95 mm work area, USB control and 12,000 RPM top speed for wood and acrylic milling

  • TypeOther Appliances
  • 500 W spindle powers through wood and acrylic
  • 400 x 400 x 95 mm work area fits larger projects
  • USB connection plugs straight into a computer
  • 12 000 RPM spindle speed delivers clean cuts
  • 6061 aluminium frame keeps the machine rigid

CN C4040-SS1 500W CNC Router

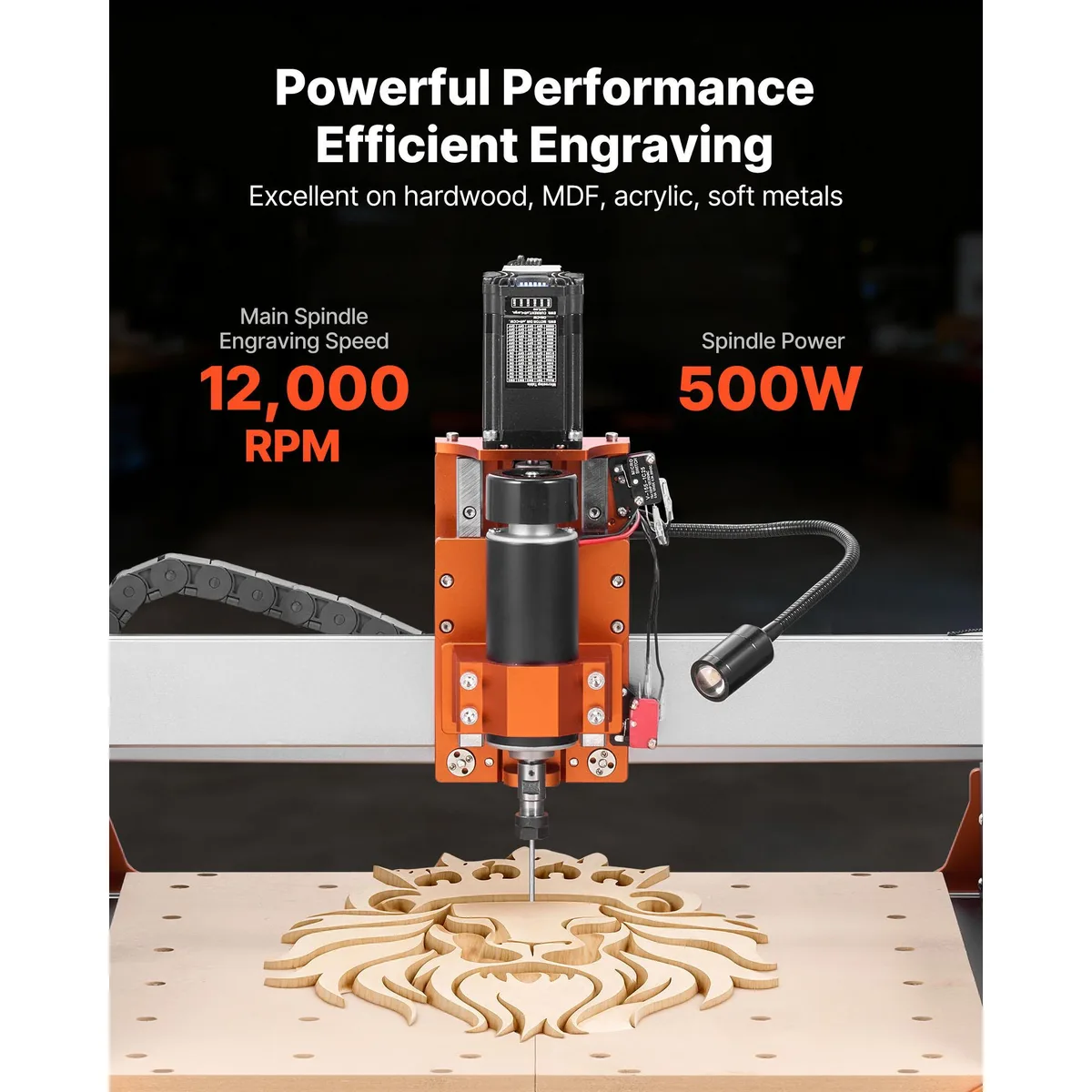

The VEVOR CN C4040-SS1 is a 3-axis CNC router designed for wood, acrylic and similar materials. A 500 W spindle runs at 12,000 RPM to handle engraving and light milling tasks. The 400 x 400 x 95 mm work envelope suits desktop projects and small-batch production. USB connectivity links the controller directly to a computer.

400 x 400 mm work area with USB control

Dual linear rails and a ball screw on each axis provide rigid motion for repeatable cuts. Maximum rapid rates reach 20,000 mm/min on X and Y, with Z limited to 2,000 mm/min. Factory presets start lower at 5,000 mm/min and 500 mm/min for safer break-in. The machine accepts standard AC 100–240 V power without external transformers.

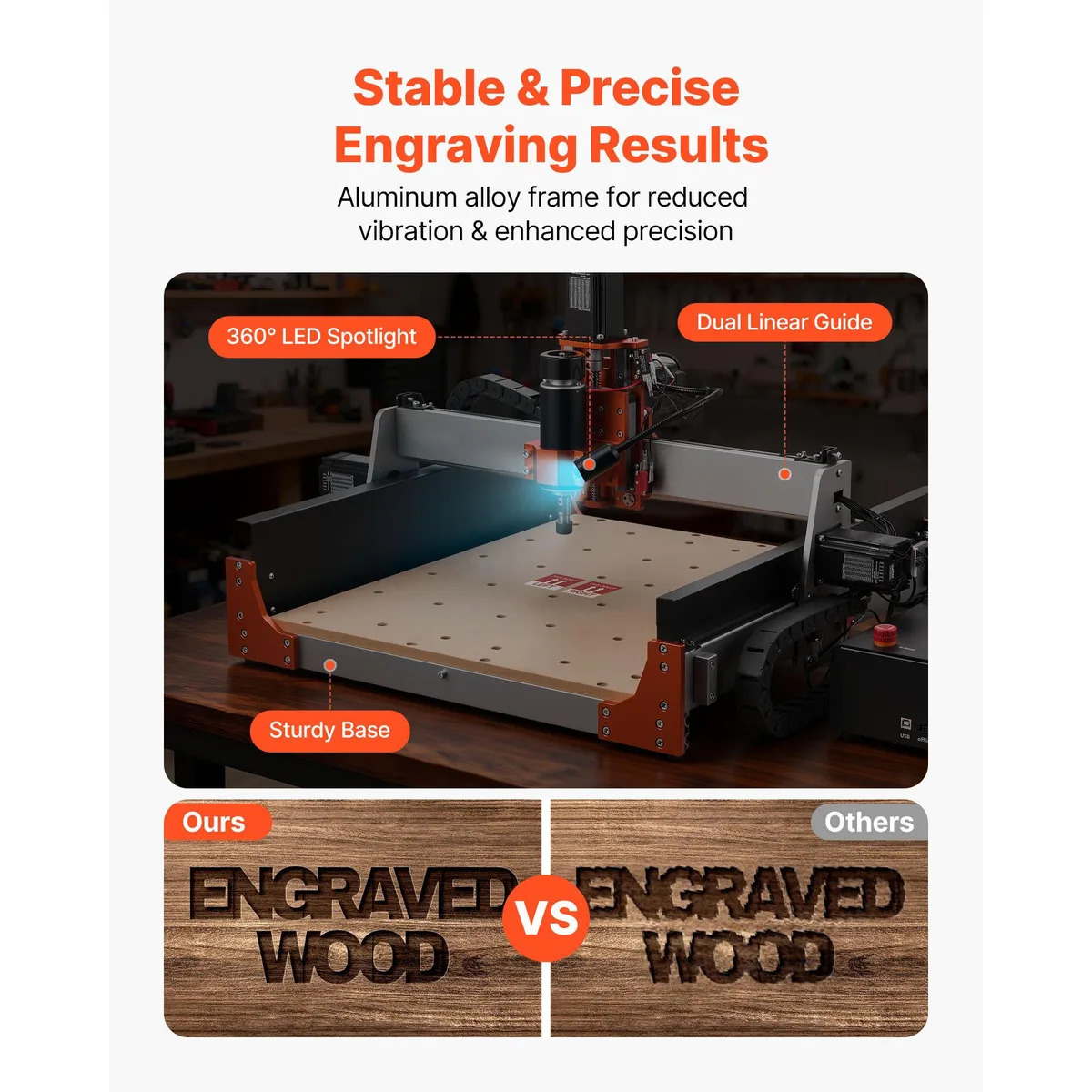

6061 aluminium frame with LED spotlight

The frame is machined from 6061 aluminium alloy for stability during cutting. A 360° LED spotlight illuminates the workpiece for alignment and monitoring. Only the router unit itself is supplied in the package; tooling, work-holding and control software must be sourced separately. Buyers needing a larger envelope or higher spindle power will need a different machine.

Points forts

  • 500 W spindle powers through wood and acrylic
  • 400 x 400 x 95 mm work area fits larger projects
  • USB connection plugs straight into a computer
  • 12 000 RPM spindle speed delivers clean cuts
  • 6061 aluminium frame keeps the machine rigid

Caractéristiques

TypeOther Appliances

Questions sur cet article

How deep can the 500 W spindle cut in a single pass before the 95 mm Z-travel runs out?

The Z-axis provides 95 mm of travel, so the deepest single pass is limited by that 95 mm clearance minus the tool length and workpiece thickness.

How loud and hot does the 500 W spindle get when running at 12 000 RPM all day?

The spindle spins at 12 000 RPM with 500 W maximum power; expect noticeable fan noise and warm air exhaust during continuous operation.

What software and computer port are needed to drive the USB-connected CN C4040-SS1?

A computer with a free USB port and GRBL-compatible control software such as Candle, UGS or LaserGRBL is required to stream G-code to the machine.
