Black aluminum two-bay SATA drive enclosure with dual cooling fans

Wavlink

Wavlink RapidFire H2R 2-bay SATA drive enclosure

SKU CH-SH5R-4YBF6

Two-bay SATA enclosure holds two 3.5″ or 2.5″ drives up to 22 TB each with 10 Gbps USB-C, four RAID modes and auto-sleep after 15 minutes

  • ColorBlack
  • Size2.5" & 3.5"
  • TypeHDD/SSD
  • MaterialAluminum
  • Internal InterfaceSATA
  • External Interface2.5" & 3.5"

Option RapidFire H2R · 2 Bay

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Up to 10Gbps transfer speed via USB 3.2 Type-C port
  • Supports two SATA drives up to 22TB each for 44TB total capacity
  • Four RAID modes: Normal, Large, RAID 0 and RAID 1
  • Aluminium alloy shell with dual fans activating at 48°C for active cooling
  • Hot-swappable bays and auto-sleep after 15 minutes of inactivity

Two-bay SATA enclosure for 3.5 and 2.5 drives

The Wavlink RapidFire H2R holds two SATA hard drives or SSDs in 3.5 or 2.5 inch form factors. Each bay accepts up to 22TB, giving a total of 44TB. It connects via a USB-C port running at 10Gbps and works with Windows, Mac, Linux, Chrome OS, Android, iOS, Harmony OS and iPad OS on computers, phones or tablets with USB-C or USB-A ports.

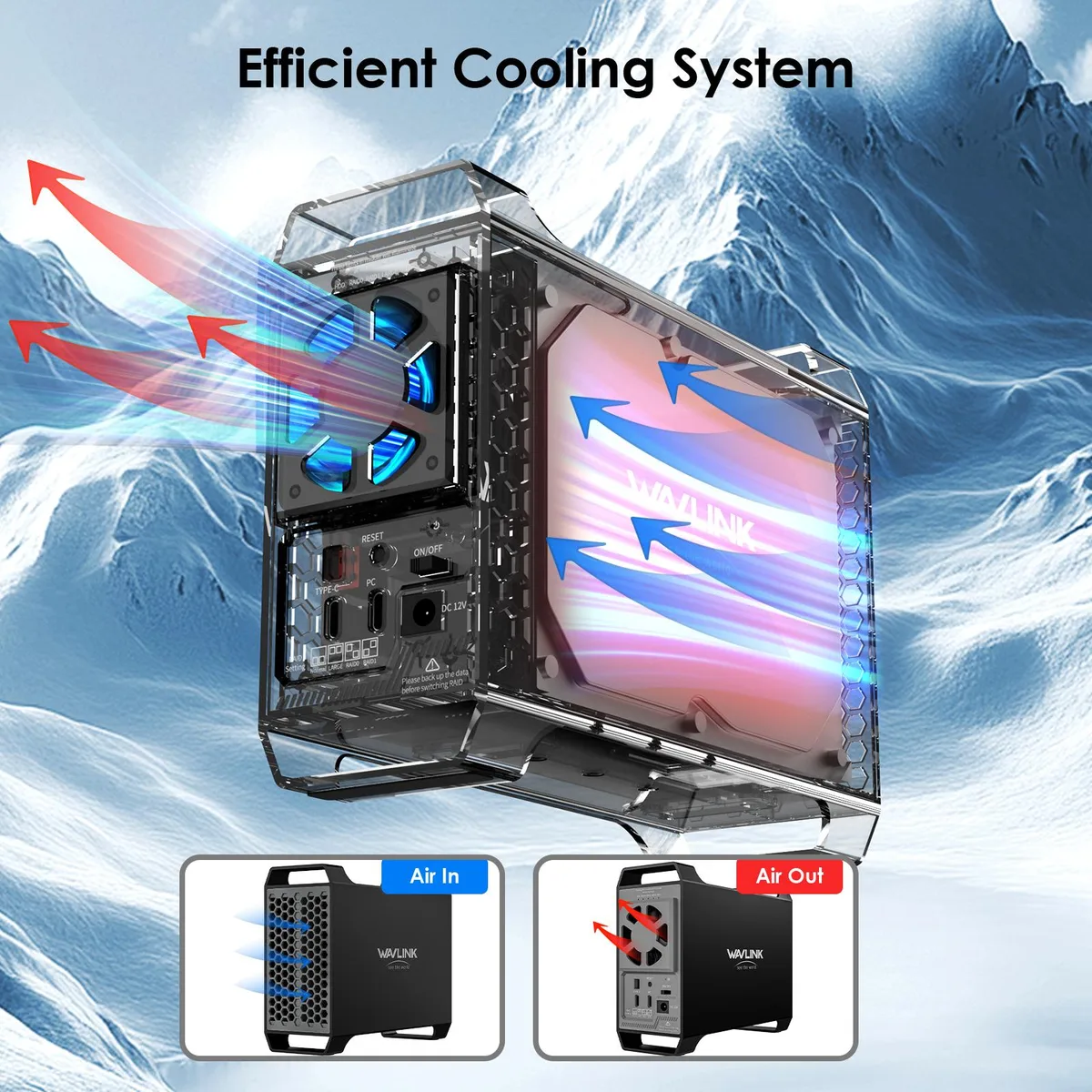

Tool-free trays with automatic cooling

Drives slide into the trays and are secured with the included screws; 2.5 inch drives need separate 2.5 to 3.5 mounting brackets that are not supplied. Dual built-in fans start automatically at 48°C. RAID mode is set by a hardware switch with Normal, Large, RAID 0 and RAID 1 options; changing the mode erases all data on the installed drives, so a backup is essential before switching.

Verify host port and drive preparation

The 10Gbps speed requires a host USB-C port that supports USB 3.2 Gen 2; slower ports will limit performance. New, unformatted SSDs must be partitioned before the operating system can recognise them. The enclosure enters sleep mode after 15 minutes of inactivity and supports hot-swap drive changes without powering down the host. Up to three units can be daisy-chained.

Points forts

  • Up to 10Gbps transfer speed via USB 3.2 Type-C port
  • Supports two SATA drives up to 22TB each for 44TB total capacity
  • Four RAID modes: Normal, Large, RAID 0 and RAID 1
  • Aluminium alloy shell with dual fans activating at 48°C for active cooling
  • Hot-swappable bays and auto-sleep after 15 minutes of inactivity

Caractéristiques

BrandWavlink
ModelRapidFire H2R
ColorBlack
Size2.5" & 3.5"
TypeHDD/SSD
MaterialAluminum
Internal InterfaceSATA
External Interface2.5" & 3.5"
HDD Count Supported2.5 / 3.5 inch SATA Hard Disk
Number of Bay2 Bay
Maximum Capacity (per Bay)Up to 22TB
FanYes
Operating Systems SupportedCompatibility Notes
Systems: Windows, Mac OS, Chrome OS, Linux, Android, iOS, Harmony OS, iPad OS;
Host: Computers/phones/tablets with a USB-C/USB-A port;
HDD/SSD: 3.5" and 2.5'' SATA HDD/SSD. For 2.5'' hard drives, additional 2.5'' to 3.5'' mounting brackets are required(Not included).
Features- One USB-C upstream port transfers speed up to 10Gbps, and is compatible with USB 3.2/3.1/2.0 computers.
- Dual 3.5" SATA HDD for massive storage capacity expansion.
- RAID 0/1/Large/Normal mode for the data of backup, read and write, and other different needs.
- Supports computer-linked control, with synchronized power on and off for the computer.
- Supports multi-disk daisy-chaining, creating a multi-disk, multi-device, multi-task workstation.
- Thickened aluminum panel, low-noise temperature-controlled fan, and honeycomb ventilation holes for efficient heat dissipation.
Package Contents- 1 x Dual Bay USB-C 3.5"SATA HDD Enclosure
- 1 x Power Adapter
- 2 x Screwdriver
- 1 x USB-C to USB-C Cable
- 1 x USB-C to USB-A Cable
- 1 x Quick Start Guide
- Several Screws

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

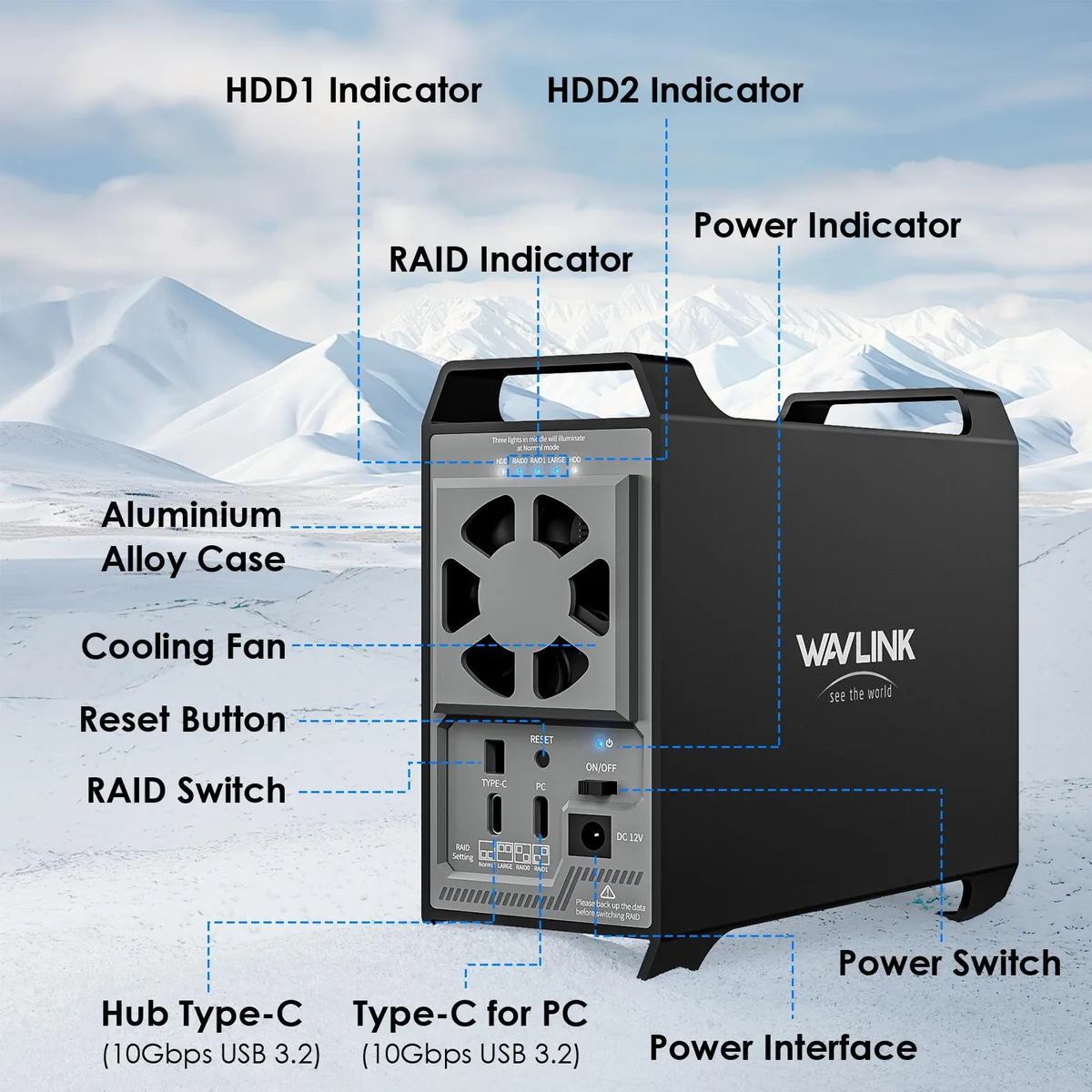

How do I know the enclosure is operating correctly after I connect it?

The dual fans spin up automatically at 48°C, the front LEDs show drive activity and RAID status, and your host device lists both SATA drives at up to 10Gbps over the USB 3.2 Gen 2 link.

What comes in the box and what must I supply myself?

The package includes the dual-bay enclosure, power adapter, USB-C to USB-C cable, USB-C to USB-A cable, two screwdrivers, mounting screws and a quick-start guide; 2.5″ drives need separate 2.5″-to-3.5″ brackets which are not included.

Which RAID mode should I pick for maximum usable capacity versus data safety?

RAID 0 combines both bays for up to 44TB total space with no redundancy; RAID 1 mirrors the drives for protection but halves usable capacity to 22TB; Large spans drives sequentially and Normal treats them as independent volumes.
