Wavlink
Wavlink WL-WNF100X3NR-B AX3000 5G NR Wi-Fi 6 wireless router
A dual-band Wi-Fi 6 router with a SIM slot for 5G NR SA/NSA connectivity, nine internal antennas, two gigabit ports and WPA3 security
- WiFi GenerationWi-Fi 6
- Wireless StandardIEEE 802.11ax
- SecurityWPA3/WPA2-MIX,WPA2-PSK,WPA PSK/WPA2 PSK-MIX,WPA/WPA2-Enterpr
- WPAWPA3
- WAN Ports1 x WAN/LAN1 Port(1000Mbps), 1 x LAN2 Port(1000Mbps)
- LEDs1 x 4G/5G LED, 1 x Wi-Fi LED, 1 x SSI(Signal Strength Indica
- 5G NR and Wi-Fi 6 deliver up to 3.4Gbps cellular and 2975Mbps combined wireless speed
- SA/NSA dual-mode 5G with fallback to 4G LTE keeps you online when broadband fails
- Nine internal omnidirectional antennas cover up to 2000 square feet with stable signal
- WPA3 encryption plus OpenVPN, WireGuard, L2TP and PPTP protect up to 128 connected devices
- Router, 5G/4G or mixed WAN/5G modes with dual 1000Mbps ports adapt to any setup
5G NR & Wi-Fi 6 router
The Wavlink WL-WNF100X3NR-B combines Wi-Fi 6 with SA/NSA dual-mode 5G NR connectivity. It delivers up to 2975Mbps combined wireless speed across 2.4 GHz and 5 GHz bands. A Nano SIM slot enables mobile broadband use. Two Gigabit Ethernet ports provide wired backhaul or WAN fallback.
Home or office users needing flexible WAN
Suits households or small offices that want 5G as primary or backup internet with mesh expansion via the PAIR button. Not for buyers who require more than two wired Gigabit ports. Not for installers needing outdoor-rated hardware or pole-mount brackets.
Dual-mode 5G NR with SIM slot
The single deciding specification is the integrated Qualcomm RM520N-GL module supporting SA and NSA 5G NR bands plus 4G LTE fallback. If your ISP only offers fixed-line broadband, the 5G capability adds no value.
Points forts
- 5G NR and Wi-Fi 6 deliver up to 3.4Gbps cellular and 2975Mbps combined wireless speed
- SA/NSA dual-mode 5G with fallback to 4G LTE keeps you online when broadband fails
- Nine internal omnidirectional antennas cover up to 2000 square feet with stable signal
- WPA3 encryption plus OpenVPN, WireGuard, L2TP and PPTP protect up to 128 connected devices
- Router, 5G/4G or mixed WAN/5G modes with dual 1000Mbps ports adapt to any setup
Caractéristiques
| Brand | Wavlink |
|---|---|
| Model | WL-WNF100X3NR |
| WiFi Generation | Wi-Fi 6 |
| Wireless Standard | IEEE 802.11ax |
| Security | WPA3/WPA2-MIX,WPA2-PSK,WPA PSK/WPA2 PSK-MIX,WPA/WPA2-Enterprise |
| WPA | WPA3 |
| WAN Ports | 1 x WAN/LAN1 Port(1000Mbps), 1 x LAN2 Port(1000Mbps) |
| LEDs | 1 x 4G/5G LED, 1 x Wi-Fi LED, 1 x SSI(Signal Strength Indicator) LED, 1 x Power LED |
| Buttons | 1 x PAIR Button(2s), 1 x RESET Button(6s) |
| Wireless Data Rates | AX3000 |
| Frequency Band | 2.4 GHz / 5 GHz |

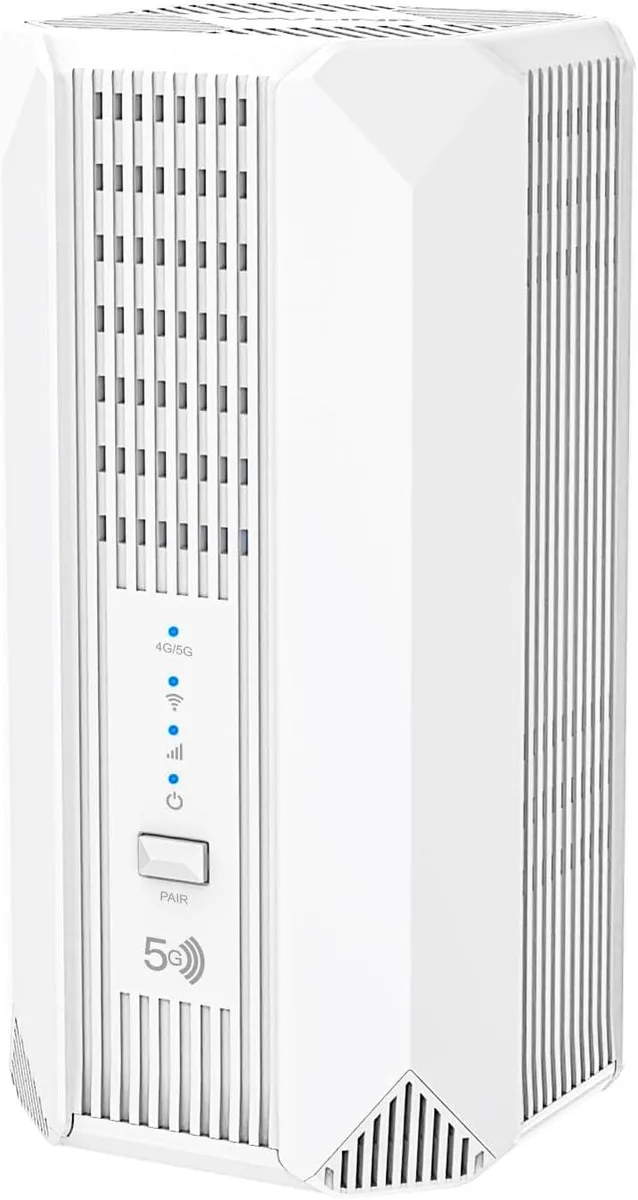

| Antenna | 9x Internal Omni Directional Antennas |
| Operation Mode | router mode, 5G/4G router mode, or mix mode (both WAN and 5G/4G) with one 1000Mbps WAN/LAN port and an additional 1000Mbps LAN port |

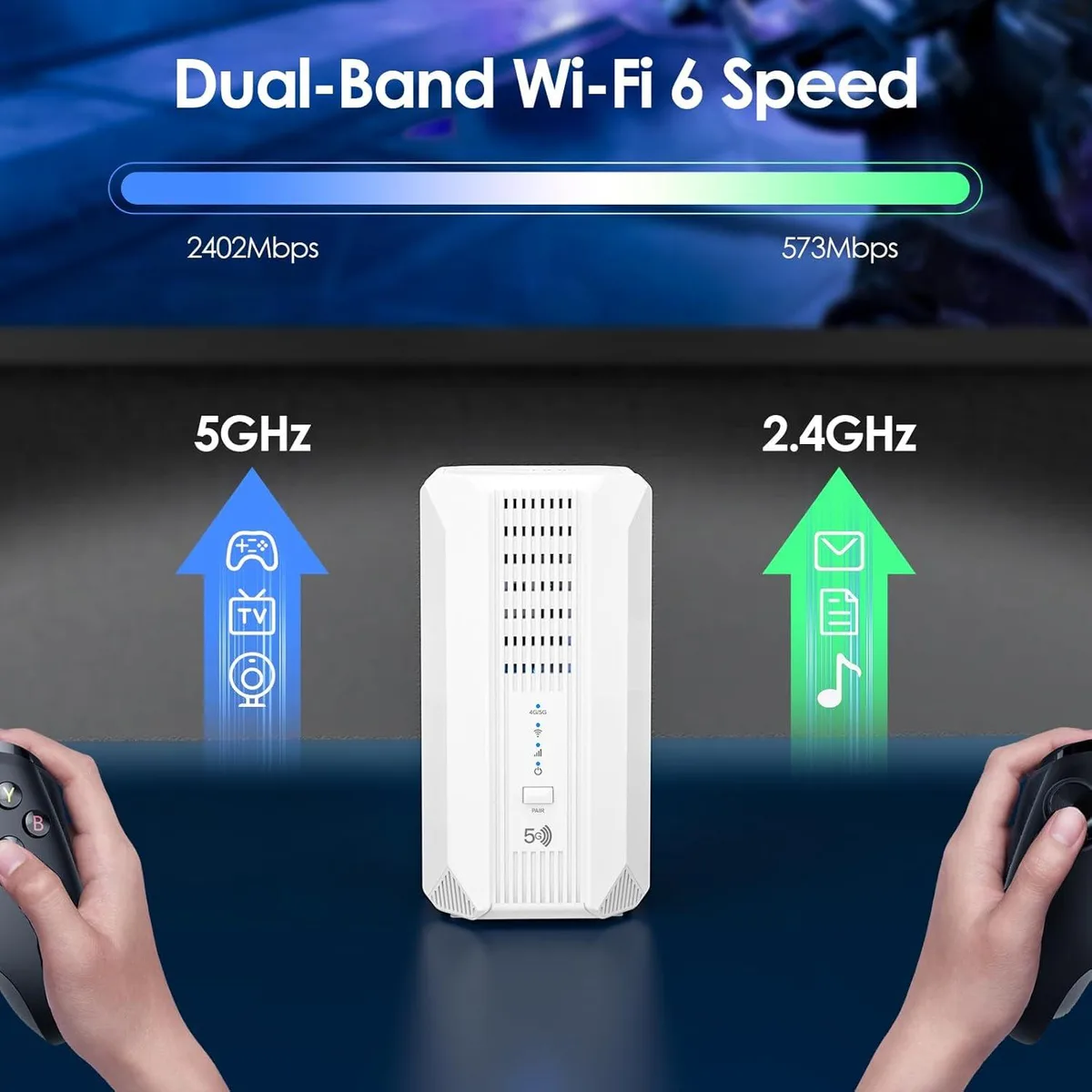

| Special Features | - Supports SA/NSA dual-mode networking and large global 5G frequency bands, compatible with 4G LTE, and supports 3GPP R16 to achieve a smoother, more stable Internet connection. - Supports 5G NR connections at the speed up to 3.4Gbps. - Supports Wi-Fi 6 technology, super fast dual-band Wi-Fi with speeds up to 2402 Mbps on the 5 GHz band and 573 Mbps on the 2.4 GHz band. - Supports automatic detection of 5G/WAN Internet connections. - 9x Internal antennas provide an omni-directional and stable signal and superior wireless performance. - Supports PPTP, L2tp, OpenVPN, and WireGuard and |
| Package Contents | 1 x AX3000 Dual-Band 5G NR Mesh Router 1 x Power Adapter 1 x Ethernet Cable 1 x Quick Start Guide |
Questions sur cet article

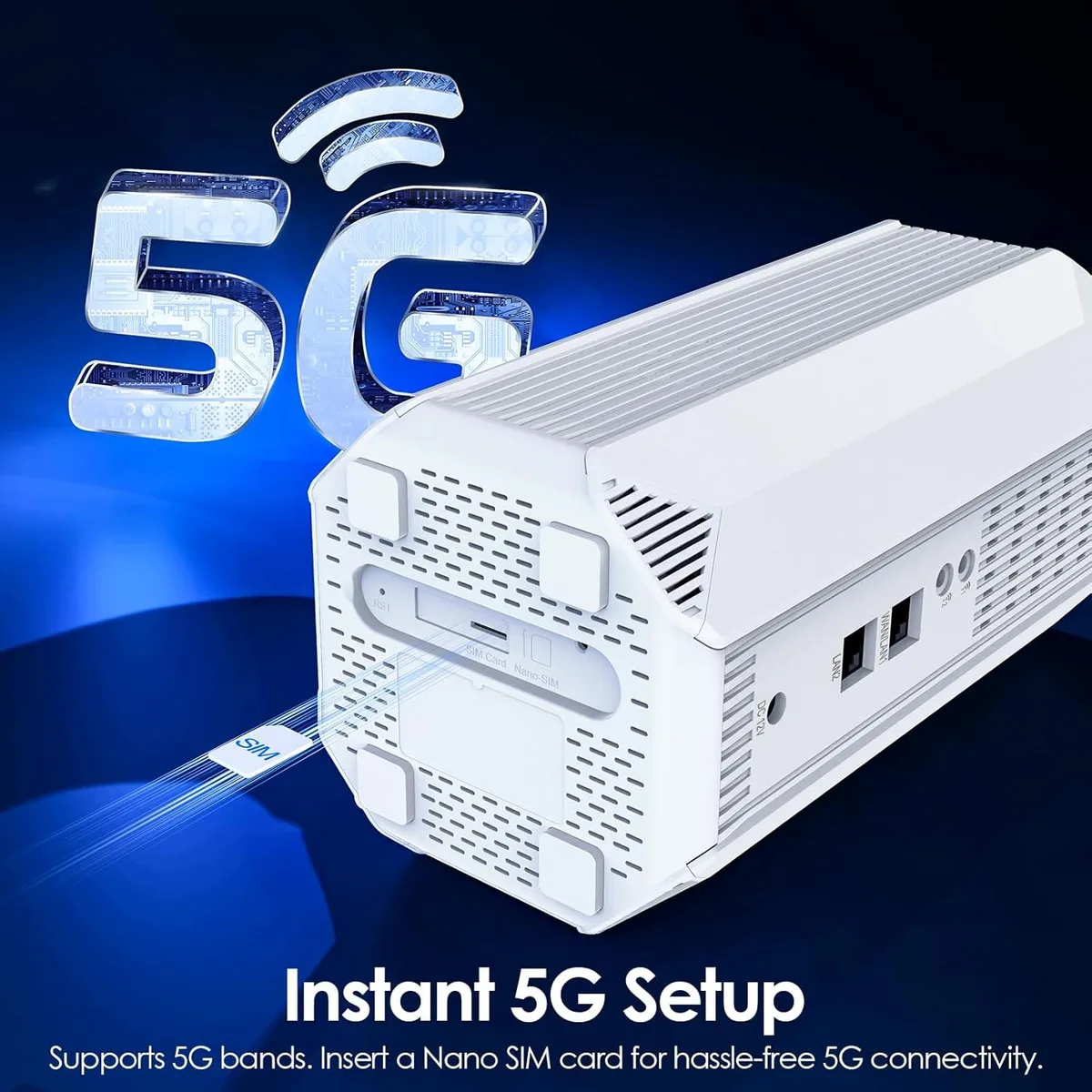

How do I install the SIM card and where do I connect the WAN cable for mix mode?
Insert a Nano SIM into the card slot, then plug your broadband modem into the 1000Mbps WAN/LAN1 port while the SIM handles 5G; the second 1000Mbps LAN port is for wired clients.
What ongoing care do the 9 internal antennas and Qualcomm RM520N-GL module need?
No user maintenance is required; keep vents clear of dust and install firmware updates from the web interface at http://192.168.40.1 to keep the 5G modem and Wi-Fi 6 stack current.
Which limit appears first when the 5G NR link runs at 3.4Gbps sustained?
The two Gigabit Ethernet ports cap wired throughput at 1000Mbps, so the 5G speed cannot be fully passed to wired devices; Wi-Fi 6 clients share the 2975Mbps combined wireless ceiling.
