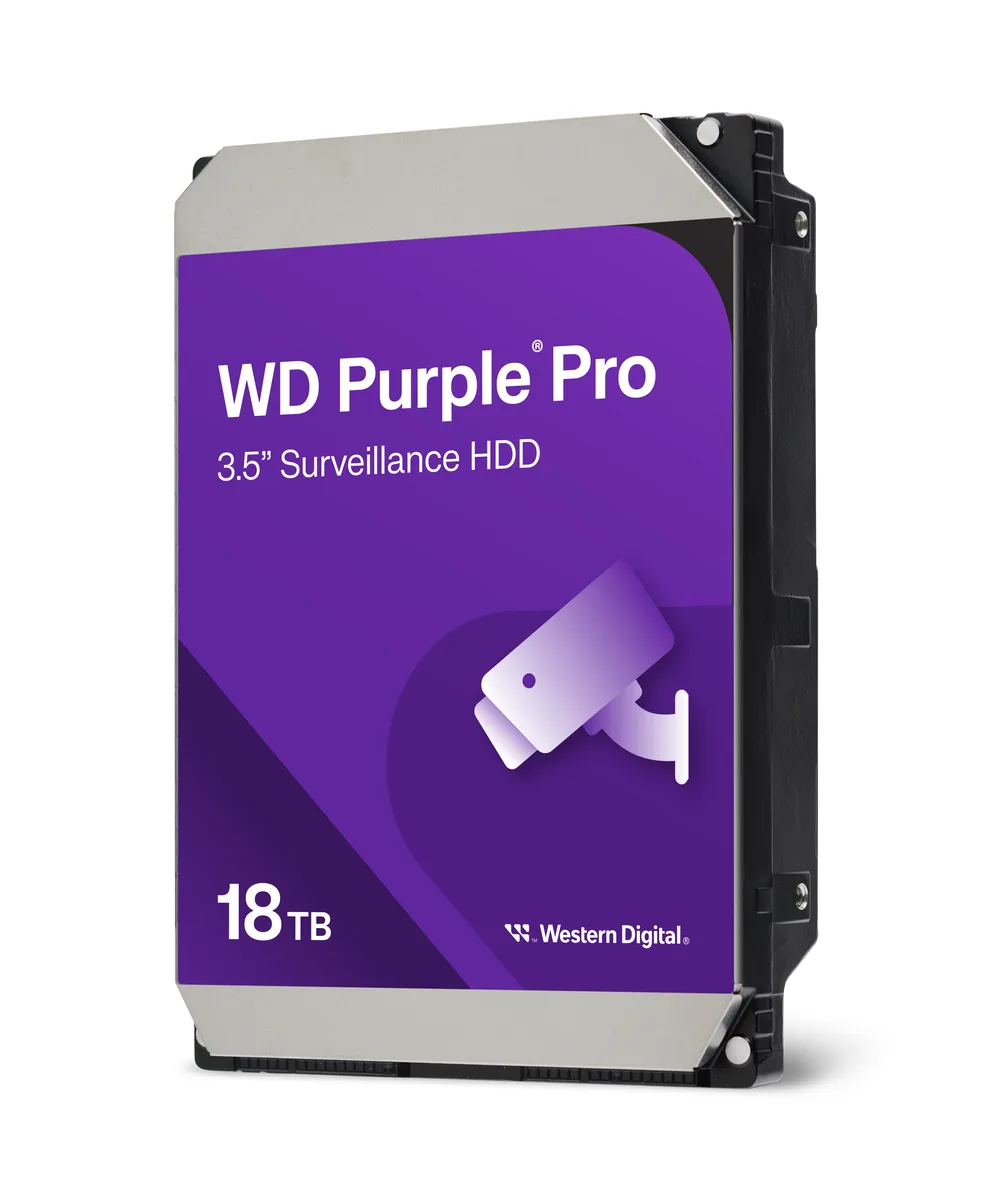

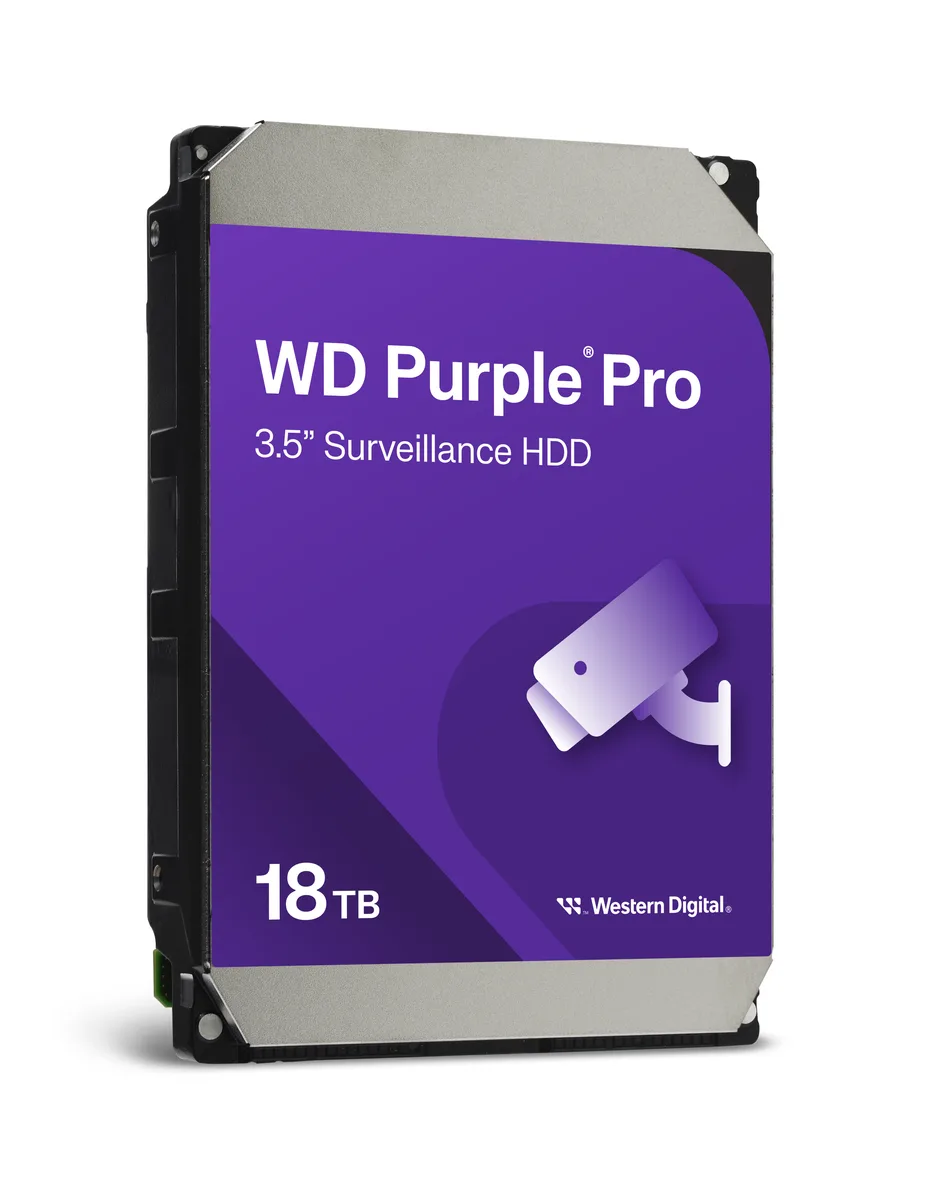

Standard 3.5 inch internal hard drive silver aluminium top cover visible label model WD181PURP 18TB

Western Digital

Western Digital WD181PURP 18TB 7200 RPM 512MB Cache SATA 6.0Gb/s 3.5" Internal Hard Drive

SKU CH-EWTX-2RK2M MPN WD181PURP

An 18 TB 7200 RPM SATA hard drive with 512 MB cache built for 24/7 AI video surveillance workloads up to 550 TB per year

  • InterfaceSATA 6.0Gb/s
  • Capacity18TB
  • NAND Flash Memory TypeHard Drive
  • RPM7200 RPM
  • Cache512MB
  • FeaturesEngineered with advanced capabilities needed for high-end sm

Options 18TB

  • Engineered for AI-enabled smart video recorders with AllFrame AI technology
  • Handles up to 64 single-stream HD cameras for scalable surveillance
  • Supports 32 concurrent AI streams for deep-learning analytics
  • 550TB/year workload rating built for 24/7 capture and analysis
  • 5 million hours MTBF for long-term reliability in always-on environments

Purpose-built surveillance storage

The WD Purple Pro WD181PURP is an 18TB 3.5-inch internal hard drive engineered for AI-enabled video recorders, analytics appliances and deep-learning servers. It targets installers and IT teams who need continuous, high-capacity storage for smart camera networks. The drive is not suited for general-purpose desktop or gaming workloads where sequential throughput or low latency are the primary goals.

Mechanical design and connectivity

A 7200 RPM spindle and 512MB cache sit behind a standard SATA 6.0Gb/s interface, fitting any 3.5-inch bay with 26.10mm height clearance. The conventional SATA data and power connectors mean drop-in compatibility with existing recorders, RAID enclosures and server backplanes. No proprietary mounting rails or adapter cables are required for typical surveillance chassis.

Sustained operation profile

Rated for 550TB per year and 2.5 million hours MTBF, the drive is built for 24/7 capture and analysis. AllFrame AI technology supports up to 64 single-stream HD cameras and 32 concurrent AI streams while reducing frame loss. Power draw and acoustic output remain consistent with enterprise-class 7200 RPM mechanics during continuous write-heavy duty cycles.

Points forts

  • Engineered for AI-enabled smart video recorders with AllFrame AI technology
  • Handles up to 64 single-stream HD cameras for scalable surveillance
  • Supports 32 concurrent AI streams for deep-learning analytics
  • 550TB/year workload rating built for 24/7 capture and analysis
  • 5 million hours MTBF for long-term reliability in always-on environments

Caractéristiques

BrandWD
SeriesPurple Pro
ModelWD181PURP
InterfaceSATA 6.0Gb/s
Capacity18TB
NAND Flash Memory TypeHard Drive
RPM7200 RPM
Cache512MB
FeaturesEngineered with advanced capabilities needed for high-end smart video solutions
High performance, reliability and workload capability for advanced AI-enabled recorders, video analytics appliances, deep-learning servers and cloud-based storage, including RAID and JBOD configurations
Supports up to 550 TB/yr workload rate

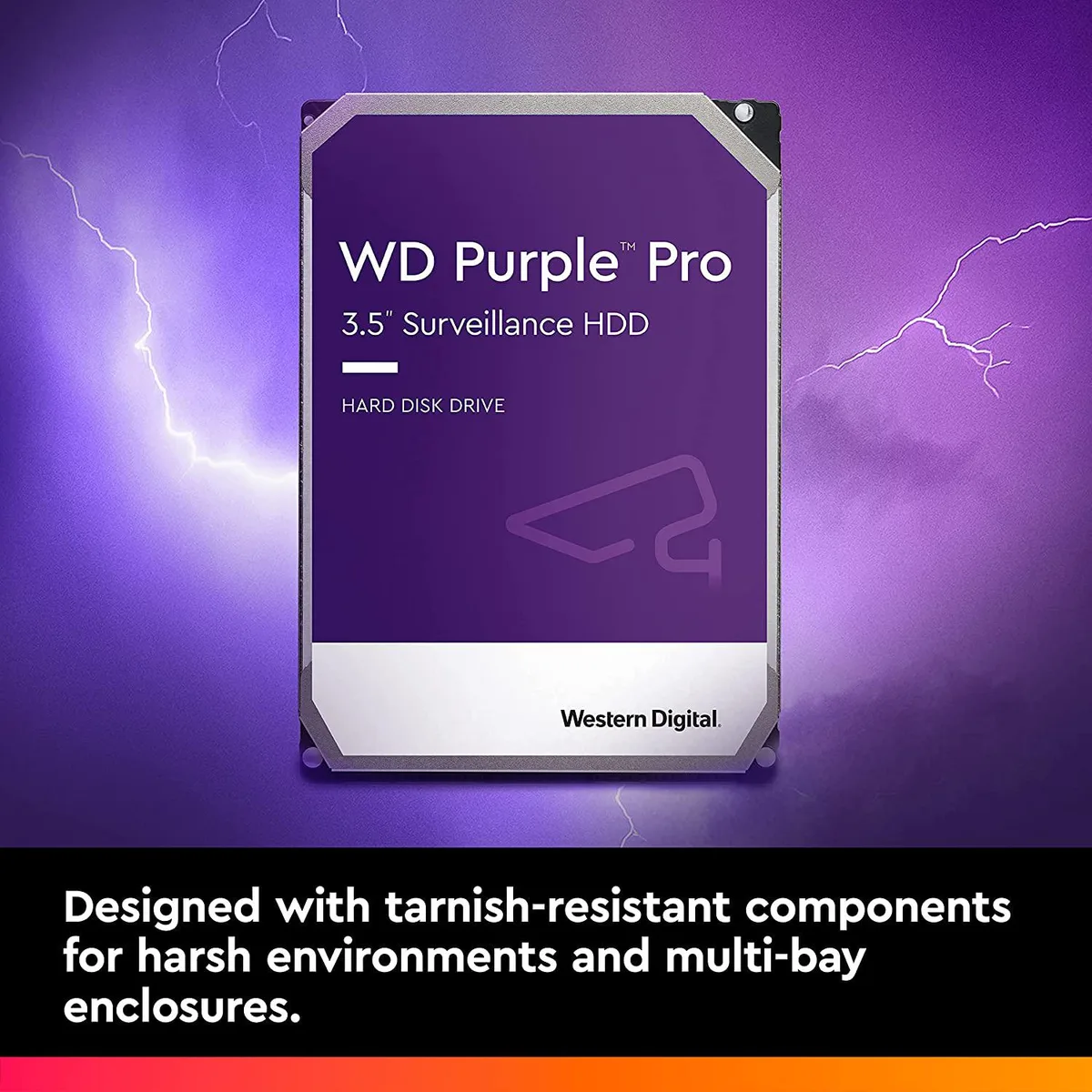

Designed with tarnish-resistant components for harsh environments, and with additional robustness for multi-bay enclosures
UsageFor Video Surveillance
Form Factor3.5"
Height (maximum)26.10mm
Width (maximum)101.60mm
Length (maximum)147.00mm
Poids d’expédition0.64 kg
Dimensions du colis206 × 152 × 25 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What throughput does the SATA 6.0Gb/s interface actually limit this drive to?

The SATA 6.0Gb/s link sets the maximum bus speed; sustained read and write rates from the 7200 RPM platters will stay within that ceiling.

Will the 3.5-inch form factor with a 26.10mm height fit my standard drive bay?

Yes, the drive measures 147.00mm long, 101.60mm wide and 26.10mm high, matching the standard 3.5-inch internal bay dimensions.

Is there a jumper or software step required when installing this SATA drive for surveillance use?

No jumper is needed; connect the SATA data and power cables, then ensure the recorder or server firmware recognises the 18TB capacity and enables AllFrame AI for the 32 AI streams.
