Black M.2 2280 NVMe SSD with exposed controller and NAND

Western Digital

Western Digital WDS100T3X0C 1TB internal SSD

SKU CH-Z37G-Q32JB MPN WDS100T3X0C

1TB M.2 2280 internal SSD with PCI-Express 3.0 x4 interface delivers up to 3470 MB/s sequential read and 3000 MB/s write for fast game loads

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory Components64-layer 3D NAND
  • InterfacePCI-Express 3.0 x4

Options 1TB

  • Sequential read up to 3470 MB/s speeds game loading
  • Sequential write up to 3000 MB/s accelerates large file transfers
  • 515000 random read IOPS delivers snappy system responsiveness
  • 560000 random write IOPS handles heavy multitasking workloads
  • 600TB endurance rating supports years of intensive gaming use

1TB PCI-Express 3.0 x4 NVMe SSD

The WD BLACK SN750 is a 1TB internal solid-state drive built on a PCI-Express 3.0 x4 interface. It uses 64-layer 3D NAND and the M.2 2280 form factor. The drive is aimed at consumer systems that need fast sequential and random access performance.

Sustained load behaviour

Sequential reads reach up to 3470 MBps and writes up to 3000 MBps, while 4KB random reads hit 515,000 IOPS and random writes 560,000 IOPS. A 600TB terabytes-written rating and a 1,750,000-hour MTTF at 40°C indicate endurance for heavy, continuous workloads.

Upgrade context

This 1TB model replaces a smaller capacity NVMe drive when capacity and sequential speeds of 3470 MBps read and 3000 MBps write become necessary. The WD BLACK dashboard with gaming mode adds a software layer for performance tuning.

Points forts

  • Sequential read up to 3470 MB/s speeds game loading
  • Sequential write up to 3000 MB/s accelerates large file transfers
  • 515000 random read IOPS delivers snappy system responsiveness
  • 560000 random write IOPS handles heavy multitasking workloads
  • 600TB endurance rating supports years of intensive gaming use

Caractéristiques

BrandWestern Digital
SeriesBLACK SN750 NVMe
ModelWDS100T3X0C
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory Components64-layer 3D NAND
InterfacePCI-Express 3.0 x4
Max Sequential ReadUp to 3470 MBps
Max Sequential WriteUp to 3000 MBps
4KB Random ReadUp to 515,000 IOPS
4KB Random WriteUp to 560,000 IOPS
Terabytes Written (TBW)600TB
MTTF1,750,000 hours (Telcordia SR-332, GB, 40 celsius degree)
HeatSinkwithout HeatSink
FeaturesRead speeds up to 3,470 MB/s for improved load times.
Available in capacities ranging from 250GB to 2TB.
Sleek heatsink design to customize and intensify your gaming rig while helping to maintain peak performance.

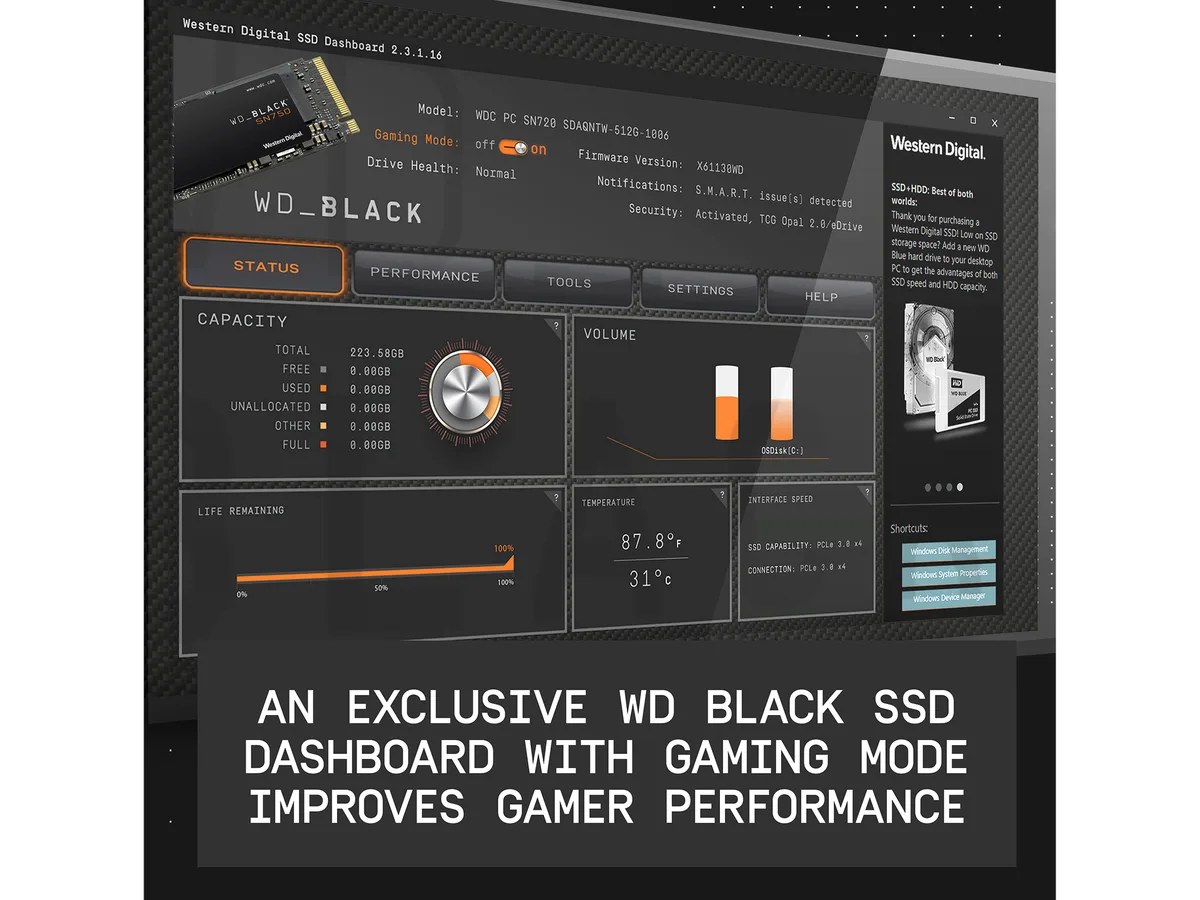

An exclusive WD BLACK SSD dashboard with gaming mode improves game performance.
Operating Temperature0°C ~ +70°C
Storage Temperature-55°C ~ +85°C
Height2.38mm
Width22.00mm
Depth80.00mm
Weight7.50g
Poids d’expédition0.05 kg
Dimensions du colis160 × 102 × 23 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How hot does the WD BLACK SN750 run under continuous load?

The drive is rated for 0°C to 70°C operating temperature and ships without a heatsink, so sustained workloads rely on the motherboard’s M.2 thermal pad or airflow to stay within that range.

What slot and keying does my motherboard need for this WDS100T3X0C?

It requires an M.2 2280 slot wired for PCI-Express 3.0 x4 with NVMe support; a shorter 2230 or 2242 slot will not fit the 80 mm length.

Will this SN750 work in an older system limited to PCIe 2.0 x4?

Yes, the PCIe 3.0 x4 interface is backward compatible and will negotiate down to PCIe 2.0 x4, though sequential speeds will drop to roughly half the rated 3,470 MB/s read.
