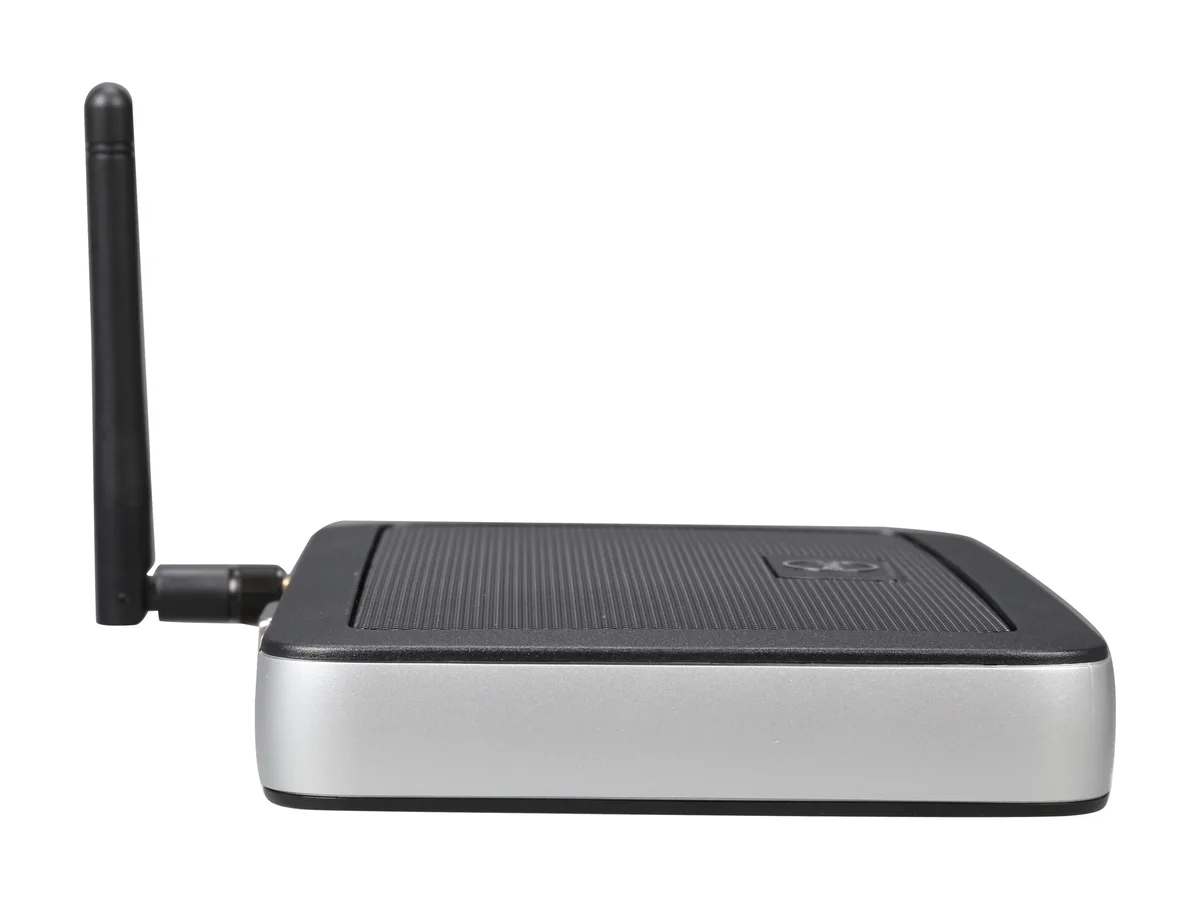

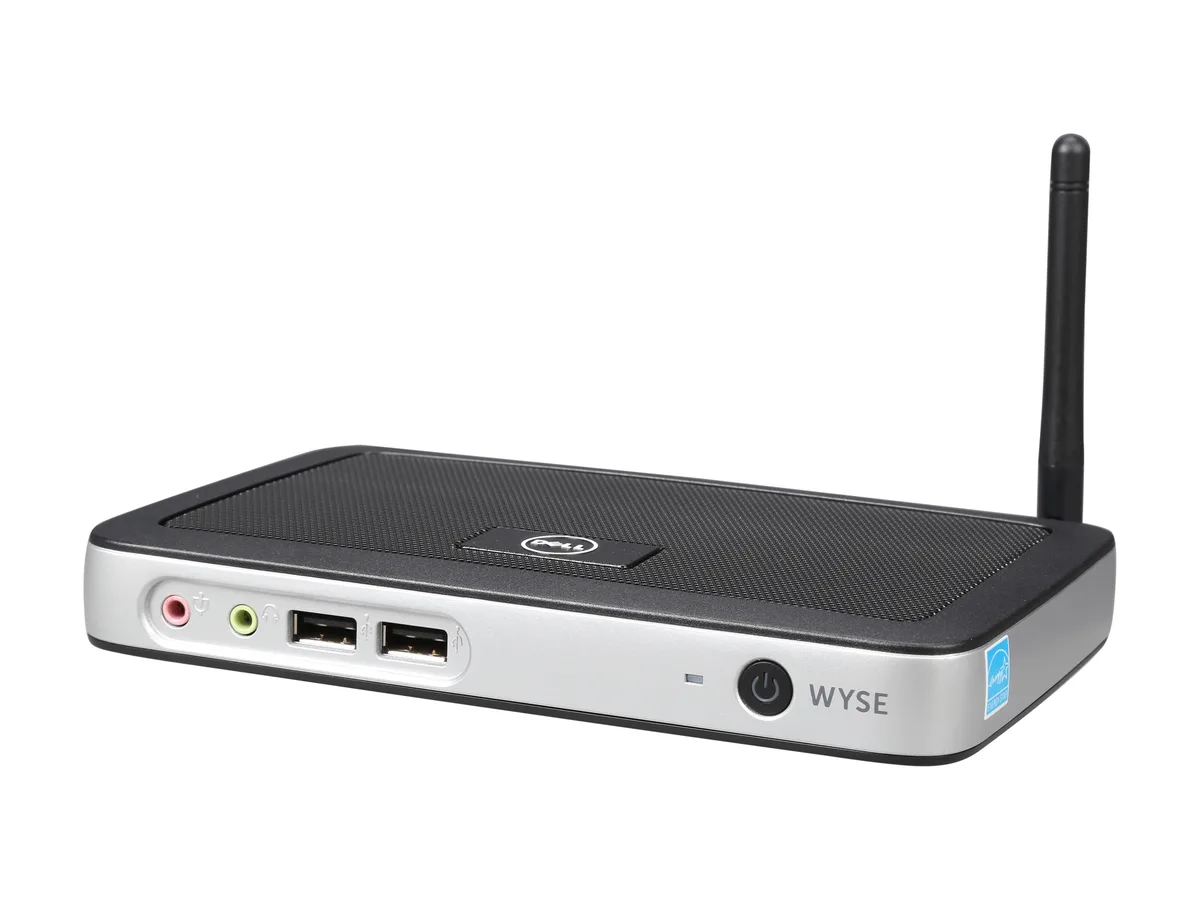

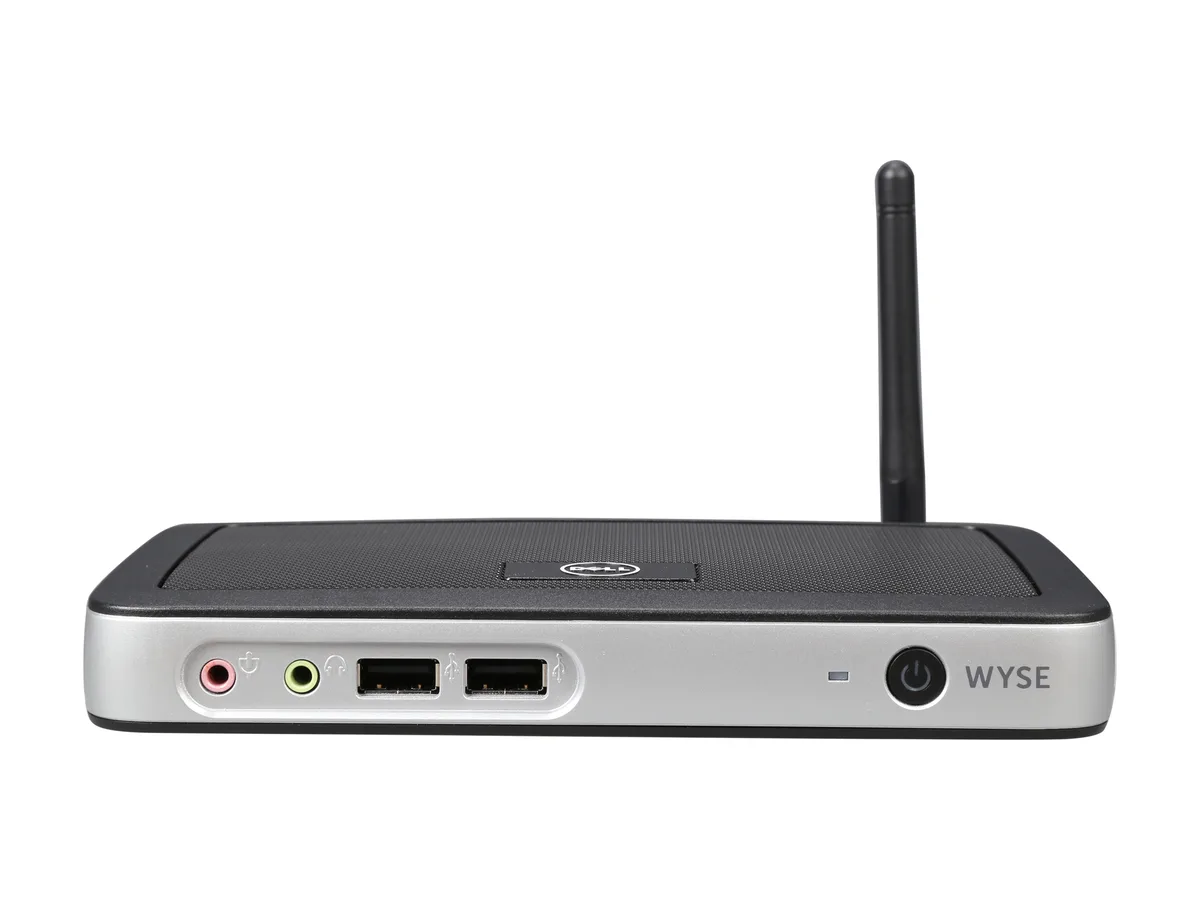

Compact rectangular thin client in matte black finish with DVI-I port and Kensington slot

Wyse Technology

Wyse Technology 909567-01L AI edge system 1GB DDR3

SKU CH-EYR6-ZQBFA MPN 909567-01L

Thin client with Marvell ARMADA PXA 510 v7 1.0 GHz SoC, 1GB DDR3, Gigabit Ethernet, 802.11 b/g wireless, DVI-I video, four USB 2.0 ports, ThinOS, Energy Star V5.0

  • TypeThin Client
  • CPU TypeMarvell ARMADA PXA 510 v7 1.0 GHz system-on-chip (SoC)
  • Installed Memory Size1GB
  • Memory TypeDDR3
  • Hard Drive (Installed)No Hard Drive
  • Ethernet Controller10/100/1000 Base-T Gigabit Ethernet Internal wireless 802.11
  • Compact ARM SoC enables low-power edge AI
  • 1GB DDR3 memory handles lightweight inference tasks
  • Gigabit Ethernet plus 802.11 b/g wireless connects to local networks
  • DVI-I with VGA adapter drives dual displays via optional splitter cable
  • Energy Star 5.0 certified 100-240 VAC supply reduces operating cost

Wyse T10 thin client for edge AI

The Wyse 909567-01L is a compact thin client built around a Marvell ARMADA PXA 510 v7 system-on-chip running at 1.0 GHz. It ships with 1GB of DDR3 memory and no internal hard drive, relying on Dell Wyse ThinOS for network-boot operation. The unit targets embedded AI edge deployments and virtual desktop infrastructure where local storage is unnecessary.

Fanless design with Energy Star V5.0 rating

The system operates without moving parts, drawing power from a worldwide auto-sensing 100-240 VAC supply at 50/60 Hz. Energy Star V5.0 certification confirms low idle and active consumption. Passive cooling keeps acoustic output at zero decibels, suiting noise-sensitive locations such as clinics, classrooms or retail counters.

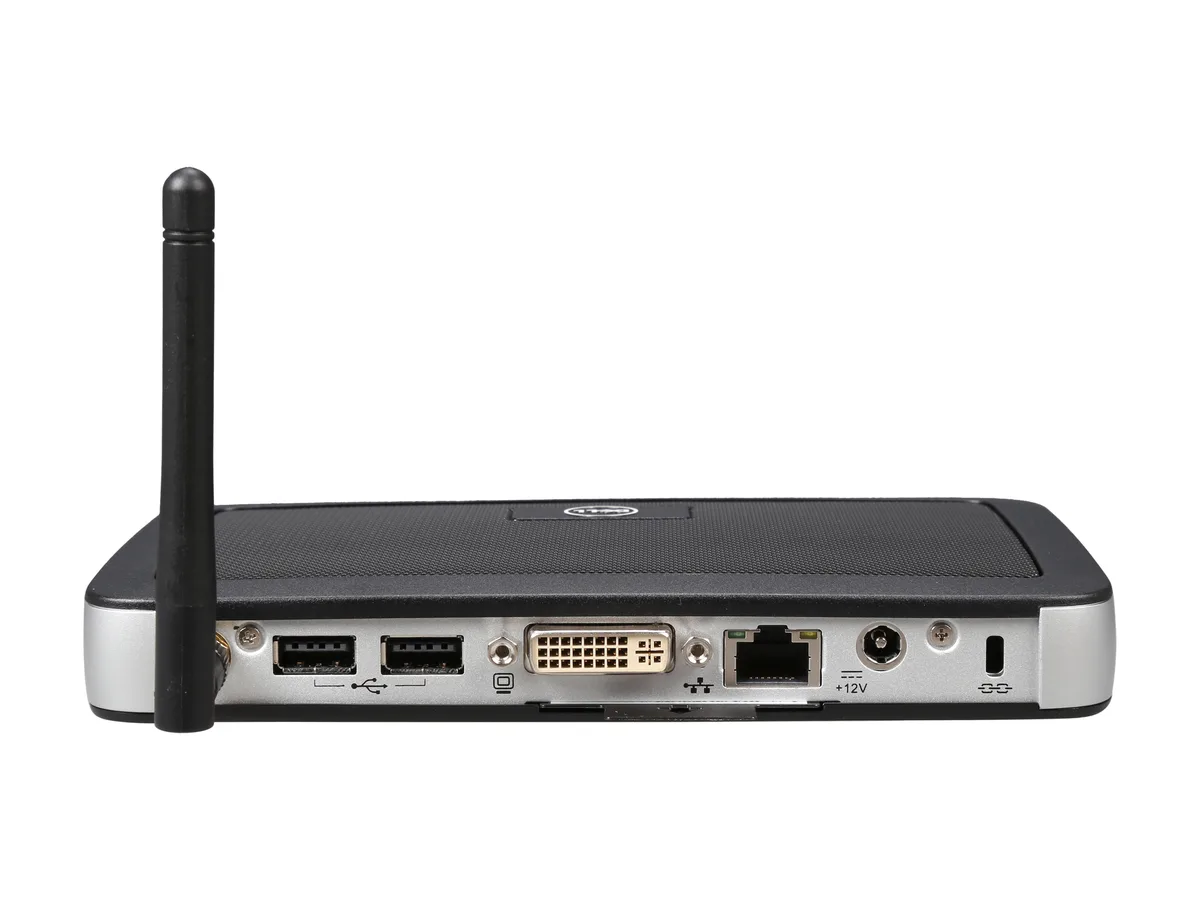

Kensington slot and DVI-I video with VGA adapter

A built-in Kensington security slot accepts a standard lock cable for physical theft deterrence. Video output uses a single DVI-I port; a DVI-to-VGA DB-15 adapter is included for legacy monitors. Dual display requires an optional splitter cable. Four USB 2.0 ports, gigabit Ethernet and 802.11 b/g wireless handle peripheral and network connectivity.

Points forts

  • Compact ARM SoC enables low-power edge AI
  • 1GB DDR3 memory handles lightweight inference tasks
  • Gigabit Ethernet plus 802.11 b/g wireless connects to local networks
  • DVI-I with VGA adapter drives dual displays via optional splitter cable
  • Energy Star 5.0 certified 100-240 VAC supply reduces operating cost

Caractéristiques

BrandWyse
Model909567-01L (T10 w/ IW)
TypeThin Client
CPU TypeMarvell ARMADA PXA 510 v7 1.0 GHz system-on-chip (SoC)
Installed Memory Size1GB
Memory TypeDDR3
Hard Drive (Installed)No Hard Drive
Ethernet Controller10/100/1000 Base-T Gigabit Ethernet
Internal wireless 802.11 b/g
Other portsOne DVI-I port, DVI to VGA (DB-15) adapter included
Dual display support with optional DVI-I to DVI-D plus VGA-monitor splitter cable (sold separately)
Four USB 2.0
Audio:
Output: 1/8-inch mini jack, full 16-bit stereo, 48KHz sample rate
Input: 1/8-inch mini jack, 8-bit microphone
SecurityBuilt-in Kensington security slot (cable sold separately)
Operating SystemDell Wyse ThinOS
Power CharacteristicsWorldwide auto-sensing 100-240 VAC, 50/60 Hz. Energy Star V5.0
Dimensions6.9" x 4.69" x 1"
Weight1 lbs.
Poids d’expédition2.09 kg
Dimensions du colis493 × 221 × 104 mm

Questions sur cet article

How do I mount the Wyse 909567-01L and connect the first display, and what step is often missed?

Attach the unit via its built-in Kensington slot or place it on a flat surface, plug the included DVI-to-VGA adapter into the single DVI-I port, then connect the VGA cable; the step often missed is securing the adapter’s thumbscrews before tightening the monitor cable.

What component will need replacement first during long-term use?

The internal 802.11 b/g wireless module is the only moving-part-free component likely to degrade; if range drops, replace it with a compatible USB 2.0 wireless dongle using one of the four USB ports.

At what sustained load does the 1.0 GHz Marvell ARMADA PXA 510 SoC hit its thermal limit?

The fanless chassis relies on passive cooling; under continuous 100 % CPU utilisation the SoC reaches its throttle point within minutes, so plan workloads that average well below full load.
