Black non-modular ATX power supply unit with 120mm fan and sleeved cables

Zalman

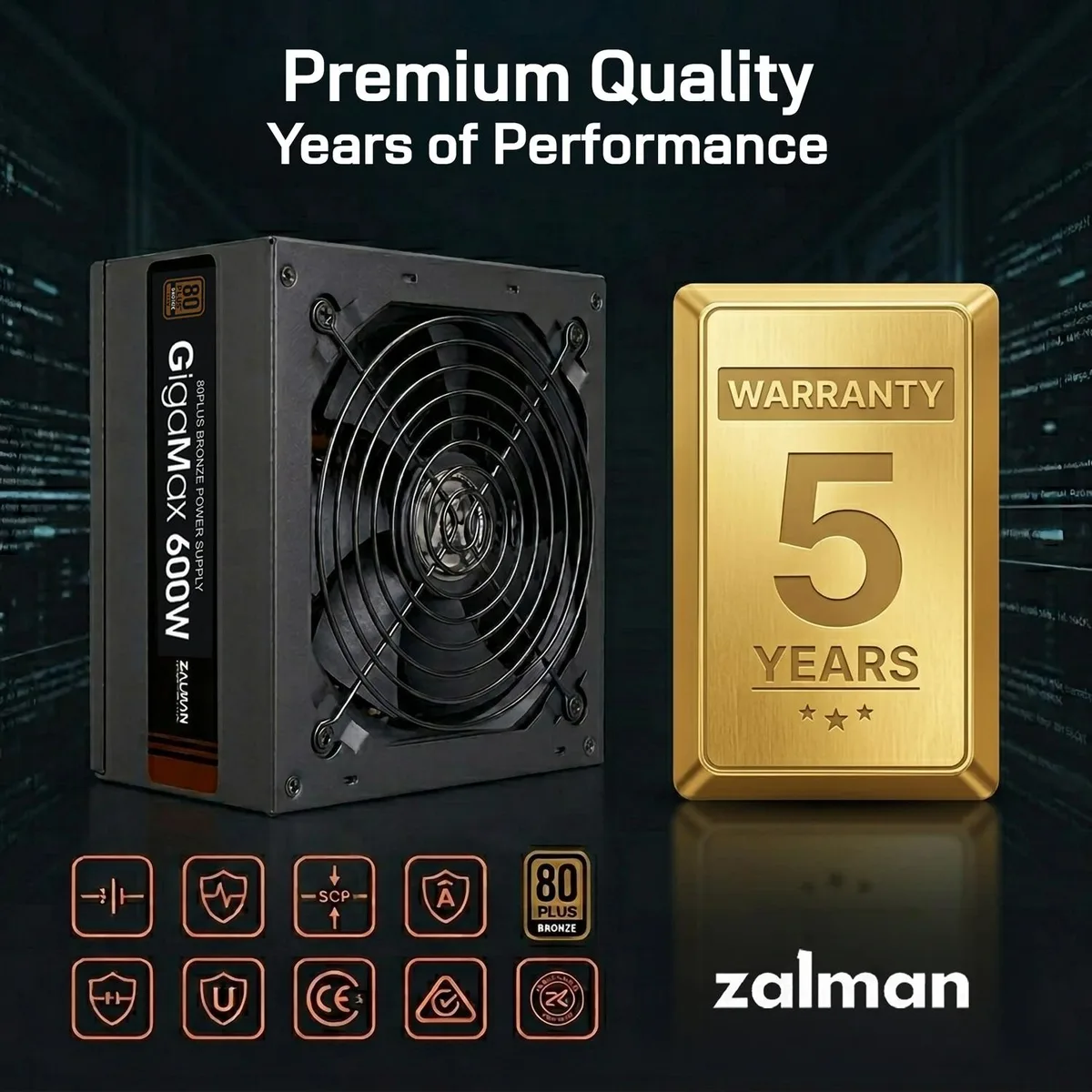

Zalman GigaMax 600W ATX Power Supply

SKU CH-4XDH-H7N9Z

600 W ATX unit with 80 PLUS Bronze efficiency, active PFC and a 120 mm sleeve-bearing fan for quiet operation

  • TypeATX
  • Maximum Power600 W
  • ModularNon-Modular
  • Fans1
  • Main Connector20+4 Pin
  • PCI-Express Connector2 x 6+2-Pin

Options 600W

  • 80 PLUS Bronze certification delivers up to 85% efficiency at typical loads
  • Active PFC reaches 99% power factor for stable voltage across 100-240 V input
  • Full protection suite covers OCP OVP OPP OTP UVP SCP with multiple safety approvals
  • 120 mm sleeve-bearing fan runs quietly while 105 °C capacitors maintain reliability
  • Non-modular black cables include 20+4 pin main connector and two 6+2 pin PCIe connectors

Zalman GigaMax 600W ATX PSU

This Zalman GigaMax unit delivers 600 W of continuous power through a non-modular ATX design. It targets builders assembling mid-range desktops or entry-level workstations who need reliable delivery without cable clutter from unused modular ports. The single 120 mm sleeve-bearing fan and all-black sleeved cables simplify installation in standard cases.

Sustained-load behaviour with Active PFC

Active PFC maintains a 99 % power factor across the 100-240 V input range, keeping output rails stable during extended gaming or compute sessions. 80 PLUS Bronze certification confirms 85 % typical efficiency at 20 %, 50 % and 100 % loads, so waste heat stays predictable even when the system runs for hours. Dual 6+2-pin PCIe connectors support multi-GPU configurations without rail sag.

Thermals noise and power draw in normal use

The 120 mm sleeve-bearing fan operates quietly at typical loads while the 105 °C rated capacitors handle internal temperatures up to 40 °C ambient. Full protection circuitry — OCP, OVP, OPP, OTP, UVP, SCP — shuts the unit down safely if thresholds are exceeded. MTBF exceeds 100,000 hours, reflecting the robust component selection and certified safety approvals.

Points forts

  • 80 PLUS Bronze certification delivers up to 85% efficiency at typical loads
  • Active PFC reaches 99% power factor for stable voltage across 100-240 V input
  • Full protection suite covers OCP OVP OPP OTP UVP SCP with multiple safety approvals
  • 120 mm sleeve-bearing fan runs quietly while 105 °C capacitors maintain reliability
  • Non-modular black cables include 20+4 pin main connector and two 6+2 pin PCIe connectors

Caractéristiques

BrandZALMAN
Series80 Plus
TypeATX
Maximum Power600 W
ModularNon-Modular
Fans1
Main Connector20+4 Pin
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector3
Efficiency> 82%
Energy-Efficient80 PLUS BRONZE Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
MTBF>100,000 Hours
ColorBlack
Max PSU Length5.9 x 5.5 x 3.4 inches
ProtectionCertified Full Protection: OCP/OVP/OPP/OTP/UVP/SCP, Safety/EMC Approvals: cTUVus, TUV, FCC, CB, CE certified.
Power Rating600W
Dimensions140(L) x 150(W) x 86(H)mm
Weight3.5 lb
Fans Total Quantity1
Top Fans Size120mm
Top Fans Bearing TypeSleeve

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the 600 W capacity support a dual-GPU setup with two 6+2-pin connectors?

The unit provides two 6+2-pin PCIe connectors and is rated for 600 W, so it can power two graphics cards within that total budget.

Does the 140 mm depth fit a standard ATX case?

At 140 mm long, 150 mm wide and 86 mm high it matches the Intel ATX 12V 2.31 form factor used by most mid-tower cases.

How loud is the 120 mm sleeve-bearing fan under load?

The 120 mm sleeve-bearing fan is designed for low-noise operation, and the Bronze efficiency target of up to 85 % helps keep heat and fan speed down.
