ZOTAC GeForce RTX 4060 Ti 8GB Twin Edge graphics card ZT-D40610E-10M

ZOTAC GeForce RTX 4060 Ti 8GB Twin Edge

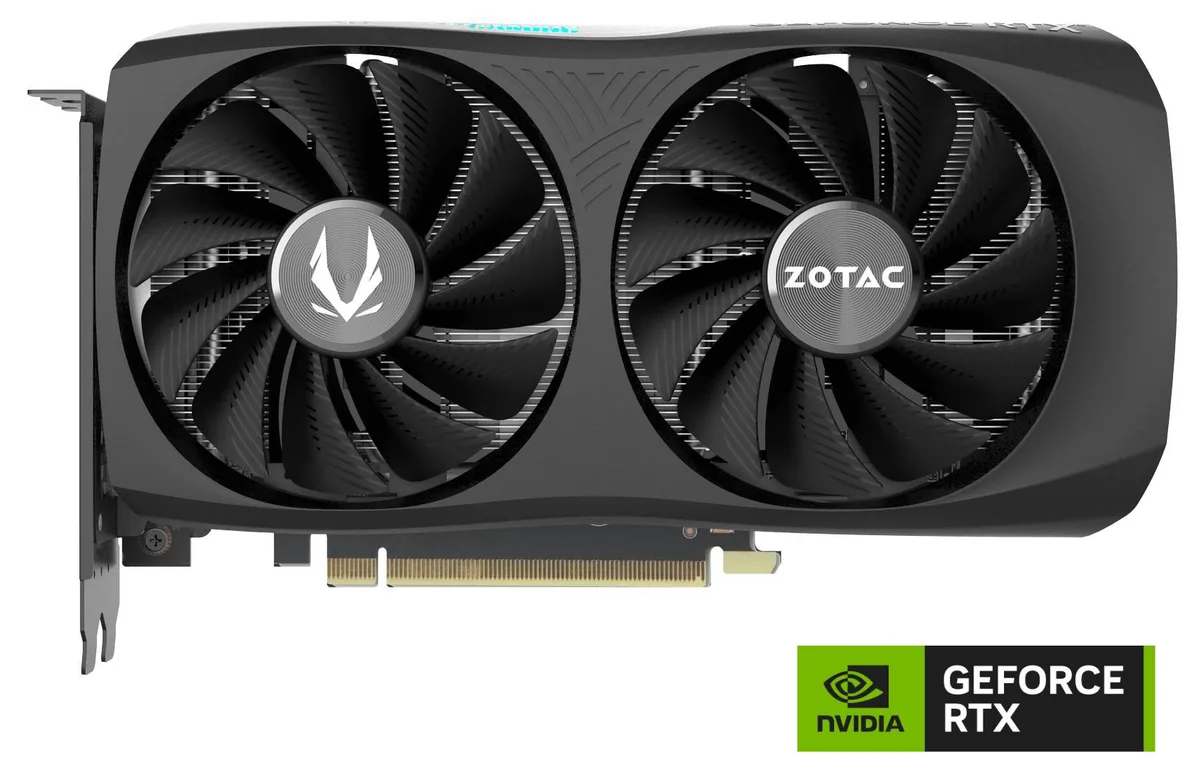

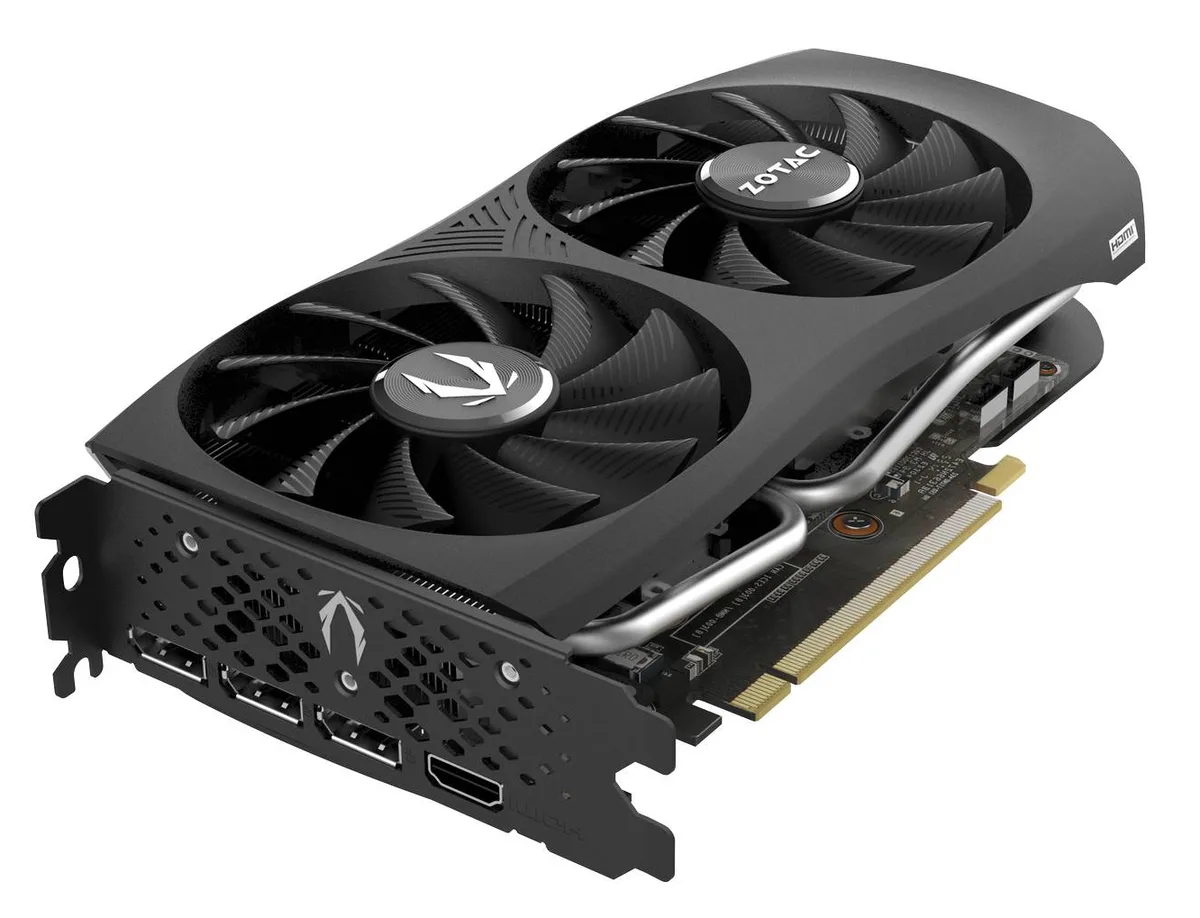

The ZOTAC GeForce RTX 4060 Ti 8GB Twin Edge is a compact graphics card built on the NVIDIA Ada Lovelace architecture. It delivers 4352 CUDA cores and a 2535 MHz boost clock for 1080p and 1440p gaming. The card fits a 226 mm length and occupies 2.2 slots in an ATX form factor. It targets gamers and creators who need modern features in a smaller chassis.

Upgrade from 128-bit 8GB cards

Moving up from an older 128-bit 8GB card is worthwhile when you need DLSS 3 frame generation and the efficiency of the 40 series architecture. The PCI Express 4.0 x8 interface and 18 Gbps GDDR6 memory provide higher bandwidth for modern titles. A 500W power supply and a single 8-pin connector keep the platform requirements modest. The jump makes sense if your current GPU lacks DirectX 12 Ultimate or hardware-accelerated ray tracing.

8GB GDDR6 capacity and 128-bit bus

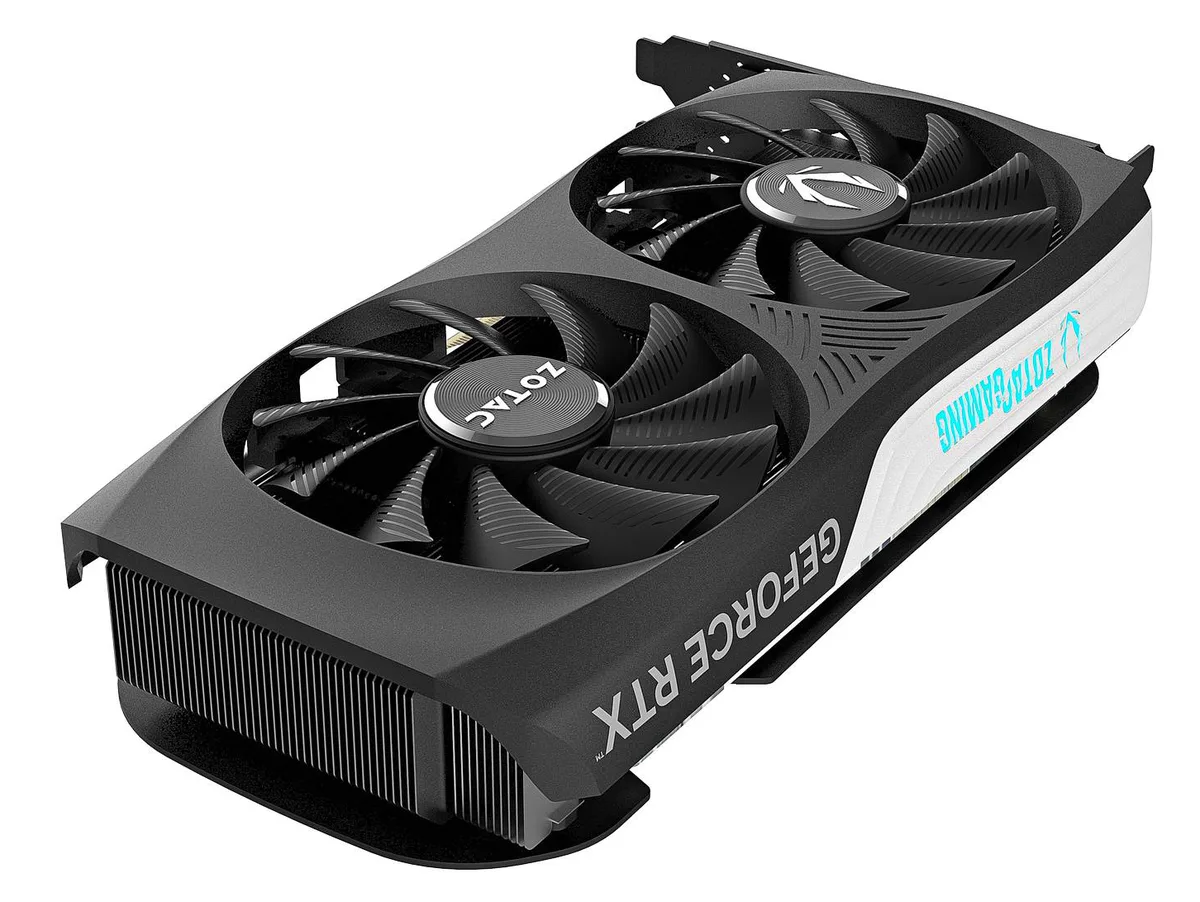

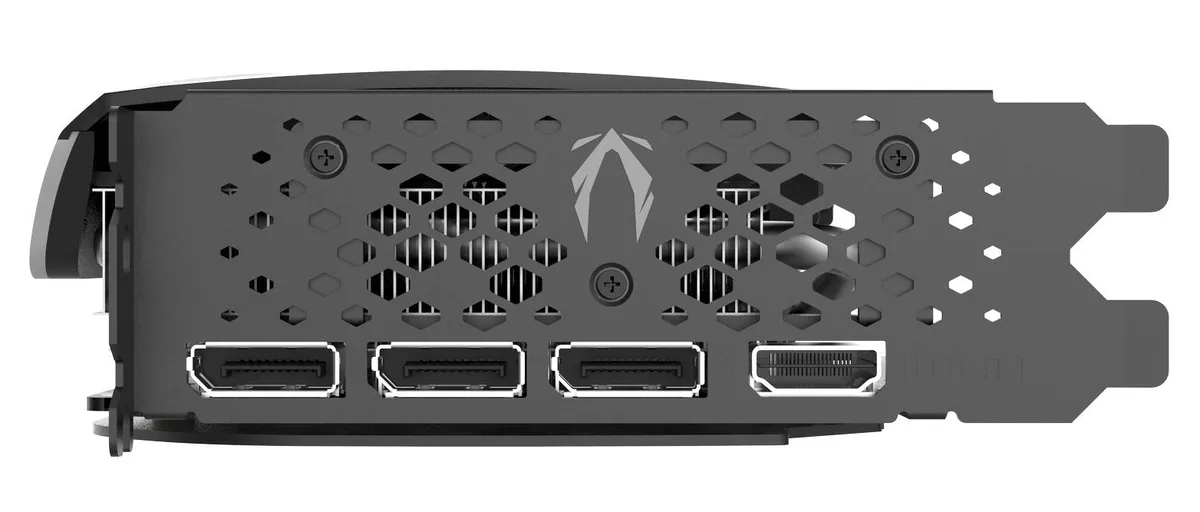

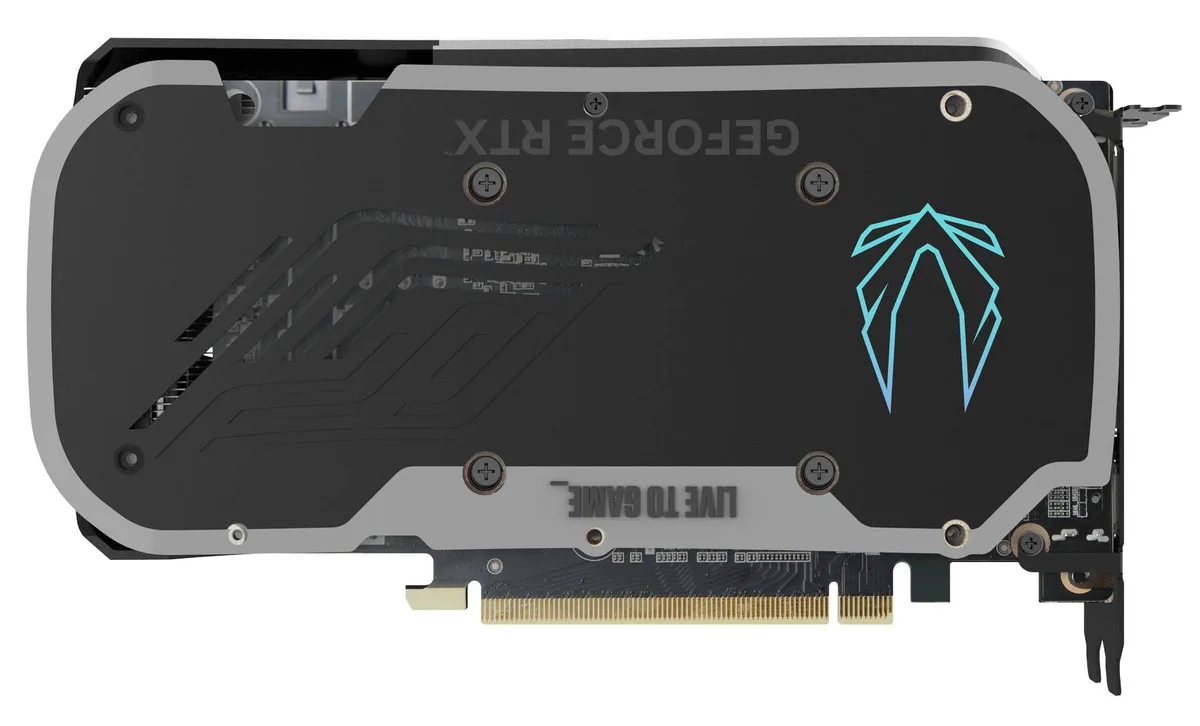

The 8GB GDDR6 frame buffer handles high-refresh 1080p and entry 1440p workloads comfortably. At 4K the 128-bit bus and 8GB capacity become limiting factors in texture-heavy scenes. Four display outputs (HDMI 2.1a and three DisplayPort 1.4a) drive multi-monitor setups up to 7680 x 4320 resolution. The 160W TDP is managed by the IceStorm 2.0 cooler with dual 90mm fans and a metal backplate.
