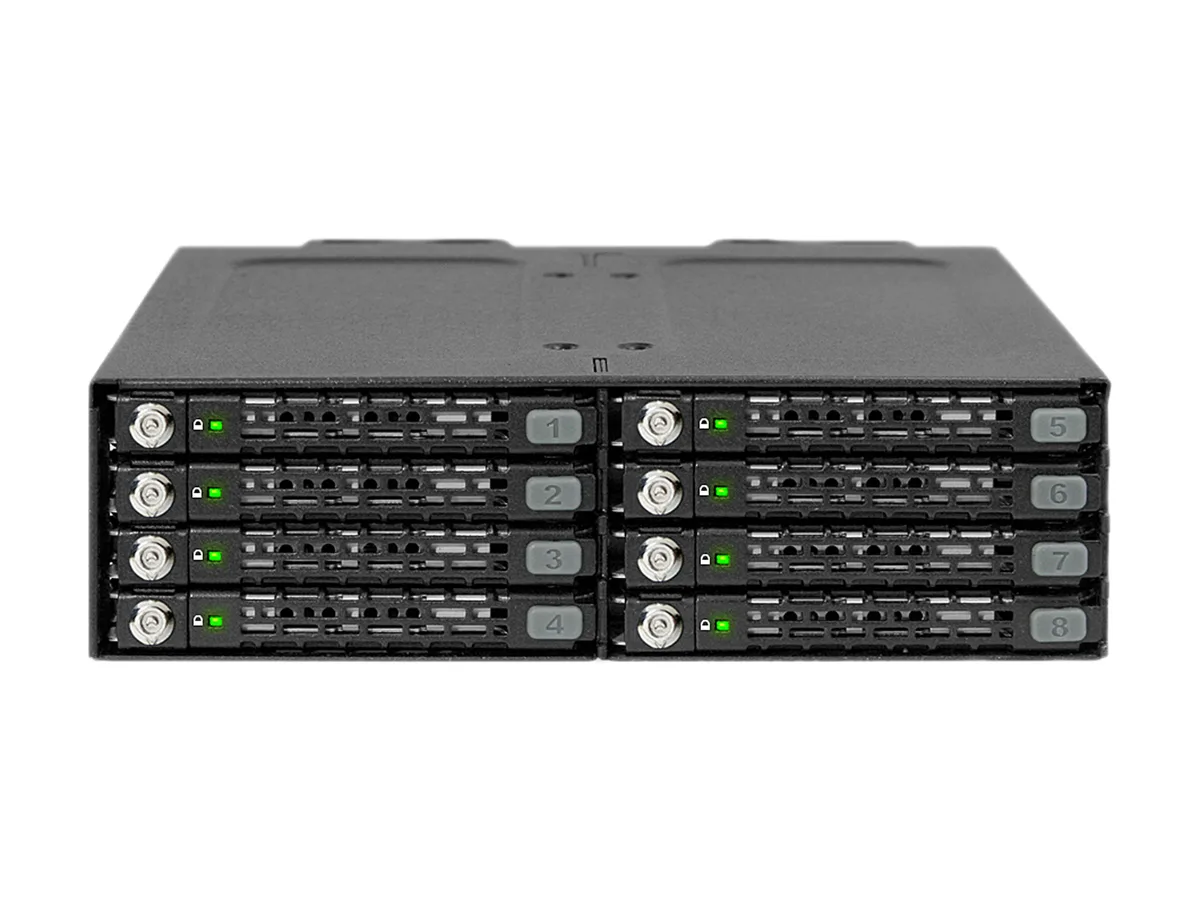

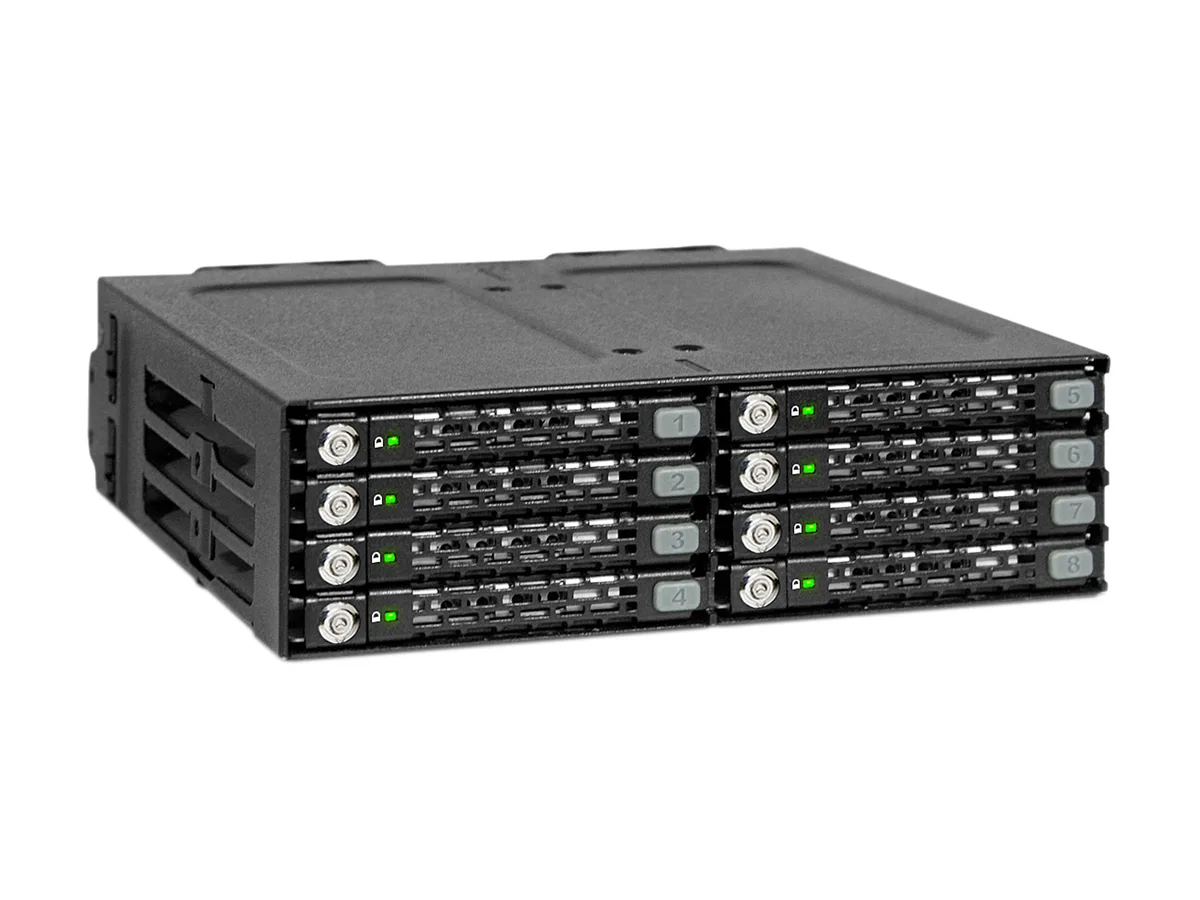

Black metal cage holding eight 2.5 inch drive trays with dual 40mm fans

ICY DOCK

ICY DOCK MB998SK-B 8-bay 2.5" SATA/SAS hdd accessory

SKU CH-6HPD-H0TBZ MPN MB998SK-B

Holds eight 2.5-inch SATA or SAS drives in one external 5.25-inch bay with dual 40mm fans and hot-swap trays

  • ColorBlack
  • Mobile Rack Drives Support8 x 2.5" Drives to 5.25" Bay
  • Mobile Rack InterfaceSATA I/II/III/SAS
  • Protection CaseMultiple Drives
  • Compatible Products2.5"
  • SpecificationsSupport Drive Size: 2.5" SSD / HDD Compatible Drive Type: SA
  • Fits eight 2.5″ SATA or SAS drives into one 5.25″ bay for dense storage

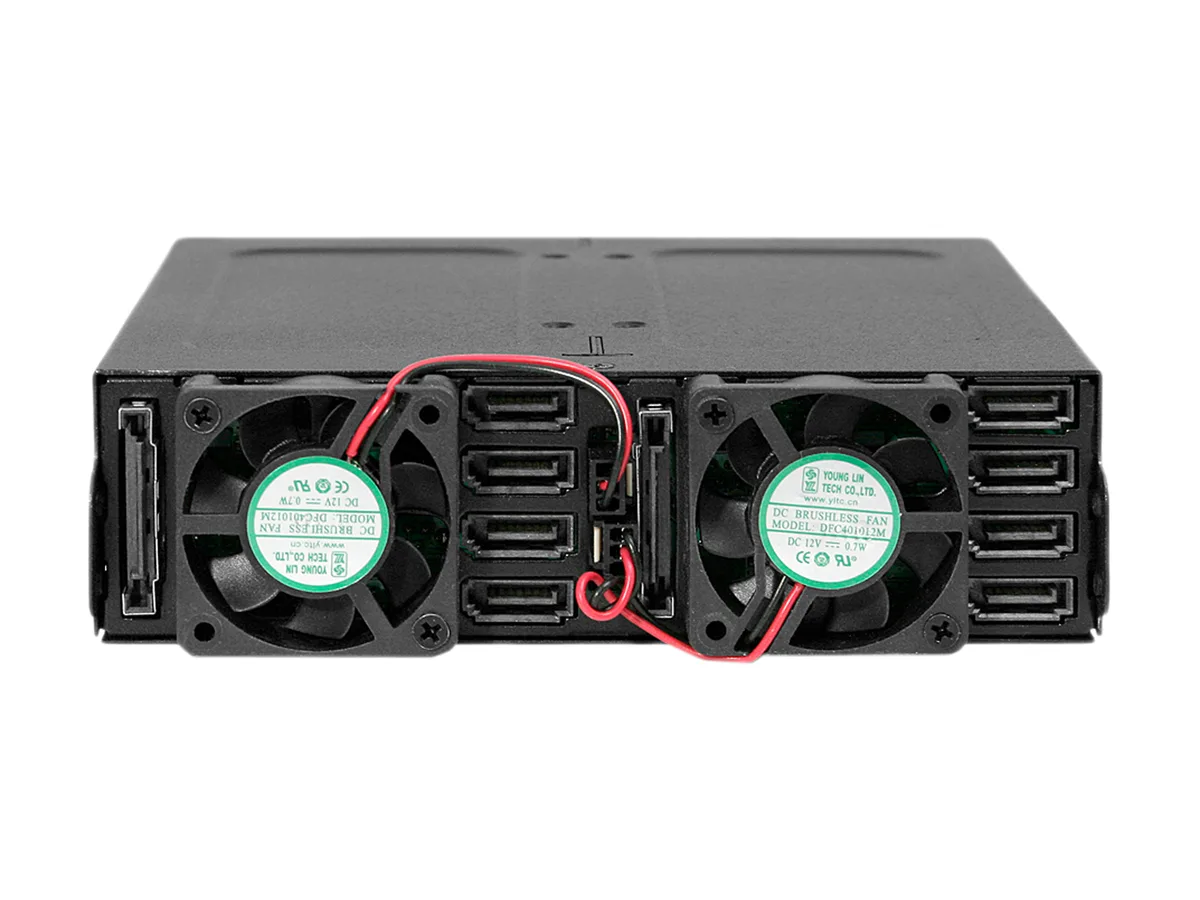

  • Dual 40 mm fans actively cool all installed drives

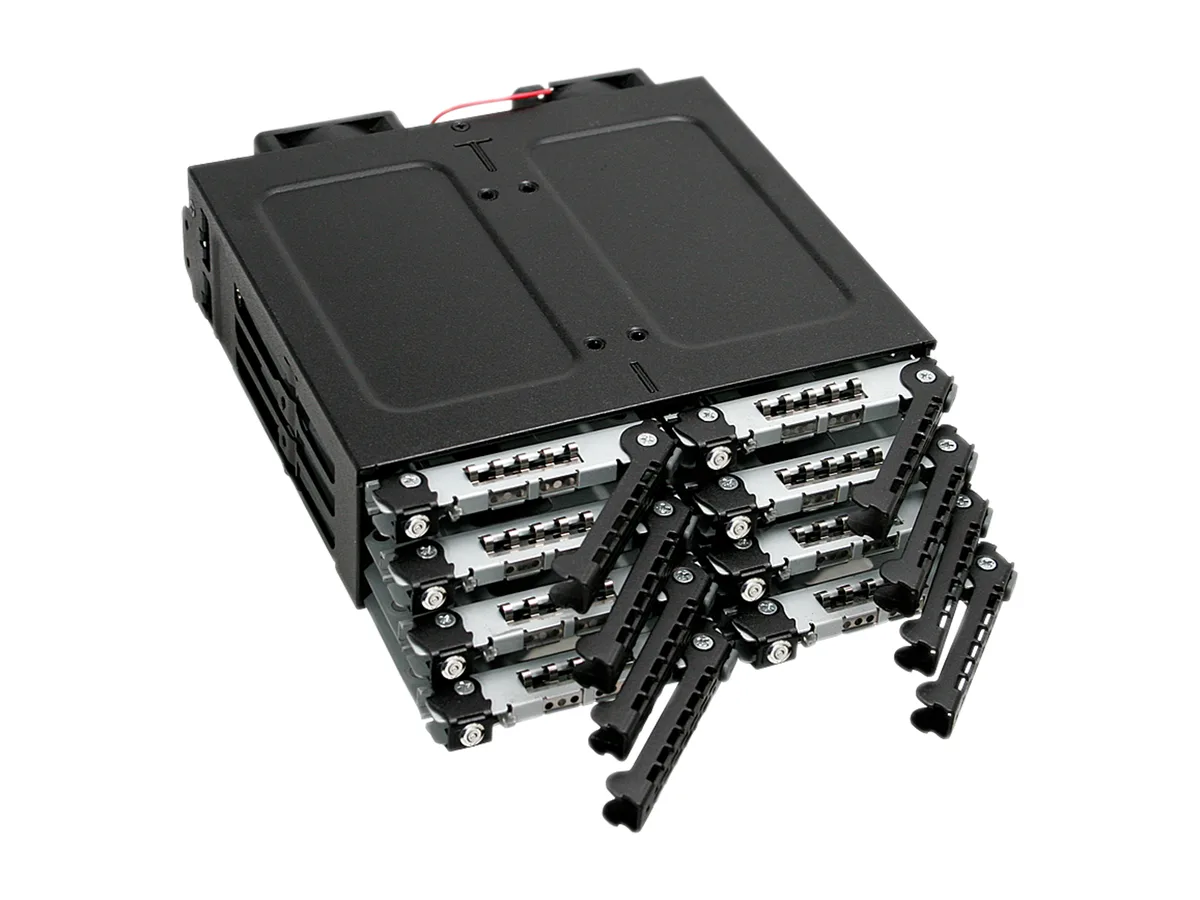

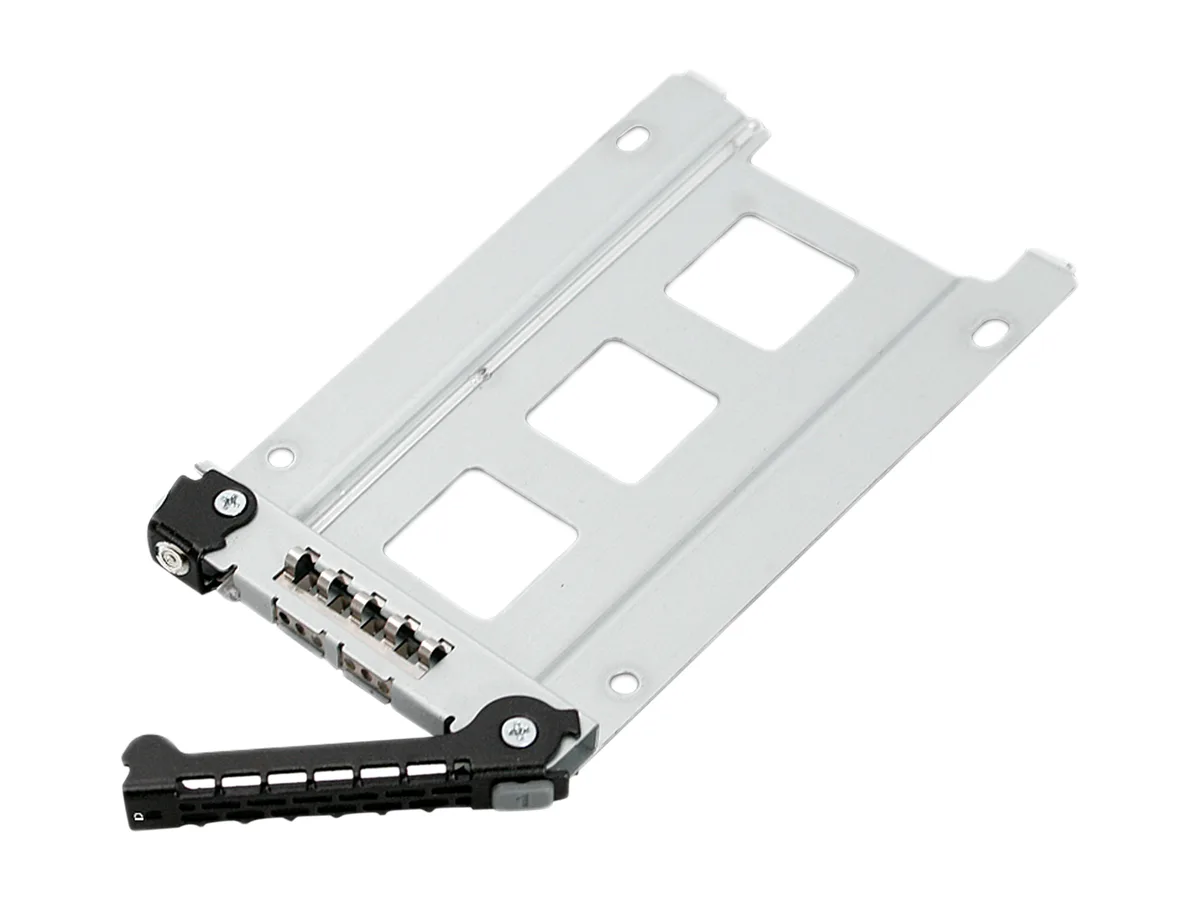

  • Hot-swap trays with key locks let you swap drives without tools
  • Two 15-pin power connectors supply every bay
  • Full-metal chassis built for medical, military and industrial use

Eight-Drive 5.25" Backplane

The ICY DOCK MB998SK-B fits eight 2.5" SATA or SAS drives into one external 5.25" bay using two 15-pin power connectors and eight SATA 7-pin host links. Dual 40 mm fans and front and side vents provide active cooling for dense storage builds. Rugged full-metal construction and locking trays suit medical, military and industrial environments.

RAID Builders and Industrial Installers

The cage targets users who need high drive counts in a single optical bay with hot-swap trays and keyed locks. Builders limited to 5 mm to 7 mm drive heights or single-channel SAS host adapters will find the specification a mismatch. Systems without a free 5.25" opening or eight SATA ports cannot accommodate the unit.

Eight SATA 7-pin Host Ports

Each bay requires its own SATA 7-pin connection to the controller, so the host must present eight ports or an expander. The backplane passes SATA I, II and III signals plus single-channel SAS without protocol translation. If the controller offers fewer than eight ports, the full capacity cannot be used.

נקודות עיקריות

  • Fits eight 2.5″ SATA or SAS drives into one 5.25″ bay for dense storage
  • Dual 40 mm fans actively cool all installed drives
  • Hot-swap trays with key locks let you swap drives without tools
  • Two 15-pin power connectors supply every bay
  • Full-metal chassis built for medical, military and industrial use

מפרט טכני

BrandICY DOCK
ModelMB998SK-B
ColorBlack
Mobile Rack Drives Support8 x 2.5" Drives to 5.25" Bay
Mobile Rack InterfaceSATA I/II/III/SAS
Protection CaseMultiple Drives
Compatible Products2.5"
SpecificationsSupport Drive Size: 2.5" SSD / HDD
Compatible Drive Type: SATA / SAS (Support Single Channel SAS)
Number of Drives: 8
Max Drive Height: 7mm
Drive Bay: 1 x external 5.25" drive bay
Host Interface: 8 x SATA 7pin
Power Input: 2 x 15 pin SATA power connector
Transfer Rate: Up to 6Gbps (Depending on hard drive speed)
Support HDD Capacity: No Limitation
Drive Cooling: 2 x 40mm fan
RAID Function: N/A
Structure / Material: Full Metal
Support Hot-Swap: Yes
Drive Security: 2-segment keylock
FeaturesRugged Heavy duty full metal construction with commercially designed for Medical & Military systems, Media servers, and IPCs, approved & used by Tier 1 companies
Perfect for rugged applications and complies to flammability requirements
Fits 8 x 5mm to 7mm 2.5" SATA hard drives or SSD’s in a single external 5.25" bay for high performance RAID applications
Dual 40mm fans keep your drives from overheating
Requires only 2 x 15pin power connectors to power all 8 bays
Drive label plugs to keep track of your RAID drives
Anti-Vibration Technology (AVT) - creates a safe environment for hard d
Package Contents1 x Device
1 x user manual
1 x ID Plug
42 x screws
2 x Fan speed reduction cable
2 x Lock Keys
משקל משלוח1.36 kg
מידות האריזה305 × 229 × 102 mm

שאלות על הפריט הזה

How can I confirm the MB998SK-B is operating correctly after installation?

Verify all eight drive LEDs show activity, both 40mm fans spin, and the system detects every SATA drive connected to the eight 7-pin host ports.

What ships with the MB998SK-B and what must I purchase separately?

The box contains the cage, user manual, ID plug, 42 screws, two fan-speed reduction cables and two lock keys; you must supply eight SATA data cables and two 15-pin SATA power connectors.

Which drive heights does the MB998SK-B accept?

The trays support 2.5" SATA or SAS drives from 5 mm to 7 mm tall; thicker drives will not fit.
