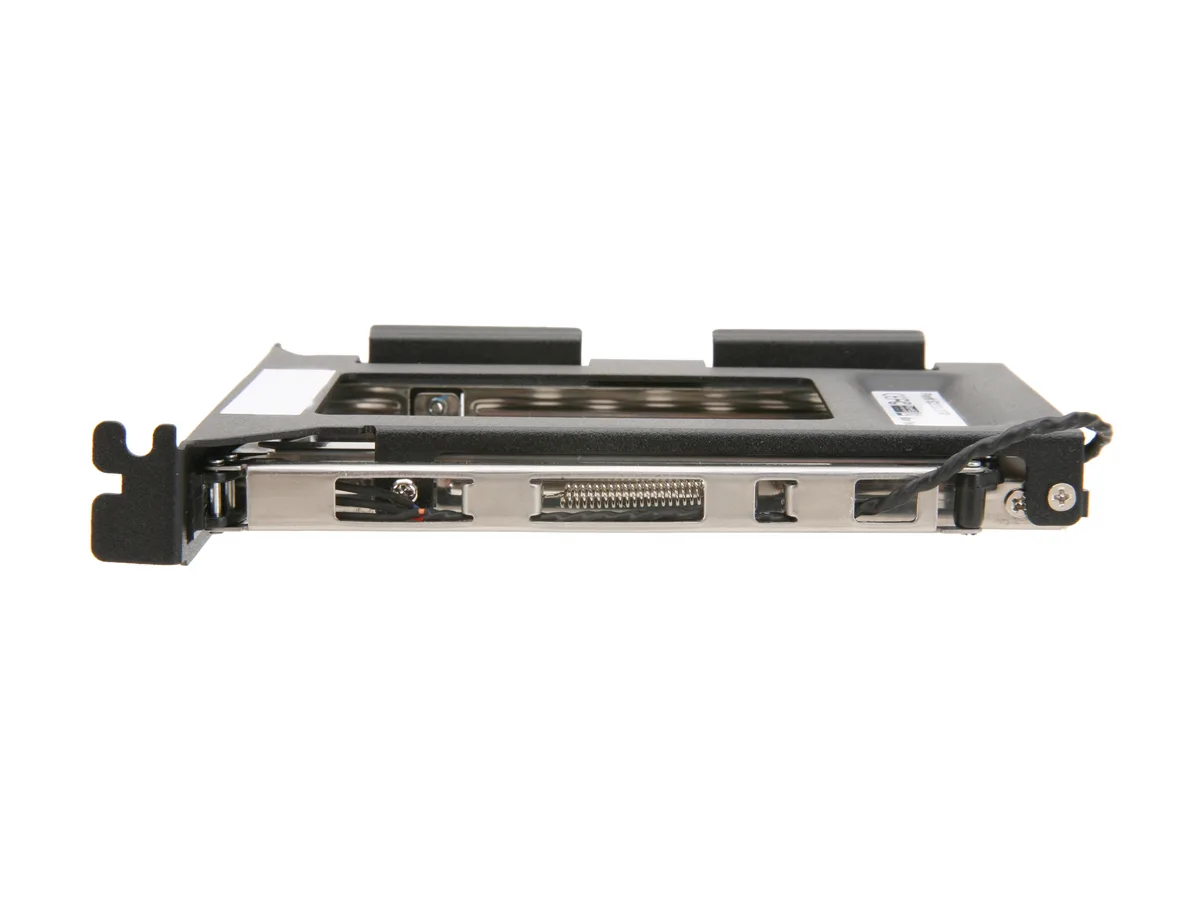

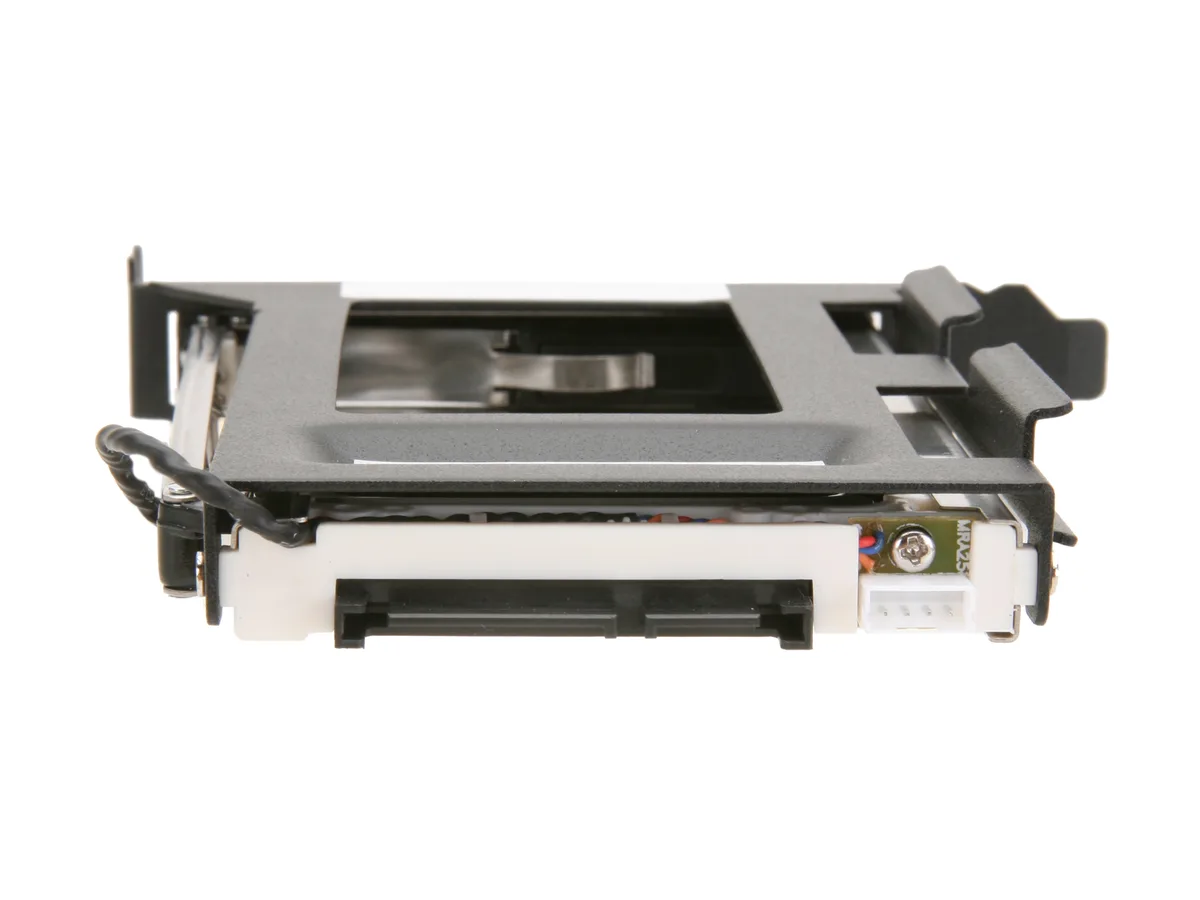

Black metal drive bay with front latch door and rear SATA connectors

STARTECH

STARTECH S25SLOTR 2.5in SATA removable drive bay ssd accessory

SKU CH-8FV4-ESVGZ MPN S25SLOTR

Adds a hot-swappable 2.5in SATA drive bay to any free PCI expansion slot

  • ColorBlack
  • Mobile Rack Drives Support1 x 2.5" Drive to PCI Slot
  • Mobile Rack InterfaceSATA I/II/III
  • SpecificationsMax. HD Capacity: 500 GB Enclosure Type: Aluminum and Steel
  • FeaturesCompletely OS Independent Door mounted LED indicator for Pow

Model PCI Expansion Card Slot

  • PCI Expansion Card Slot
  • 5.25in

Option 1-Bay (2.5in SATA)

  • Hot-swap 2.5″ SATA drives from any free PCI expansion slot
  • Trayless aluminium-and-steel bay cuts installation time to seconds
  • Latchable rear door with LED shows power and activity at a glance
  • OS-independent, driver-free design works immediately on any system
  • Supports SATA III speeds up to 6 Gbps for 2.5″ drives

Hot-swap 2.5in SATA bay for PCI slot

This StarTech S25SLOTR installs a 2.5in SATA drive into a rear PCI expansion slot for hot-swappable access. The trayless aluminum and steel enclosure connects via standard SATA data and power cables and supports drives up to 500 GB. A latchable door and LED indicator show power and activity status.

Suits single-drive hot-swap needs.

Builders who want quick, tool-less access to one 2.5in SATA drive from the back of a chassis will find this bay useful. It is not suited for users who need to install more than one drive in the same slot. The unit also does not support drives larger than the stated 500 GB capacity limit.

SATA I/II/III interface up to 6 Gbps

The bay passes the native SATA I/II/III signal through to the host with a maximum throughput of 6 Gbps. This single specification determines whether the drive you plan to use can run at its rated speed.

נקודות עיקריות

  • Hot-swap 2.5″ SATA drives from any free PCI expansion slot
  • Trayless aluminium-and-steel bay cuts installation time to seconds
  • Latchable rear door with LED shows power and activity at a glance
  • OS-independent, driver-free design works immediately on any system
  • Supports SATA III speeds up to 6 Gbps for 2.5″ drives

מפרט טכני

BrandStarTech.com
ModelS25SLOTR
ColorBlack
Mobile Rack Drives Support1 x 2.5" Drive to PCI Slot
Mobile Rack InterfaceSATA I/II/III
SpecificationsMax. HD Capacity: 500 GB
Enclosure Type: Aluminum and Steel
Compatible Drives: 2.5" SATA
Host Connectors: 1 - 7 pin SATA DATA Male
Host Connectors: 1 - 15 pin SATA Power Male
Drive Connectors: 1 - 7 pin SATA DATA Female
Drive Connectors: 1 - 15 pin SATA Power Female
FeaturesCompletely OS Independent
Door mounted LED indicator for Power and HD Activity, allows you to visually observe enclosure status
Driver free support and tool-less design for HD installation
Latchable door
Supports almost all 2.5in hard drives; 12mm high drives not supported
Supports hot swap hard drive installations
Supports maximum data transfer rates up to 3.0 Gbps (using SATA II drive)
Supports SATA II hard drives, backward compatible with SATA 150 hard drives
The maximum supported hard drive capacity is 500GB
Vented aluminum and steel enclosure
משקל משלוח0.23 kg
מידות האריזה160 × 134 × 32 mm

גרסאות נוספות של דגם זה

1 נוספים באותה הסדרה

אותה משפחה, זיכרון, קירור או תדר שונים — השווה לפני שתחליט.

שאלות על הפריט הזה

What does the 6 Gbps SATA III support mean once the bay is installed in a real PC?

The 6 Gbps SATA III rating lets a 2.5in SATA SSD or hard drive run at its full native speed through the PCI slot, provided the motherboard SATA port also supports 6 Gbps.

Which SATA standard does the interface use and what speed does it cap at in practice?

The bay uses SATA I, II and III and caps at the SATA III maximum of 6 Gbps when connected to a matching motherboard port.

What does the unit physically need to fit and mount in a computer case?

It requires one free PCI expansion slot at the rear, a 7-pin SATA data cable and a 15-pin SATA power cable from the motherboard or PSU.
