Green circuit board with silver bracket, three USB-C and two USB-A ports

ESTONE

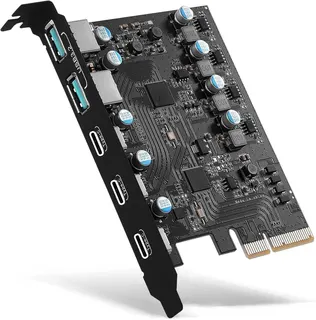

ESTONE PCIE22A3C3.2 PCIe USB 3.2 5-Port Card 3C 2A

SKU CH-HES2-EWVFV

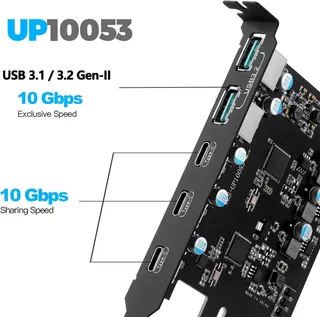

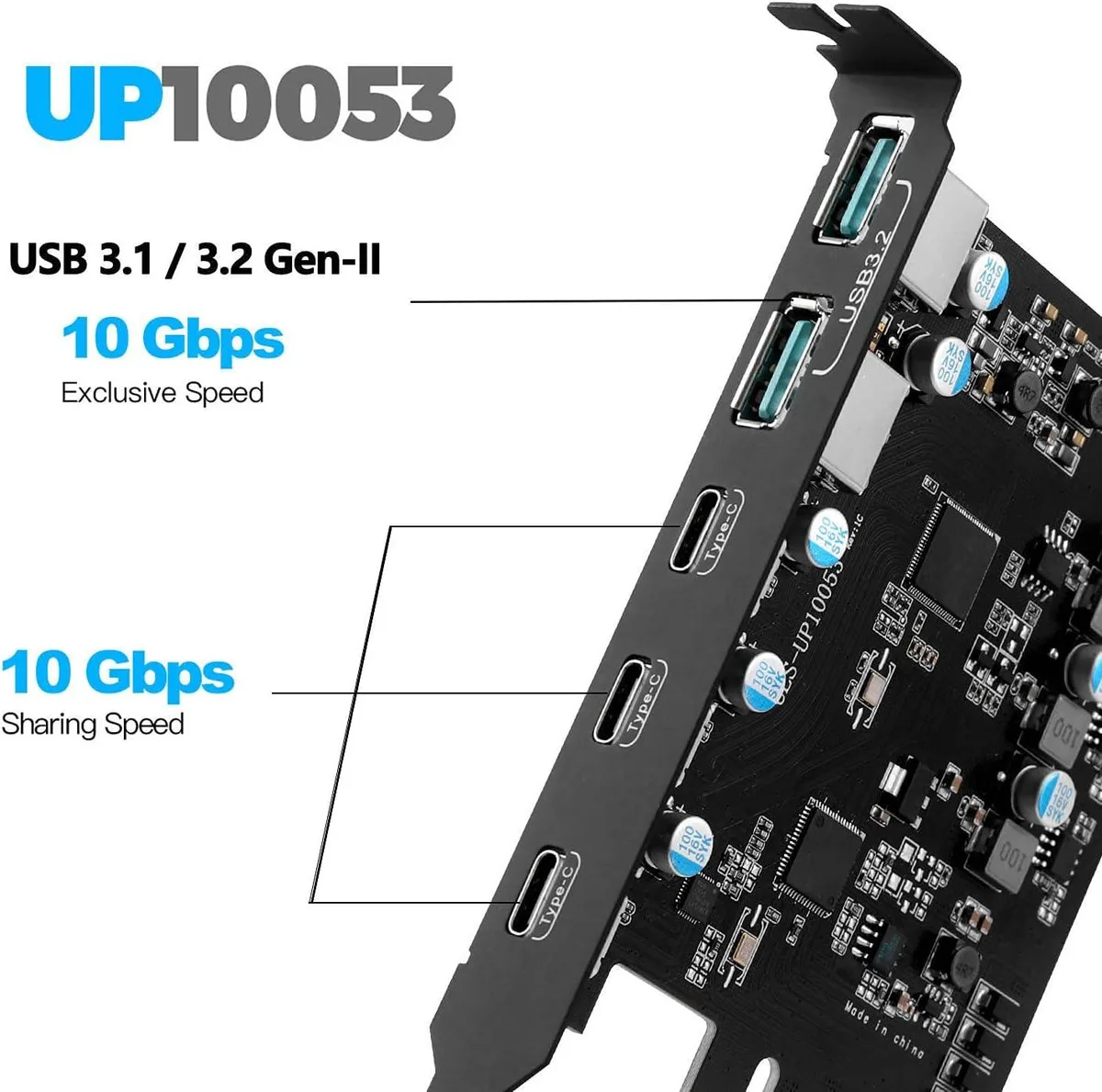

Adds five USB 3.2 ports — three Type-C and two Type-A — through a PCI Express slot at up to 10 Gbps

  • TypePCI to USB Card
  • External USB Ports5x USB Ports
  • StandardUSB 3.2
  • Data Transfer RateUp to 10 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Adds five USB 3.2 ports — three Type-C and two Type-A
  • Delivers up to 10 Gbps transfer speed for faster file moves
  • Works with PCIe 2.0, 3.0 and 4.0 motherboards in x1, x4, x8 or x16 slots
  • Supports Windows 7 through 11, macOS 10.8.2+ and Linux without extra drivers on most systems
  • Includes driver CD and mounting screws for quick installation

Five USB 3.2 ports via PCIe x1

This ESTONE expansion card adds five SuperSpeed USB 3.2 ports to a desktop computer through a single PCI Express x1 lane. Three ports use the USB-C connector and two use the traditional USB-A connector, each capable of up to 10 Gbps data throughput. The card draws power directly from the slot and includes a driver CD for older operating systems. It fits any PCIe x1, x4, x8 or x16 socket on motherboards compliant with PCIe 2.0, 3.0 or 4.0.

Desktop owners needing more high-speed ports

The card suits builders who have a free PCIe slot and want to connect multiple USB-C and USB-A peripherals such as external drives, cameras or input devices at 10 Gbps. It is not suited for systems that lack an available PCI Express slot or for users who require USB Power Delivery charging or video output from the USB-C ports. Laptop users and small-form-factor PCs without internal expansion capability cannot use this adapter.

Requires PCIe x1 slot and driver for Windows 7

The single specification that decides fitment is the presence of a PCI Express x1, x4, x8 or x16 slot on the motherboard. Windows 10, 11, macOS 10.8.2 and newer, and modern Linux distributions operate without extra drivers, while Windows 7 needs the supplied RENESAS/VLI driver installed before the ports become active.

Punti di forza

  • Adds five USB 3.2 ports — three Type-C and two Type-A
  • Delivers up to 10 Gbps transfer speed for faster file moves
  • Works with PCIe 2.0, 3.0 and 4.0 motherboards in x1, x4, x8 or x16 slots
  • Supports Windows 7 through 11, macOS 10.8.2+ and Linux without extra drivers on most systems
  • Includes driver CD and mounting screws for quick installation

Caratteristiche tecniche

BrandESTONE
SeriesPCIE22A3C3.2
ModelPCIE22A3C3.2
TypePCI to USB Card
External USB Ports5x USB Ports
StandardUSB 3.2
Data Transfer RateUp to 10 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications5 Ports PCI-E to USB 3.2 HUB PCI Express Expansion Card Adapter 10Gbps for Motherboard
You need to install the RENESAS/VLI USB3.2 driver for your computer first.
Supports PCI Express 3.0 2.0 X1 lane, can transferring up to 10Gbps.
PCI Express x1 slot card for usb expansion 7 Ports USB interface Card (3X USB-C - 2X USB-A)
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0/3.2
Operating Systems: Windows7/8/10(32/64bit)
?
FeaturesMaximum extension,Most USB interfaces: Update your Computer to 5 ports USB3.2--3 Port Type C and 2 ports Type A, You can connect keyboard, mouse, external hard drives, CD/DVD drives, webcams,usb printers, scanners, game controllers,USB VR, digital cameras, etc
Increasing Efficiency: Supports transfer rates of up to 10Gbps copying HD videos, music, photos,data files between USB devices and the computer at blazing fast speeds.Note:The actual transmission speed is limited by the setting of the device connected
Widely compatibility: USB 3.2 Backwards compatible with USB 3.0, 2.0 and 1.1
Weight3.2 ounces
Package Contents1x USB 3.2 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Domande su questo articolo

Does the box include the driver disc and mounting hardware, or do I need to buy them separately?

The package ships with the PCIe card, a driver CD, installation screws and a user manual — no extra parts are required.

Should I choose the three USB-C and two USB-A layout or a different port mix?

This model only comes in the 3C/2A configuration; there is no alternative port mix to select.

What does the 10 Gbps rating mean when I plug in a hard drive?

The 10 Gbps ceiling is the interface maximum; real-world throughput will be lower and depends on the drive and PCIe lane version.
