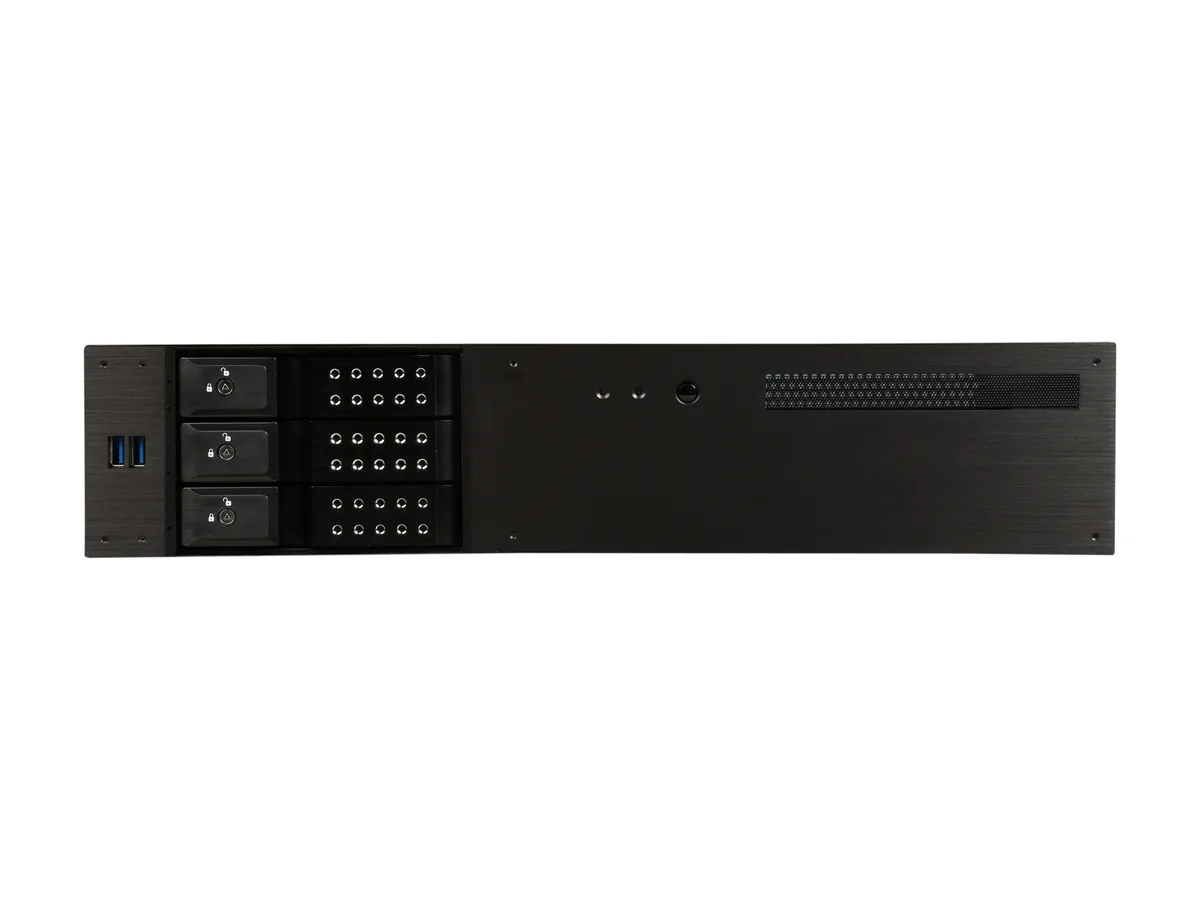

Black 2U rackmount chassis with three front hot-swap 3.5-inch drive bays and two USB 3.0 ports

iStarUSA Inc.

iStarUSA Inc. D-230HN-T 2U rackmount server chassis, 3×3.5″ hot-swap bays, black

SKU CH-ZJX9-PNB6J MPN D-230HN-T

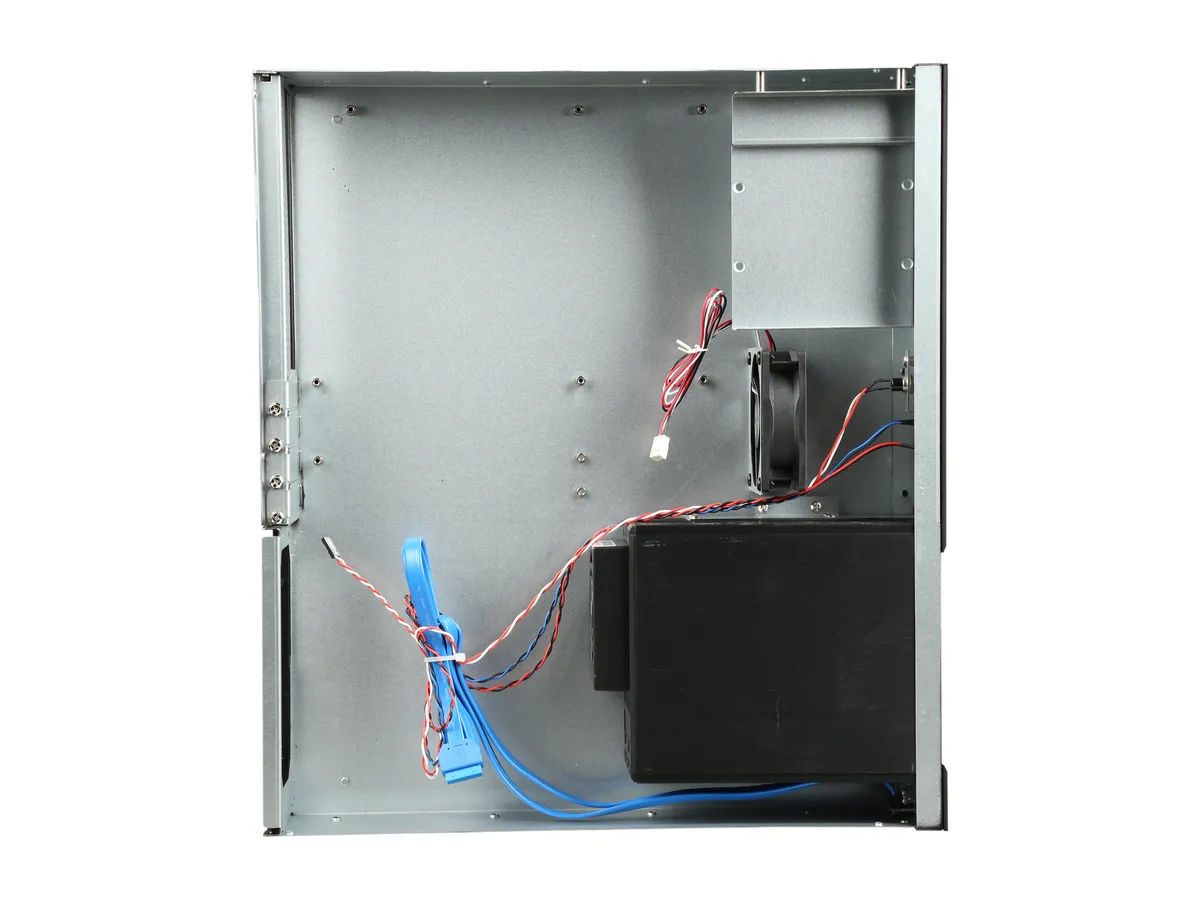

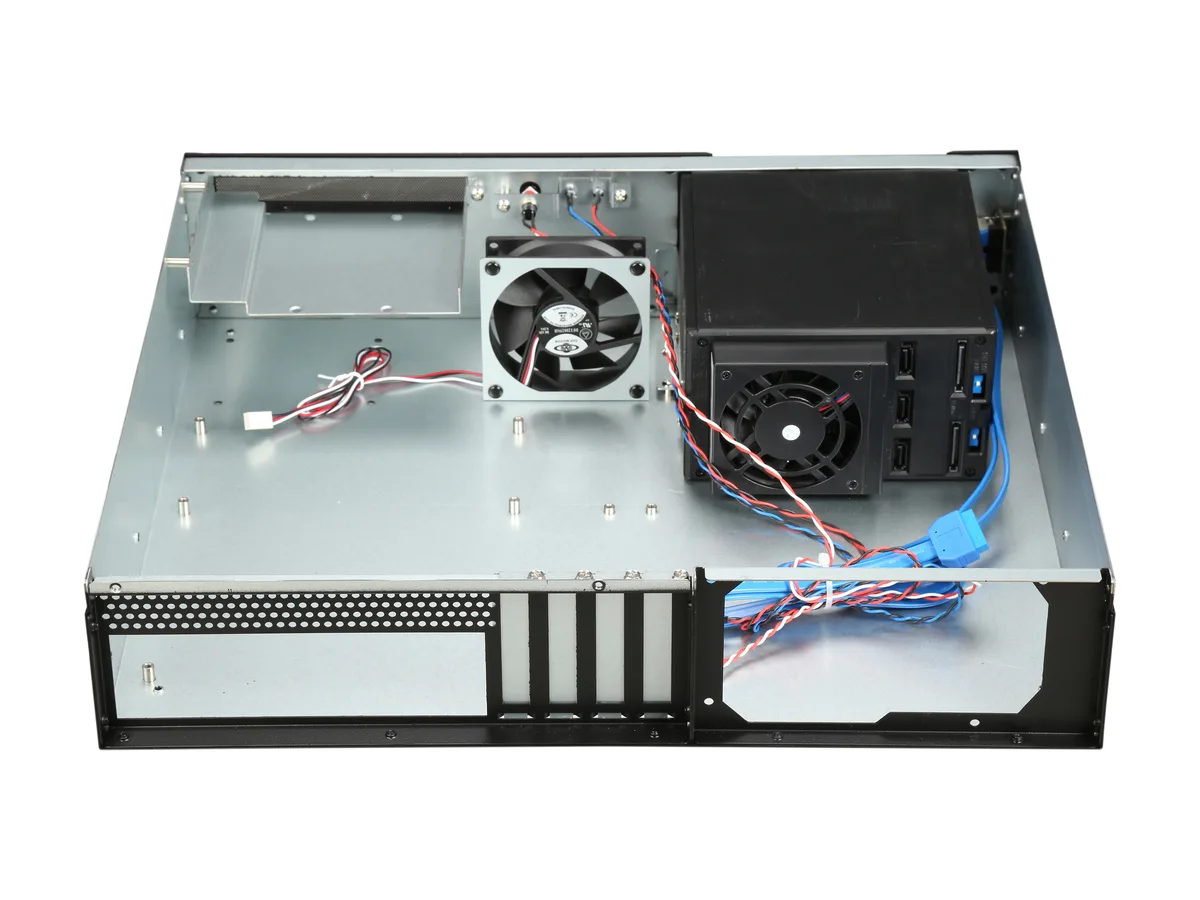

A 2U rackmount server chassis with three trayless hot-swap 3.5″ bays, one internal 3.5″ bay, one internal 2.5″ bay, four low-profile expansion slots, a slim 5.25″ optical bay.

  • Chassis TypeRackmount
  • Form Factor2U
  • ColorBlack
  • Case MaterialAluminum / Steel
  • Motherboard Compatibility9.6 x 9.6 (microATX, mini-ITX)
  • Hot-Swap Drive Bays3 x 3.5"
  • Three trayless hot-swap bays for quick 3.5″ drive changes
  • Rackmount or desktop orientation fits any space
  • MicroATX and mini-ITX boards mount on 9.6″ layout
  • Front USB 3.0 ports give fast external access
  • Single 80 mm fan provides baseline airflow

2U rackmount chassis with three hot-swap bays

The iStarUSA D-230HN-T is a 2U rackmount server chassis built from aluminium and steel. It accepts microATX or mini-ITX motherboards up to 9.6 x 9.6 inches and provides three trayless 3.5-inch hot-swap bays at the front. The unit can be used in a rack or stood upright on a desktop.

Upgrade from fixed-cage cases

Swapping from a chassis that requires drive trays and screws lets you exchange drives in seconds without tools. The jump is worth it when uptime matters and you need to replace or rotate SAS or SATA drives while the system stays powered on.

Four drives total with low-profile expansion

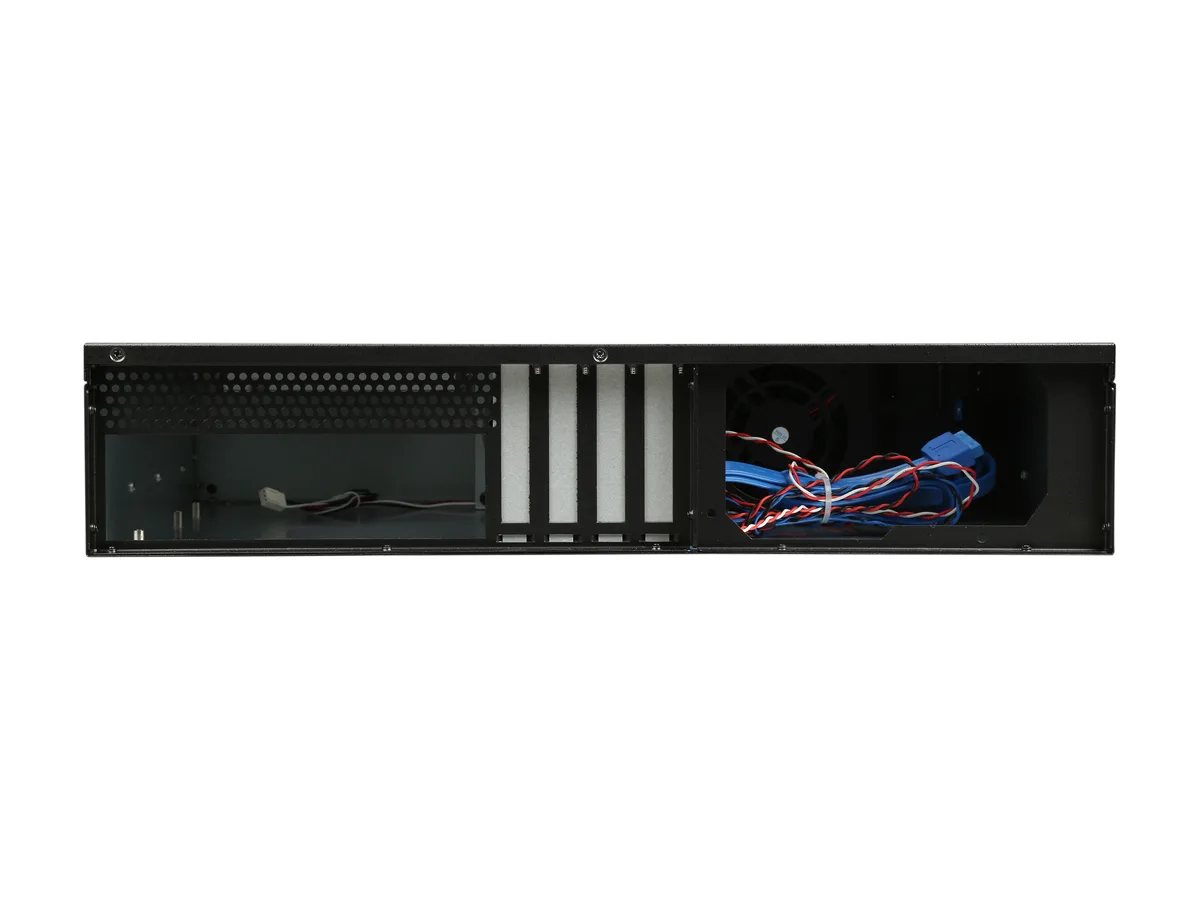

Three hot-swap bays plus one internal 3.5-inch bay and one internal 2.5-inch bay give room for four drives. Four low-profile expansion slots handle add-in cards such as RAID controllers or NICs. The single 80mm fan and front USB 3.0 ports cover basic airflow and peripheral access.

Punti di forza

  • Three trayless hot-swap bays for quick 3.5″ drive changes
  • Rackmount or desktop orientation fits any space
  • MicroATX and mini-ITX boards mount on 9.6″ layout
  • Front USB 3.0 ports give fast external access
  • Single 80 mm fan provides baseline airflow

Caratteristiche tecniche

BrandiStarUSA
ModelD-230HN-T
Chassis TypeRackmount
Form Factor2U
ColorBlack
Case MaterialAluminum / Steel
Motherboard Compatibility9.6 x 9.6 (microATX, mini-ITX)
Hot-Swap Drive Bays3 x 3.5"
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays1
Expansion Slots4 (Low profile)
External Slim Drive Bays1 x Slim 5.25" OpticalX
Front Ports2 x USB 3.0
80mm Fans1
FeaturesBlack HDD Handle
3x Hotswappable and Trayless 3.5" Drive Bays
Rackmount or Desktop Convertible
Compatible with PS2 or PS3 Power Supply
Slim Optical Drive Bay Available
Aluminum Sleek Front Panel
Front 2x USB 3.0 ports
Material:
Material of Front Bezel: Aluminum
Material of Handle: Aluminum
Material of Main Chassis: SGCC 0.8mm
Note: Fits standard ATX power supply with length no more than 140mm.
Dimensions18.98" x 3.48" x 15.03"
Peso di spedizione6.17 kg
Dimensioni del pacco546 × 521 × 224 mm

Domande su questo articolo

What motherboard sizes fit the 9.6 x 9.6 mounting pattern?

microATX and mini-ITX boards mount directly to the 9.6 x 9.6 hole pattern.

How do I install a 3.5″ drive in the trayless hot-swap bays, and what step is often missed?

Slide the drive straight into the bay until the SAS or SATA connector seats firmly; the missing step is not pushing far enough for a solid connection.

Which fan will need cleaning or replacement first in the 2U chassis?

The single 80mm fan at the front is the only moving part and will collect dust before any other component.
